Toyota COROLLA 后组合灯 — Figure 8111

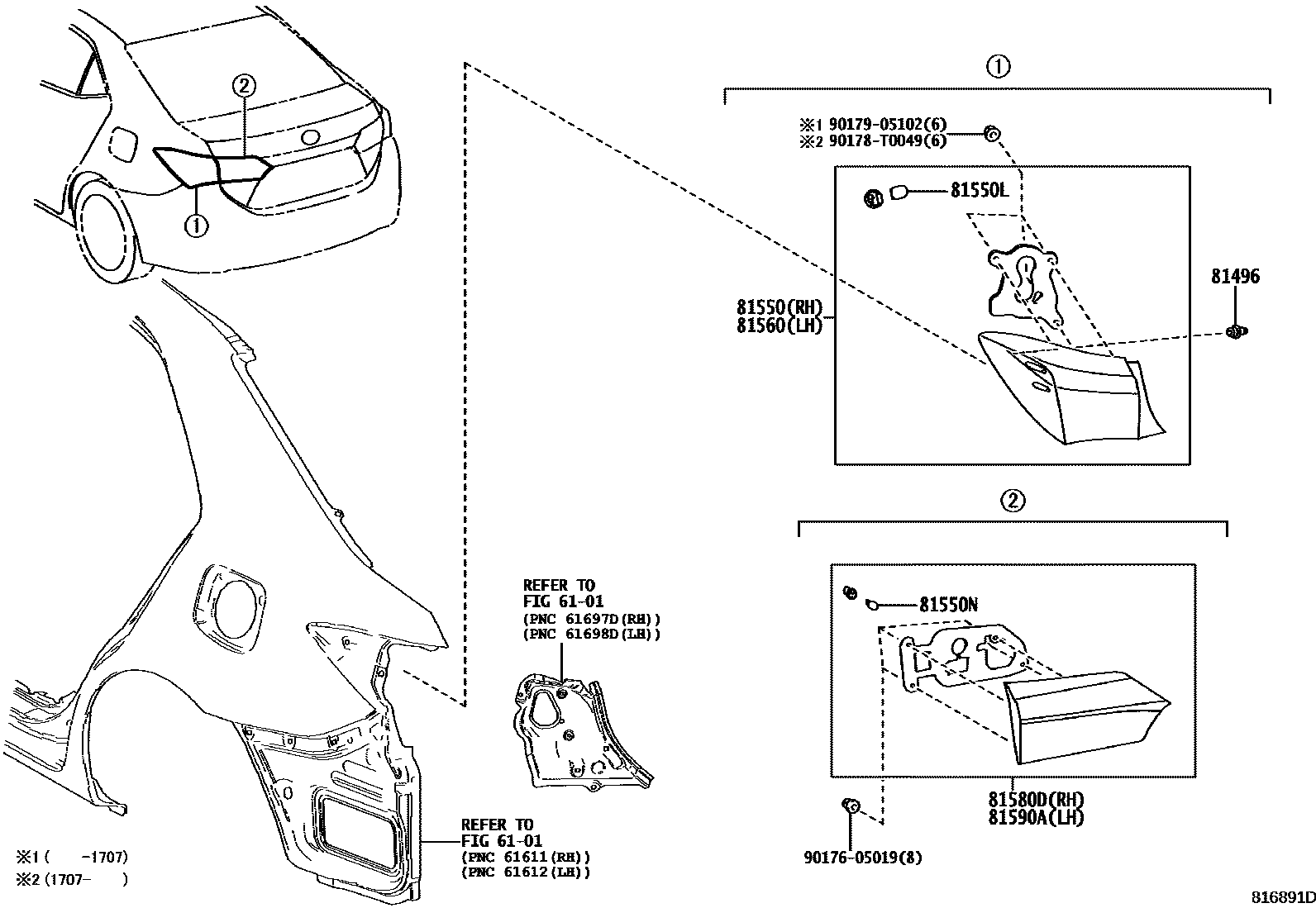

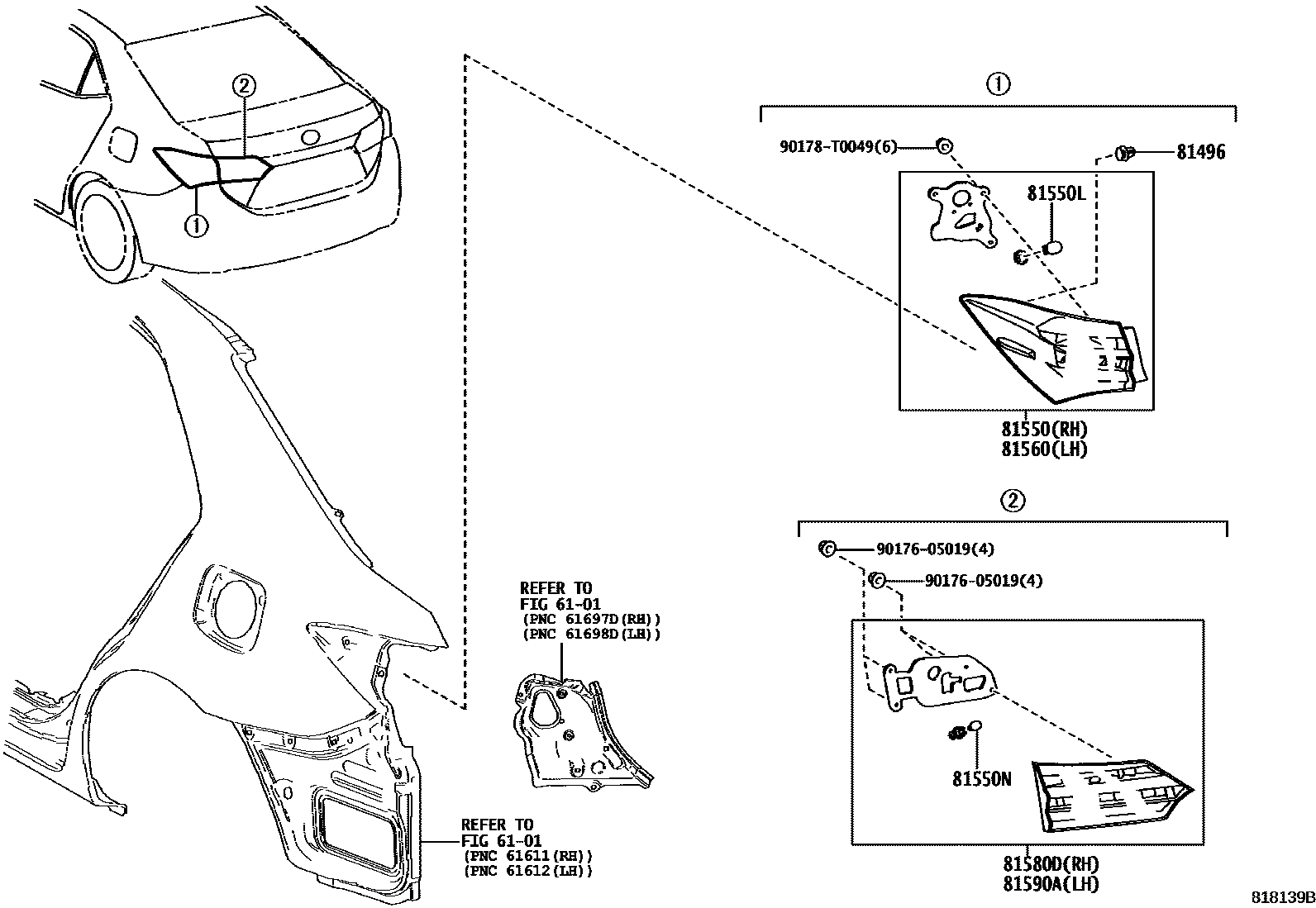

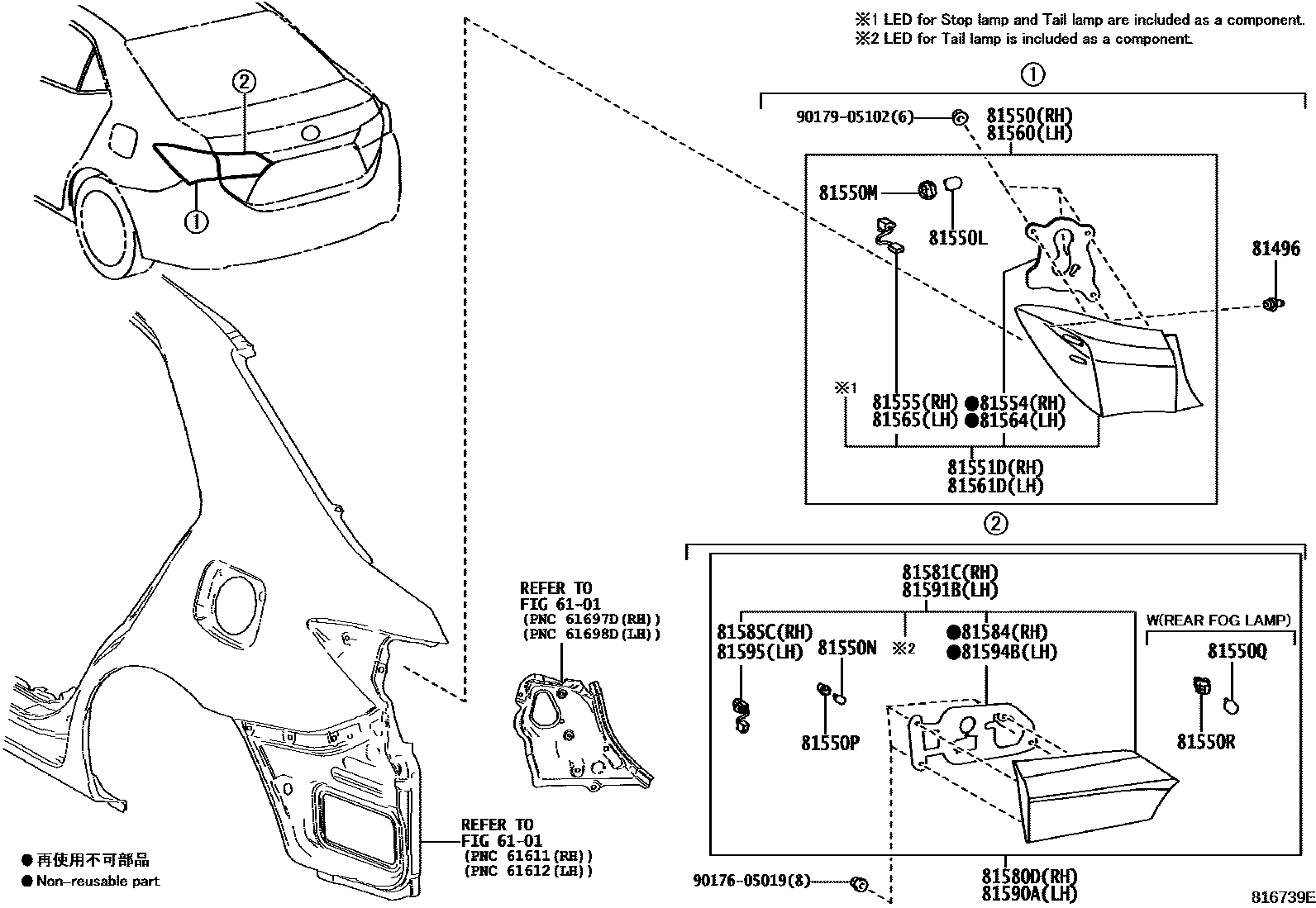

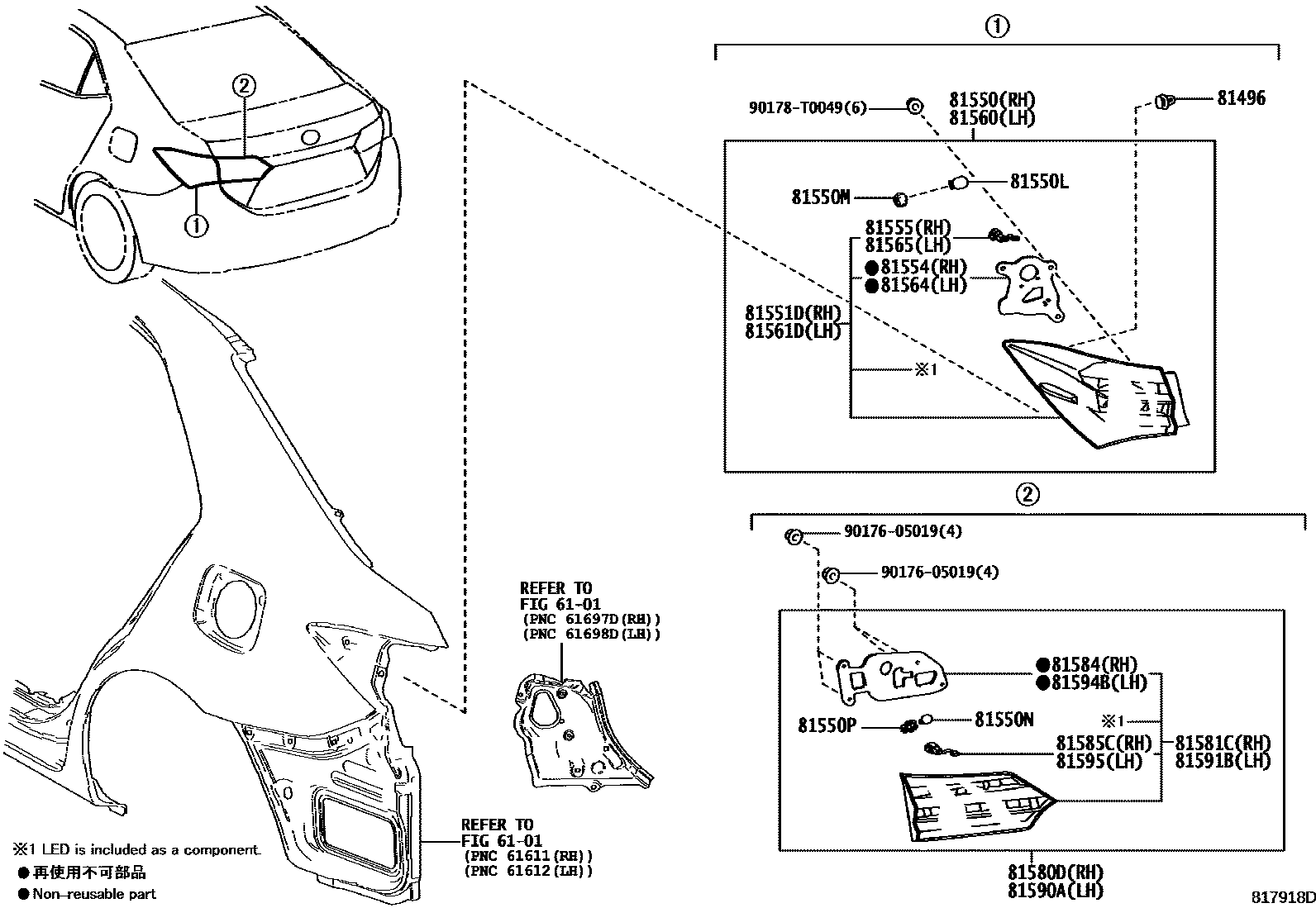

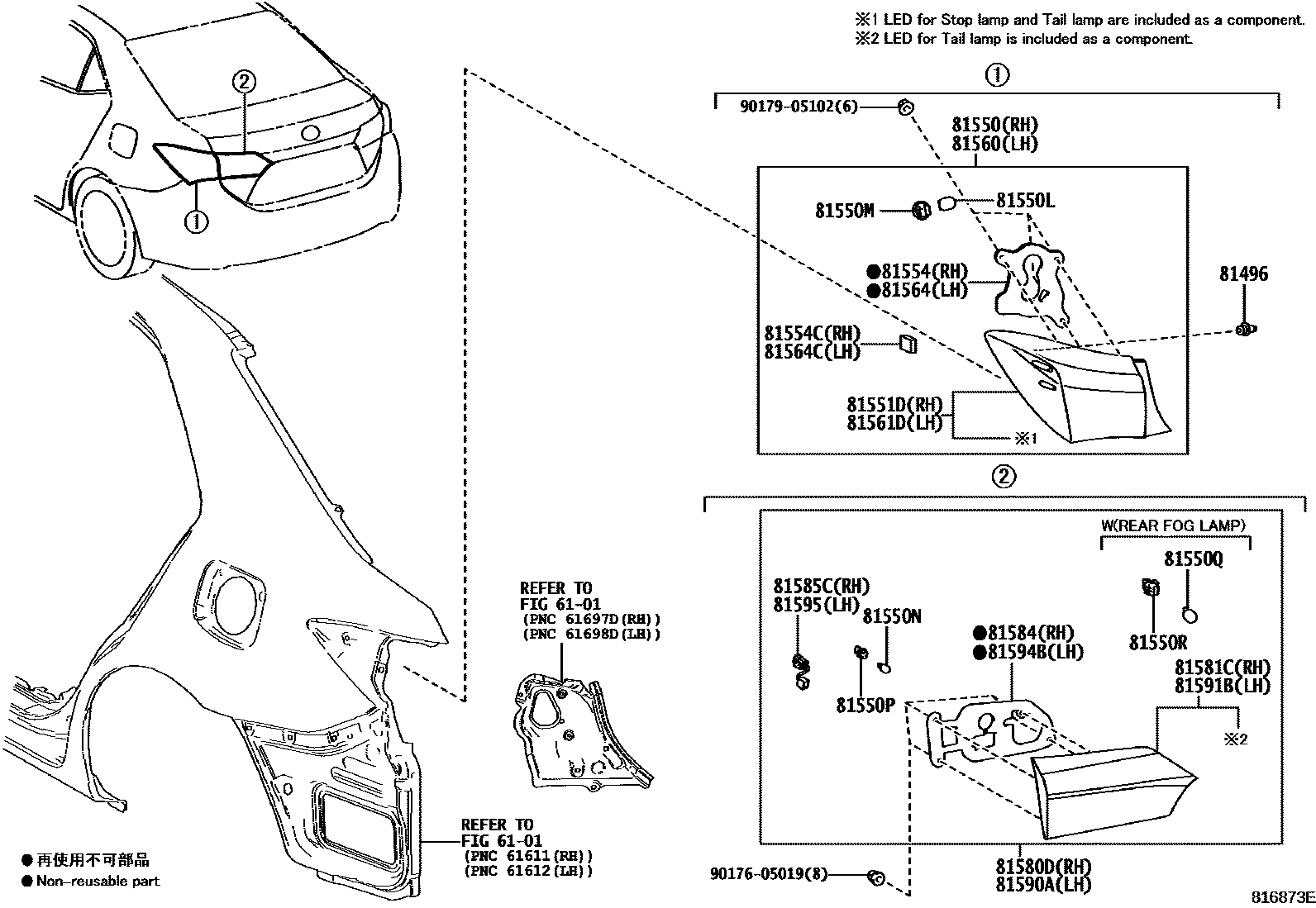

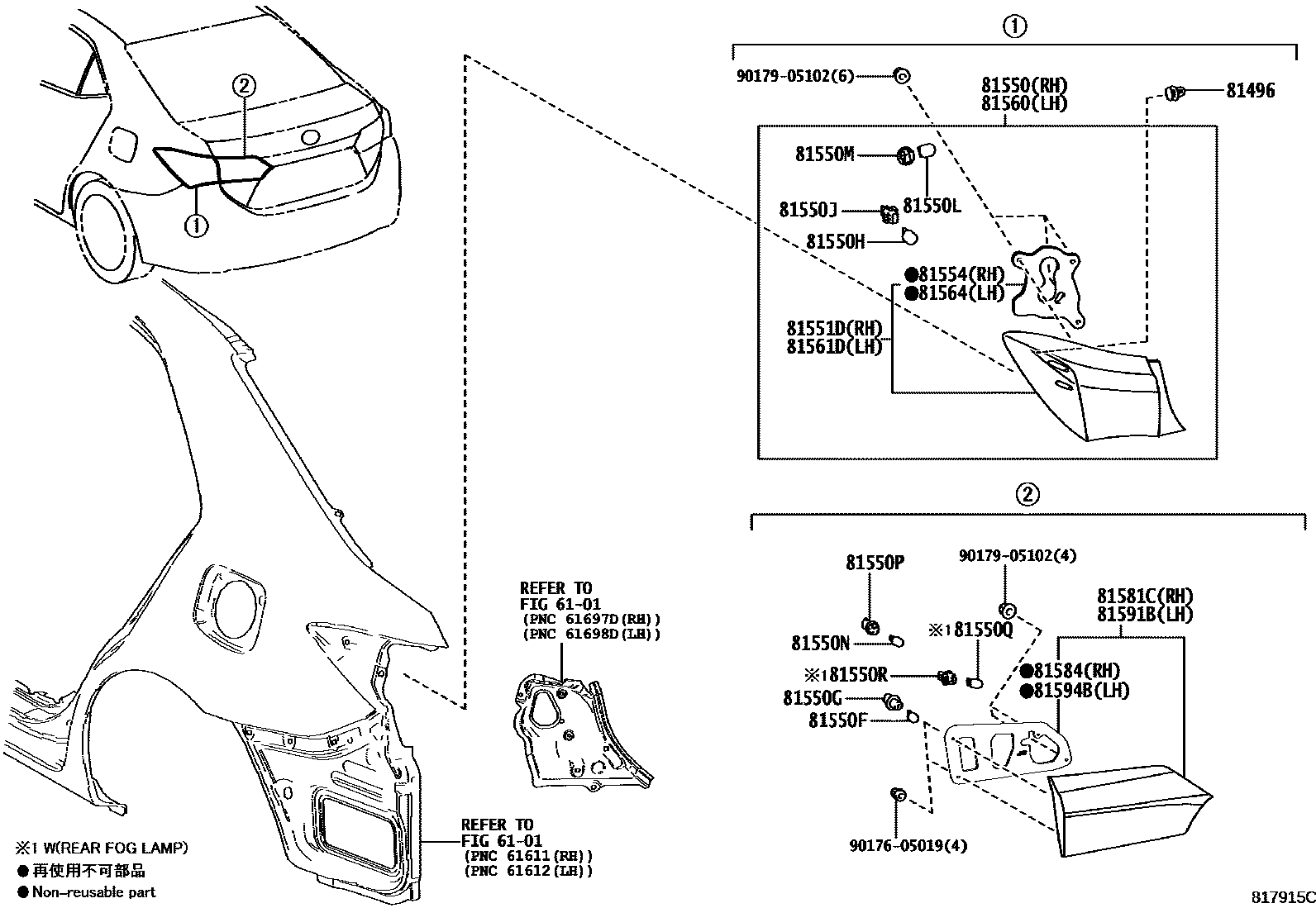

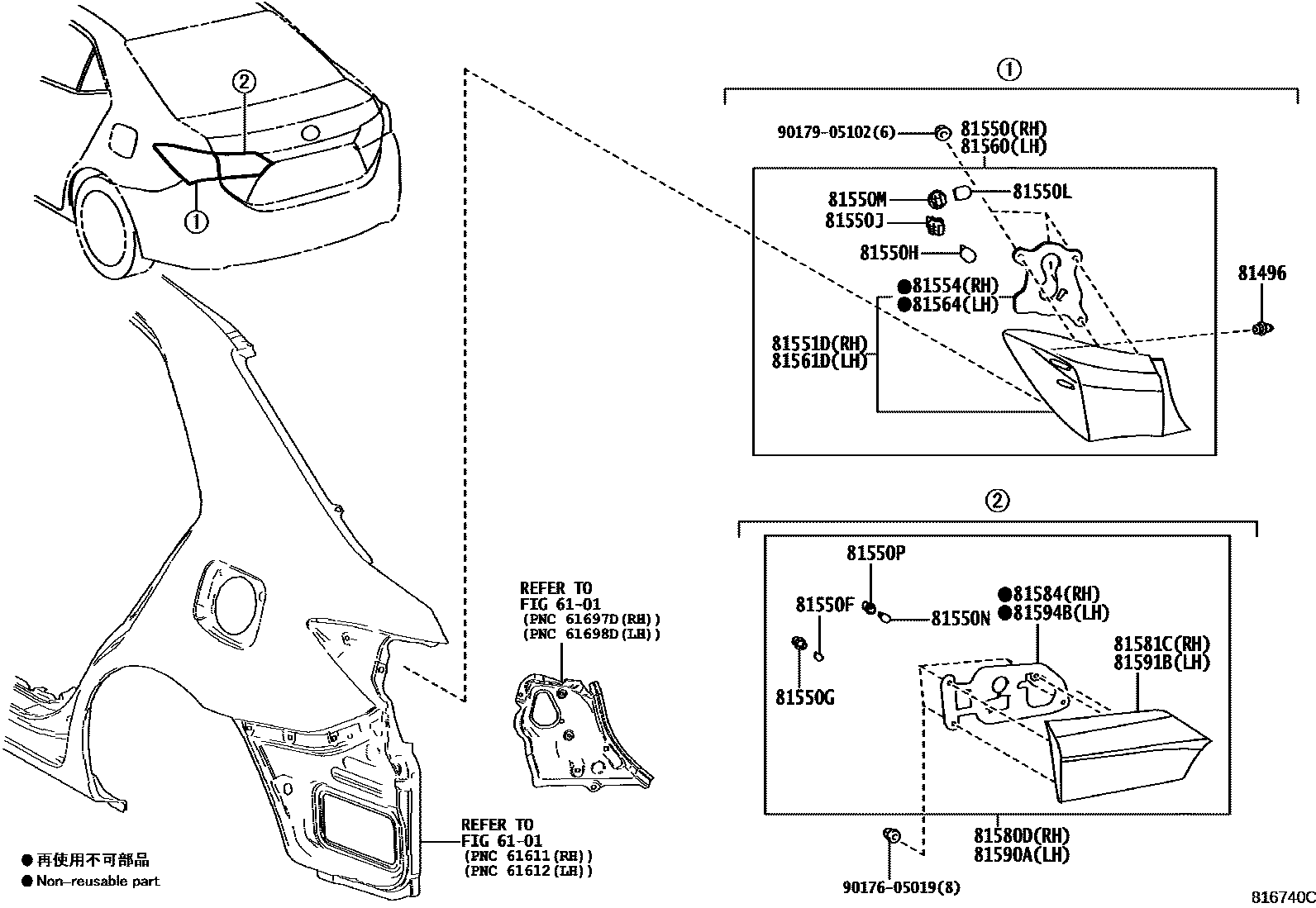

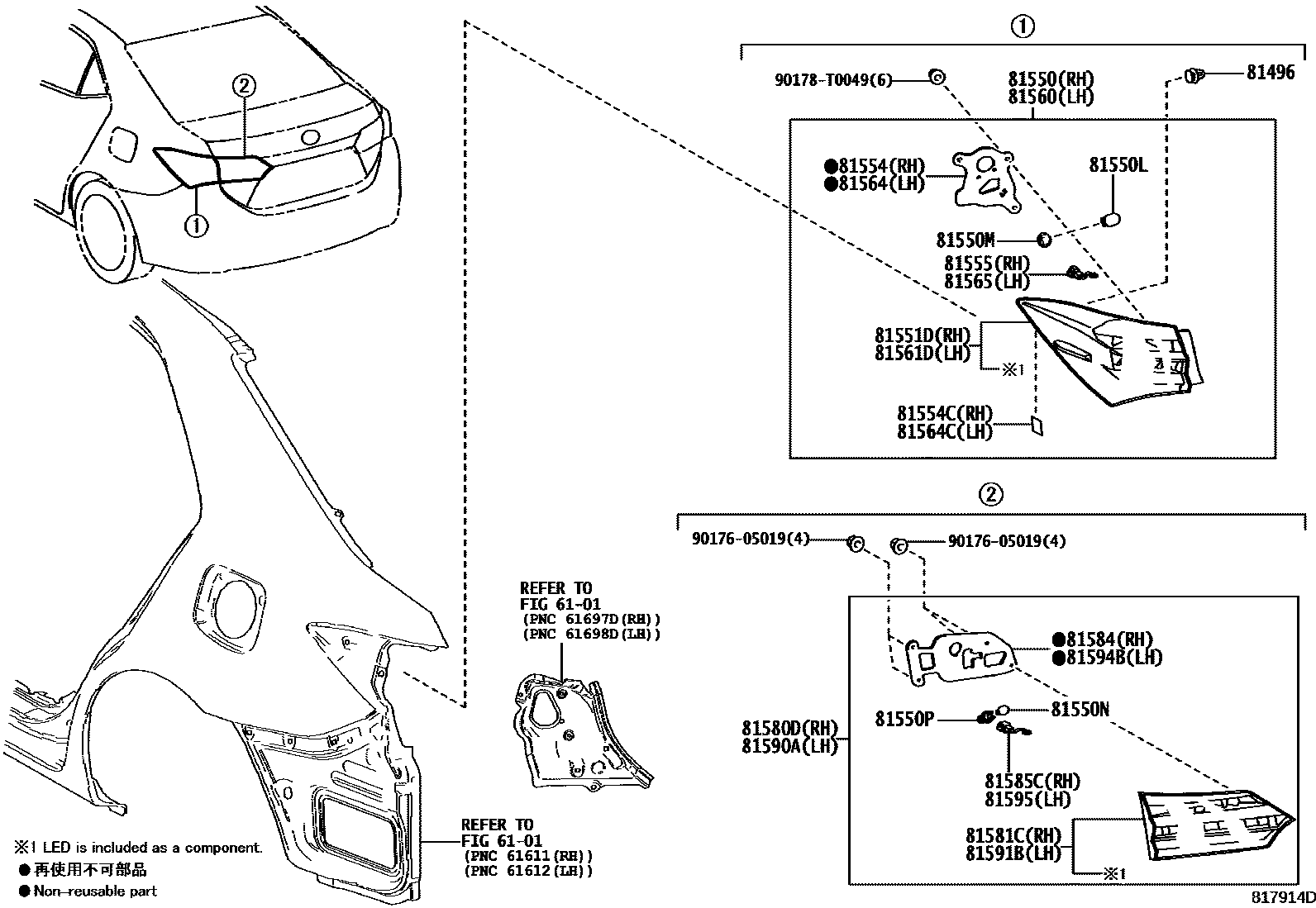

Toyota COROLLA EPC diagram 8111, 后组合灯, with 8 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550 | Right rear combination light assembly | 81550-02780 · 81550-02790 · 81550-02850 · 81550-02A10 · 81550-02B20 · 81550-02B40 · 81550-02B50 · 81550-02C40 · 81550-02D60 |
| 81550F | tail light bulb | 99132-12050 |
| 81550G | Tail light lamp holder | 90075-60077 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60079 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 · 90075-60088 |
| 81550N | reversing light bulb | 90981-11059 · 90981-WB019 |
| 81550P | Reversing light lamp holder | 90075-60001 · 90075-60066 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81550R | Rear fog light lamp holder | 90075-60003 · 90075-60085 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02780 · 81551-02790 · 81551-02850 · 81551-02B20 · 81551-02B40 · 81551-02C40 · 81551-02D60 |
| 81554 | Right rear combination lamp body gasket | 81552-02780 · 81552-02B20 · 81564-02790 · 81564-02B40 |
| 81554C | Right rear combination lamp lamp body seal | 81554-02780 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02850 · 81555-02B20 · 81555-02B40 |
| 81560 | Left rear combination light assembly | 81560-02780 · 81560-02790 · 81560-02830 · 81560-02850 · 81560-02A10 · 81560-02B20 · 81560-02B40 · 81560-02B50 · 81560-02D60 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02780 · 81561-02790 · 81561-02830 · 81561-02850 · 81561-02B20 · 81561-02B40 · 81561-02D60 |
| 81564 | Left rear combination lamp body gasket | 81552-02780 · 81552-02B20 · 81564-02790 · 81564-02B40 |
| 81564C | Left rear combination lamp body seal | 81554-02780 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-02830 · 81565-02B20 · 81565-02B40 |
| 81580D | Right rear light assembly | 81580-02550 · 81580-02551 · 81580-02560 · 81580-02570 · 81580-02710 · 81580-02711 · 81580-02760 · 81580-02810 · 81580-02A70 · 81580-02A80 · 81580-02A90 · 81580-02B00 · 81580-02D00 |
| 81581C | Right rear light lampshade and lamp body | 81581-02520 · 81581-02550 · 81581-02551 · 81581-02560 · 81581-02570 · 81581-02710 · 81581-02711 · 81581-02760 · 81581-02A70 · 81581-02A80 · 81581-02A90 · 81581-02D00 |
| 81584 | Right rear light seal | 81584-02520 · 81584-02550 · 81584-02570 · 81584-02710 · 81584-02A70 · 81584-02A90 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02550 · 81585-02710 · 81585-02A70 · 81585-02A80 · 81585-02A90 |
| 81590A | Left rear light assembly | 81590-02550 · 81590-02551 · 81590-02570 · 81590-02660 · 81590-02710 · 81590-02820 · 81590-02890 · 81590-02A70 · 81590-02A90 · 81590-02B00 · 81590-02D00 |
| 81591B | Left rear light shade and body | 81591-02530 · 81591-02550 · 81591-02551 · 81591-02570 · 81591-02660 · 81591-02710 · 81591-02890 · 81591-02A70 · 81591-02A90 · 81591-02D00 |
| 81594B | Left rear light seal | 81584-02550 · 81584-02570 · 81584-02710 · 81584-02A70 · 81584-02A90 · 81594-02520 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-02550 · 81585-02660 · 81585-02710 · 81595-02A70 · 81595-02A90 |
