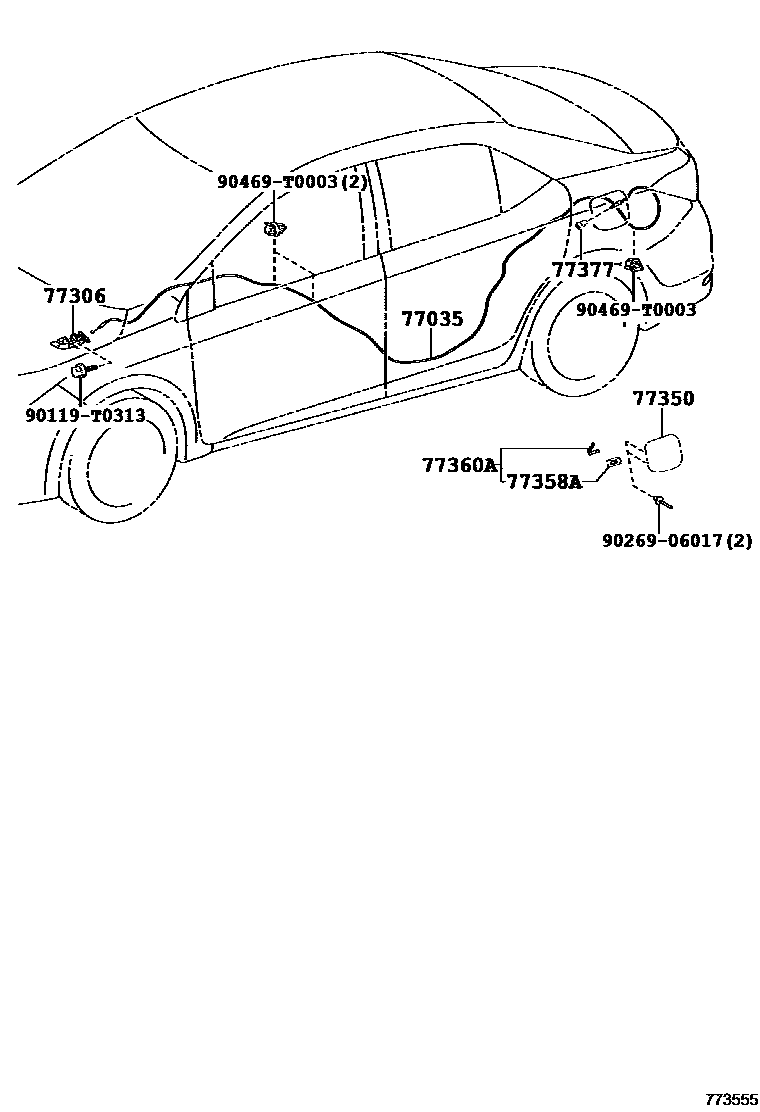

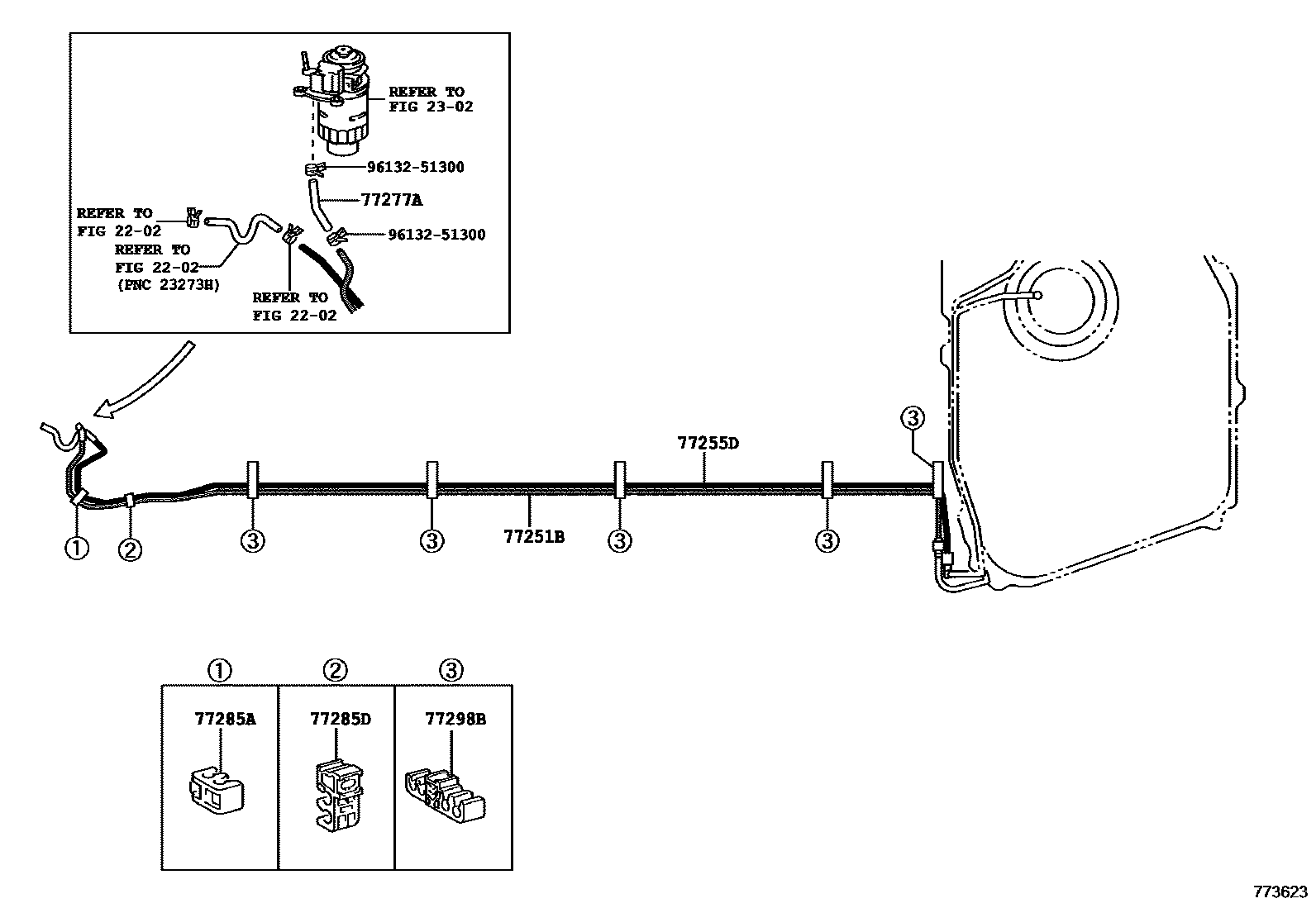

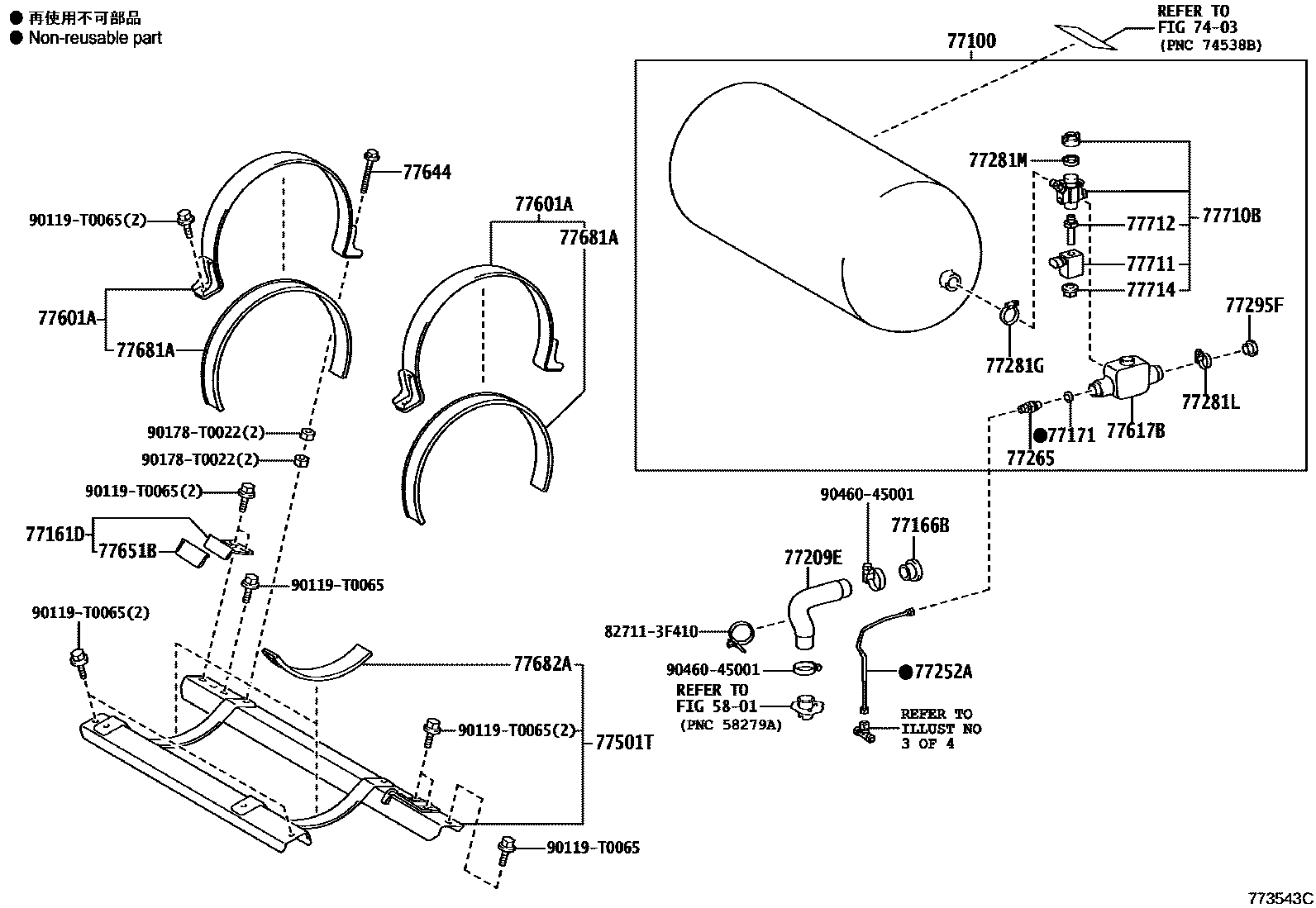

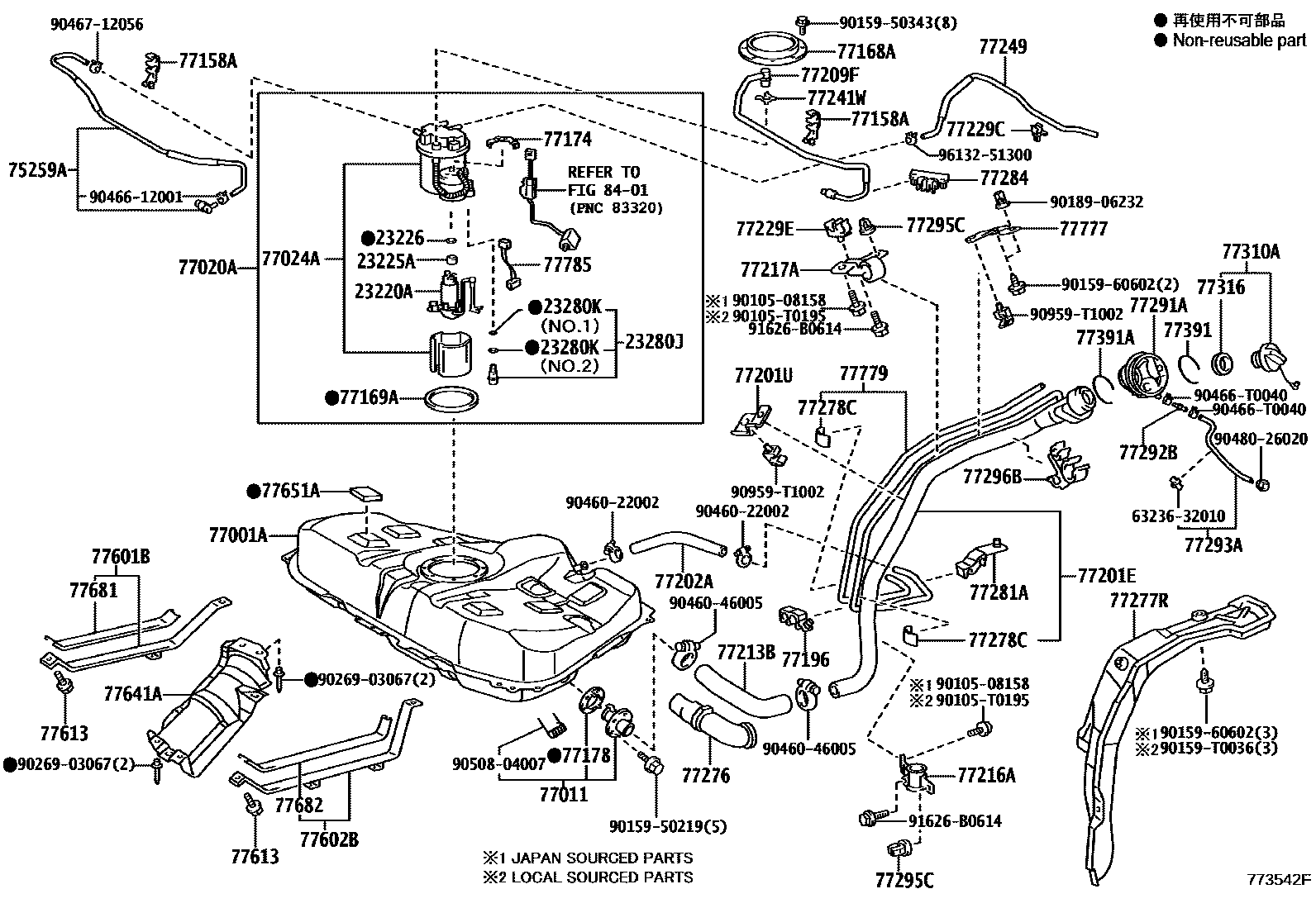

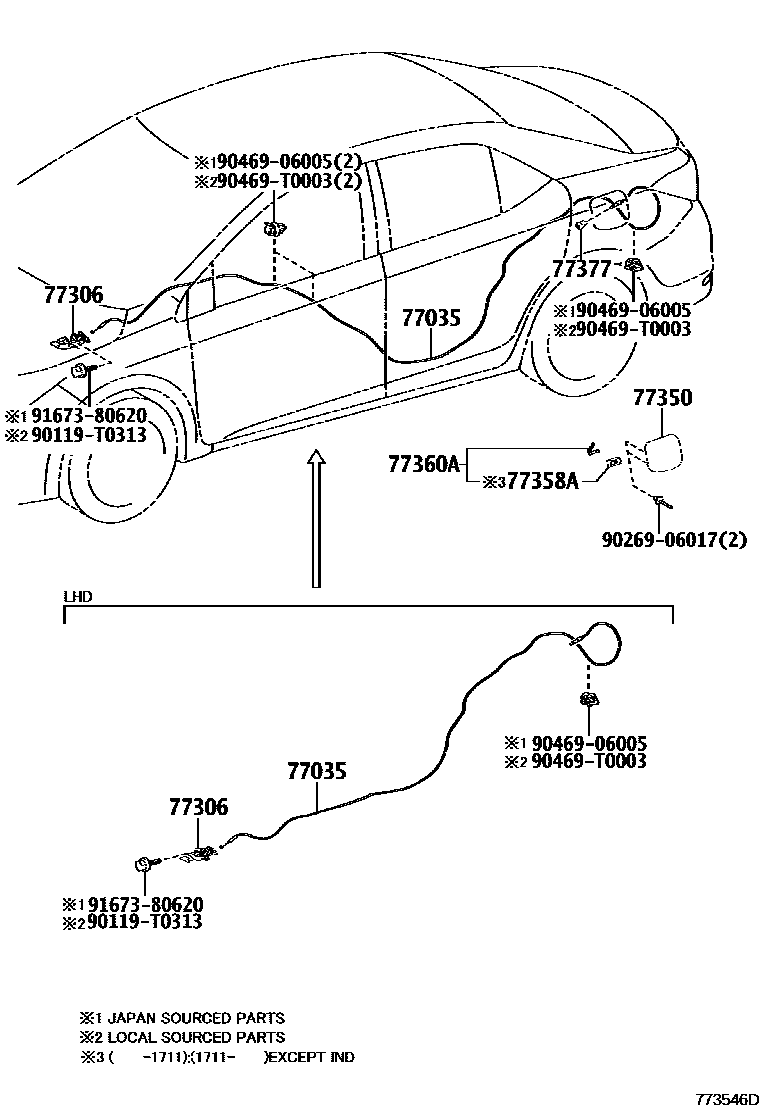

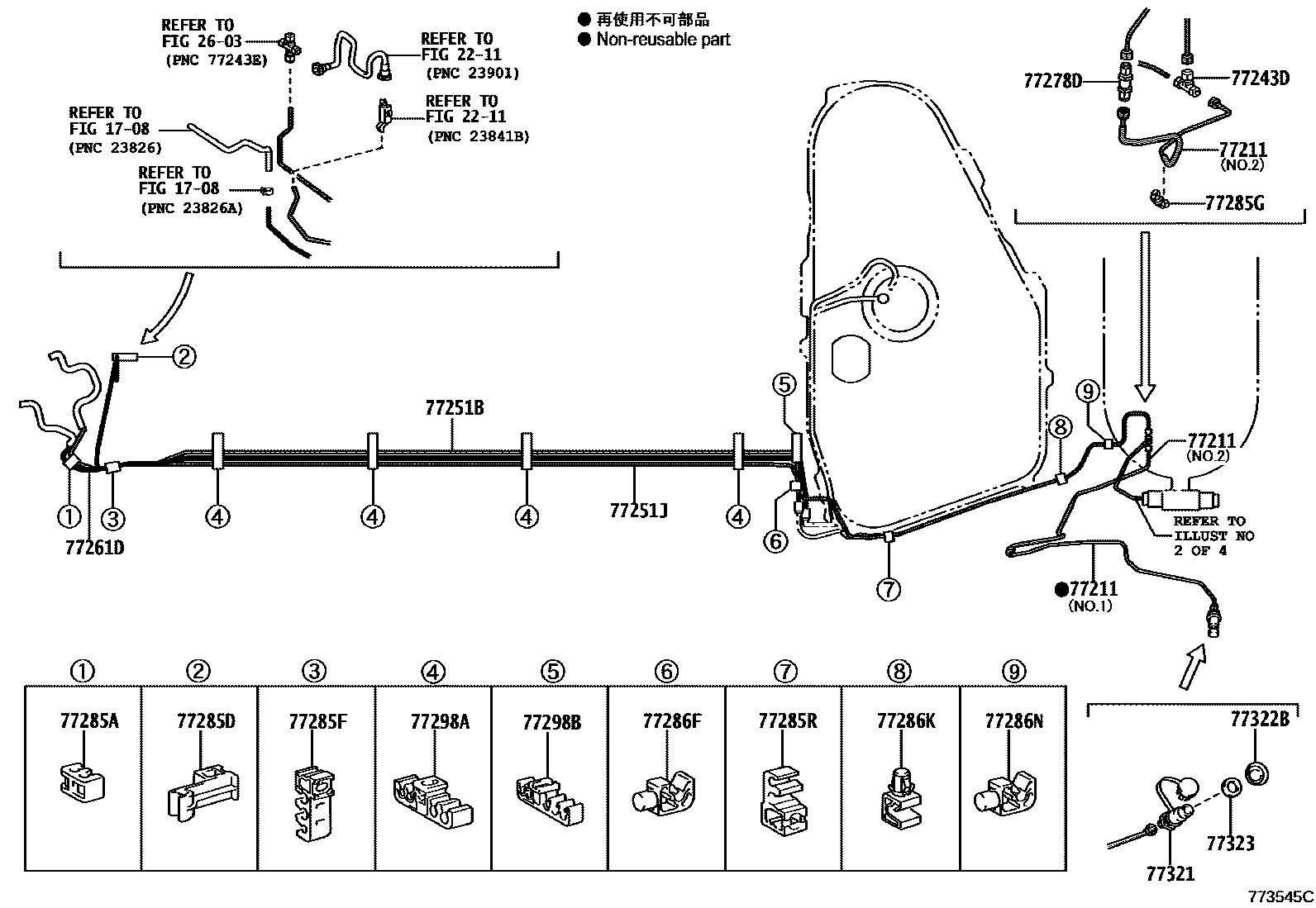

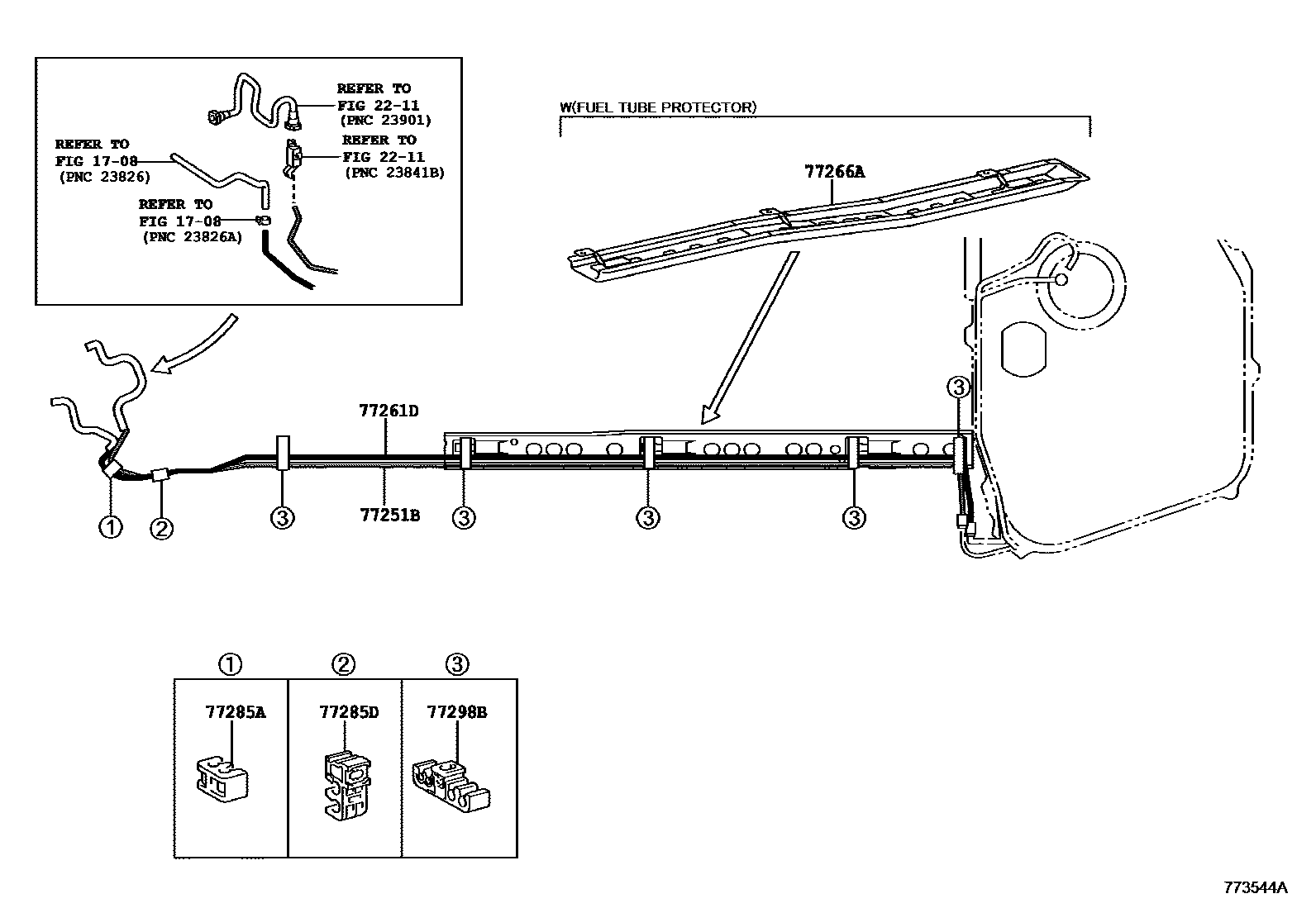

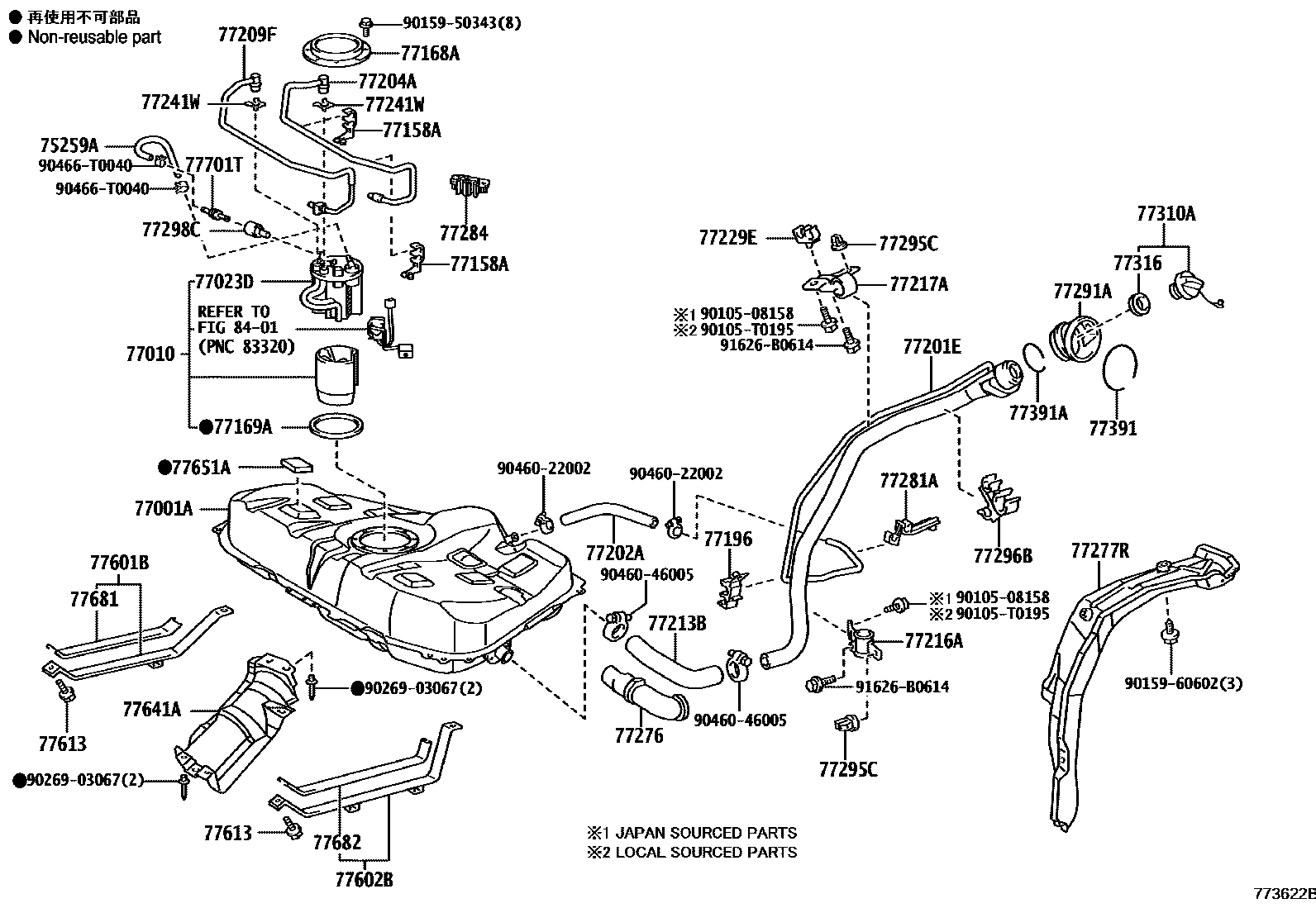

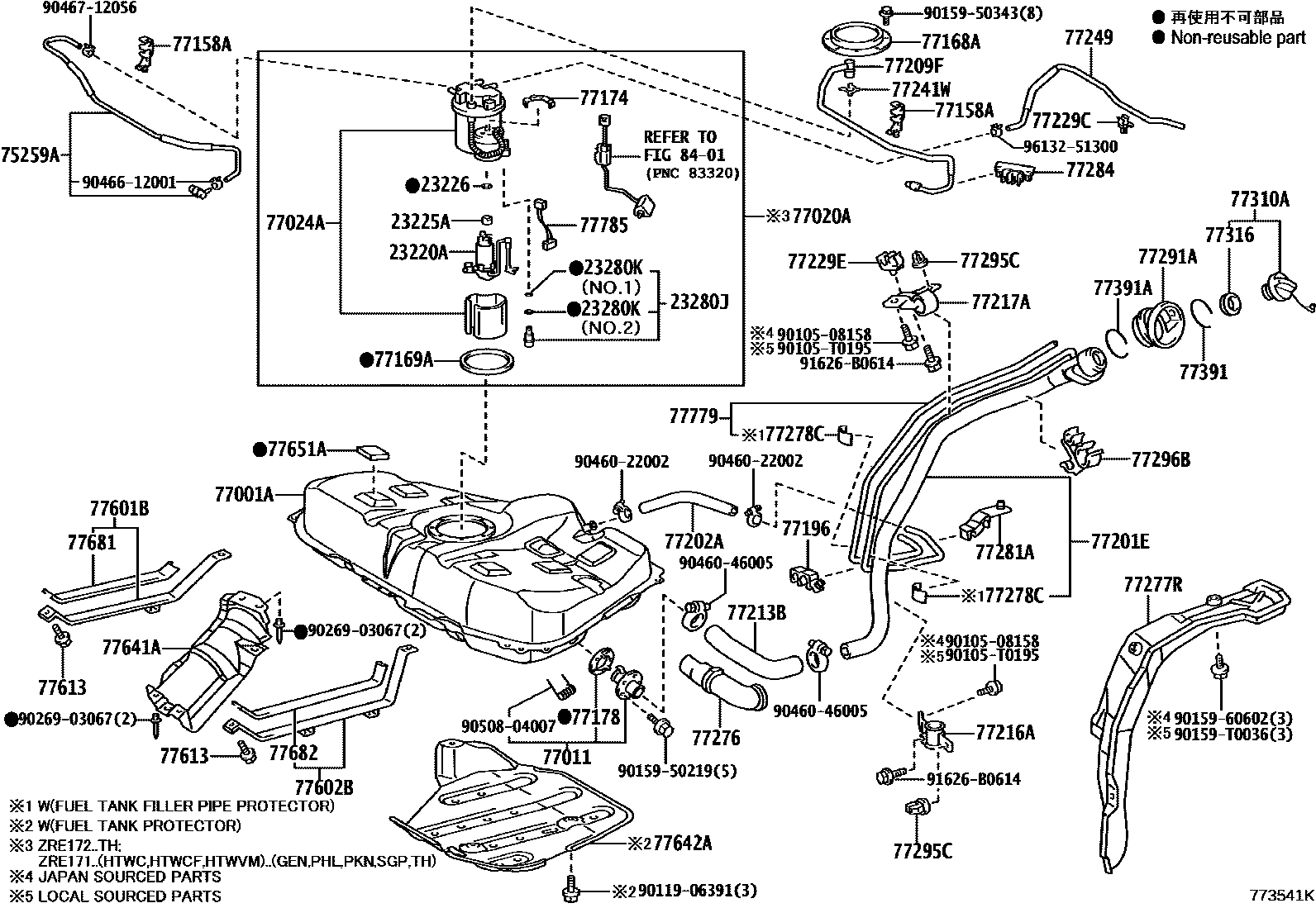

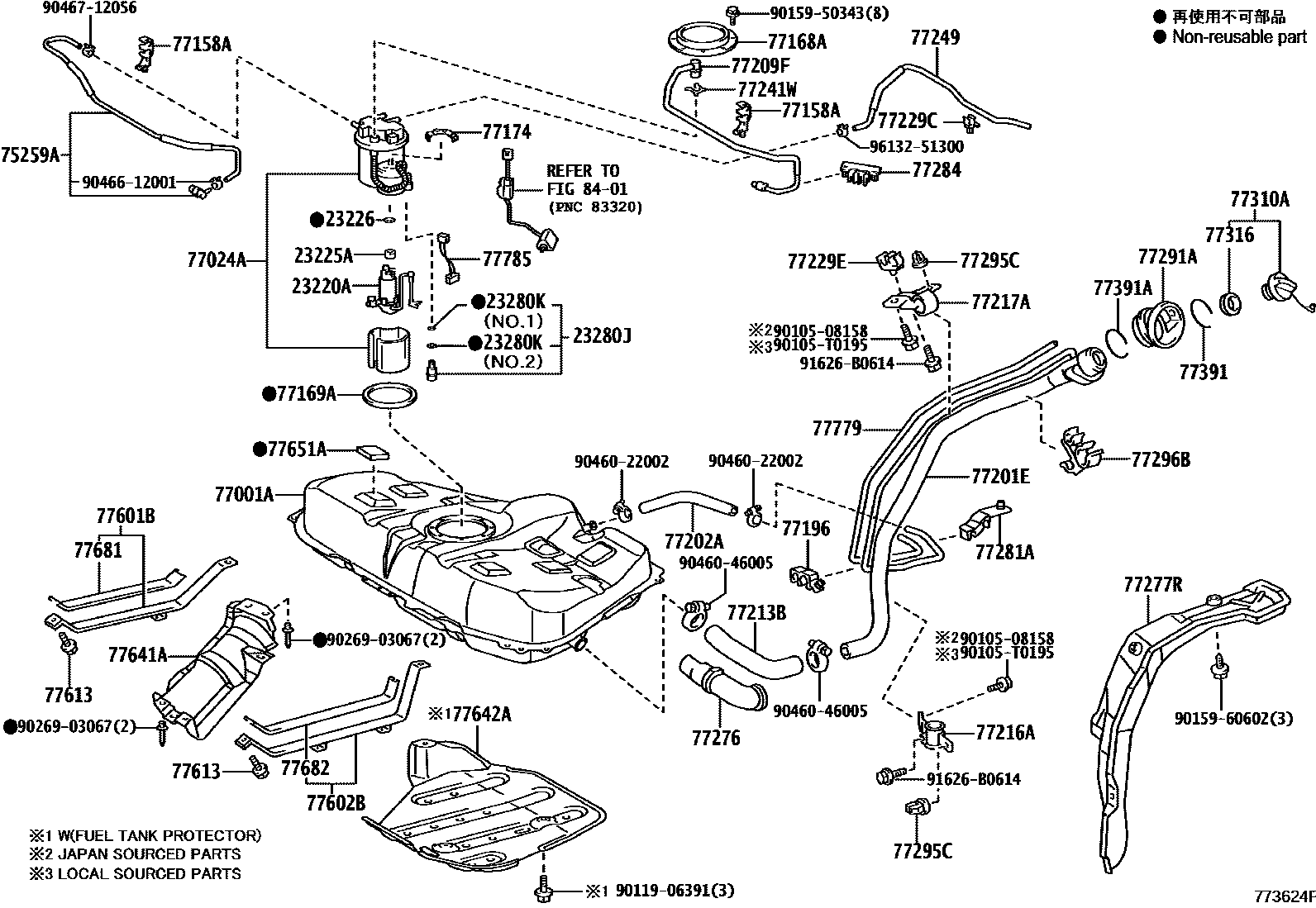

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 10 images and 107 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0M060 · 23220-0M061 · 23220-0T170 · 23220-0T171 · 23220-0T210 · 23220-0T211 · 23220-0T220 · 23220-0T221 · 23220-0T230 · 23220-0T231 · 23220-0T240 · 23220-0T241 · 23220-0T250 · 23220-0T251 |
| 23225A | fuel pump septum | 23225-0T020 · 23225-0V030 |
| 23226 | O-ring (for fuel pump) | 90301-08019 · 90301-08020 · 90301-T0035 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-37010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-04017 · 90301-15024 · 90301-15026 |
| 75259A | fuel hose | 77259-02060 · 95337-06020 |
| 77001A | Fuel tank sub-assembly | 77001-02340 · 77001-02420 · 77001-02430 · 77001-02510 · 77001-02660 · 77001-02730 · 77001-02740 · 77001-02760 |
| 77010 | Fuel tank vent pipe assembly | 77010-12380 · 77010-12390 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-02040 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02610 · 77020-02611 · 77020-02680 · 77020-02681 |
| 77023D | Fuel suction pipe filter sub-assembly | 77023-12070 |
| 77024A | Fuel absorber sub-assembly | 77024-02250 · 77024-02251 · 77024-02260 · 77024-02261 · 77024-02270 · 77024-02271 · 77024-02280 · 77024-02281 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02430 · 77035-02440 · 77035-02450 · 77035-02460 |
| 77100 | fuel tank assembly | 77001-02750 |
| 77158A | Fuel tank suction pipe bracket | 77158-20040 |
| 77161D | Fuel tank guard | 77161-02020 |
| 77166B | No. 1 fuel tank vent pipe bracket | 77166-02010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-02020 · 77168-52020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 · 77169-53010 |
| 77171 | Fuel tank pipe No. 1 gasket | 77171-02010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-02120 · 77174-02130 · 77174-02140 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-0A010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12060 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02410 · 77201-02420 · 77201-02430 · 77201-02450 · 77201-02540 |
| 77201U | Bracket (for fuel tank inlet pipe) | 77131-02150 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77204A | fuel tank return pipe | 77204-02080 |
| 77209E | Fuel drain hose sub-assembly | 77209-12300 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02200 · 77209-12240 |
| 77211 | fuel tank inlet pipe | 77211-02220 · 77211-02230 |
| 77213B | Fuel tank to filler pipe hose | 77213-32090 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02140 · 77216-02160 · 77216-02260 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02100 · 77217-02130 · 77217-02190 |
| 77229C | Snorkel clamp | 77229-12110 |
| 77229E | Snorkel clamp | 77229-12100 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77243D | No. 1 fuel pipe joint | 77243-02040 |
| 77249 | fuel drain hose | 77249-02030 |
| 77251B | main fuel pipe | 77251-02710 · 77251-02720 · 77251-02730 · 77251-02740 · 77251-02750 · 77251-02760 · 77251-02A00 |
| 77251J | No. 1 main fuel pipe | 77251-02700 |
| 77252A | No. 2 main fuel pipe | 77252-02020 |
| 77255D | fuel return pipe | 77255-02360 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02510 · 77261-02520 · 77261-02530 · 77261-02540 · 77261-02550 · 77261-02670 |
| 77265 | Main fuel line connector | 77265-02020 |
| 77266A | No. 1 fuel line protection device | 77266-02040 |
| 77276 | Fuel hose protector | 77276-12120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 95337-08019 |
| 77277R | Fuel tank filler pipe protection device | 77277-02190 · 77277-02200 · 77277-02220 · 77277-02250 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-02080 |
| 77278D | Check valve with bracket | 77278-02020 |
| 77281A | Fuel filler pipe clamp | 77281-12110 |
| 77281G | fuel hose clamp | 77281-02110 |
| 77281L | fuel hose clamp | 77281-02130 |
| 77281M | fuel hose clamp | 77281-02120 |
| 77284 | Fuel pipe clamp | 77289-52100 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-02141 · 77285-50040 |
| 77285F | No. 1 fuel pipe clamp | 77285-02160 |
| 77285G | No. 1 fuel pipe clamp | 77285-30140 |
| 77285R | No. 1 fuel pipe clamp | 77285-02151 |
| 77286F | No. 2 fuel pipe clamp | 77286-02100 |
| 77286K | No. 2 fuel pipe clamp | 77286-02020 |
| 77286N | No. 7 fuel pipe clamp | 90959-T1002 |
| 77291A | Fuel tank filler pipe cover | 77291-02180 · 77291-02190 |
| 77292B | fuel tank drain plug cover | 77292-02020 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-02010 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77295F | fuel hose retainer | 77295-02010 |
| 77296B | No. 1 fuel line protector bracket | 77296-12070 |
| 77298A | No. 4 fuel pipe clamp | 77298-02131 |
| 77298B | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-42010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02040 · 64606-12050 · 64606-12060 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-0K020 · 77300-12020 · 77300-12030 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-0K020 · 77316-52040 |
| 77321 | Fuel inlet connector | 77321-02020 |
| 77322B | Fuel tank inlet connector No. 1 gasket | 77322-02030 |
| 77323 | Fuel tank inlet connector No. 2 gasket | 77323-02020 |
| 77350 | Fuel filler cap assembly | 77350-02160 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77360A | Fuel filler cap spring assembly | 77360-0D031 · 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-06020 · 77377-06030 · 77377-0D040 |
| 77391 | fuel inlet ring | 77391-06110 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77501T | Fuel tank bracket sub-assembly | 77501-02030 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02170 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02090 · 77601-02120 · 77601-12400 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02090 · 77602-02150 · 77602-12310 |
| 77613 | Fuel tank strap fixing bolts | 90119-10971 |
| 77617B | Fuel tank valve rear cover | 77617-02070 |
| 77641A | No. 1 fuel tank protective shell | 77641-02150 · 77641-12160 |
| 77642A | No. 2 fuel tank protective shell | 77642-02100 · 77642-12041 |
| 77644 | fuel tank bolt | 77644-02010 |
| 77651A | No. 1 fuel tank liner | 77651-02060 · 77651-20090 |
| 77651B | fuel tank liner | 77651-02120 |
| 77681 | Fuel tank right side strap seat | 77616-02050 · 77616-68010 |
| 77681A | Fuel tank strap seat | 77681-02090 |
| 77682 | Fuel tank left side strap seat | 77681-02060 · 77681-12070 |
| 77682A | No. 2 fuel tank strap seat | 77682-02050 |
| 77701T | Check valve (for main fuel tank) | 90917-10091 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-02011 |
| 77711 | Fuel replacement cock body | 77711-02010 |
| 77712 | Fuel change plug valve | 77712-02010 |
| 77714 | Fuel change cock cover | 77714-02010 |
| 77777 | Fuel pipe clamp bracket | 77777-02010 |
| 77779 | Carbon canister outlet pipe | 77779-02140 · 77779-12080 |
| 77785 | fuel pump wiring harness | 77785-02100 · 77785-02110 · 77785-02150 |
