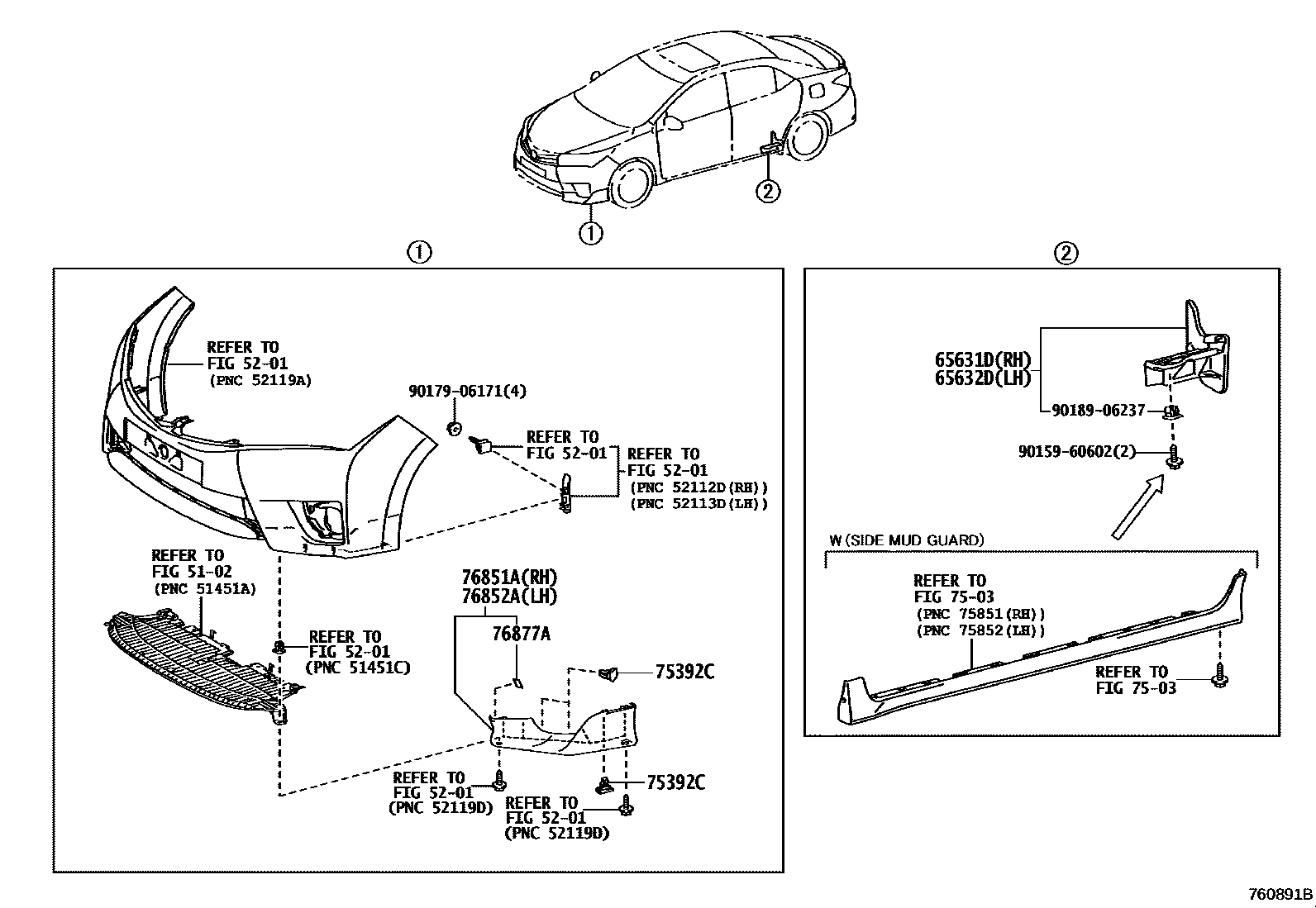

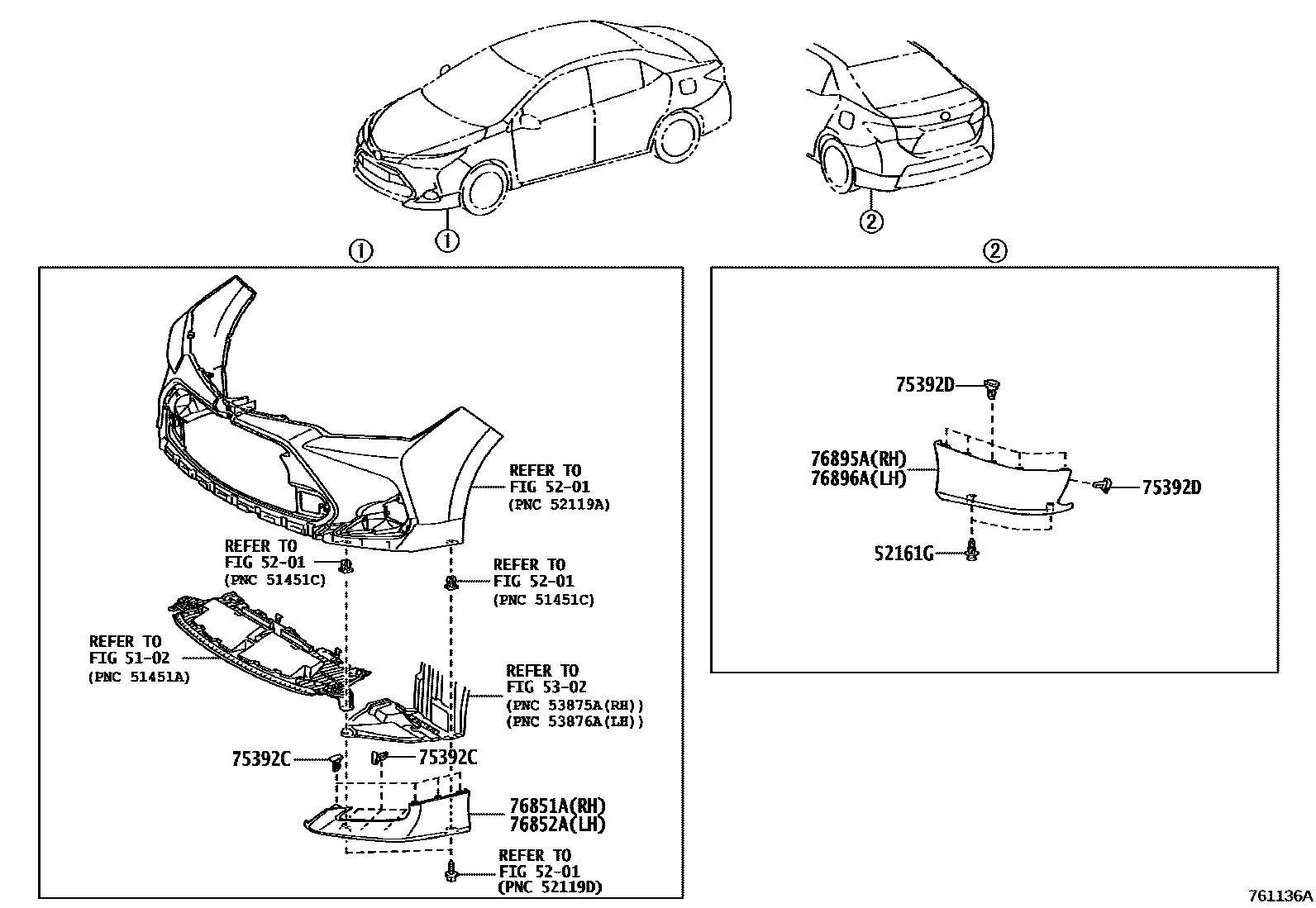

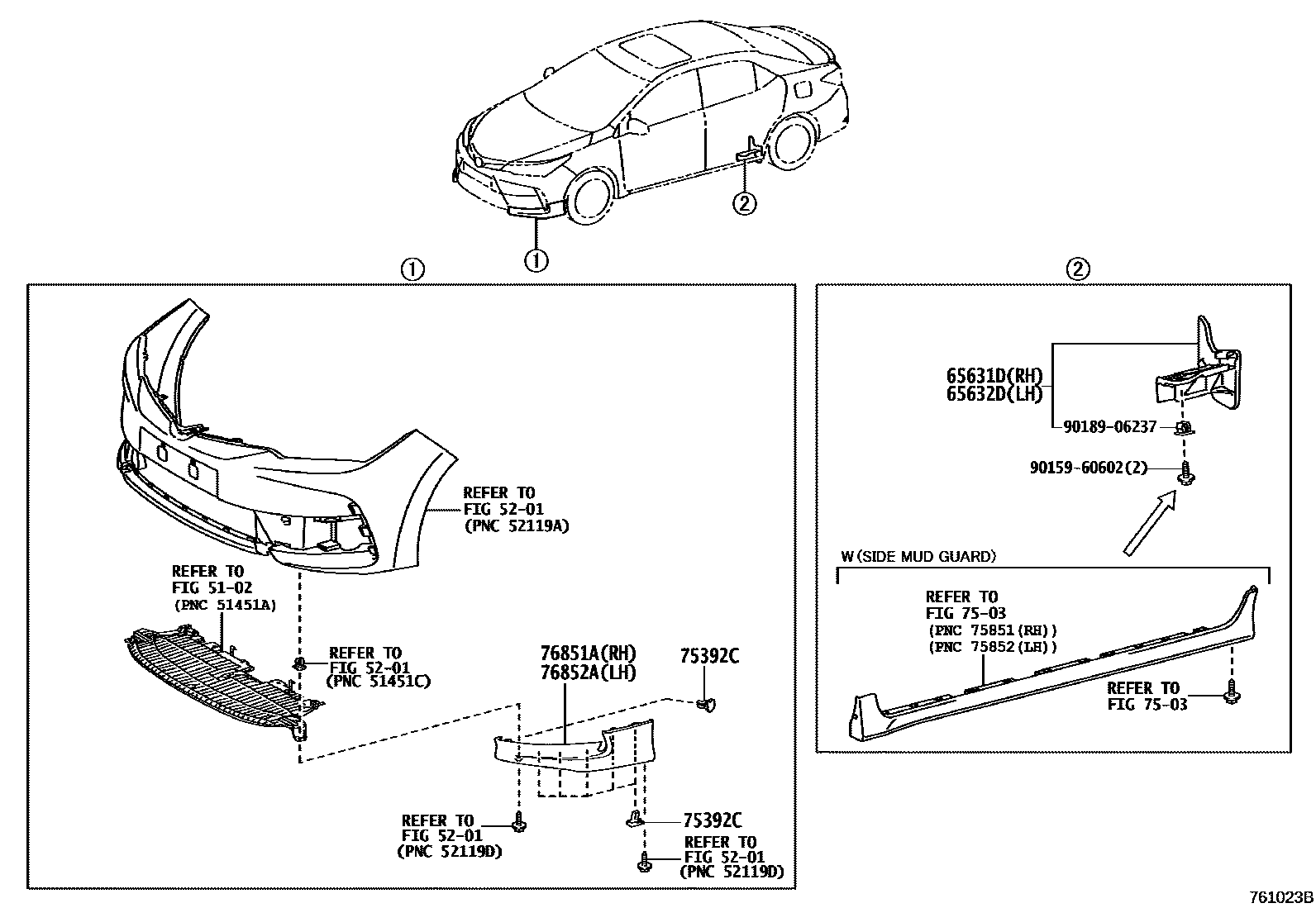

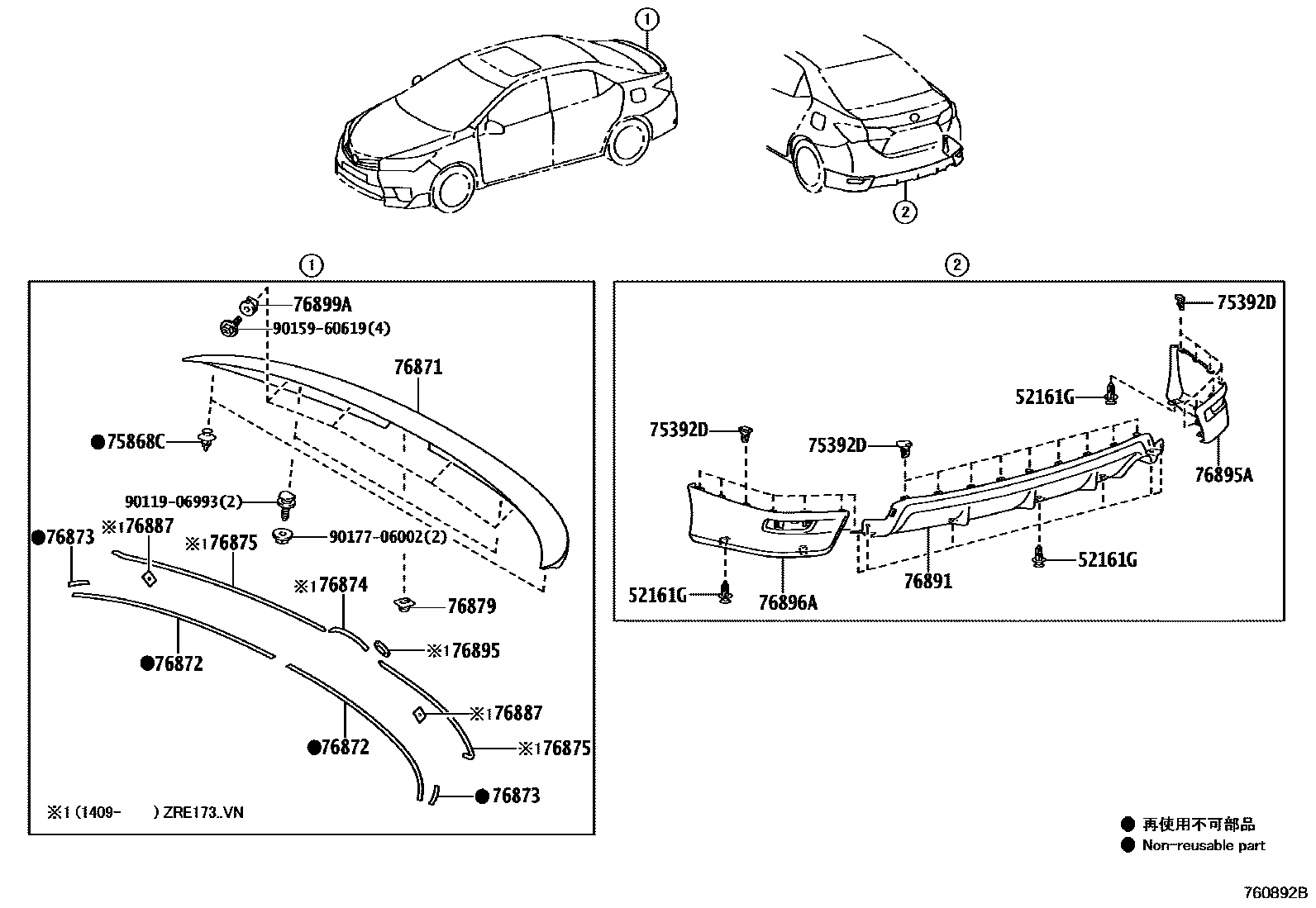

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-0K060 · 52161-20010 |
| 65631D | Right rear wheel house front panel | 65631-02260 |
| 65632D | Left rear wheel house front panel | 65632-02260 |
| 75392C | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 75392D | External protective strip fixings | 75392-0K010 · 75392-35220 |
| 75868C | No. 2 rear spoiler clip | 75868-60020 |
| 76851A | Right front spoiler cover | 76851-02910 · 76851-02913 · 76851-02916 · 76851-02917 |
| 76852A | Left front spoiler cover | 76852-02909 · 76852-02912 · 76852-02915 · 76852-02916 |
| 76871 | rear spoiler | 76871-02925 |
| 76872 | No. 1 rear spoiler protective strip | 76872-02050 |
| 76873 | No. 2 rear spoiler protective strip | 76873-02060 |
| 76874 | No. 3 rear spoiler protective strip | 76874-02070 |
| 76875 | No. 4 rear spoiler protective strip | 76875-02040 |
| 76877A | Front spoiler protection strip | 76877-02160 |
| 76879 | No. 1 rear spoiler clip | 90467-09196 |
| 76887 | Rear spoiler seal | 76887-02040 |
| 76891 | No. 1 rear spoiler | 76891-02050 |
| 76895 | No. 5 rear spoiler protective strip | 76895-02120 |
| 76895A | Right rear bumper spoiler | 76895-02915 · 76895-02919 · 76895-02920 |
| 76896A | Left rear bumper spoiler | 76896-02912 · 76896-02916 · 76896-02917 |
| 76899A | rear spoiler nut | 76899-60010 |
