Toyota COROLLA 后防护条 — Figure 7504

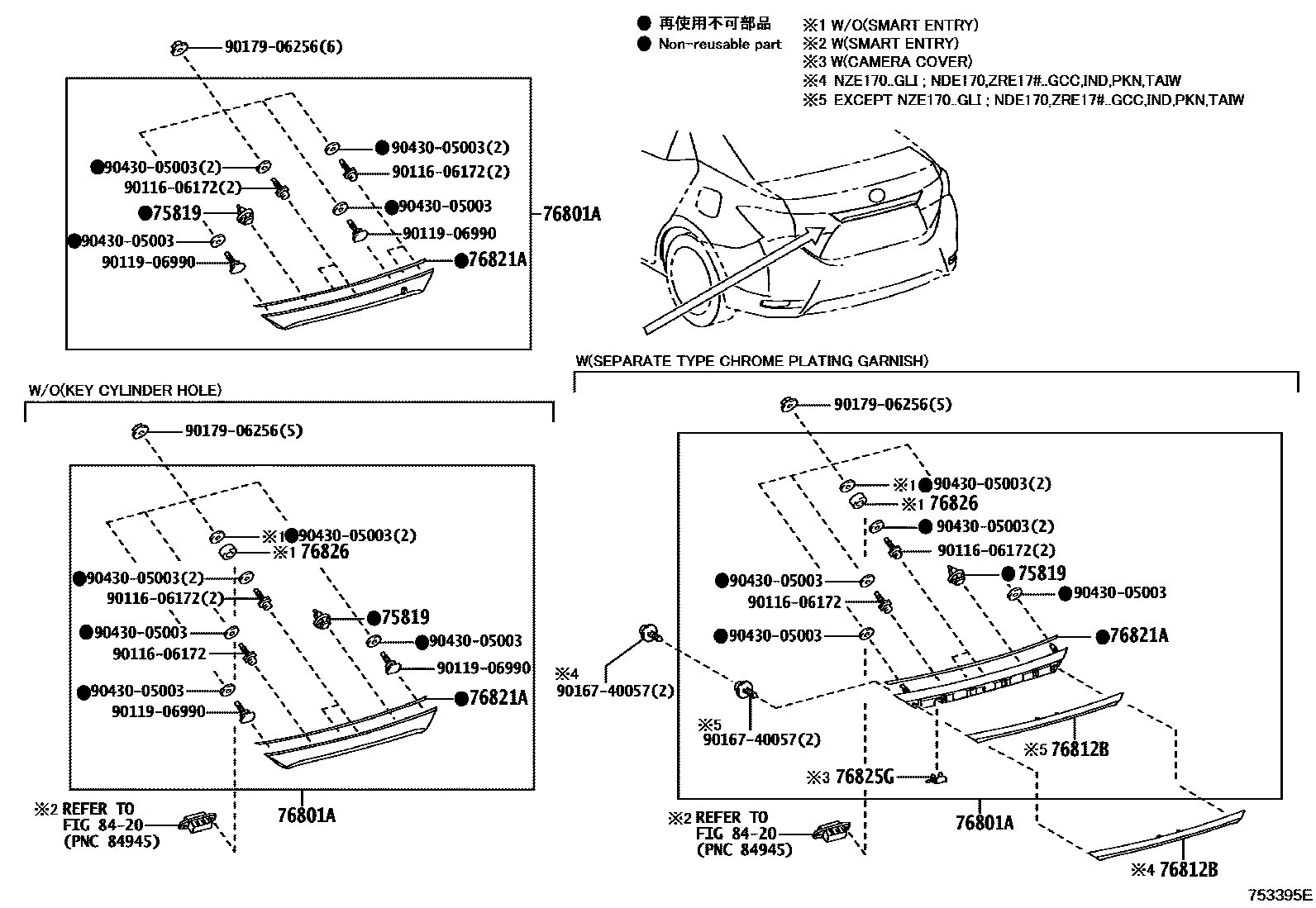

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 · 76817-60030 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02905 · 76801-02906 · 76801-02907 · 76801-02908 · 76801-02909 · 76801-02929 · 76801-02D10 · 76801-02D20 · 76801-02D30 · 76801-02D40 · 76801-02D50 · 76801-02E10 · 76801-02E30 · 76801-02E40 |
| 76812B | No. 2 suitcase door outer decorative strip | 76812-02110 · 76812-02120 |
| 76821A | Luggage door outer decorative strip protective cover | 76825-02180 · 76825-02200 |
| 76825G | No. 2 protective cover for luggage compartment door decorative strip | 76827-02040 |
| 76826 | No. 1 rear door trim strip fixing | 76829-02020 |
