Toyota COROLLA 侧防护条 — Figure 7503

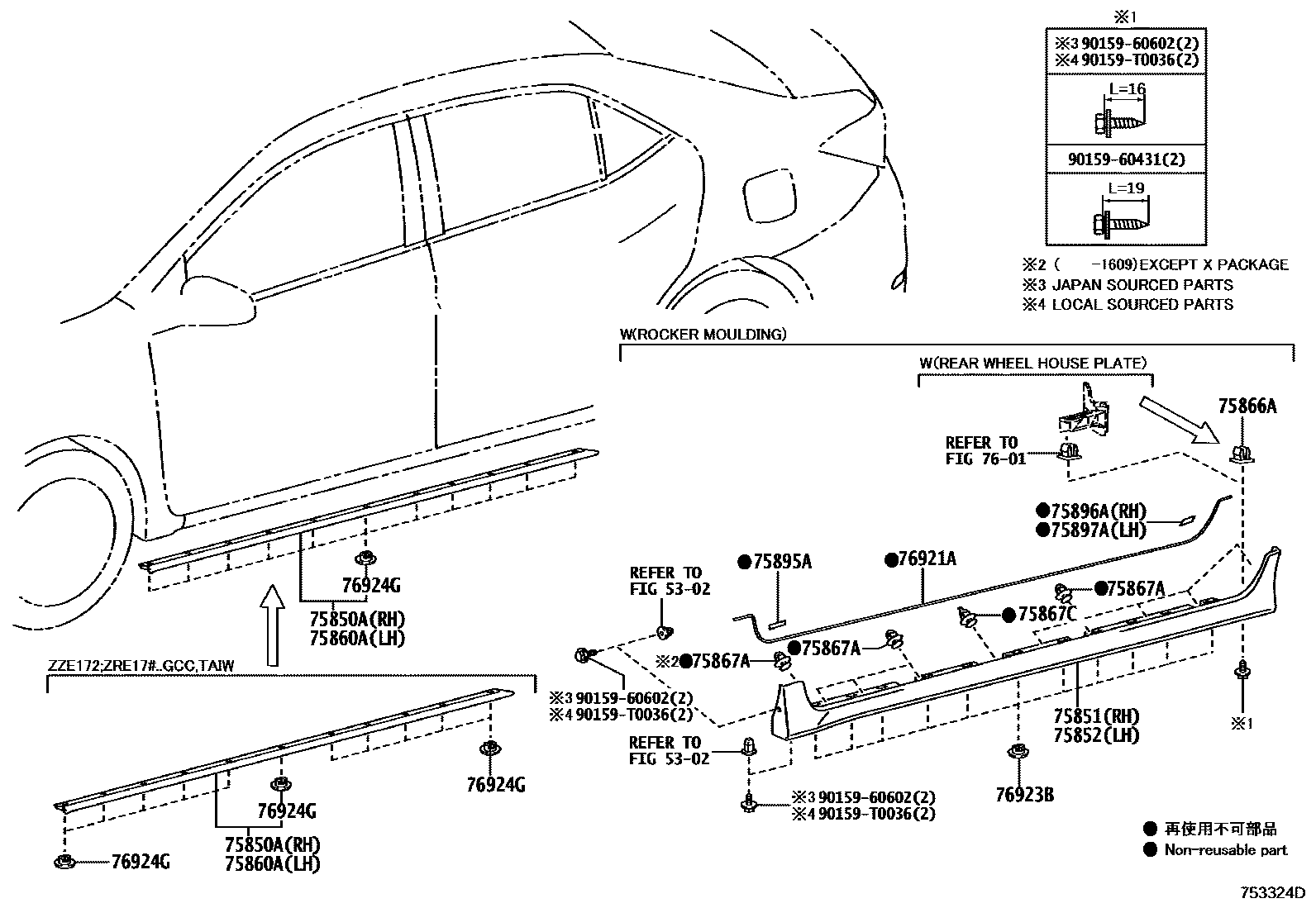

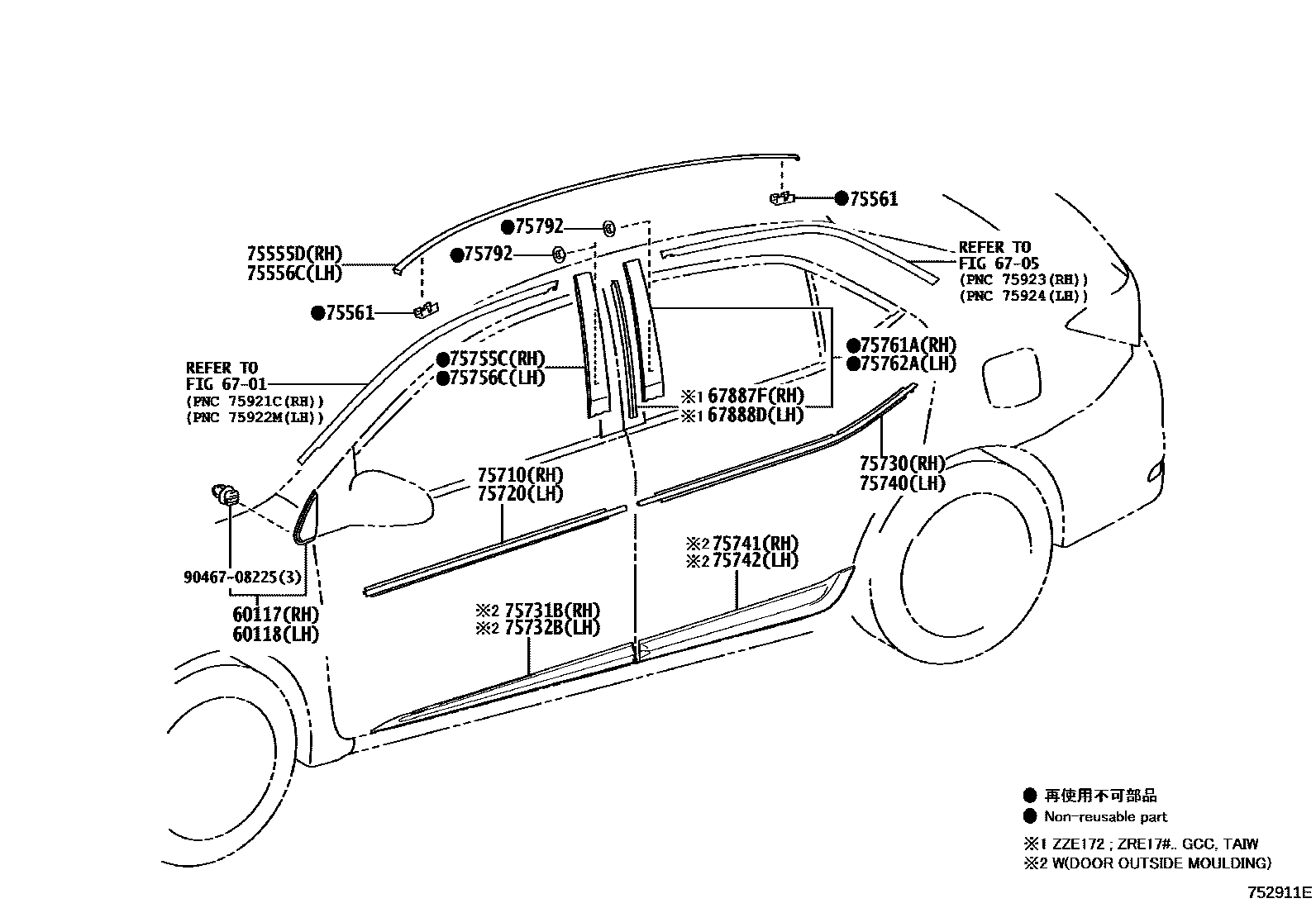

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02150 · 60117-02190 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02150 · 60118-02190 |
| 67887F | Right rear door seal No. 2 | 67887-02010 |
| 67888D | Left rear door seal No. 2 | 67888-02010 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02240 · 75555-02250 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02230 · 75556-02240 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-02370 · 75710-02380 · 75710-02410 |
| 75720 | Left front door waistline protection strip assembly | 75720-02370 · 75720-02380 · 75720-02410 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02350 · 75730-02360 · 75730-02390 |
| 75731B | Right front door outer protective strip | 75731-02410 |
| 75732B | Left front door outer protective strip | 75732-02410 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02350 · 75740-02360 · 75740-02390 |
| 75741 | Right rear door outer protective strip | 75741-02360 |
| 75742 | Left rear door outer protective strip | 75742-02360 |
| 75755C | Right front door window frame rear protective strip | 75755-02070 |
| 75756C | Left front door window frame rear protective strip | 75756-02060 |
| 75761A | Right rear door window frame front protective strip | 75761-02060 · 75761-02080 |
| 75762A | Left rear door window frame front protective strip | 75762-02060 · 75762-02080 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75850A | Right body door sill panel protective strip assembly | 75851-02190 · 75851-02200 |
| 75851 | Right side door sill panel protective strip | 76911-02922 · 76911-02923 · 76911-02925 |
| 75852 | Left side door sill panel protective strip | 76912-02922 · 76912-02923 · 76912-02925 |
| 75860A | Left body door sill panel protective strip assembly | 75852-02190 · 75852-02200 |
| 75866A | Door sill panel protective strip fixings | 75866-02040 |
| 75867A | Door sill panel protective strip clip | 75867-33030 |
| 75867C | Door sill panel protective strip clip | 75868-33020 |
| 75895A | No. 1 protective strip tape | 75895-02070 · 75895-02080 · 75895-02100 |
| 75896A | No. 2 protective strip tape | 75896-02030 · 75896-02040 · 75896-02060 |
| 75897A | No. 2 protective strip tape | 75896-02060 · 75897-02010 · 75897-02020 |
| 76921A | No. 1 side fender protection strip | 76925-02100 |
| 76923B | Side fender fixings | 76924-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-12030 · 76924-12040 |
