Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

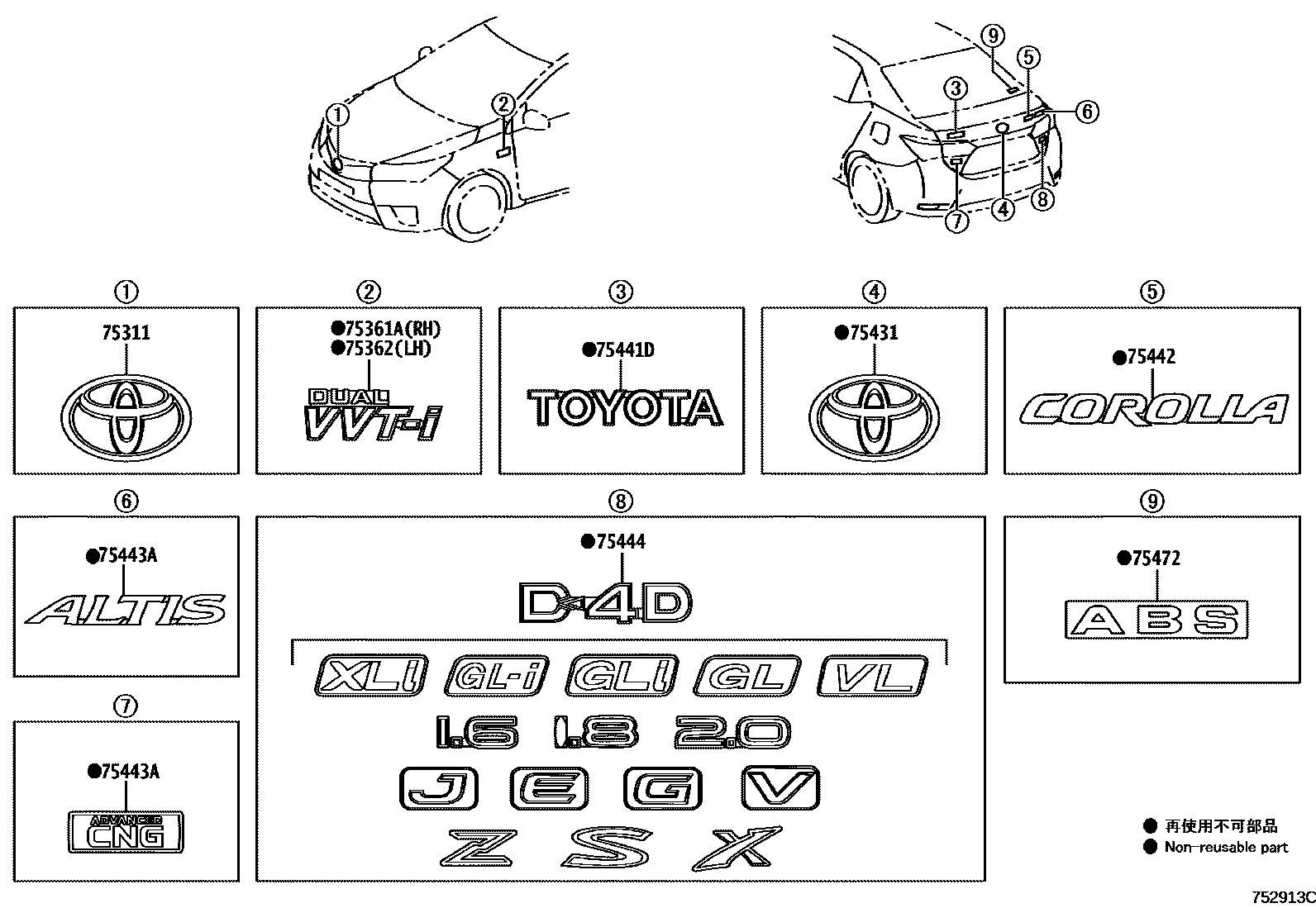

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-02190 · 90975-T2010 |
| 75361A | Front fender No. 1 nameplate | 75444-02700 · 75444-02B80 |
| 75362 | Front fender No. 2 nameplate | 75444-02A20 · 75444-02B90 |
| 75431 | luggage compartment door sign | 75431-02090 |
| 75441D | Trunk door No. 1 name plate | 75441-02300 |
| 75442 | Trunk door number plate No. 2 | 75442-02320 · 75442-02330 · 75442-02400 |
| 75443A | Trunk door No. 3 nameplate | 75442-02340 · 75442-02390 |
| 75444 | Trunk door No. 4 nameplate | 75444-02710 · 75444-02720 · 75444-02730 · 75444-02740 · 75444-02750 · 75444-02760 · 75444-02780 · 75444-02790 · 75444-02800 · 75444-02810 · 75444-02A10 · 75444-02A30 · 75444-02A40 · 75444-02A60 · 75444-02B70 · 75444-02C90 · 75444-02G00 · 75447-02280 · 75447-02290 · 75447-02300 · 75447-02320 |
| 75472 | Rear window nameplate | 75485-02050 |
