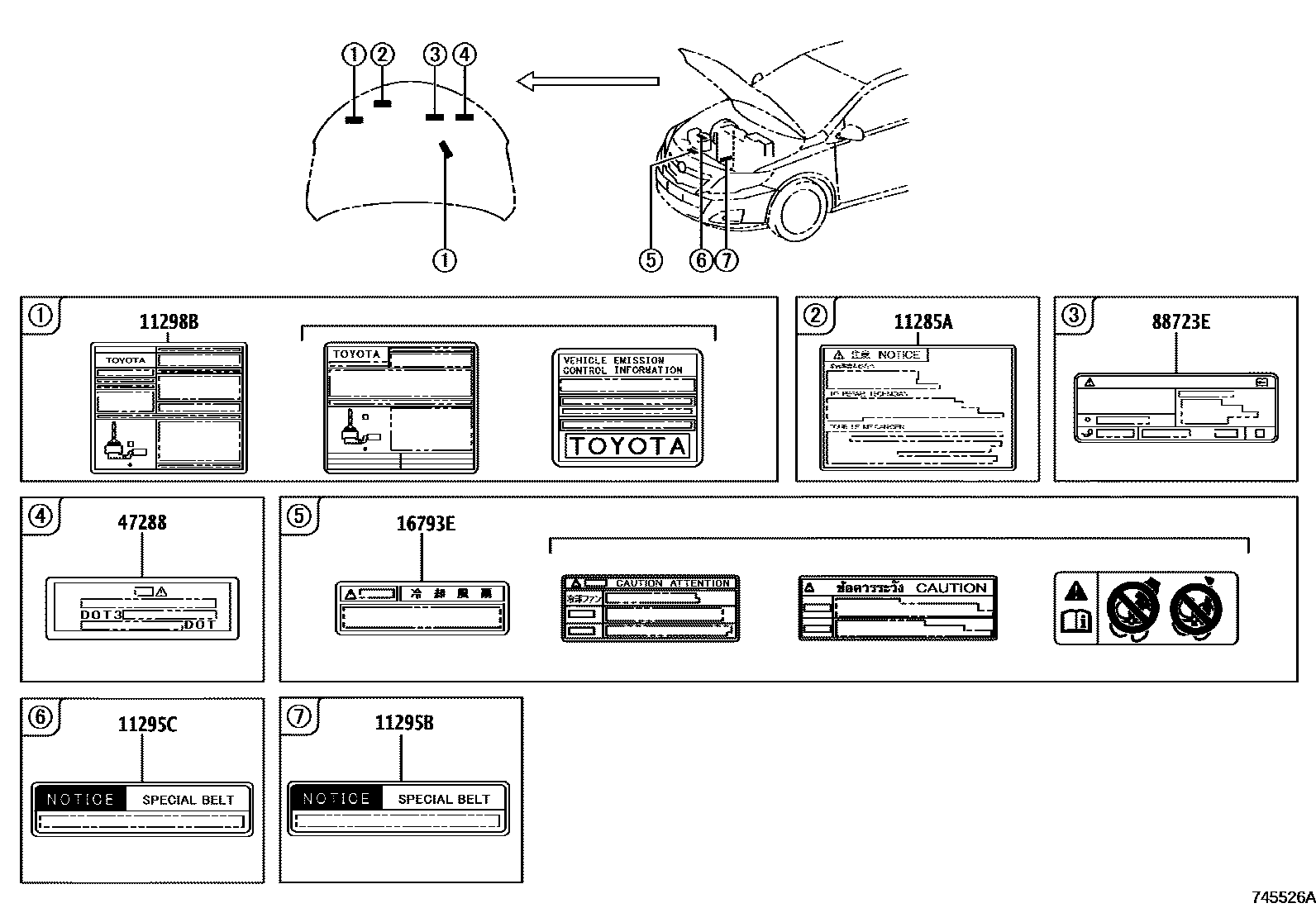

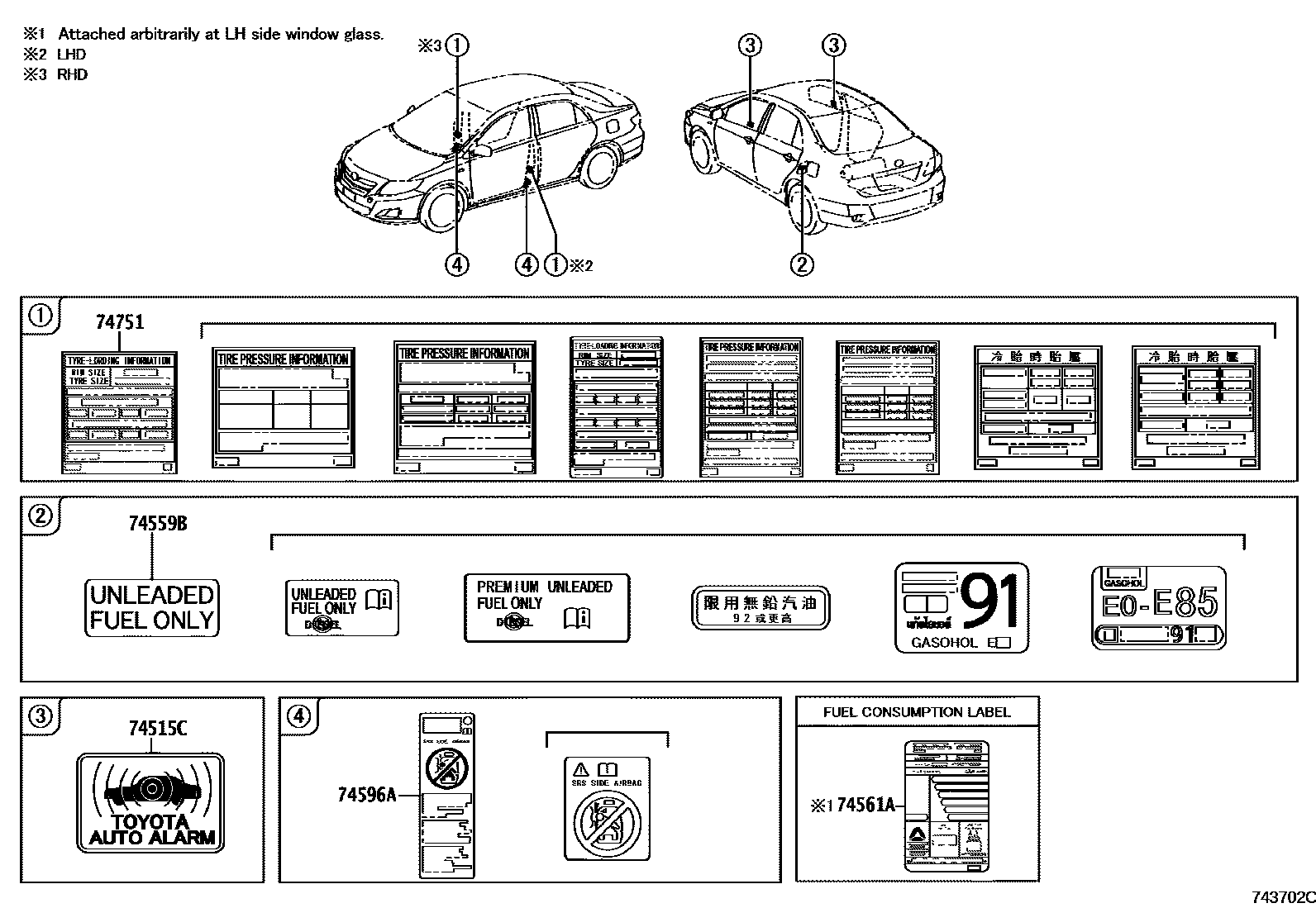

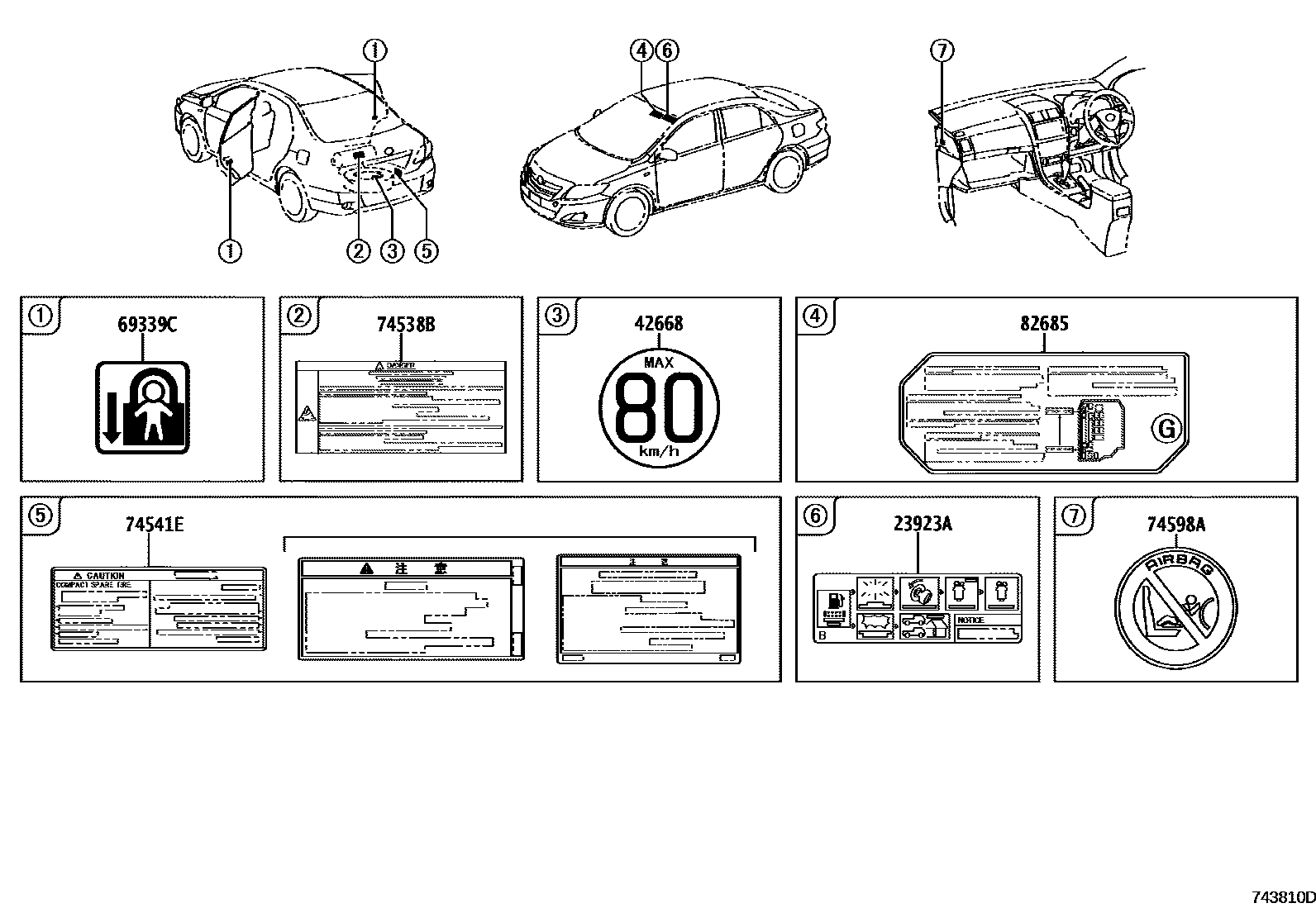

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0N020 |
| 11295B | No. 1 Engine Maintenance Attention Label | 11295-33010 |
| 11295C | No. 2 Engine Maintenance Attention Label | 11295-33010 |
| 11298B | Emission Control Information Label | 11298-0T020 · 11298-0T070 · 11298-0T180 · 11298-0T181 · 11298-0T260 · 11298-0T360 · 11298-0T370 · 11298-0T390 · 11298-0T391 · 11298-0T450 · 11298-0T460 · 11298-0T520 · 11298-0T590 |
| 16793E | Cooling fan warning label | 16793-0N010 · 16793-0T030 · 16793-11010 · 16793-36030 · 16793-46010 |
| 23923A | Fuel Precipitator Caution Label | 23923-0N010 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 47288 | Brake Fluid Caution Label | 47288-71010 |
| 69339C | Child Restraint Information Label | 69339-06060 · 69339-06070 |
| 74515C | Anti-theft warning information label | 74515-02010 · 74515-02020 · 74515-02080 · 74515-33020 |
| 74538B | Fuel tank system warning labels | 74538-02010 |
| 74541E | Small spare tire warning plate | 42668-02130 · 42668-02140 · 42668-16020 |
| 74559B | fuel information label | 74559-02030 · 74559-02050 · 74559-14050 · 74559-20140 · 74559-60030 · 74579-0B010 |
| 74561A | fuel consumption information label | 74561-12010 · 74561-12011 · 74561-12012 · 74561-12013 · 74561-12020 · 74561-12021 · 74561-12022 · 74561-12023 · 74561-12030 · 74561-12031 · 74561-12032 · 74561-12033 · 74561-12040 · 74561-12041 · 74561-12042 · 74561-12043 · 74561-12051 · 74561-12071 · 74561-12081 |
| 74596A | Side air bag warning label | 74596-02070 · 74596-0K010 · 74596-0K040 · 74596-0K050 · 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-0K010 · 74598-20010 |
| 74751 | tire pressure information label | 42661-02430 · 42661-02B10 · 42661-02D90 · 42661-02E00 · 42661-02J40 · 42661-02J50 · 42661-02J60 · 42661-02J70 · 42661-02J80 · 42661-02J90 · 42661-02K10 · 42661-02K60 · 42661-02K70 · 42661-02K71 · 42661-02M90 · 42661-02N00 · 42661-02N30 · 42661-02N40 · 42661-02N50 · 42661-02P90 · 42661-02U60 · 42661-02U80 · 42661-02X10 · 42661-12C50 |
| 82685 | warning nameplate | 82685-12110 |
| 88723E | Cooler maintenance warning label | 88723-02260 · 88723-02270 · 88723-02280 · 88723-02290 · 88723-02300 · 88723-02310 |
