Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 6 PNC and OE references.

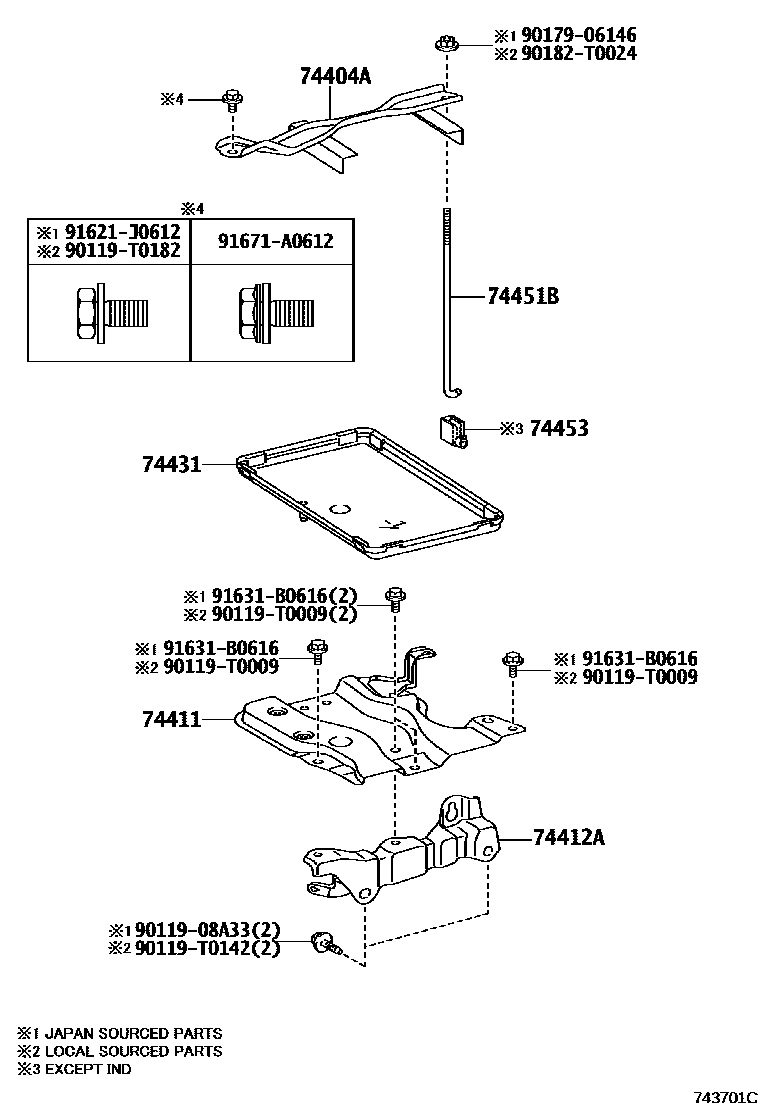

Toyota COROLLA battery holder EPC diagram — 743701C
battery holder — 743701C (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02420 · 74404-02430 · 74404-02450 · 74404-02550
74411battery holder74401-02070 · 74401-02100
74412ANo. 2 battery holder74410-02090 · 74410-02220
74431battery tray74431-02280 · 74431-02300 · 74431-02340
74451BBattery clamp bolt74451-0D010 · 74451-12140 · 74451-30110
74453battery holder bracket74454-28020
