Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

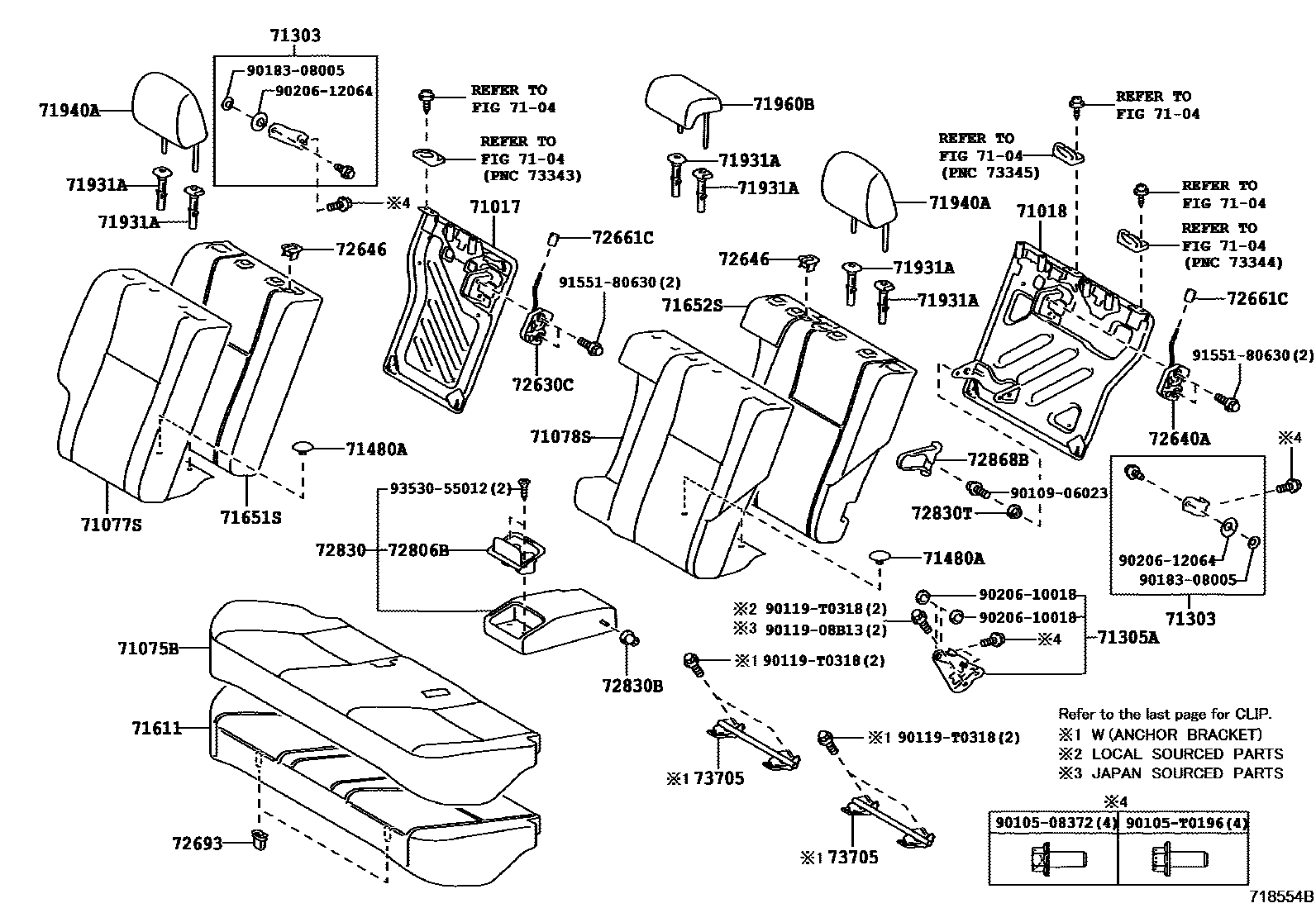

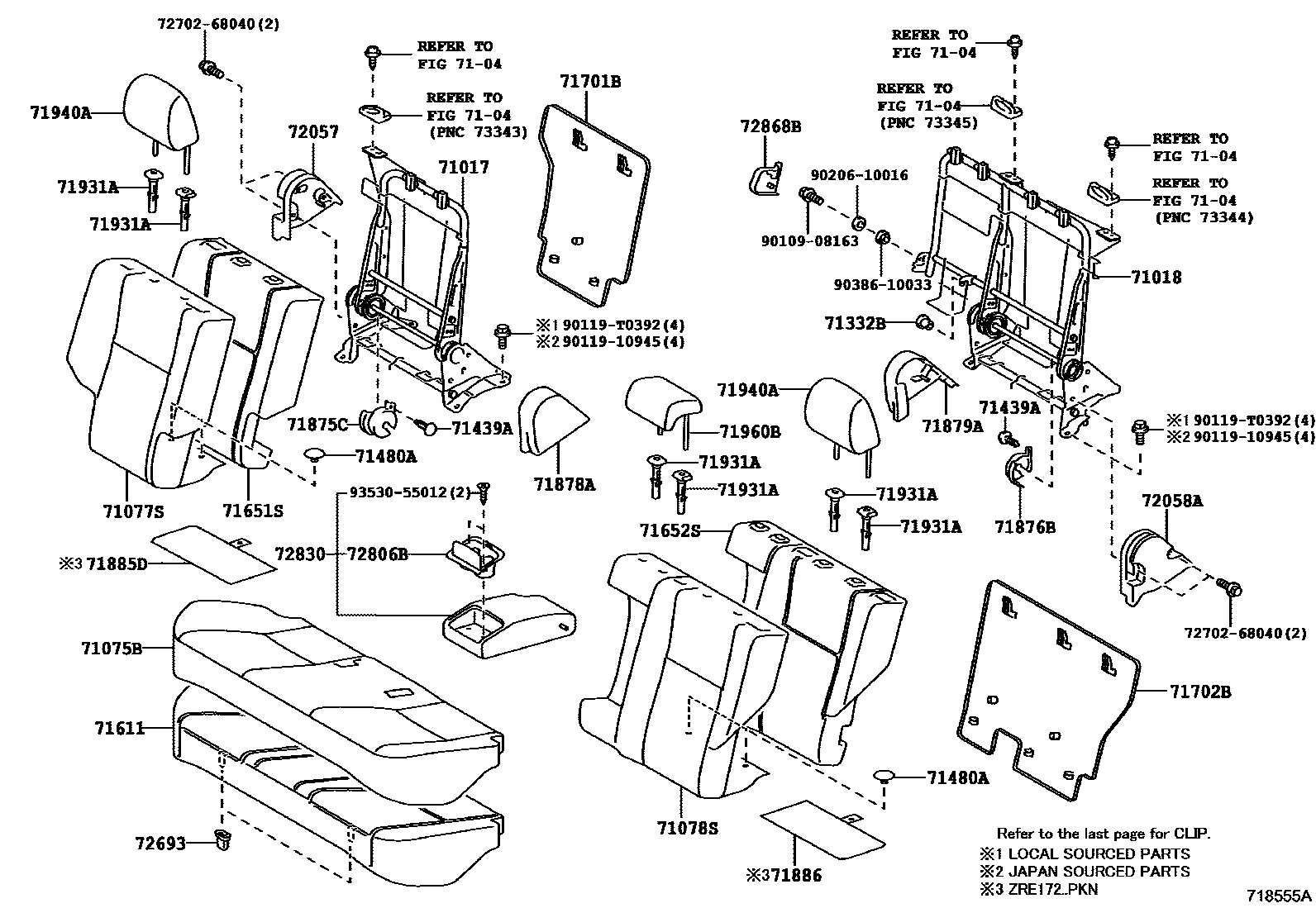

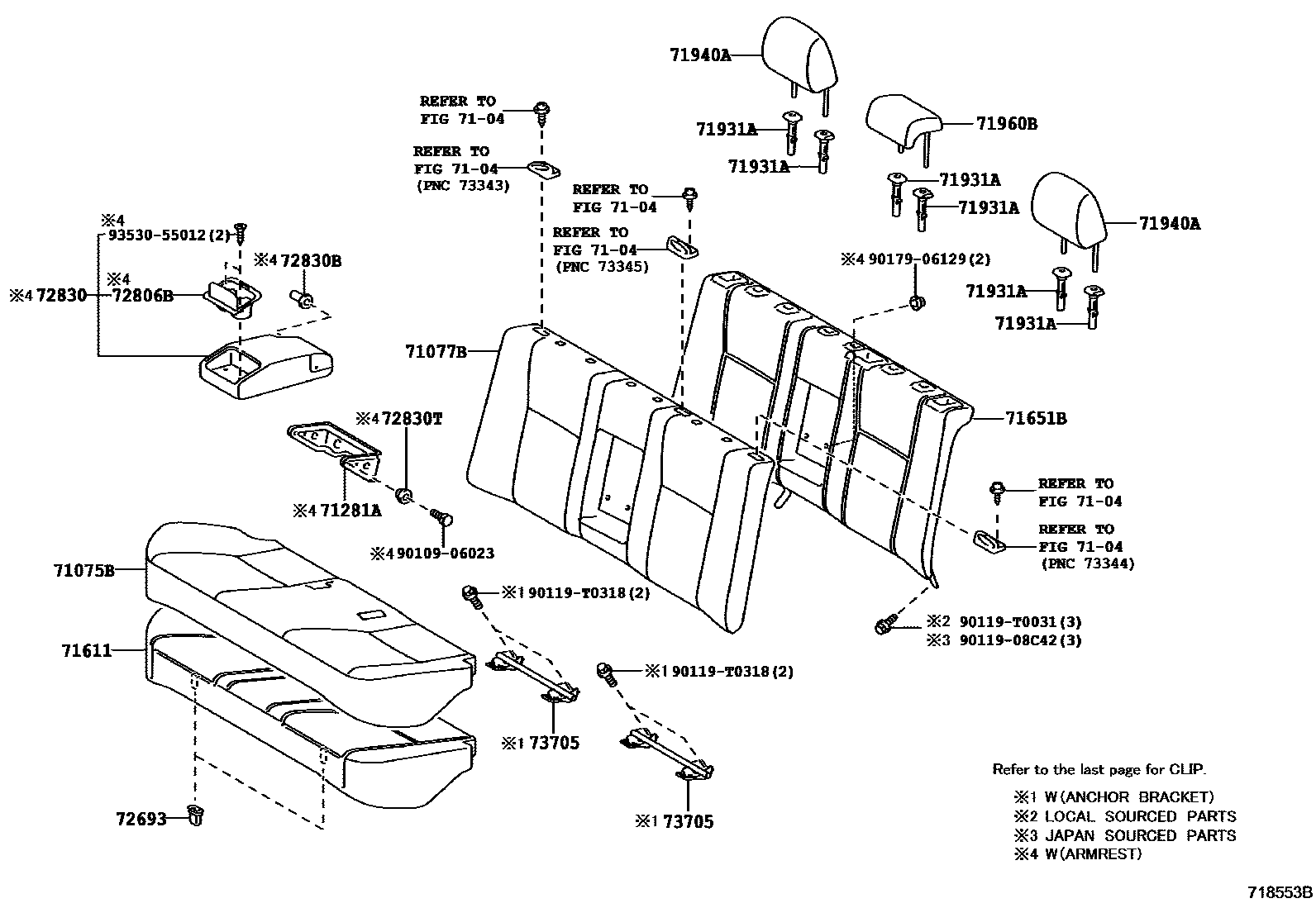

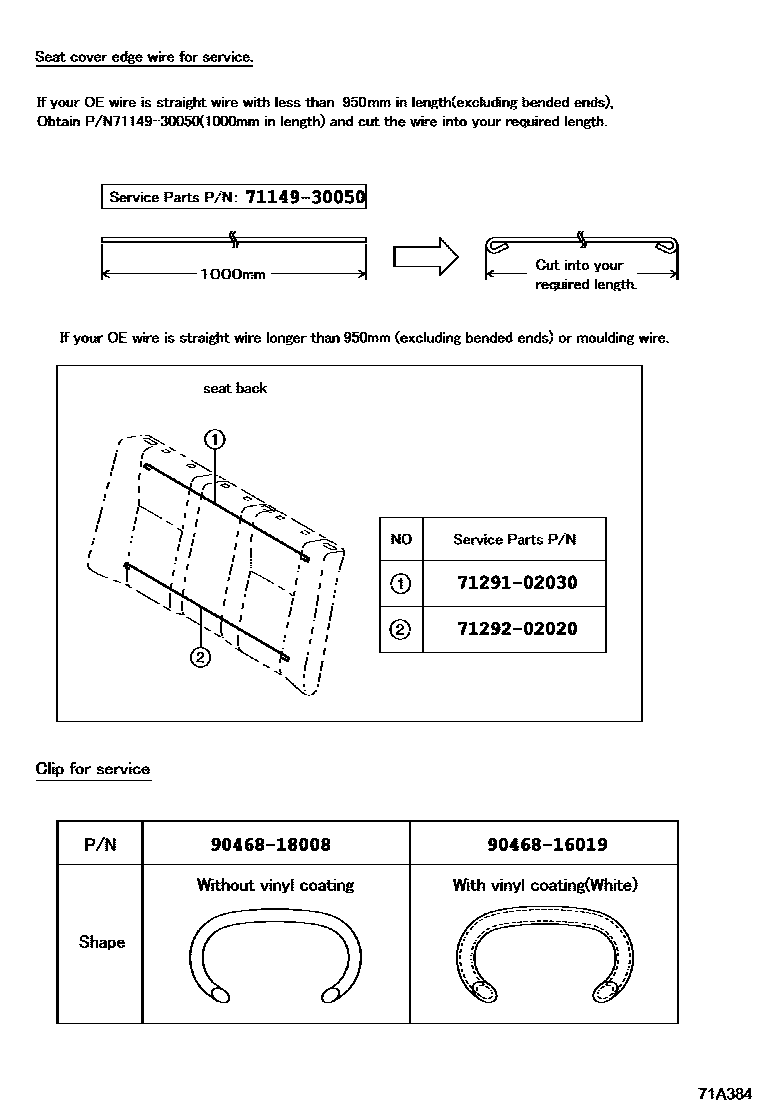

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02640 · 71017-02660 · 71017-02680 · 71017-02690 · 71017-02700 · 71017-02780 · 71017-02800 · 71017-02A70 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02410 · 71018-02420 · 71018-02430 · 71018-02450 · 71018-02460 · 71018-02470 · 71018-02490 · 71018-02540 · 71018-02550 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-02U90 · 71075-0Z050 · 71075-0Z060 |
| 71077B | Rear seat backrest cover (for bench seat) | 71077-0Z760 |
| 71077S | Right rear seat back cover (for split seats) | 71077-0ZA30 · 71077-0ZA40 |
| 71078S | Rear left seat back cover (for split seats) | 71078-02Y30 · 71078-02Y40 |
| 71281A | Rear seat center armrest hinge | 71281-02050 · 71281-02070 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02250 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02260 |
| 71332B | Rear seat backrest hinge spacer | 71332-02020 · 71332-02040 |
| 71611 | Rear seat cushion cushion | 71503-02310 · 71503-02320 · 71503-02330 · 71503-02350 · 71503-02360 · 71503-02370 · 71503-02380 · 71503-02390 · 71503-02400 · 71503-02600 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02250 · 71507-02260 · 71507-02280 · 71507-02290 · 71507-02300 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02570 · 71651-02580 · 71651-02590 · 71651-02610 · 71651-02620 · 71651-02630 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02520 · 71652-02530 · 71652-02540 · 71652-02560 · 71652-02570 · 71652-02580 · 71652-02630 |
| 71701B | Rear right seat back panel sub-assembly | 71701-02010 · 71701-02020 · 71701-02030 |
| 71702B | Rear left seat back panel sub-assembly | 71702-02010 · 71702-02020 · 71702-02030 |
| 71885D | Rear right seat backrest felt cushion | 71885-02110 |
| 71886 | Rear left seat backrest felt cushion | 71886-02080 |
| 71931A | Rear seat headrest bracket | 71930-02370 |
| 71940A | Rear seat headrest assembly | 71940-02M00 · 71940-02Q00 · 71940-02Q10 |
| 71960B | Rear center seat headrest assembly | 71960-02E40 · 71960-02J10 · 71960-02J20 |
| 72630C | Rear right seat back lock assembly | 72630-02150 · 72630-02160 |
| 72640A | Rear left seat back lock assembly | 72640-02140 · 72640-02150 |
| 72646 | Rear seat backrest stop button guard ring | 72646-47010 |
| 72661C | Rear seat back lock release button | 72661-13030 |
| 72693 | Rear seat cushion hook | 72693-02020 · 72693-12080 |
| 72806B | Rear seat center armrest cup holder sub-assembly | 72806-02220 · 72806-02240 |
| 72830 | Rear seat center armrest assembly | 72830-02G60 · 72830-02K80 · 72830-02K90 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02170 · 73705-02240 · 73705-02250 |
