Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

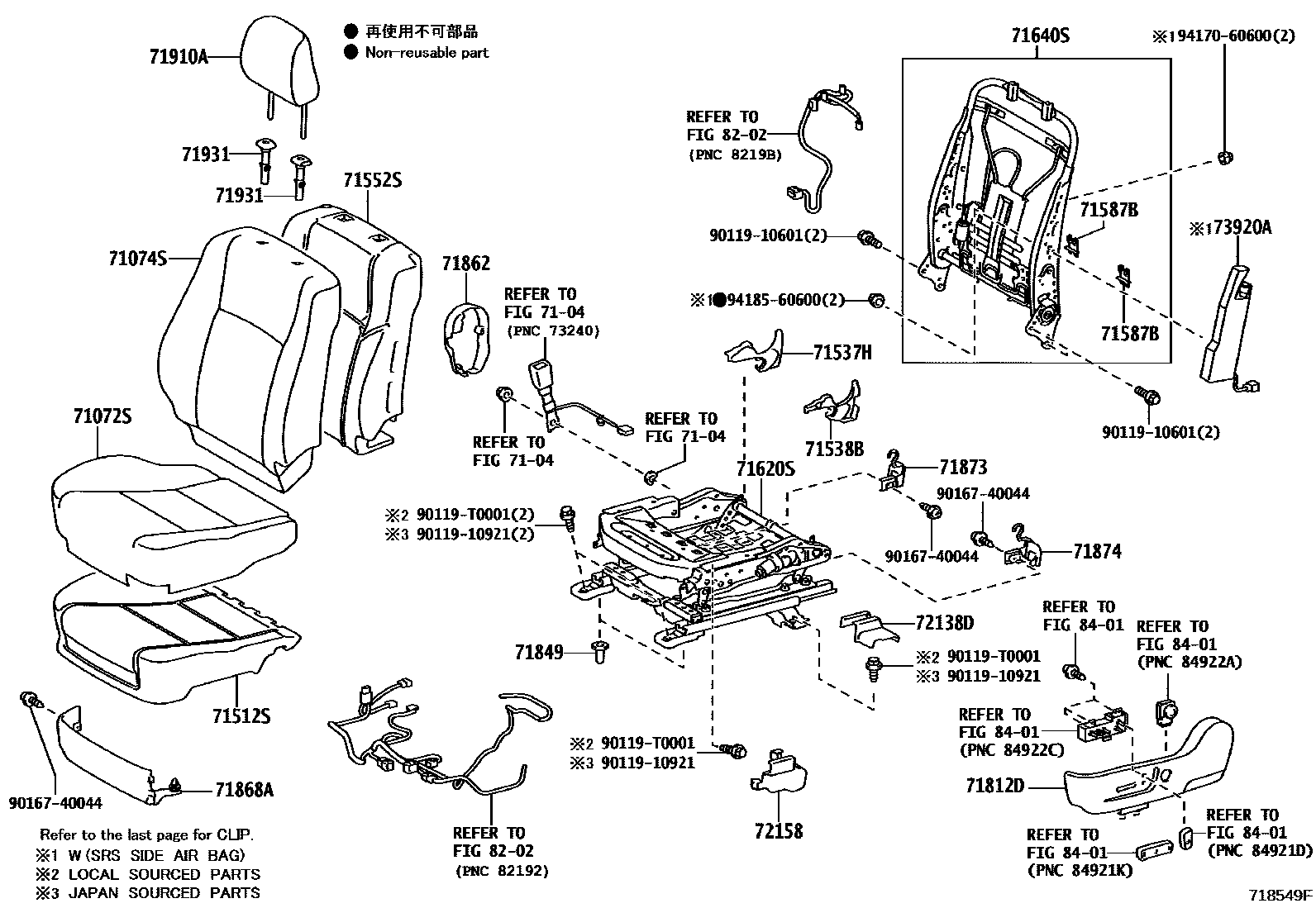

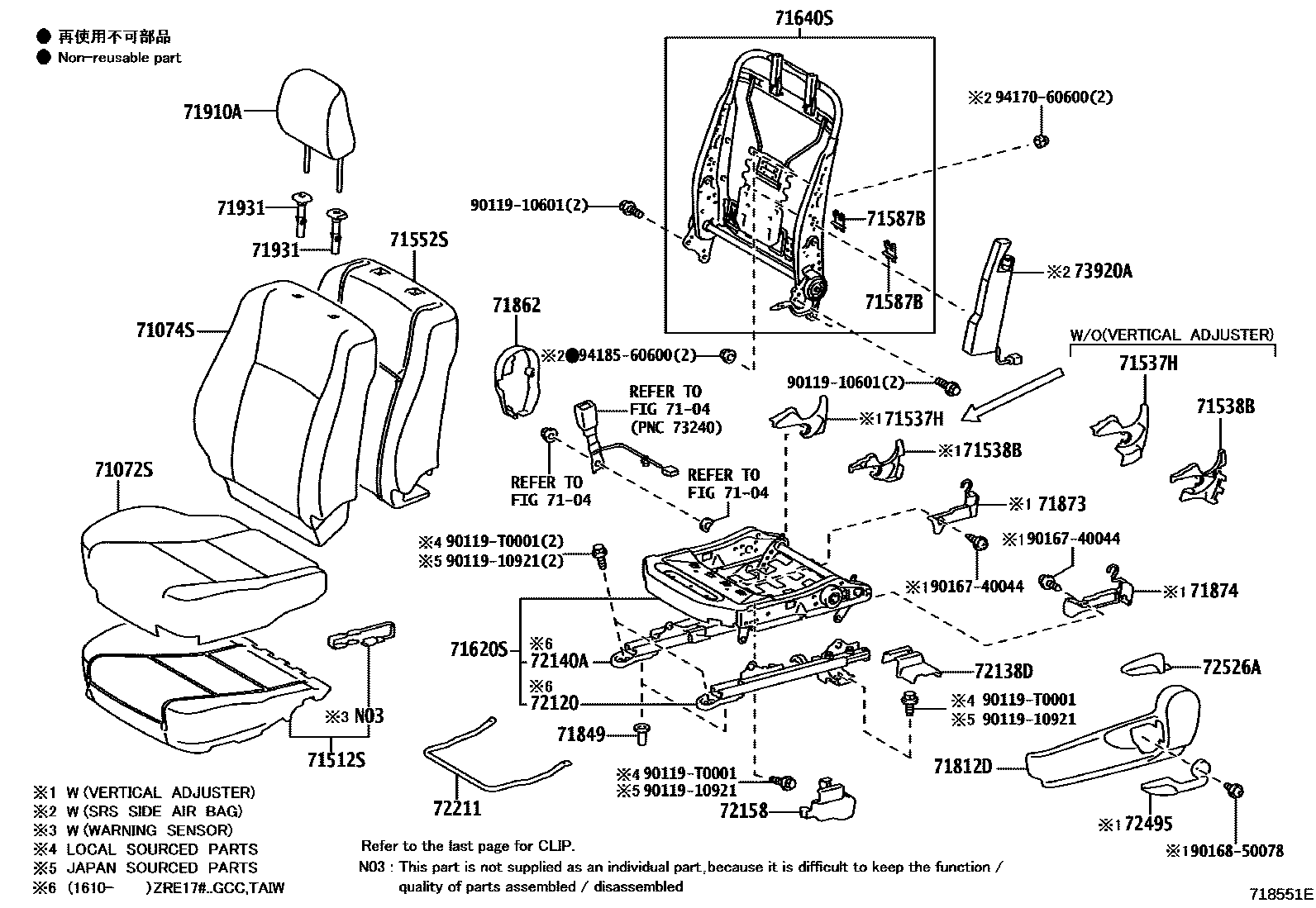

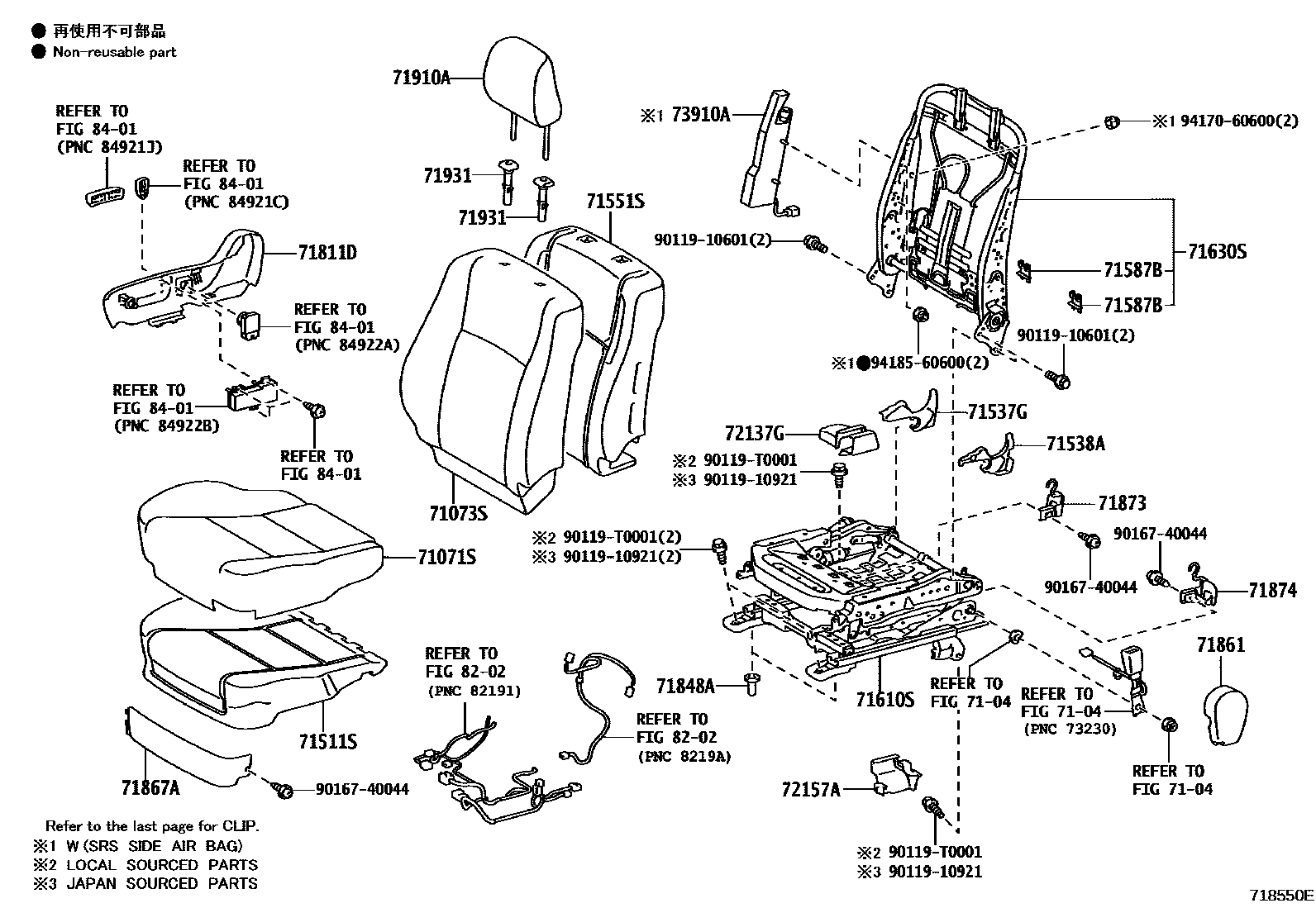

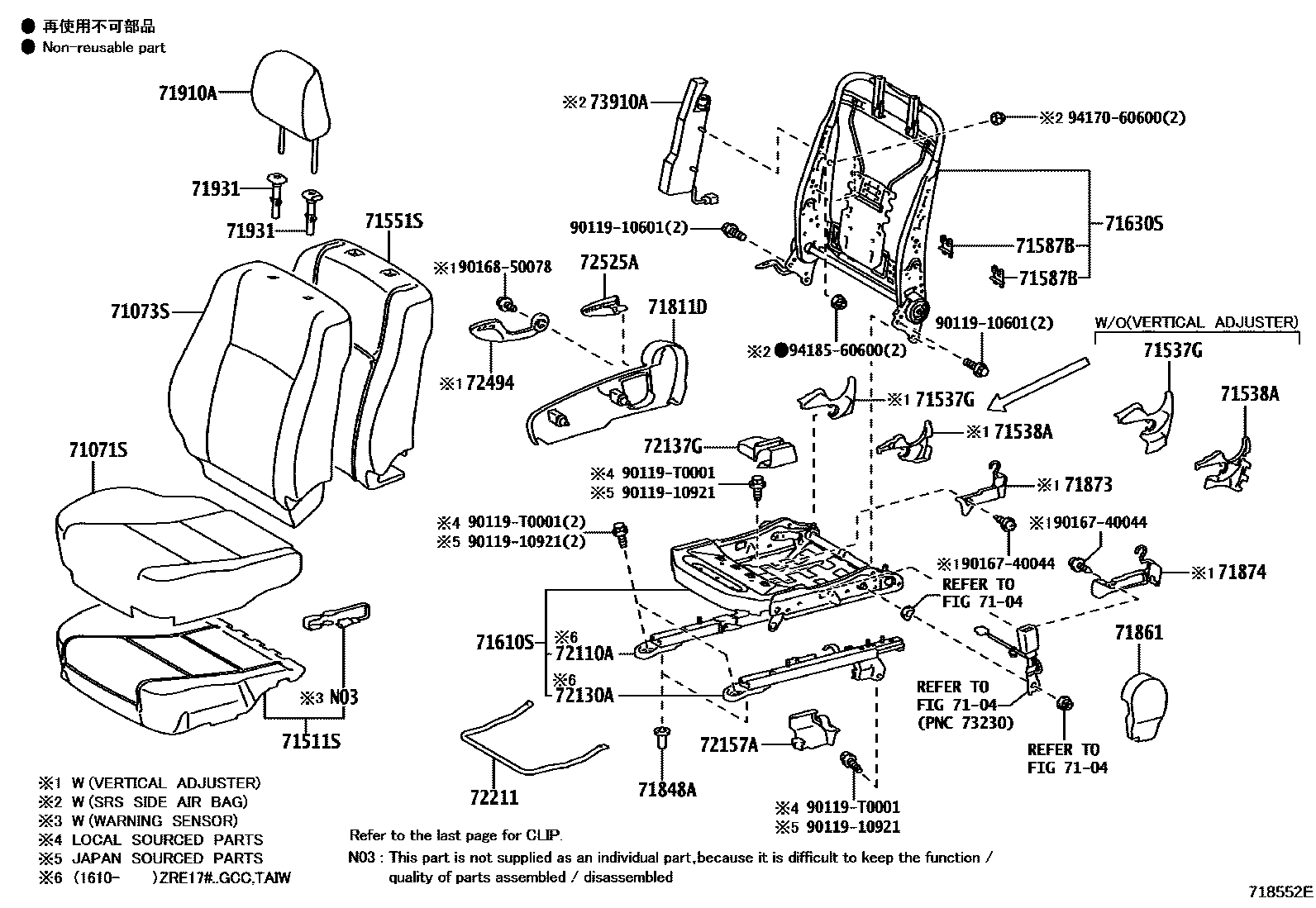

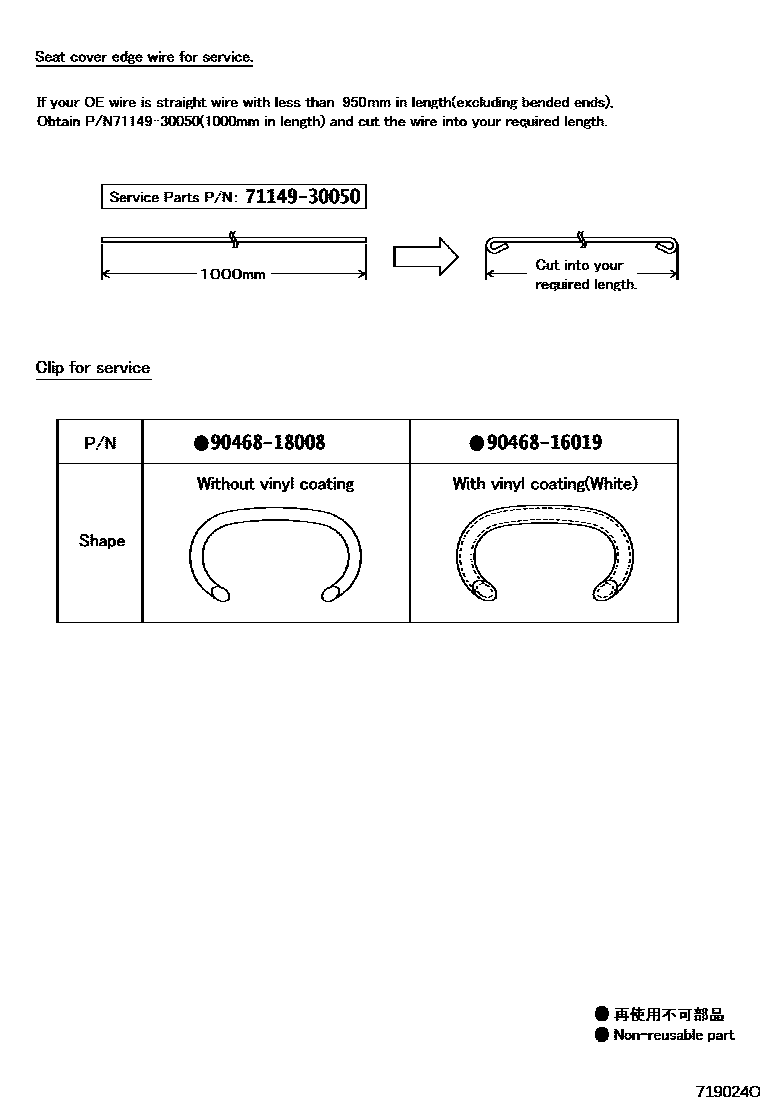

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-0ZJ00 · 71071-0ZP20 · 71071-0ZP30 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-0Z820 · 71072-0ZE10 · 71072-0ZE20 |
| 71073S | Front right seat back cover (for split seats) | 71073-0ZG80 · 71073-0ZP40 · 71073-0ZP50 |
| 71074S | Front left seat back cover (for split seats) | 71074-0ZF90 · 71074-0ZN20 · 71074-0ZN30 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02140 · 71501-02230 · 71501-02270 · 71501-02280 · 71501-02290 · 71501-02300 · 71511-02750 · 71511-02760 · 71511-02770 · 71511-02780 · 71511-02790 · 71511-02800 · 71511-02810 · 71511-02820 · 71511-02830 · 71511-02840 · 71511-02850 · 71511-02A00 · 71511-02A10 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02100 · 71502-02110 · 71502-02210 · 71502-02220 · 71502-02370 · 71512-02550 · 71512-02560 · 71512-02570 · 71512-02580 · 71512-02590 · 71512-02600 · 71512-02610 · 71512-02620 · 71512-02640 · 71512-02680 · 71512-02730 · 71512-02840 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-02290 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-02290 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71538-02220 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71538-02220 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02860 · 71551-02A40 · 71551-02A50 · 71551-02A80 · 71551-02A90 · 71551-02B00 · 71551-02B10 · 71551-02B20 · 71551-02C30 · 71551-02C50 · 71551-02C70 · 71552-02780 · 71552-02790 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02A40 · 71551-02A50 · 71551-02A80 · 71551-02A90 · 71551-02B00 · 71551-02B20 · 71552-02780 · 71552-02790 · 71552-02830 · 71552-02A50 · 71552-02A60 · 71552-02A80 · 71552-02A90 |
| 71587B | Front seat back edge protective cover | 71587-02040 · 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02280 · 71610-02290 · 71610-02300 · 71610-02310 · 71610-02320 · 71610-02330 · 71610-02340 · 71610-02350 · 71610-02360 · 71610-02370 · 71610-02420 · 71610-02430 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02370 · 71620-02380 · 71620-02390 · 71620-02400 · 71620-02410 · 71620-02420 · 71620-02430 · 71620-02440 · 71620-02450 · 71620-02460 · 71620-02540 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02690 · 71630-02720 · 71630-02730 · 71630-02740 · 71630-02750 · 71630-02760 · 71630-02780 · 71630-02820 · 71630-02830 · 71630-02860 · 71630-02870 · 71630-02880 · 71630-02890 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02650 · 71640-02660 · 71640-02680 · 71640-02690 · 71640-02700 · 71640-02720 · 71640-02730 · 71640-02780 · 71640-02790 · 71640-02810 · 71640-02820 · 71640-02830 · 71640-02840 · 71640-02850 · 71640-02860 |
| 71811D | Front right seat cushion guard | 71811-02620 |
| 71812D | Front left seat cushion guard | 71812-02820 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71861 | Front seat cushion right inner guard panel | 71861-02280 |
| 71862 | Front seat cushion left inner guard panel | 71862-02350 |
| 71873 | Front right seat cushion lower guard panel | 71873-02190 · 71873-02200 · 71873-06460 · 71873-06470 · 71873-06510 · 71873-06520 |
| 71874 | Front left seat cushion lower guard | 71874-02180 · 71874-02190 · 71874-06450 · 71874-06470 · 71874-06480 · 71874-06490 |
| 71910A | Front seat headrest assembly | 71910-02M90 · 71910-02R00 · 71910-02R10 |
| 71931 | Front seat headrest bracket | 71930-02370 |
| 72110A | Front right seat outer slide rail assembly | 72110-02190 |
| 72120 | Front left seat outer slide rail assembly | 72120-02220 |
| 72130A | Front right seat inner slide rail assembly | 72130-02190 |
| 72140A | Front left seat inner slide rail assembly | 72140-02220 |
| 72211 | Seat slide adjustment handle | 72211-02140 · 72211-02150 · 72211-02160 · 72211-0D160 · 72211-0D290 · 72211-0D300 |
| 72525A | Right seat back recliner release handle | 72525-02250 |
| 72526A | Left seat back recliner release handle | 72526-02240 |
| 73910A | Front right seat airbag assembly | 73910-02210 |
| 73920A | Front left seat airbag assembly | 73920-02210 |
