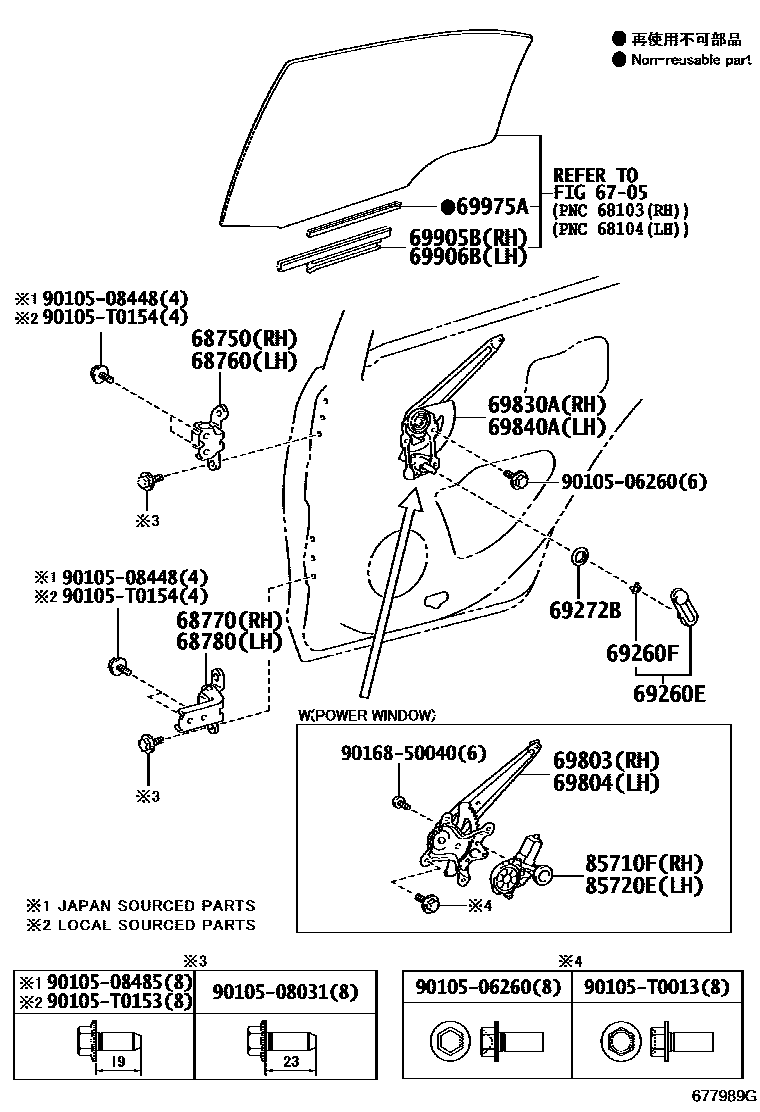

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02080 · 68750-0D030 · 68750-20121 |
| 68760 | Left rear door upper hinge assembly | 68760-02080 · 68760-0D030 · 68760-20121 |
| 68770 | Right rear door lower hinge assembly | 68770-02070 · 68770-0D030 · 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-02070 · 68780-0D030 · 68780-52031 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-12020 |
| 69803 | Right rear door window lifter sub-assembly | 69803-02280 · 69803-02290 · 69803-02330 · 69803-0D160 |
| 69804 | Left rear door window lifter sub-assembly | 69804-02280 · 69804-02290 · 69804-02330 · 69804-0D160 |
| 69830A | Right rear door window lift assembly | 69830-02540 · 69830-02630 |
| 69840A | Left rear door window lift assembly | 69840-02540 · 69840-02630 |
| 69905B | Right rear door glass groove sub-assembly | 69905-02130 · 69905-12200 |
| 69906B | Left rear door glass groove sub-assembly | 69906-02130 · 69906-12190 |
| 69975A | Rear door glass channel filler | 69975-0D040 · 69975-12020 |
| 85710F | Right power window lift motor assembly | 85720-02360 · 85720-06120 · 85720-0K010 |
| 85720E | Left electric window lift motor assembly | 85710-02380 · 85710-06090 · 85710-0K010 |
