Toyota COROLLA 后门锁和后门把手 — Figure 6706

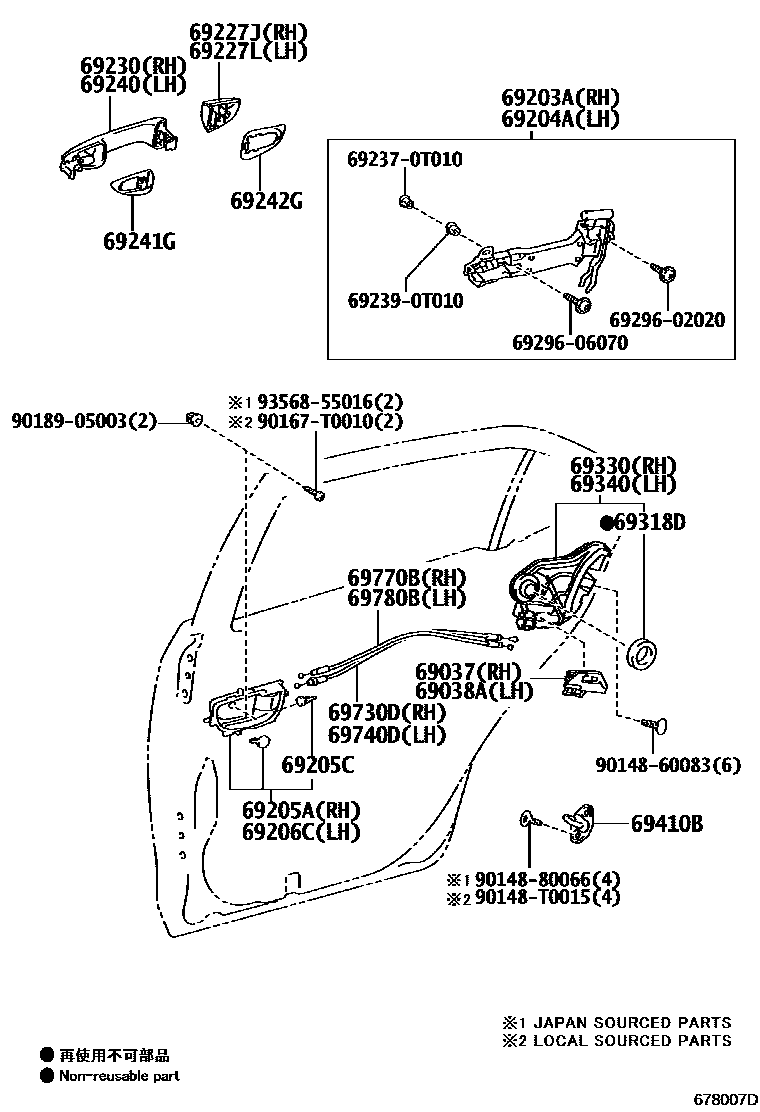

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | Right rear door door lock cover sub-assembly | 69037-02040 · 69037-02050 · 69037-02080 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02040 · 69038-02050 · 69038-02080 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02220 · 69203-02270 · 69203-02330 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02220 · 69204-02270 · 69204-02330 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-02220 · 69227-02340 · 69227-02924 · 69250-02917 |
| 69227L | Left rear door outer handle cover | 69228-02020 · 69228-02140 · 69228-02902 · 69250-02918 |
| 69230 | Right rear door outer handle assembly | 69210-02906 · 69211-02260 · 69211-02929 · 69215-02020 |
| 69240 | Left rear door outer handle assembly | 69212-02110 · 69212-02902 · 69216-02020 · 69220-02907 |
| 69241G | Rear door front exterior handle pad | 69241-02100 · 69242-02090 |
| 69242G | Rear door rear outer handle pad | 69241-02110 · 69242-02100 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-02360 · 69050-02370 · 69050-02410 · 69050-02420 · 69050-02430 · 69050-02440 · 69330-02150 · 69330-02160 |
| 69340 | Left rear door lock assembly | 69060-02360 · 69060-02370 · 69060-02410 · 69060-02420 · 69060-02430 · 69060-02440 · 69340-02150 · 69340-02160 |
| 69410B | Rear door lock plate assembly | 69410-02040 · 69410-0D050 · 69410-0K010 · 69410-20110 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02230 · 69730-02250 · 69730-02300 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02230 · 69730-02250 · 69730-02300 |
| 69770B | Right rear door inner lock cable assembly | 69770-02320 · 69770-02350 · 69770-02400 |
| 69780B | Left rear door inner lock cable assembly | 69770-02320 · 69770-02350 · 69770-02400 |
