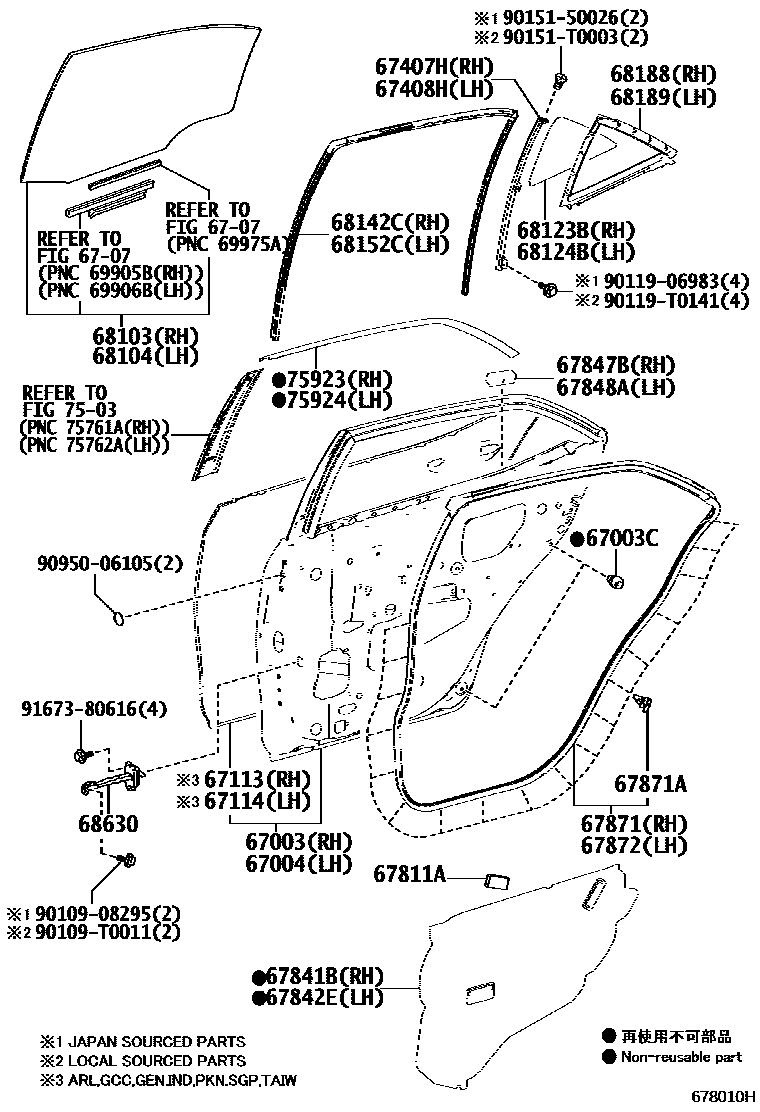

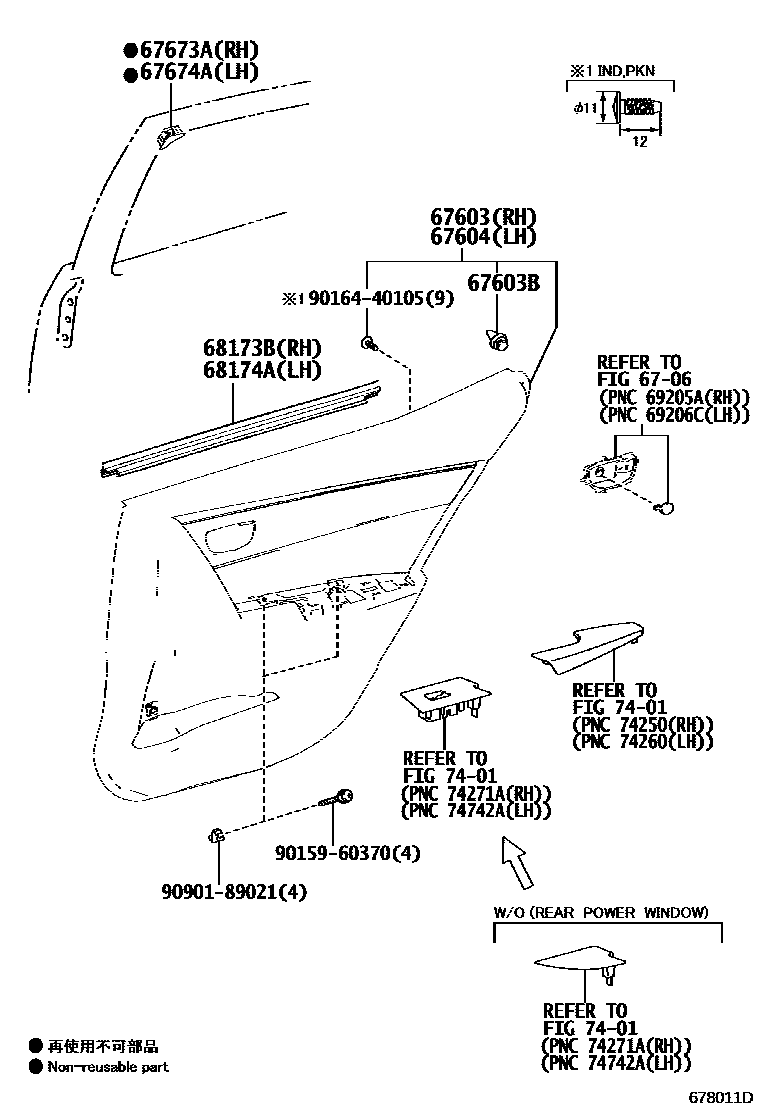

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02430 · 67003-02440 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-02430 · 67004-02440 |
| 67113 | Right rear door outer panel | 67113-02220 |
| 67114 | Left rear door outer panel | 67114-02220 |
| 67407H | Right sliding door window divider sub-assembly | 67407-02140 · 67407-02160 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-02140 · 67408-02160 |
| 67603 | Right rear door decorative panel sub-assembly | 67630-YP190 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 · 90467-T0019 |
| 67604 | Left rear door decorative panel sub-assembly | 67640-YP190 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67811A | Rear door silencer pad | 67811-0D010 |
| 67841B | Rear door access hole cover | 67841-02290 |
| 67842E | Left rear door access hole cover | 67842-02270 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-02060 |
| 67848A | No. 1 left rear door ventilator seal | 67847-02060 |
| 67871 | Right rear door sealing strip | 67871-02260 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-02260 |
| 68103 | Right rear door glass sub-assembly | 68103-02440 · 68103-02441 · 68103-02450 · 68103-02460 · 68103-02690 |
| 68104 | Left rear door glass sub-assembly | 68104-02440 · 68104-02441 · 68104-02450 · 68104-02460 · 68104-02690 |
| 68123B | Right rear door corner window glass | 68123-02360 · 68123-02361 · 68123-02370 · 68123-02380 · 68123-02600 |
| 68124B | Left rear door corner window glass | 68124-02360 · 68124-02361 · 68124-02370 · 68124-02380 · 68124-02600 |
| 68142C | Right rear door glass lift slot | 68142-02320 |
| 68152C | Left rear door glass lift slot | 68152-02320 |
| 68173B | Right rear door glass inner sealing strip | 68173-02260 · 68173-02270 |
| 68174A | Left rear door glass inner sealing strip | 68174-02230 · 68174-02240 |
| 68188 | Right rear door corner window seal | 68188-02190 |
| 68189 | Left rear door corner window seal | 68189-02190 |
| 68630 | Rear door opening limiter assembly | 68630-02260 · 68630-02270 · 68630-02280 |
| 75923 | No. 2 right side light-shielding film | 75923-02250 |
| 75924 | No. 2 left shading film | 75924-02250 |
