Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

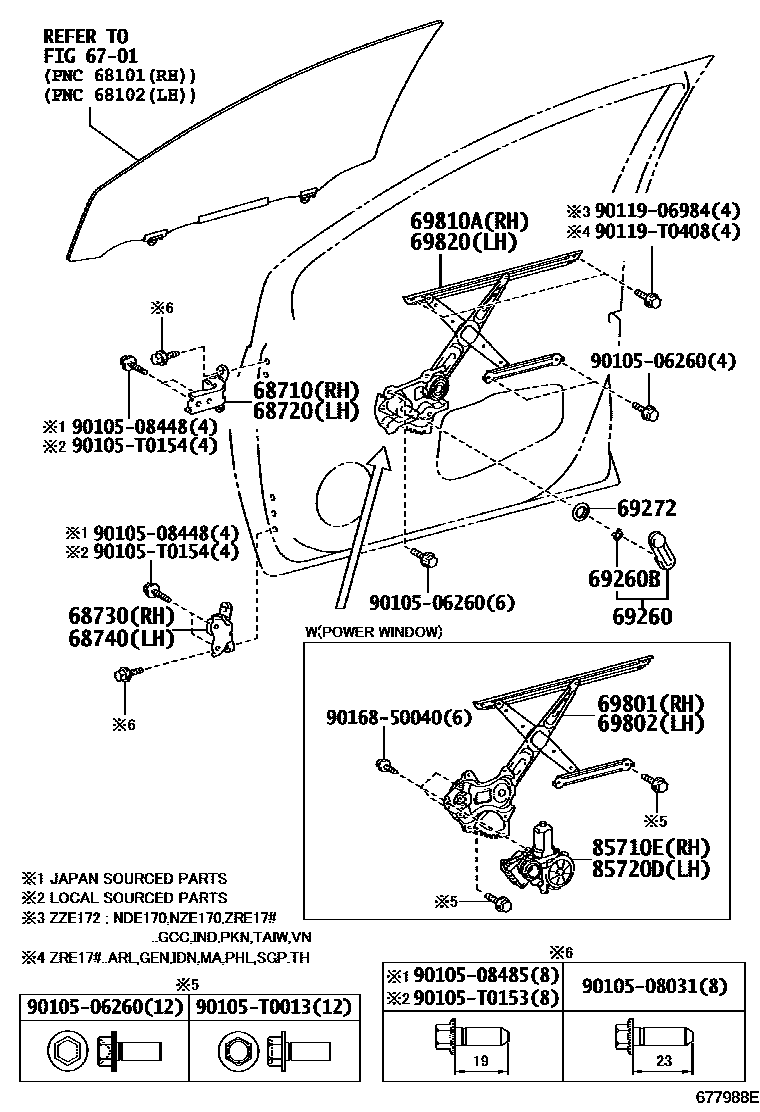

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02080 · 68710-0D050 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-02080 · 68720-0D050 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02090 · 68730-02100 |
| 68740 | Left front door lower hinge assembly | 68740-02090 · 68740-02100 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-12020 |
| 69801 | Right front door window lifter sub-assembly | 69801-02340 · 69801-02350 · 69801-02390 · 69801-0D180 |
| 69802 | Left front door window lifter sub-assembly | 69802-02350 · 69802-02360 · 69802-02400 · 69802-0D190 |
| 69810A | Right front door window lift assembly | 69810-02540 · 69810-02670 |
| 69820 | Left front door window lift assembly | 69820-02550 · 69820-02690 |
| 85710E | Right power window lift motor assembly | 85710-02480 · 85710-02510 · 85710-06090 · 85710-0K010 |
| 85720D | Left electric window lift motor assembly | 85720-02360 · 85720-02470 · 85720-02540 · 85720-0K010 |
