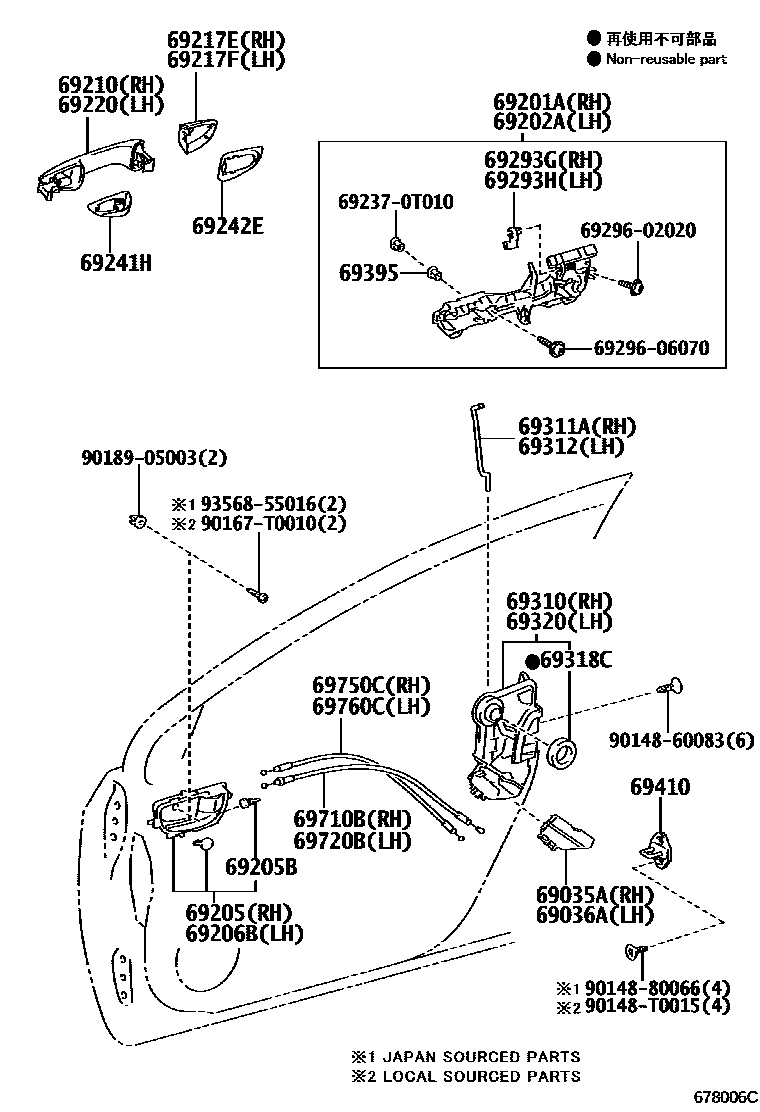

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | Right front door lock cover sub-assembly | 69035-02040 · 69035-02050 · 69035-02080 |
| 69036A | Left front door lock cover sub-assembly | 69036-02040 · 69036-02050 · 69036-02080 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02230 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02170 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-02906 · 69211-02260 · 69211-02929 · 69215-02020 |
| 69217E | Right front door outer handle cover | 69217-02280 · 69217-02490 · 69217-02947 · 69217-02948 · 69250-02913 · 69250-02914 |
| 69217F | Left front door outer handle cover | 69218-02030 · 69218-02260 · 69218-02280 · 69218-02904 · 69218-02905 · 69250-02915 · 69250-02916 |
| 69220 | Left front door outer handle assembly | 69212-02110 · 69212-02902 · 69216-02020 · 69220-02907 |
| 69241H | Front door exterior handle pad | 69241-02100 · 69242-02090 |
| 69242E | Front door rear outer handle pad | 69241-02110 · 69242-02100 |
| 69293G | Right front door outer handle buckle | 69293-33010 |
| 69293H | Left front door outer handle buckle | 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02470 · 69030-02480 · 69030-02490 · 69030-02580 · 69030-02590 · 69030-02600 · 69030-02610 · 69310-02160 · 69310-02170 |
| 69311A | Right front door lock opening lever | 69311-02280 · 69311-02300 · 69311-02330 |
| 69312 | Left front door lock opening lever | 69312-02280 · 69312-02300 · 69312-02330 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02450 · 69040-02460 · 69040-02470 · 69040-02480 · 69040-02550 · 69040-02560 · 69040-02570 · 69040-02580 · 69320-02160 · 69320-02170 |
| 69395 | Bushing (for outer door handle) | 69239-0T010 |
| 69410 | Front door lock plate assembly | 69410-02040 · 69410-0D050 · 69410-0K010 · 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-02260 · 69710-02280 · 69710-02330 |
| 69720B | Left front door lock remote control cable assembly | 69710-02260 · 69710-02280 · 69710-02330 |
| 69750C | Right front door inner lock cable assembly | 69750-02290 · 69750-02310 · 69750-02360 |
| 69760C | Left front door inner lock cable assembly | 69750-02290 · 69750-02310 · 69750-02360 |
