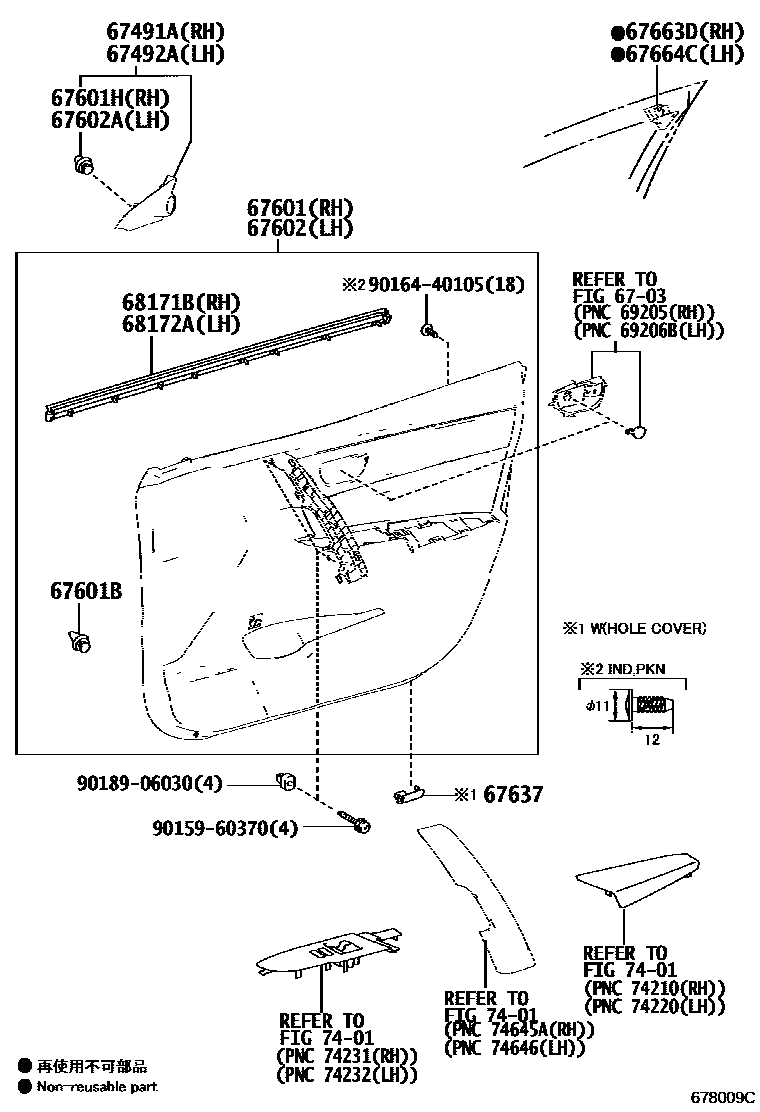

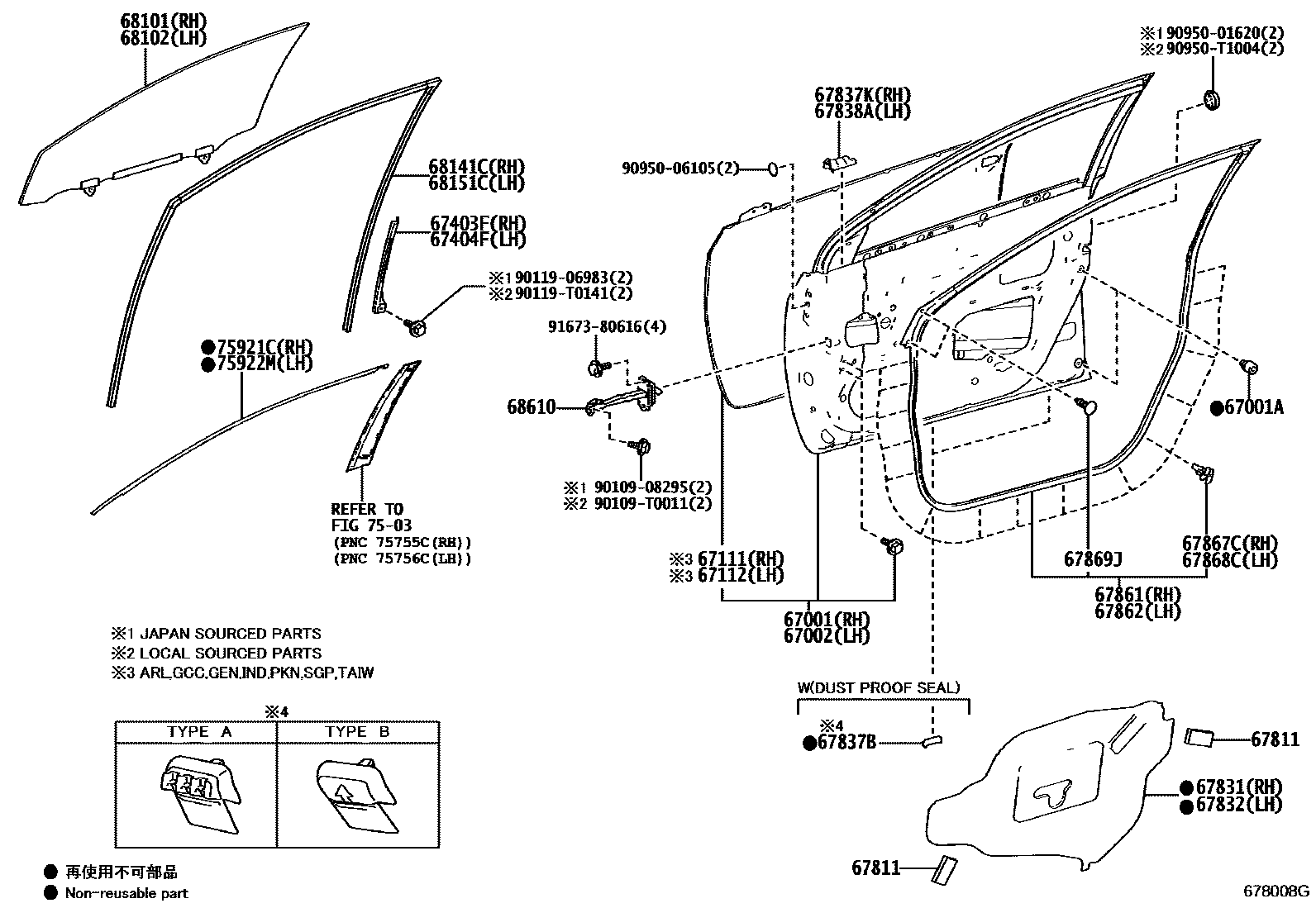

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02430 · 67001-02470 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-02430 · 67002-02470 |
| 67111 | Outer right front door panel | 67111-02250 |
| 67112 | Outer left front door panel | 67112-02250 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02190 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02190 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02480 · 67491-02490 · 67491-02500 · 67491-02510 · 67491-02520 · 67491-02530 · 67491-02540 · 67491-02550 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02480 · 67492-02490 · 67492-02500 · 67492-02510 · 67492-02520 · 67492-02530 · 67492-02540 · 67492-02550 |
| 67601 | Right front door decorative panel sub-assembly | 67610-YP260 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67601H | Right door trim panel fixing | 67771-12060 |
| 67602 | Left front door decorative panel sub-assembly | 67620-YP240 |
| 67602A | Left door trim panel fixing | 67771-12060 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67811 | Front door silencer pad | 67811-0D010 |
| 67831 | Right front door access hole cover | 67831-02350 |
| 67832 | Left front door access hole cover | 67832-02350 |
| 67837B | Front door dust seal retainer | 67837-0K090 · 67837-48050 |
| 67837K | Front door ventilator seal | 67837-02070 |
| 67838A | Left front door ventilator seal | 67838-02040 |
| 67861 | Right front door seal | 67861-02290 |
| 67862 | Left front door seal | 67862-02290 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02460 · 68101-02461 · 68101-02470 · 68101-02480 · 68101-02670 |
| 68102 | Left front door glass sub-assembly | 68102-02460 · 68102-02461 · 68102-02470 · 68102-02480 · 68102-02670 |
| 68141C | Right front door glass lift channel | 68141-02350 |
| 68151C | Left front door glass lift channel | 68151-02340 |
| 68171B | Right front door glass inner sealing strip | 68171-02280 · 68171-02290 · 68171-02291 · 68171-02360 |
| 68172A | Left front door glass inner sealing strip | 68172-02270 · 68172-02280 · 68172-02281 · 68172-02340 |
| 68610 | Front door opening limiter assembly | 68610-02270 · 68610-02280 · 68610-02290 |
| 75921C | No. 1 right side light-shielding film | 75921-02220 |
| 75922M | No. 1 left shading film | 75922-02220 |
