Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

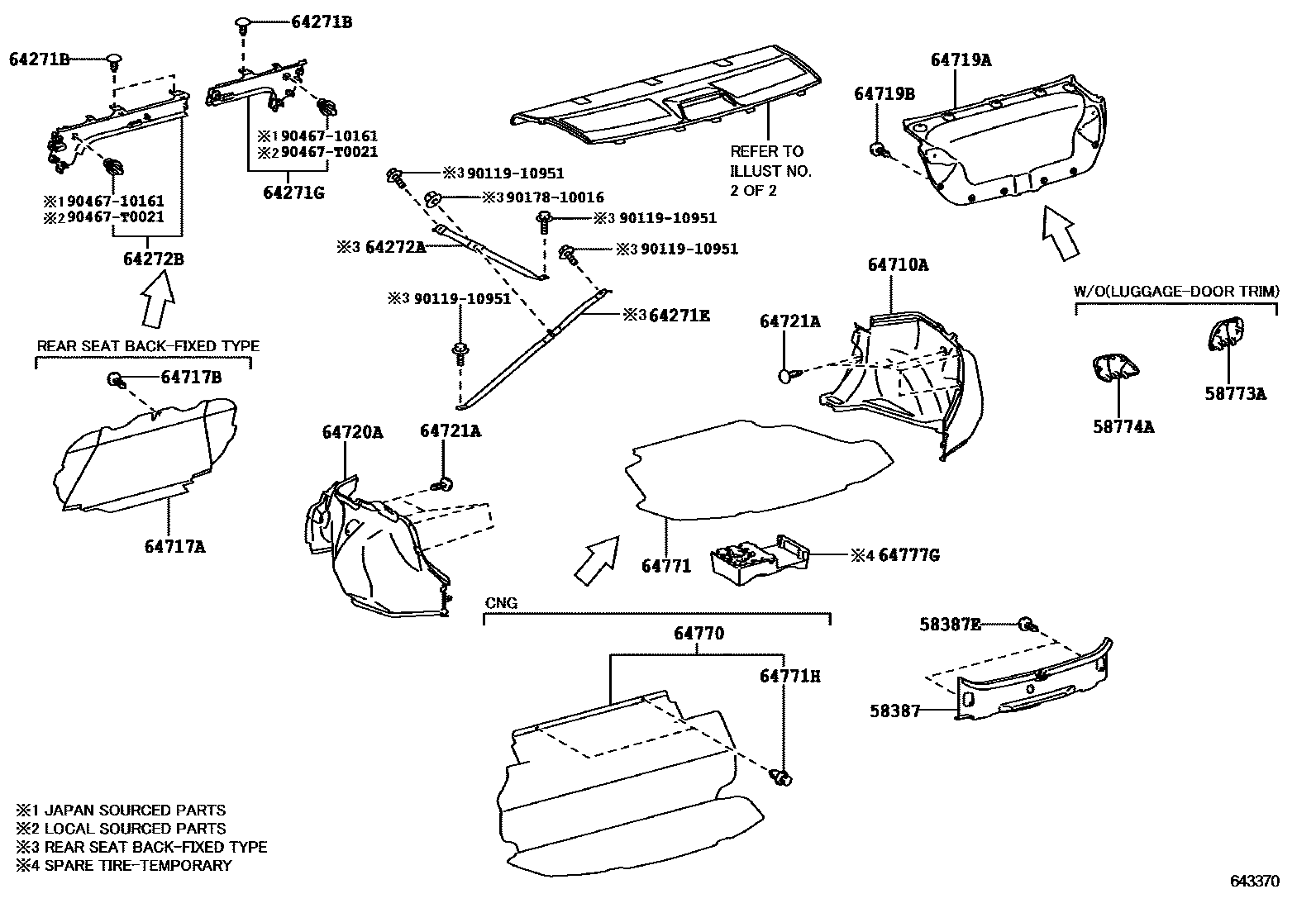

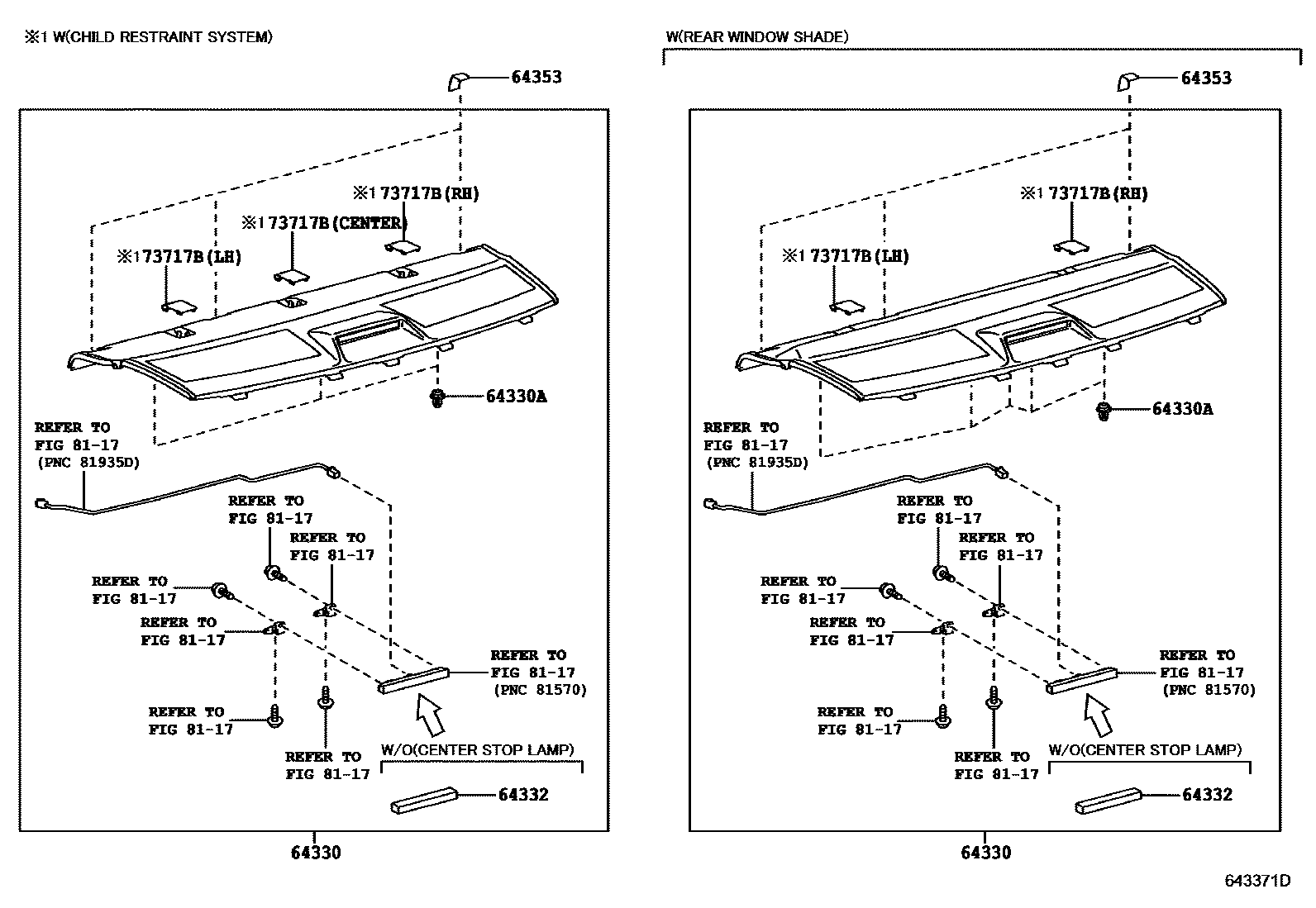

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02240 · 58387-02250 · 58387-02260 · 58387-02270 |
| 58773A | Decorative cover on right side of luggage compartment door | 58773-02190 |
| 58774A | Luggage door left decorative cover | 58774-02180 |
| 64271E | compartment partition | 64241-02100 |
| 64272A | Left compartment partition | 64242-02100 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 · 90467-T0021 |
| 64717A | Luggage front decorative cover | 64717-02190 · 64717-02200 · 64717-02220 |
| 64771H | Clip (for spare tire cover) | 90467-T0015 |
| 64777G | Spare tire cushion | 64777-02150 · 64777-02310 |
