Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

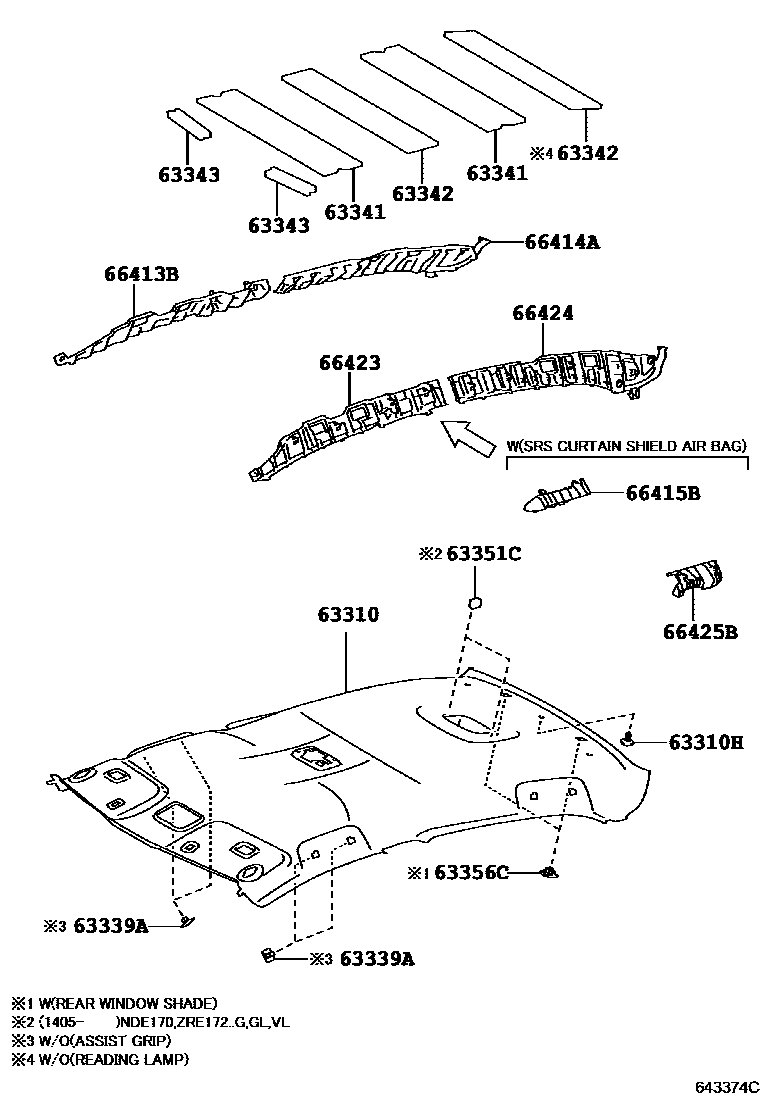

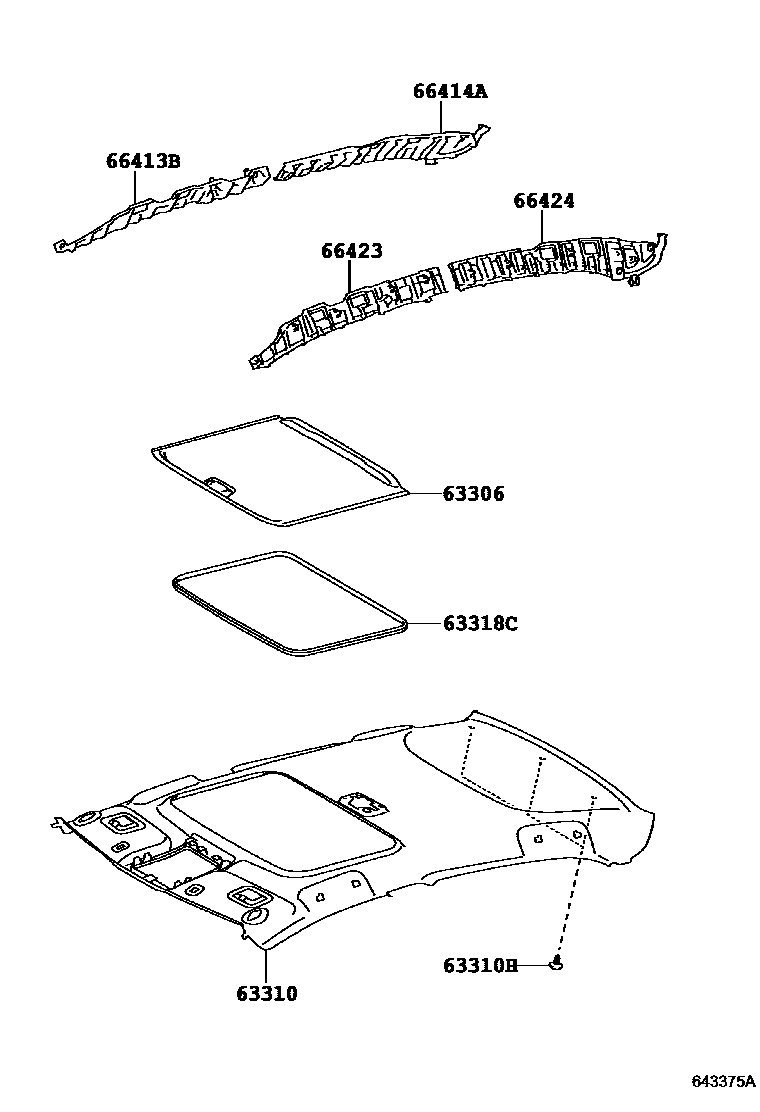

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02380 · 63341-02390 · 63341-02420 · 63341-02430 |
| 63342 | No. 2 roof muffler pad | 63342-02560 · 63342-02570 · 63342-02640 · 63342-02650 |
| 63343 | No. 3 roof muffler pad | 63343-02120 · 63343-02130 · 63343-02180 · 63343-02190 |
| 63351C | roof lining pads | 63351-02190 |
| 66413B | Right front longitudinal member spacer | 66413-02180 · 66413-02190 · 66413-02200 |
| 66414A | Right rear longitudinal member spacer | 66414-02200 · 66414-02210 · 66414-02220 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-02110 |
| 66423 | Left front longitudinal member spacer | 66423-02180 · 66423-02190 · 66423-02200 |
| 66424 | Left rear longitudinal member spacer | 66424-02200 · 66424-02210 · 66424-02220 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-02120 |
