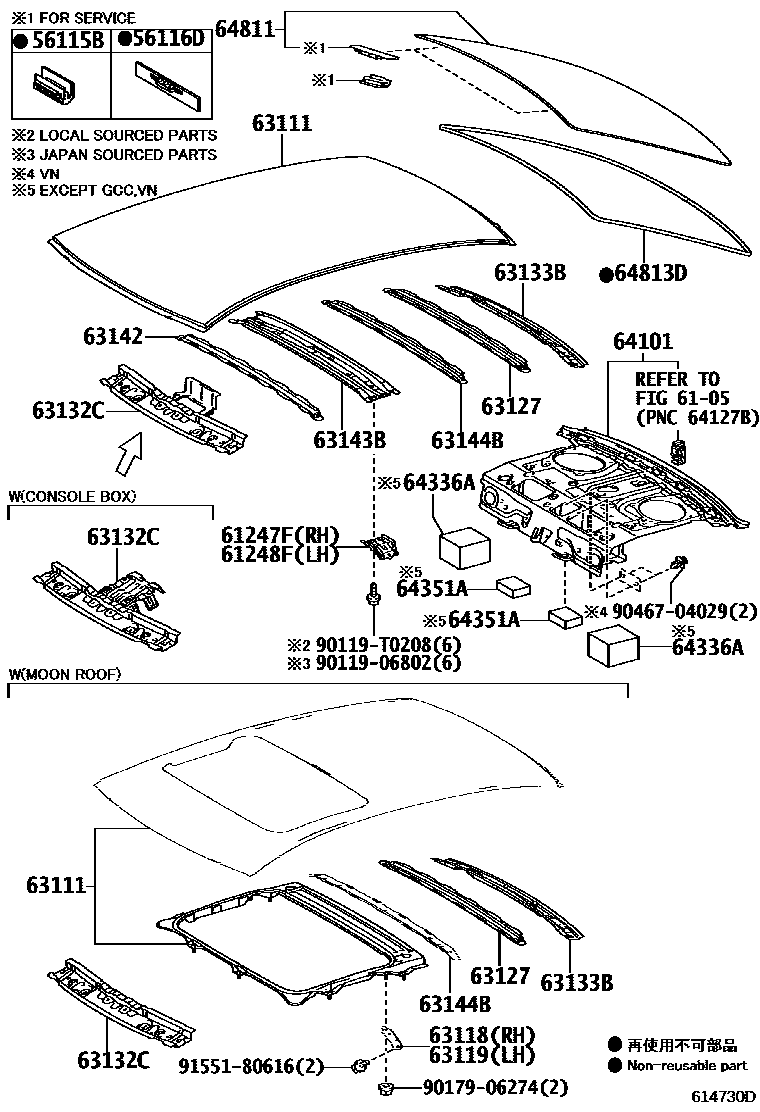

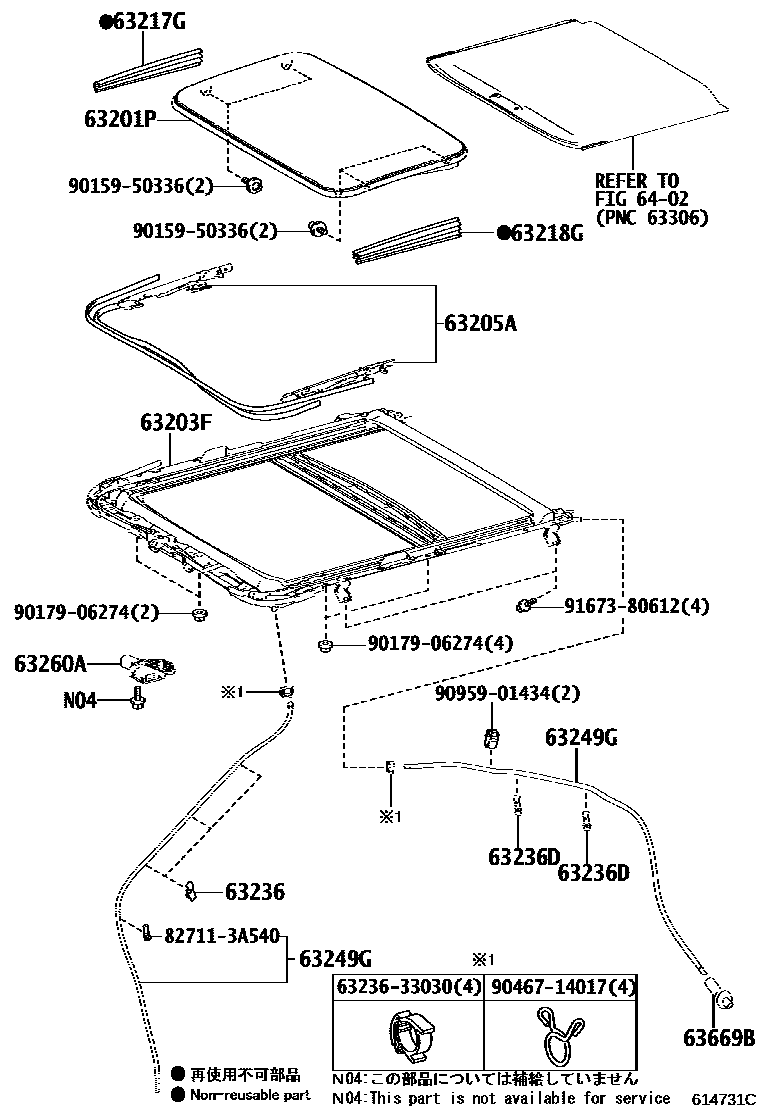

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-02020 · 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02180 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61247-02180 |
| 63111 | roof panel | 63101-02902 · 63111-02470 |
| 63118 | Right roof panel bracket | 63118-02080 |
| 63119 | Left roof panel bracket | 63118-02080 |
| 63127 | No. 5 roof panel reinforcement | 63127-02100 |
| 63132C | Windshield inner roof panel | 63102-02340 · 63102-02350 · 63132-02200 |
| 63133B | back window frame | 63133-02140 |
| 63142 | No. 2 roof panel reinforcement | 63143-02170 |
| 63143B | No. 3 roof panel reinforcement | 63141-02190 |
| 63144B | No. 4 roof panel reinforcement | 63144-02210 · 63148-02080 |
| 63201P | Sliding sunroof glass sub-assembly | 63201-02160 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02100 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02050 · 63205-02051 |
| 63217G | Right sliding sunroof trim | 63217-33080 · 63217-33110 |
| 63218G | Sliding sunroof trim, left | 63217-33080 · 63217-33110 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 90469-09004 |
| 63236D | Sliding skylight drain hose clamp | 63236-30010 |
| 63249G | Sliding skylight drain hose | 63249-02330 · 63249-02340 · 63249-12480 · 63249-12490 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02130 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
| 64101 | Upper back panel sub-assembly | 64101-02350 · 64101-02360 · 64101-02370 · 64101-02390 · 64101-02410 · 64101-02420 · 64101-02490 · 64101-02500 · 64101-02570 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02070 |
| 64351A | No. 1 glove box decorative mat | 64351-02080 · 64351-02120 |
| 64811 | back window glass | 64801-02230 · 64801-02240 · 64801-02250 · 64801-02251 |
| 64813D | Back window glass adhesive seal | 56117-50130 · 64813-02200 |
