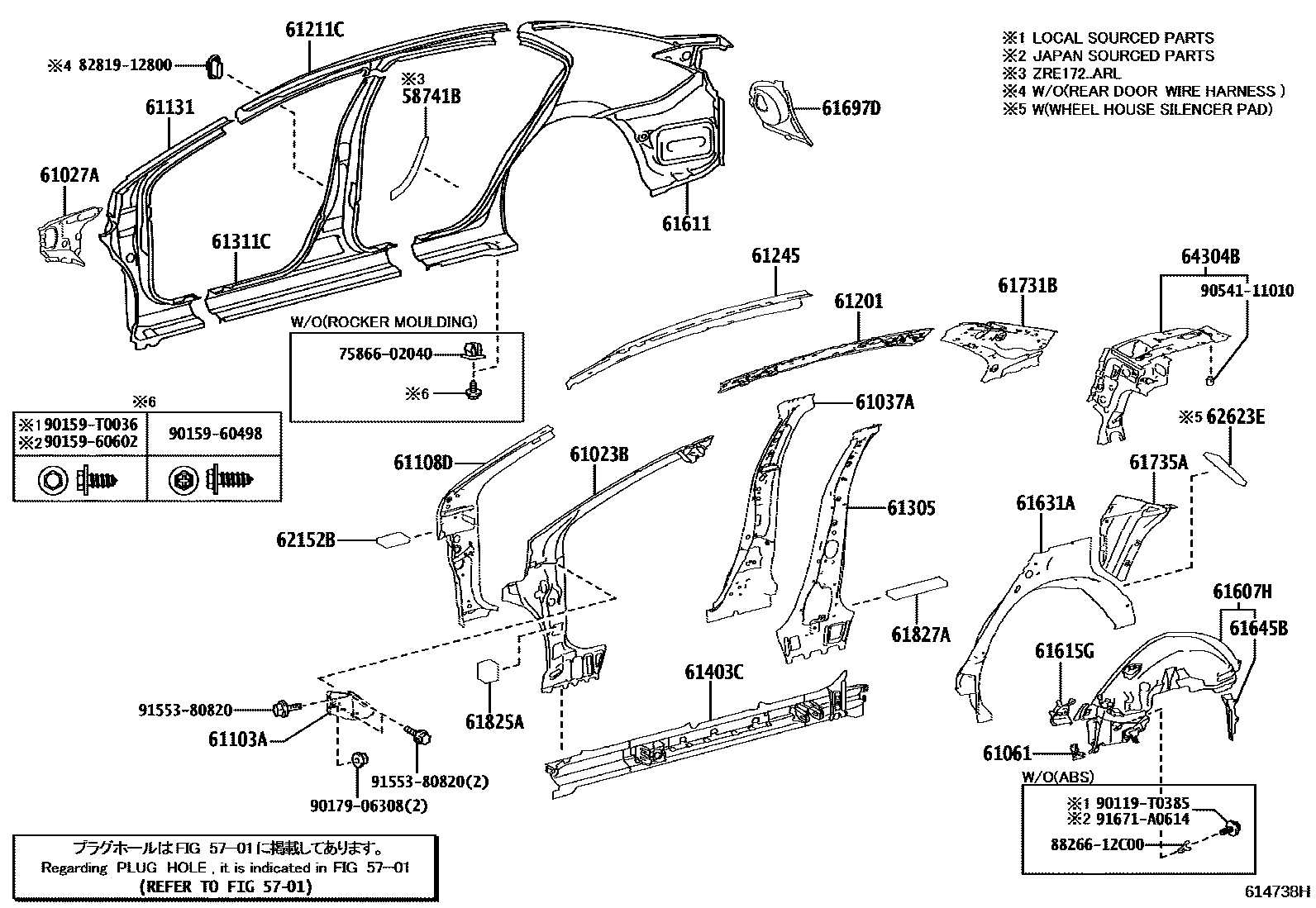

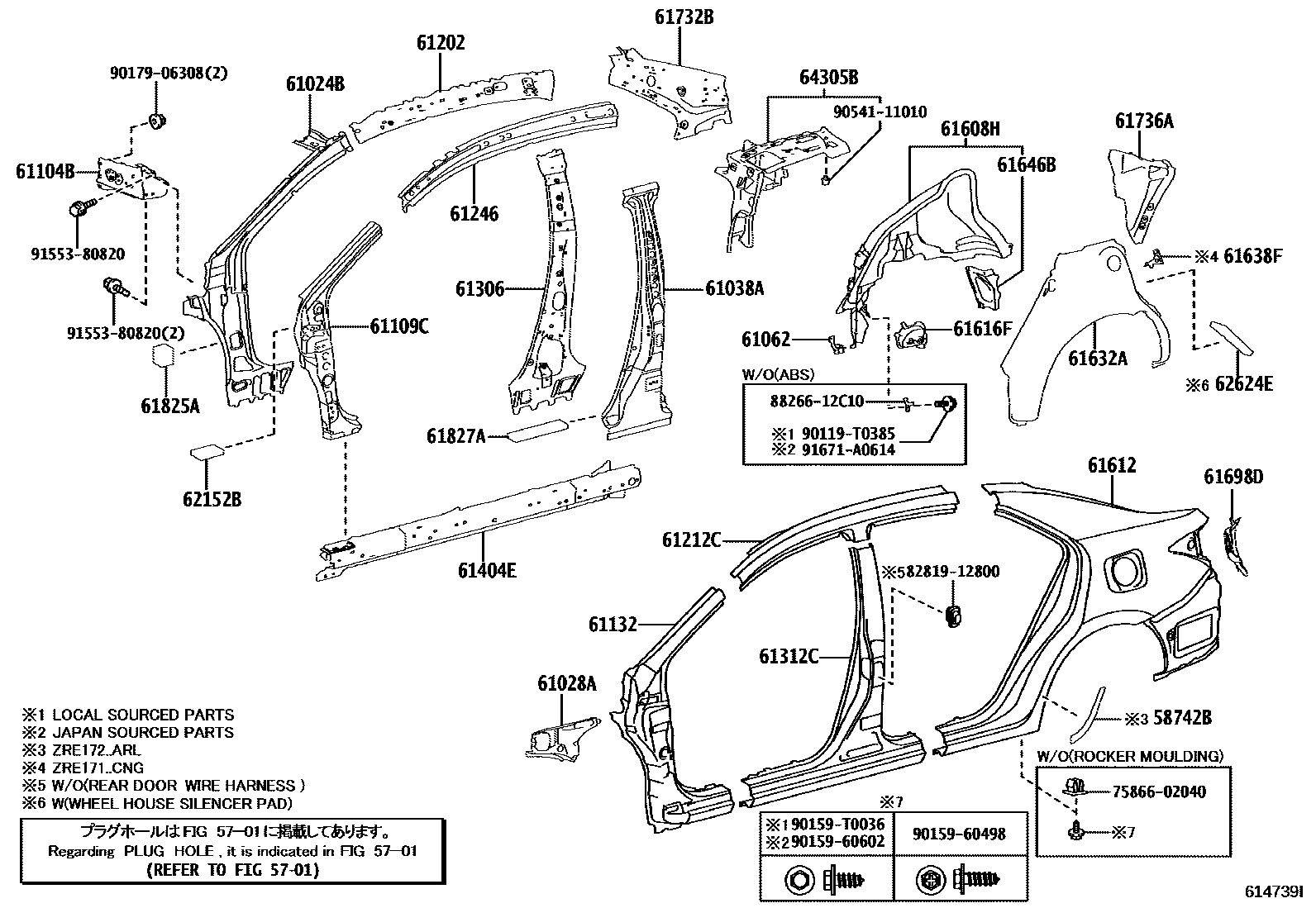

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-02200 |
| 58742B | Left side enclosure protection panel | 58742-02190 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02250 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02150 |
| 61027A | Right body outer front pillar sub-assembly | 61027-02040 |
| 61028A | Left body outer front pillar sub-assembly | 61028-02040 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02917 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02917 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02080 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02080 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-02190 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-02180 · 61104-02230 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02221 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02221 |
| 61131 | Right body outer front upper pillar | 61131-02230 · 61131-02320 |
| 61132 | Left body outer front upper pillar | 61132-02260 · 61132-02350 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02230 · 61201-02400 · 61201-02410 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02230 · 61202-02290 · 61202-02410 · 61202-02420 |
| 61211C | Roof right side rail | 61211-02150 |
| 61212C | Roof left side rail | 61212-02150 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02220 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02220 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02140 · 61305-02150 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02140 · 61306-02150 |
| 61311C | Right rear body front outer panel | 61311-02190 · 61311-02310 |
| 61312C | Left rear body front outer panel | 61312-02190 · 61312-02300 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02902 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02902 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02680 · 61607-02690 · 61607-02700 · 61607-02710 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02570 · 61608-02580 · 61608-02590 · 61608-02600 |
| 61611 | Right side hoarding | 61601-02270 · 61601-02420 |
| 61612 | left side panel | 61602-02280 · 61602-02450 |
| 61615G | Right rear body rear side panel reinforcement | 61615-02120 |
| 61616F | Left rear body rear side panel reinforcement | 61616-02130 |
| 61631A | Right wheel cover outer panel | 61631-02200 |
| 61632A | Left side wheel cover outer panel | 61632-02200 · 61632-02210 |
| 61638F | Left side wheel cover bracket | 61637-02020 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61697D | Right side enclosure end cover | 61697-02913 |
| 61698D | Left side enclosure end cover | 61698-02913 |
| 61731B | Roof right inner panel | 61731-02290 · 61731-02450 |
| 61732B | Roof left inner panel | 61732-02290 |
| 61735A | Right rear roof inner panel | 61735-02190 |
| 61736A | Left rear roof inner panel | 61736-02190 · 61736-02340 |
| 61825A | Noise Control Panel No. 2 | 61825-02080 |
| 61827A | Noise Control Panel No. 4 | 61827-02070 |
| 62152B | No. 2 silencer pad on cowl side | 62152-02050 · 62152-12050 |
| 62623E | Right rear side wheel housing lining block | 62623-02090 |
| 62624E | Left rear side wheel housing lining block | 62623-02090 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02190 · 64304-02200 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02190 · 64305-02200 |
