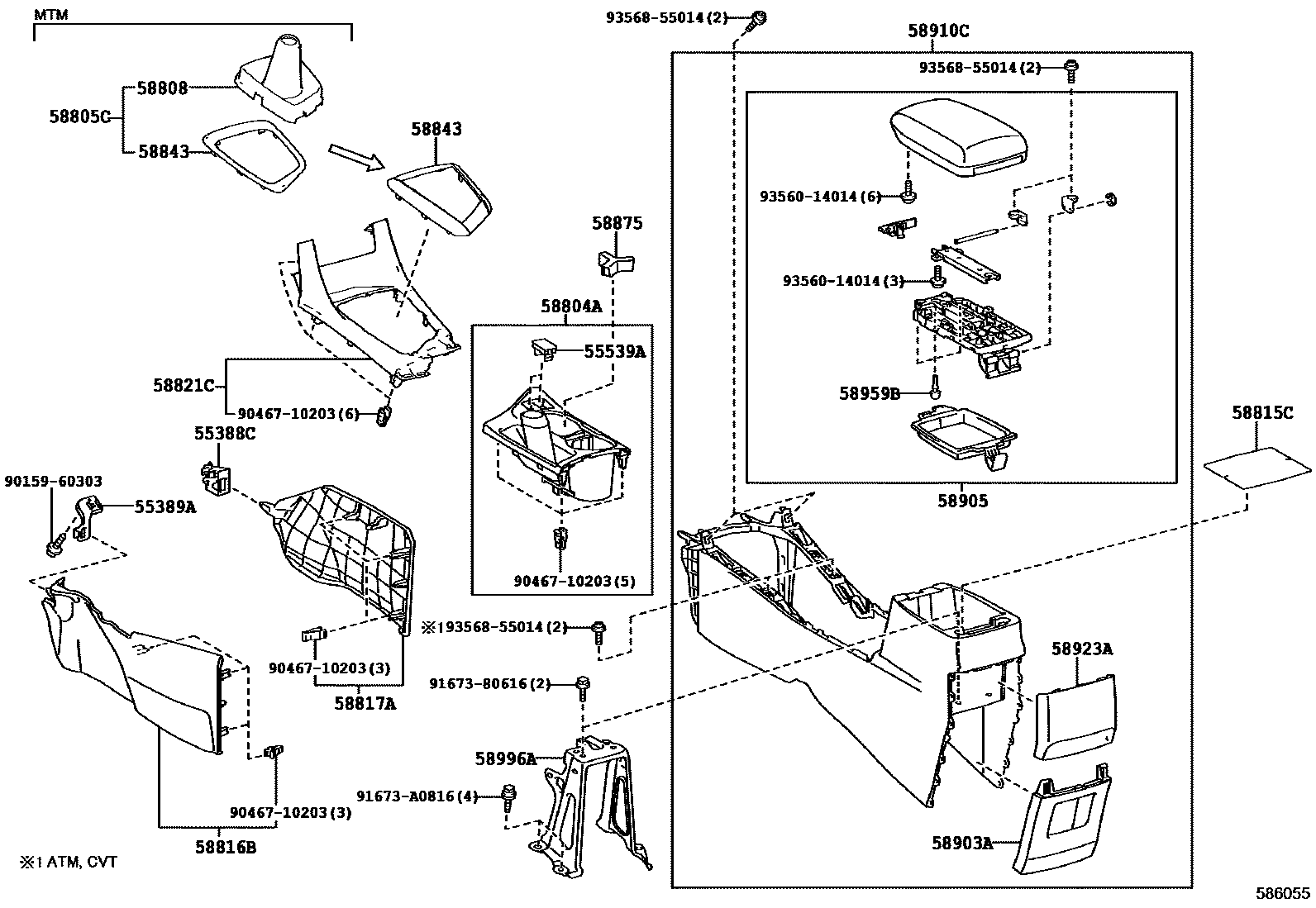

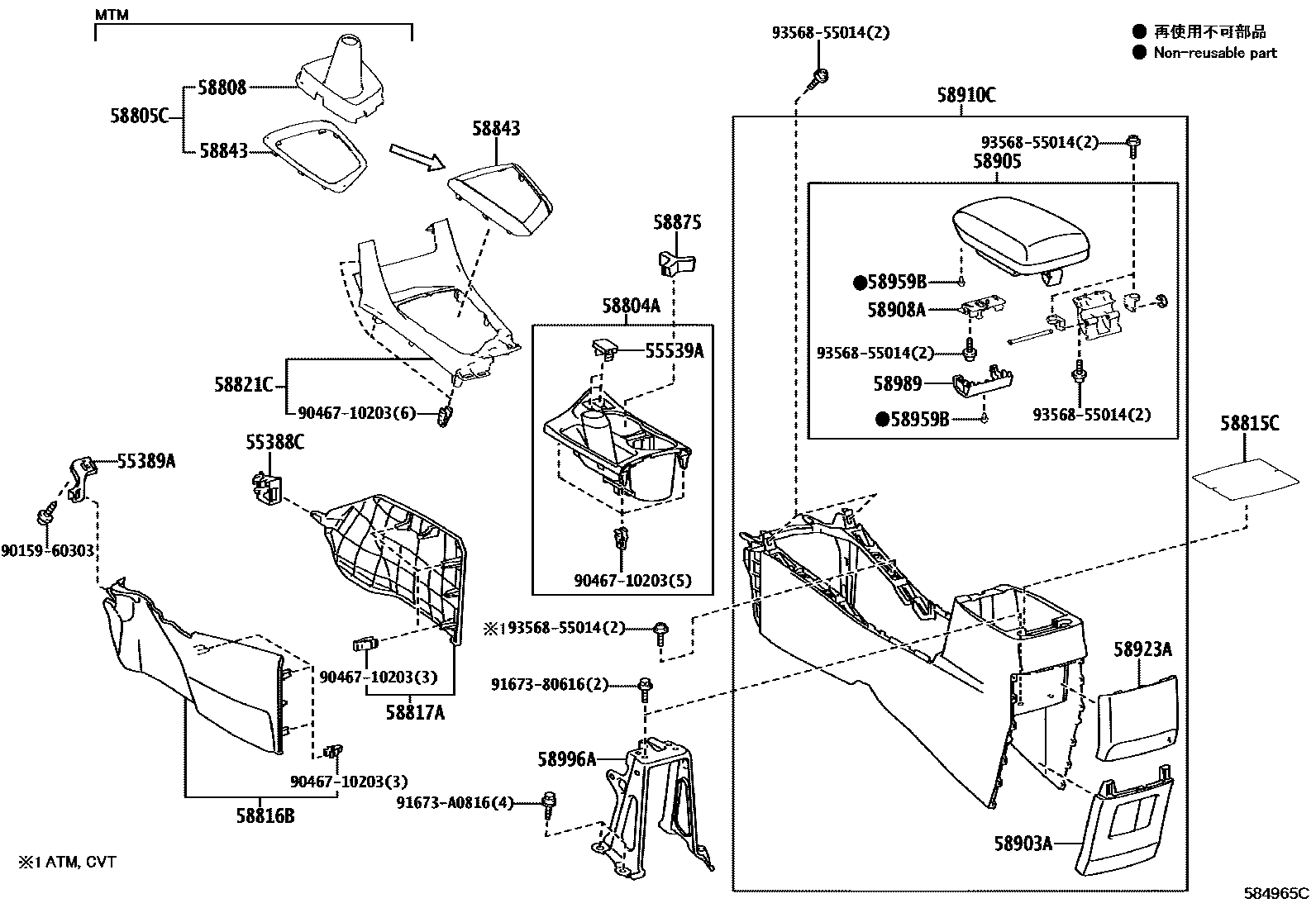

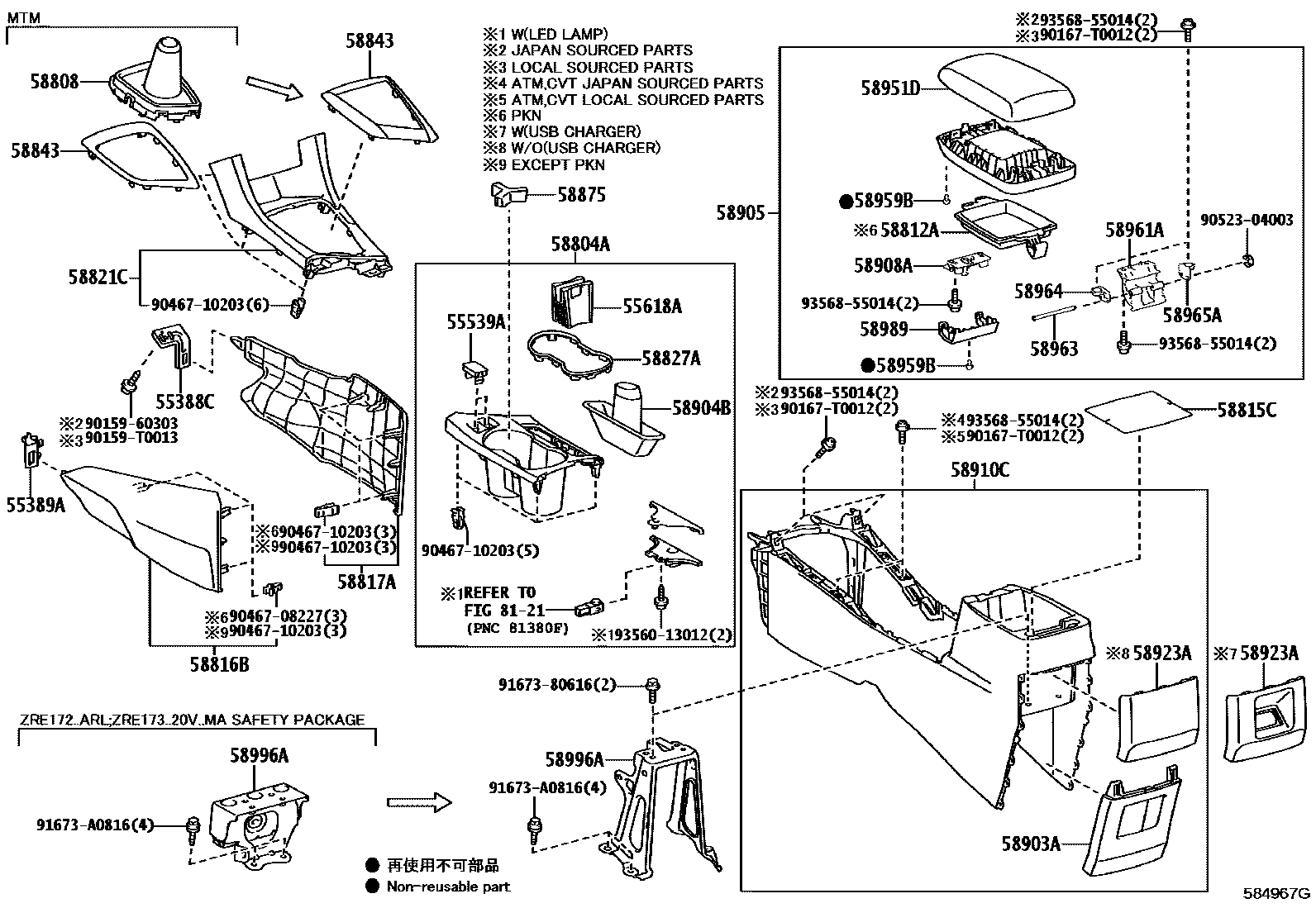

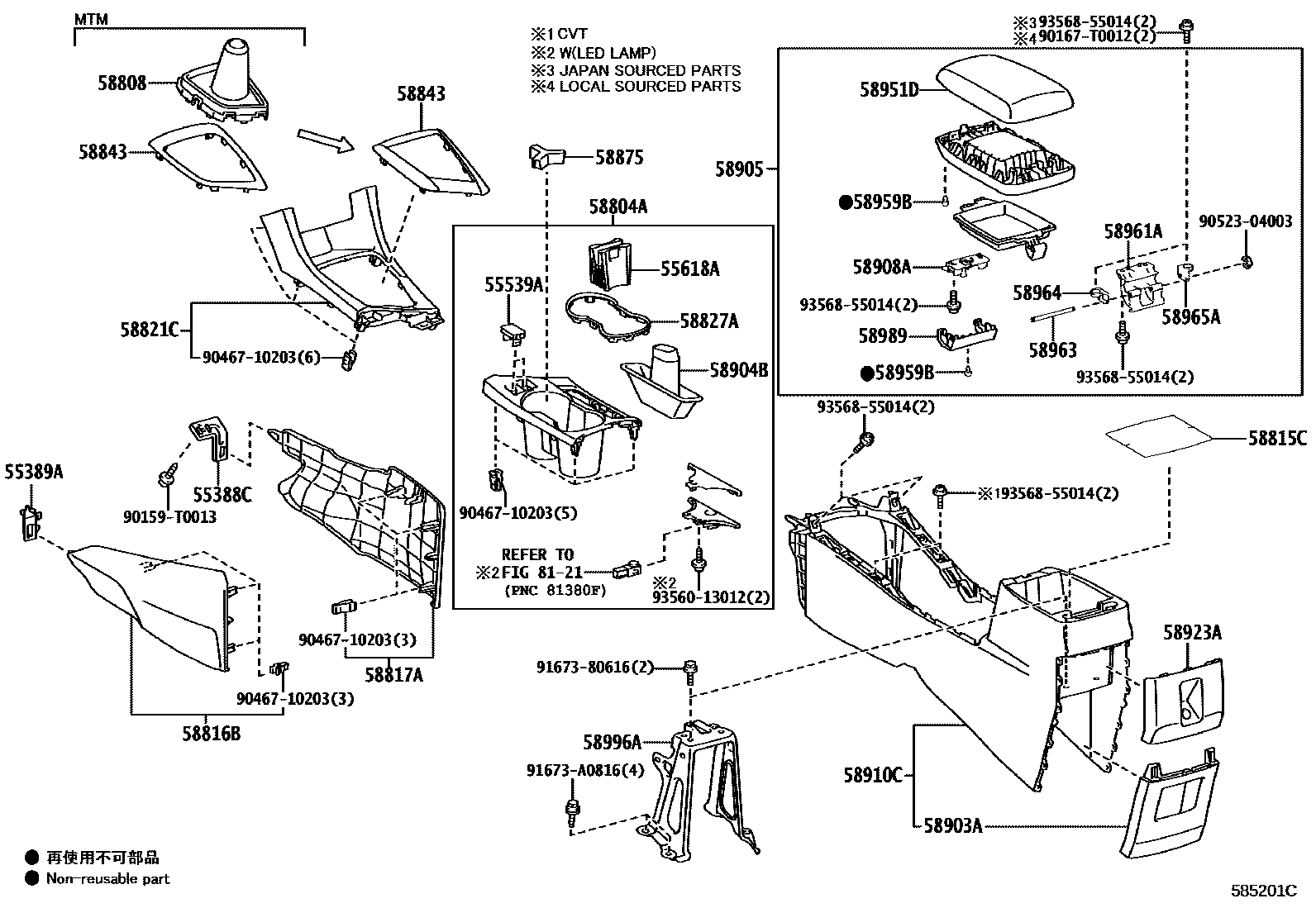

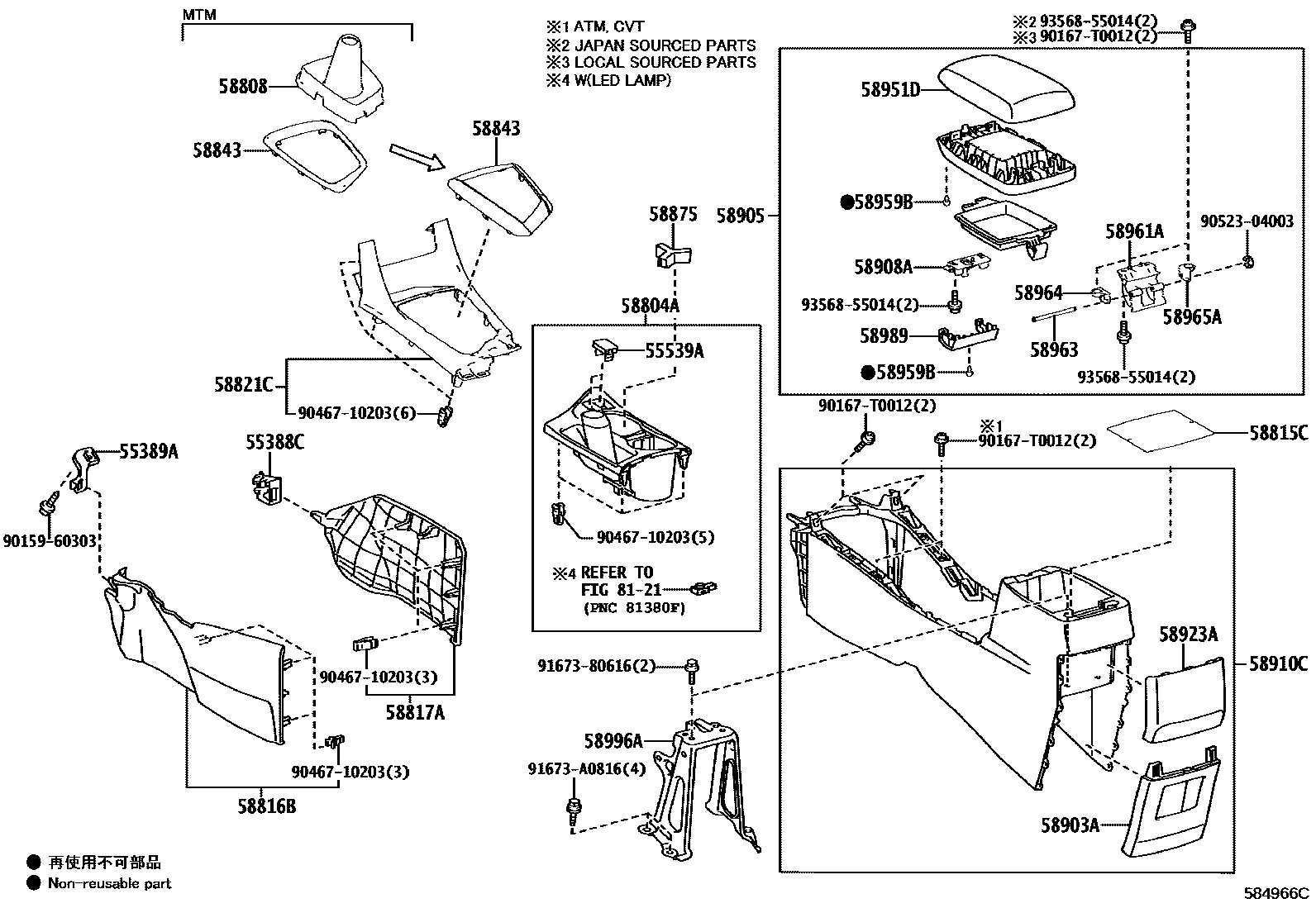

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55388C | Mounting bracket on the right side of the console | 55388-02070 · 55389-02060 |
| 55389A | Console left side mounting bracket | 55388-02080 · 55389-02050 |
| 55539A | Spare switch hole cover | 55539-0D090 |
| 55618A | Armrest box cup holder | 55618-02260 |
| 58804A | Armrest box upper panel sub-assembly | 58804-YP070 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-02070 · 58805-02080 |
| 58812A | Lower armrest box | 58812-02250 |
| 58815C | Armrest box felt pad | 58815-02310 · 58815-02330 · 58815-02340 |
| 58827A | Armrest box groove decorative parts | 58827-02130 · 58827-02140 · 58827-02170 · 58827-02300 · 58827-02310 · 58827-YP010 |
| 58843 | shift hole frame | 58843-02600 · 58843-02610 · 58843-02620 · 58843-02630 · 58843-02640 · 58843-02A60 · 58843-02A70 · 58843-02A80 · 58843-02A90 · 58843-02B00 · 58843-02B10 · 58843-02B50 · 58843-YP040 |
| 58875 | Armrest box spacer | 58875-02010 |
| 58903A | Armrest box rear end plate sub-assembly | 58903-02040 |
| 58904B | Parking brake hole cover sub-assembly | 58904-02300 |
| 58905 | Armrest box cover sub-assembly | 58905-02B50 · 58905-02D10 |
| 58908A | Armrest box lid lock assembly | 58908-02120 · 58908-02130 · 58908-02140 |
| 58910C | Rear armrest box assembly | 58910-02500 |
| 58923A | Armrest box rear end panel | 58923-02220 |
| 58951D | Armrest box outer cover | 58951-02A10 · 58951-02B80 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58961A | Armrest box lid protruding hinge | 58961-02140 · 58961-02160 |
| 58963 | Armrest box lid hinge shaft | 58963-02060 |
| 58964 | Armrest box cover No. 1 stop | 58964-02200 · 58964-02210 |
| 58965A | Armrest box cover No. 2 stopper | 58965-02210 · 58965-02220 |
| 58989 | Armrest box cover panel | 58989-02160 · 58989-02170 · 58989-02180 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02150 · 58996-02160 · 58996-02230 |
