Toyota COROLLA 地板隔热垫 — Figure 5802

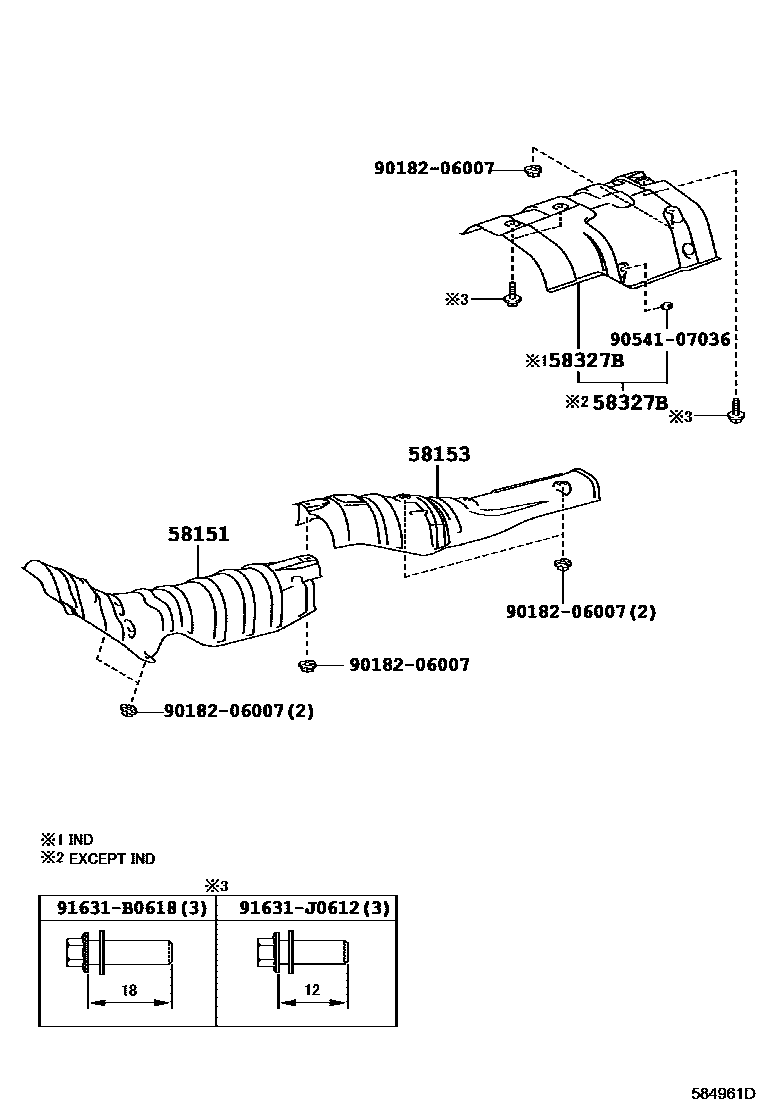

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-02230 · 58151-02300 · 58151-02340 · 58151-02400 · 58151-02470 |
| 58153 | Front floor insulation mat No. 2 | 58153-02250 · 58153-02260 · 58153-02270 |
| 58327B | Main muffler heat insulation pad | 58327-02060 · 58327-02100 · 58327-12160 |
