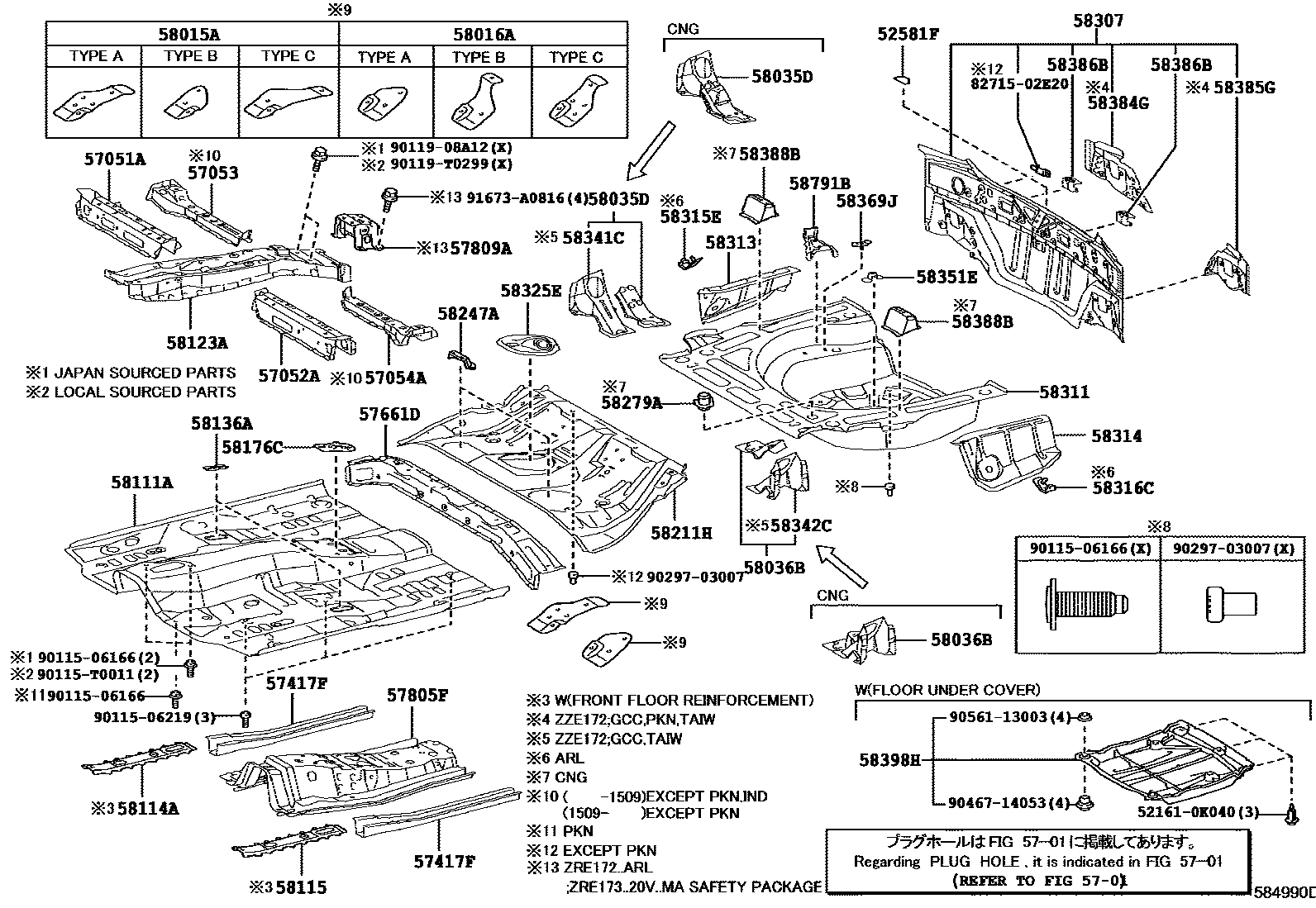

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-02060 |
| 57051A | Front floor right cross member sub-assembly | 57051-02060 · 57051-02100 · 57051-02140 |
| 57052A | Front floor left cross member sub-assembly | 57052-02050 · 57052-02120 · 57052-02130 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02060 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02040 |
| 57417F | Front floor lower right reinforcement | 57417-02170 |
| 57661D | rear floor front cross member | 57407-02140 · 57661-02130 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02140 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02030 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02100 · 58015-02190 · 58015-02200 · 58015-02210 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02100 · 58016-02130 · 58016-02170 |
| 58035D | Rear floor right side panel extension sub-assembly | 58035-02020 · 58035-02040 |
| 58036B | Rear floor left side panel extension sub-assembly | 58036-02020 · 58036-02040 · 58036-02060 |
| 58111A | Front floor right bottom panel | 58111-02932 · 58111-02934 |
| 58114A | front floor reinforcement | 58114-02030 |
| 58115 | Front floor reinforcement | 58115-02040 |
| 58123A | shift lever bracket | 58013-02150 · 58013-02310 |
| 58136A | Front floor access hole cover | 58136-02050 · 58136-33010 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02040 |
| 58211H | central floor base | 58211-02280 · 58211-02330 · 58211-02340 · 58211-02350 · 58211-02380 · 58211-02430 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02120 |
| 58279A | Fuel hose protector | 77266-12160 |
| 58307 | Body lower back panel sub-assembly | 58307-02380 · 58307-02400 · 58307-02410 |
| 58311 | rear floor pan | 58311-02270 · 58311-02310 · 58311-12250 · 58311-12270 |
| 58313 | Rear floor right panel | 58313-12300 |
| 58314 | rear floor left panel | 58314-12300 |
| 58315E | Rear floor right front side panel extension | 58315-12080 |
| 58316C | Rear floor left side panel extension | 58316-12080 |
| 58325E | Rear floor access hole cover | 58325-02130 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-12020 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02010 |
| 58351E | Spare tire clip bracket | 58351-33010 |
| 58369J | rear floor bracket | 58369-12020 |
| 58384G | Body lower back panel upper right corner panel | 58384-02190 · 58384-02210 |
| 58385G | Body lower back panel upper left corner panel | 58385-02160 · 58385-02180 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02040 |
| 58388B | rear floor support | 58388-02020 · 58389-02020 |
| 58398H | No. 1 floor under cover | 58398-02100 |
| 58791B | jack bracket | 58791-02110 · 58791-12200 |
