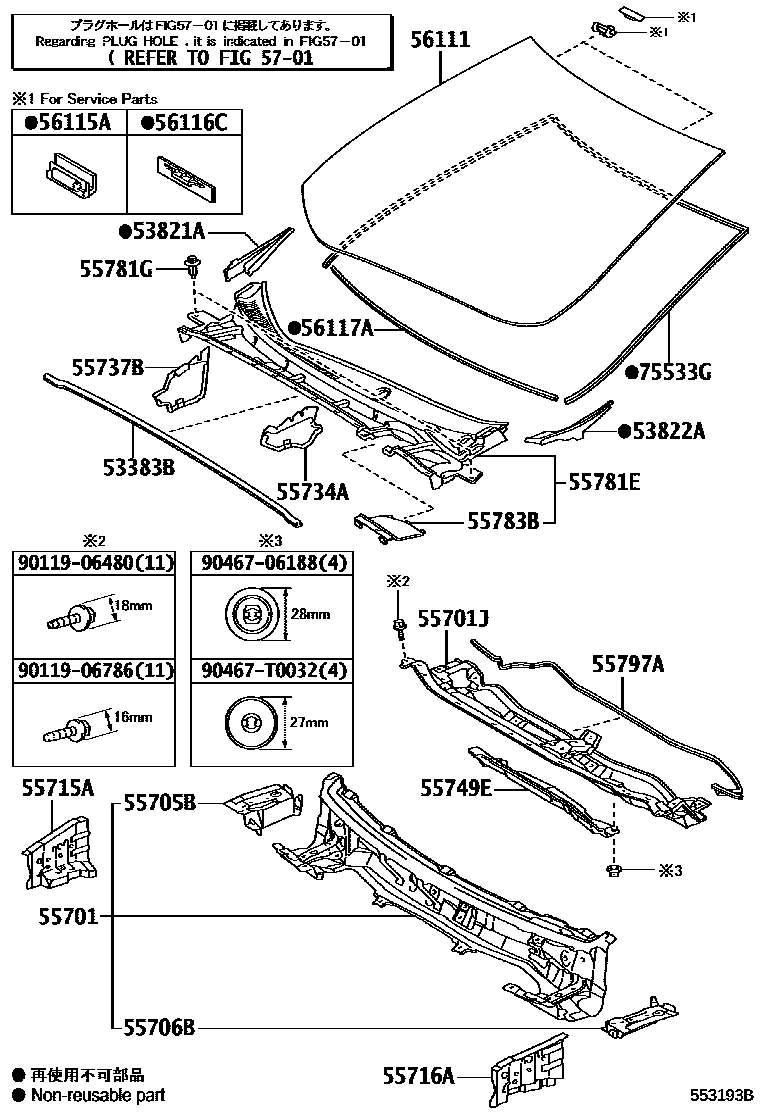

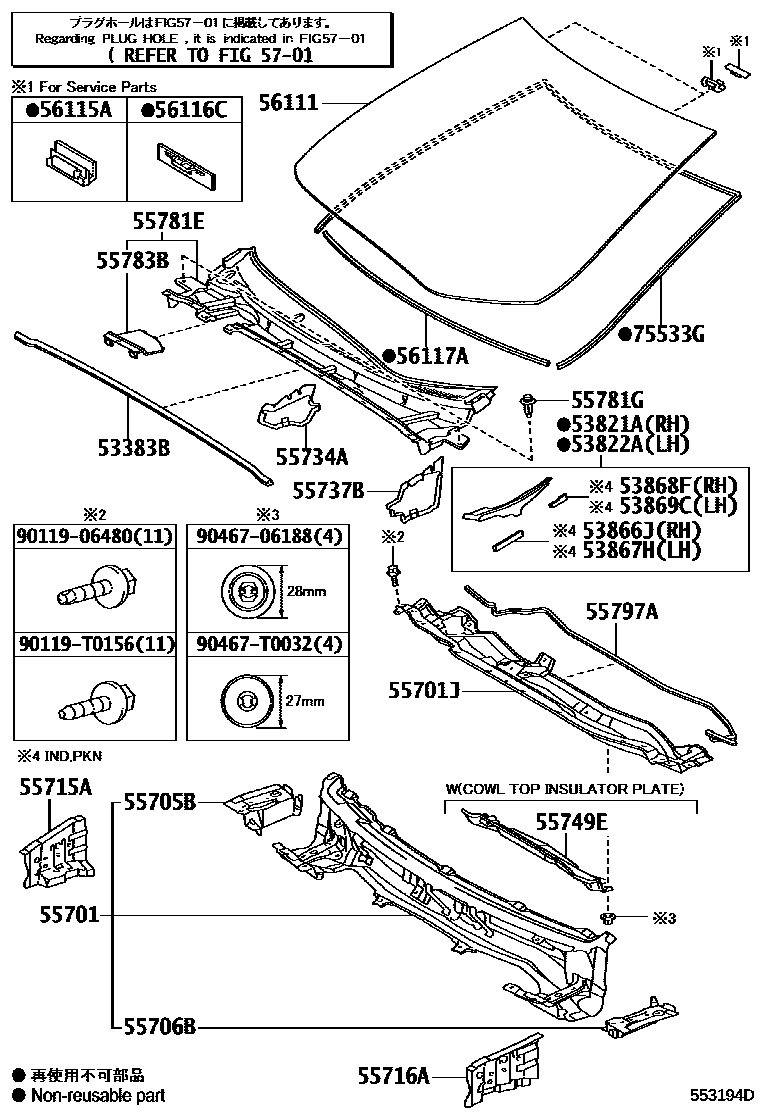

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02220 |
| 53821A | No. 1 right front side panel protector | 53805-02040 · 53805-02050 · 53823-02100 · 53823-02150 |
| 53822A | No. 1 left front side panel protector | 53806-02040 · 53806-02050 · 53824-02100 · 53824-02150 |
| 53866J | Right front fender to cowl side seal | 53866-02050 |
| 53867H | Left front fender to cowl side seal | 53867-02050 |
| 53868F | No. 2 seal from right front fender to cowl side | 53868-02010 |
| 53869C | No. 2 seal from left front fender to cowl side | 53869-02010 |
| 55701 | Front apron sub-assembly | 55700-02550 · 55700-02560 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02420 · 55701-02430 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02150 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02150 |
| 55715A | From cowl upper cover to fender right stay | 55715-02040 |
| 55716A | From cowl upper cover to fender left stay | 55716-02040 |
| 55734A | Right waterproof cover | 55734-02310 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02180 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02110 · 55749-02120 · 55749-02130 · 55749-02150 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02640 · 55708-02650 |
| 55781G | Ventilation grille clips on front apron | 90467-T0022 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-02250 · 55783-02260 |
| 55797A | Front wall pumping device seal | 55797-02130 |
| 56111 | windshield | 56101-02951 · 56101-02953 · 56101-02954 · 56101-02955 · 56101-02956 · 56101-02958 · 56101-02961 · 56101-02966 · 56101-02967 · 56101-02968 · 56101-02969 · 56101-02970 · 56101-02971 · 56101-02972 · 56101-02974 · 56101-02975 · 56101-02976 · 56101-02977 · 56101-02978 · 56101-02979 · 56101-02980 · 56101-02981 · 56101-02982 · 56101-02983 · 56101-02984 · 56101-02985 · 56101-02986 · 56101-02987 · 56101-02988 · 56101-02E30 · 56101-02F00 · 56101-02F30 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-02020 |
| 56117A | Window glass adhesive seals | 56117-02190 |
| 75533G | Windshield outer protective strip | 75531-02220 · 75531-02230 · 75531-02240 |
