Toyota COROLLA 仪表板和手套箱 — Figure 5501

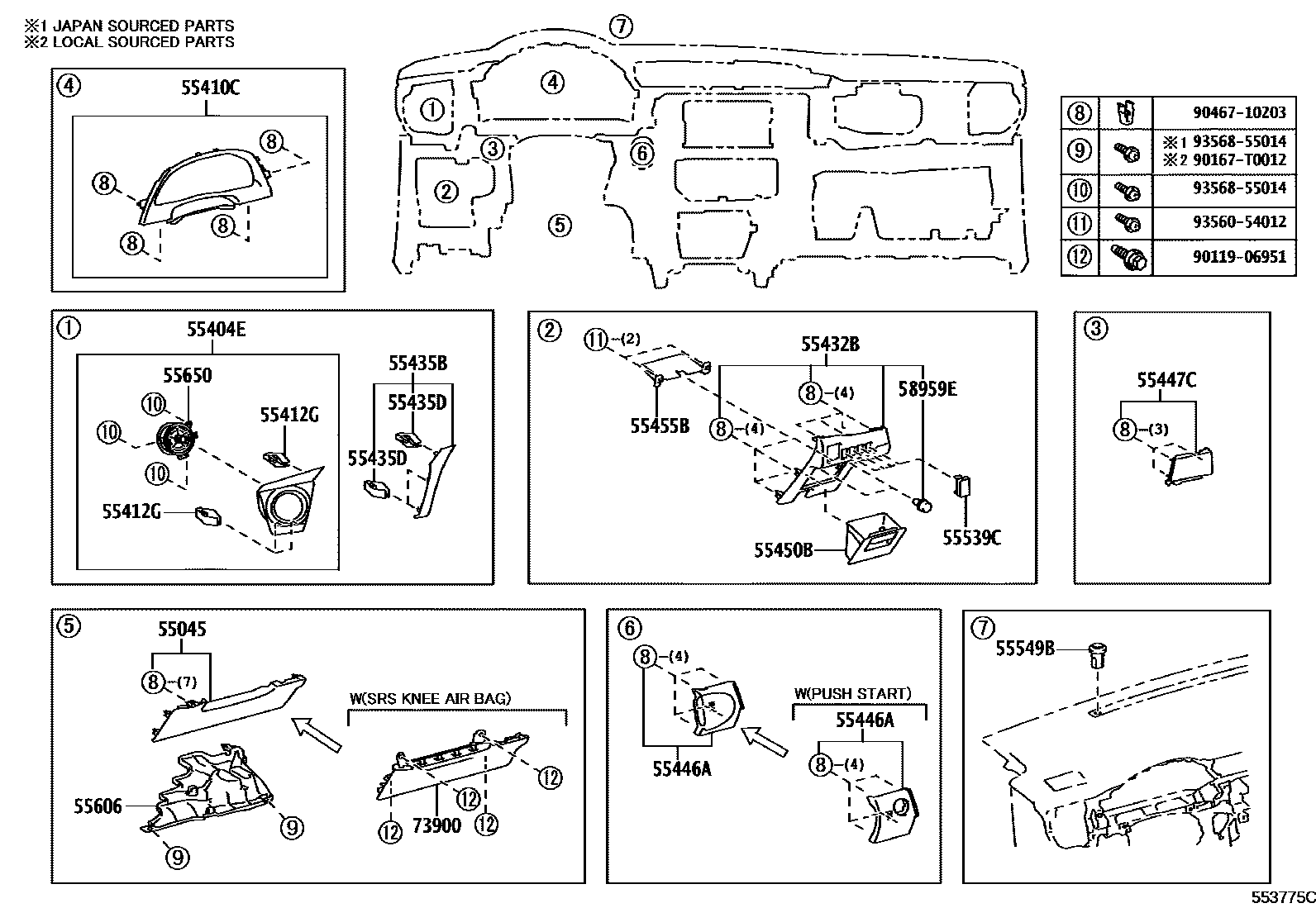

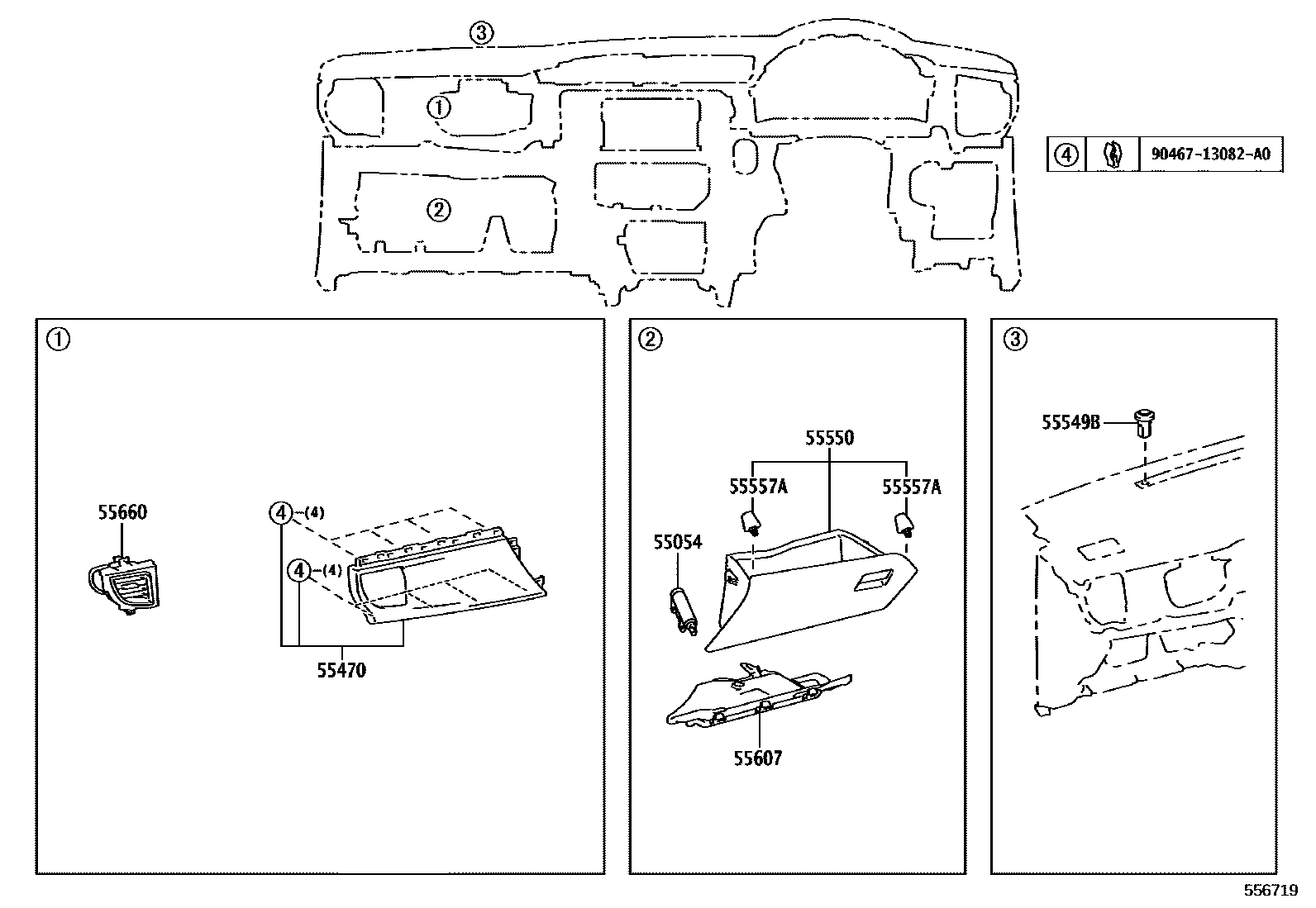

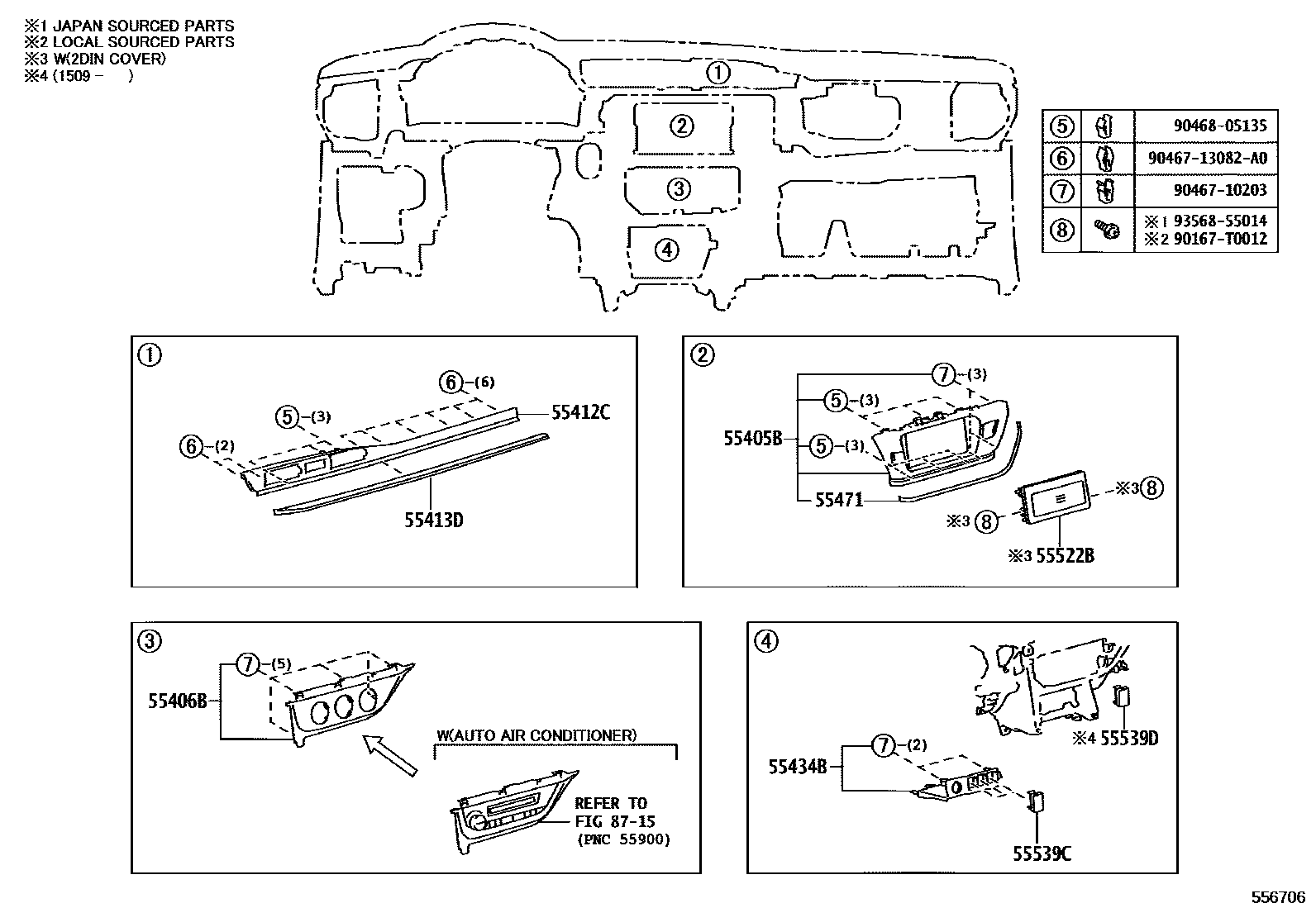

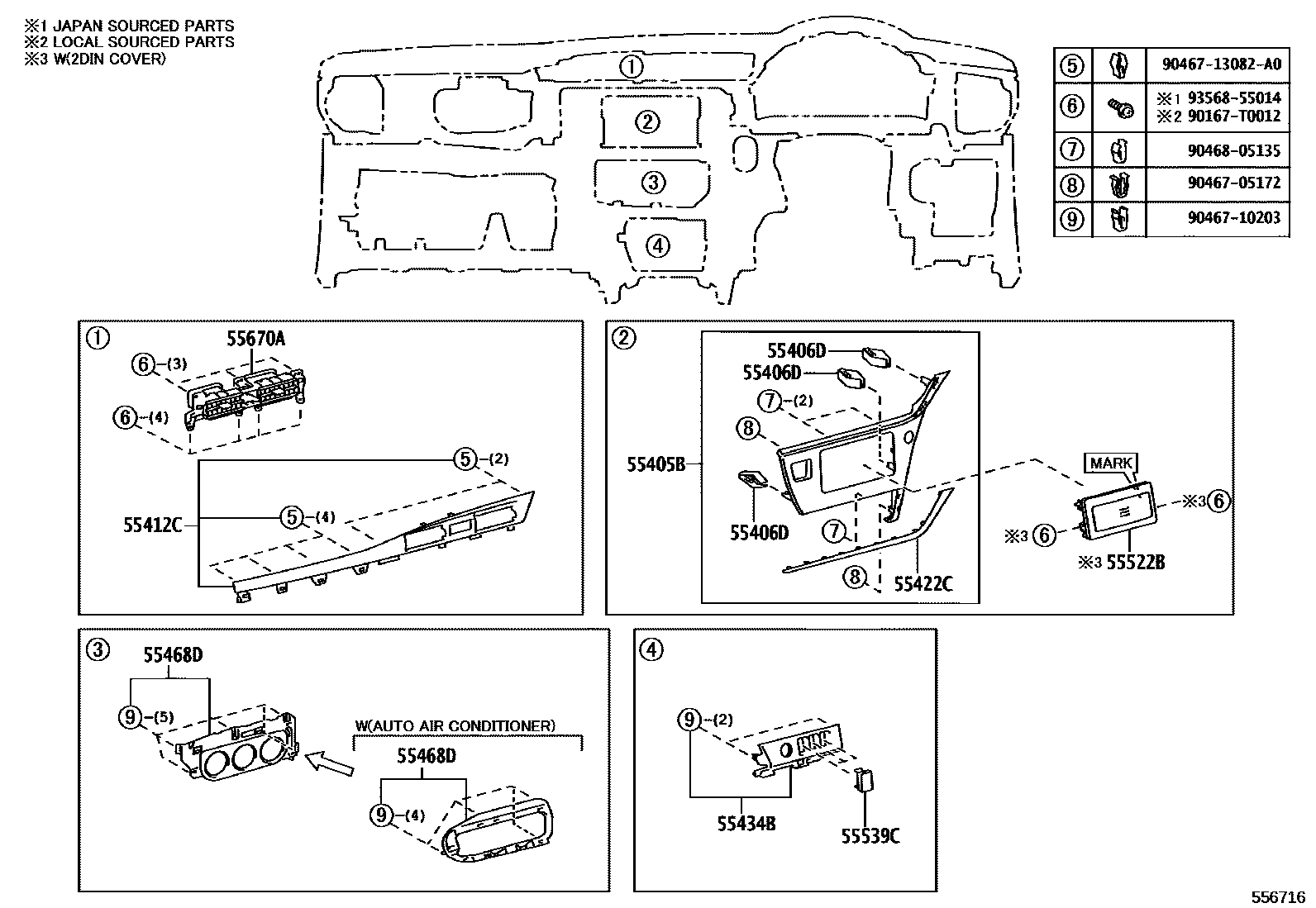

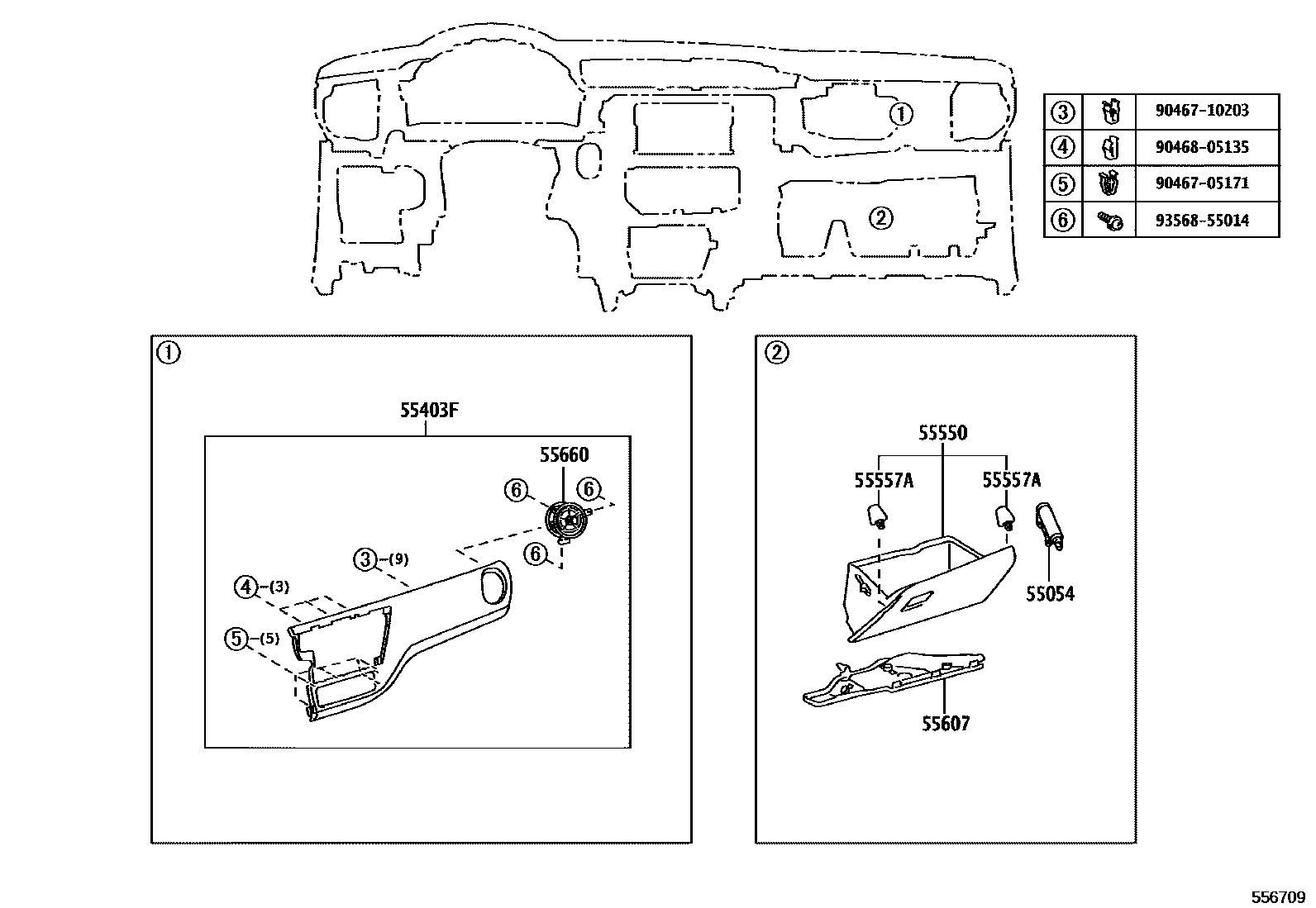

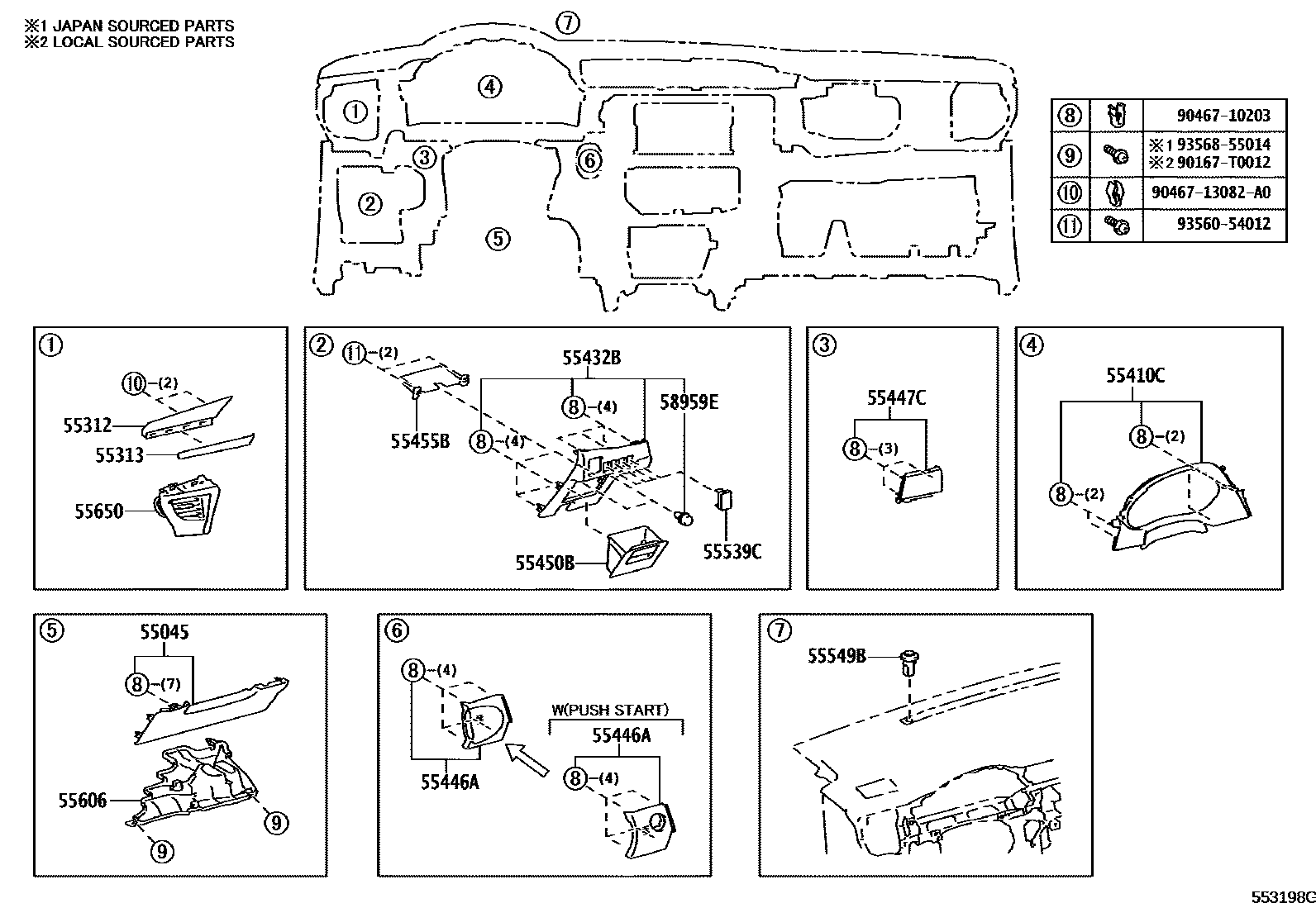

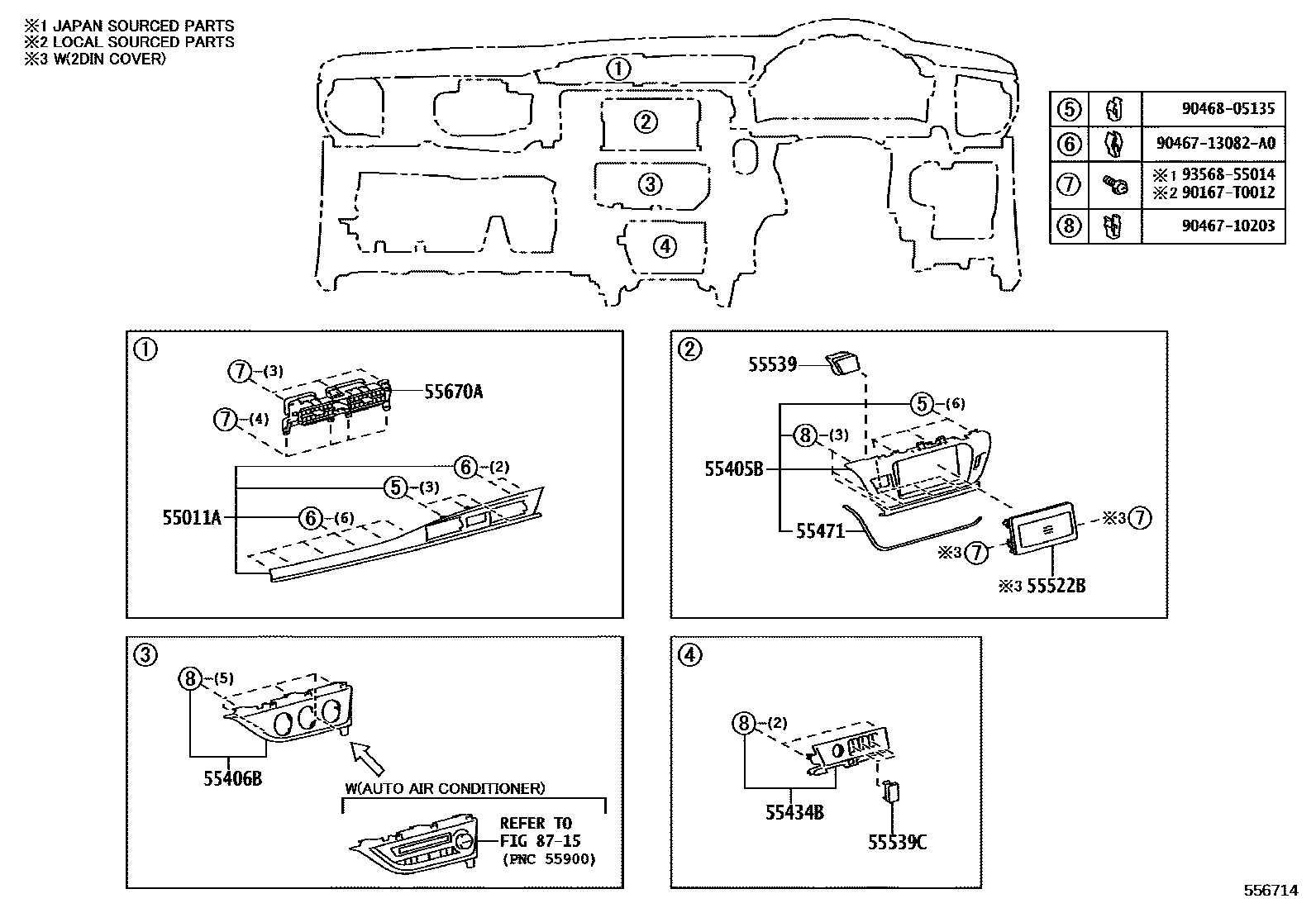

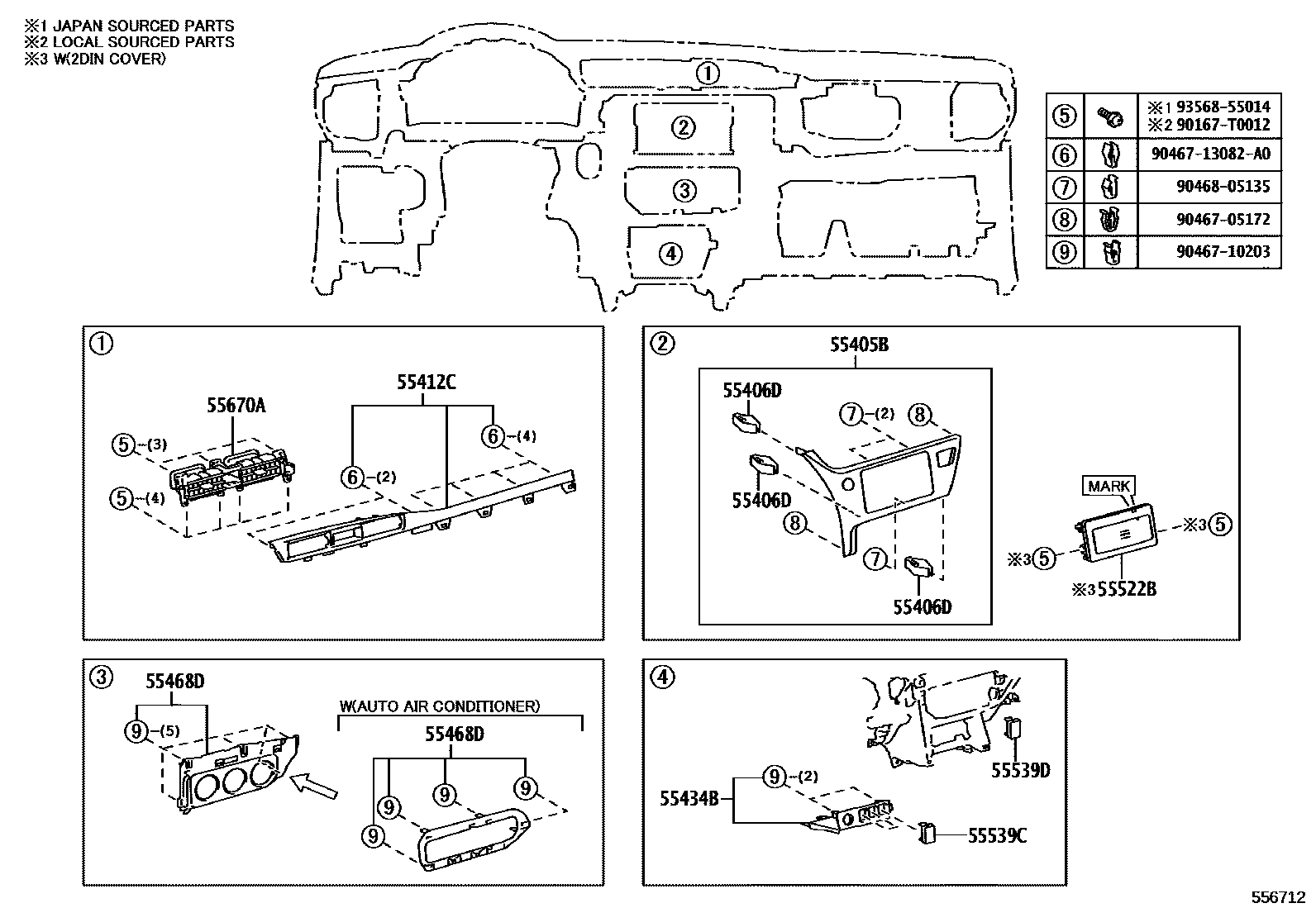

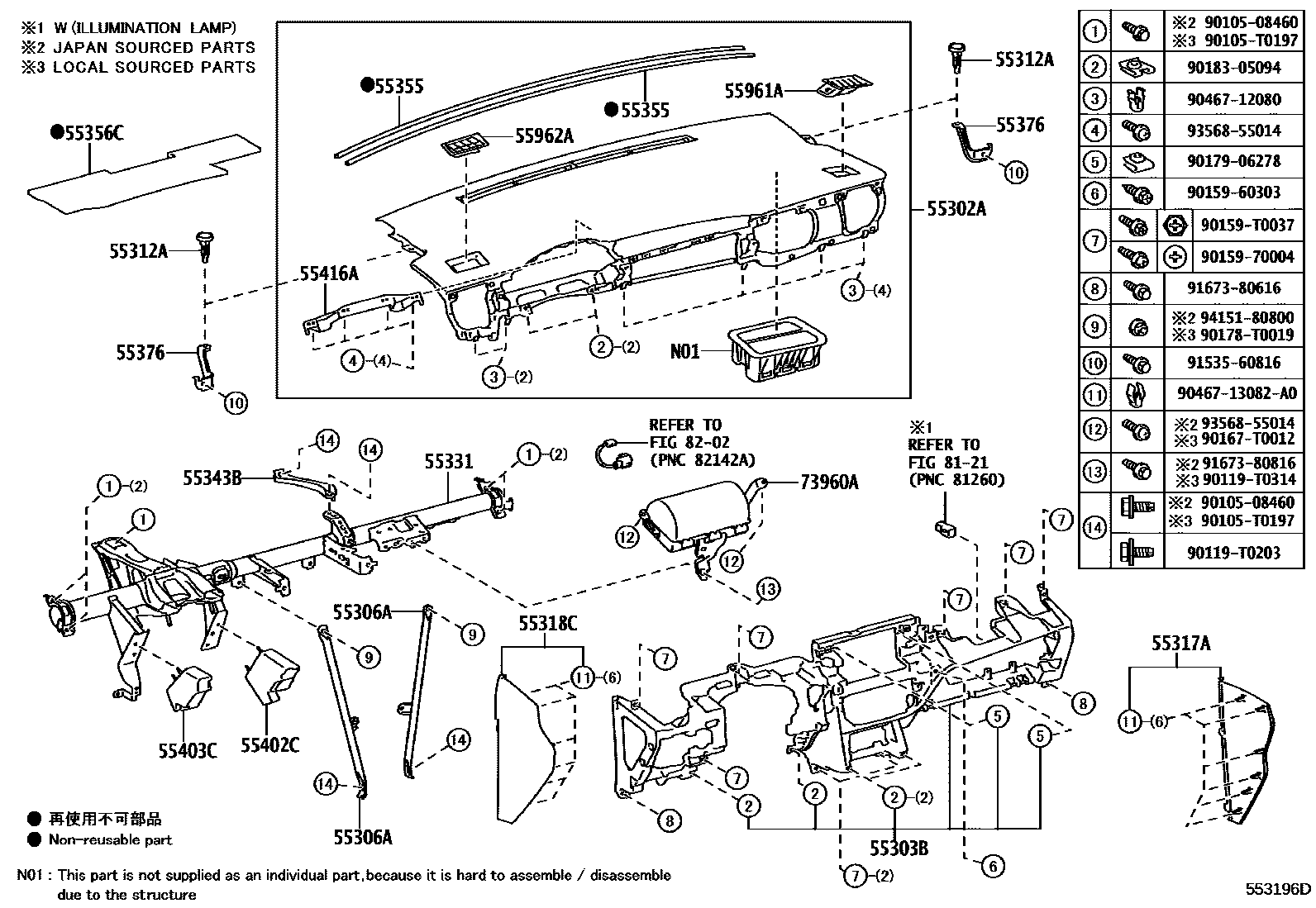

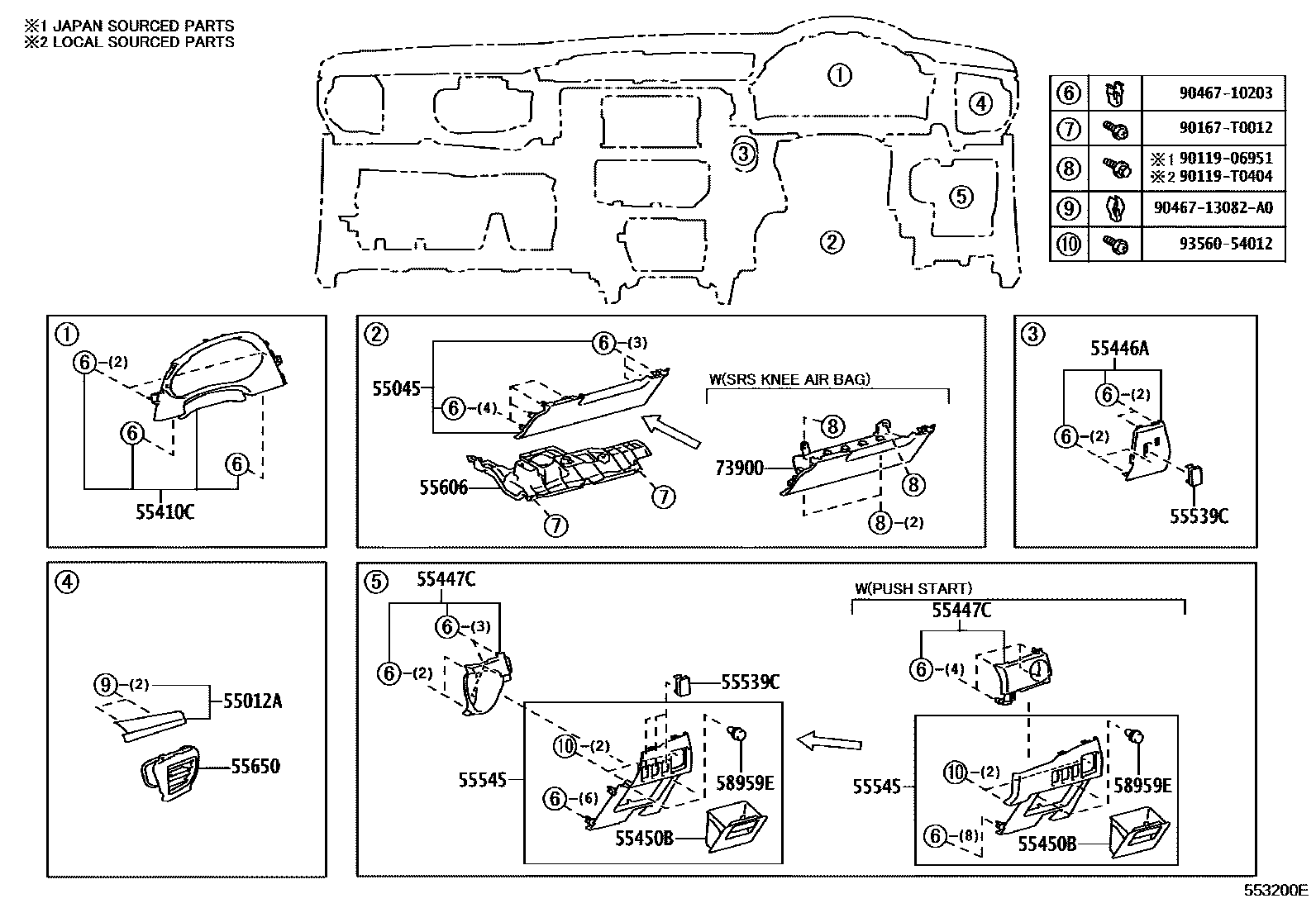

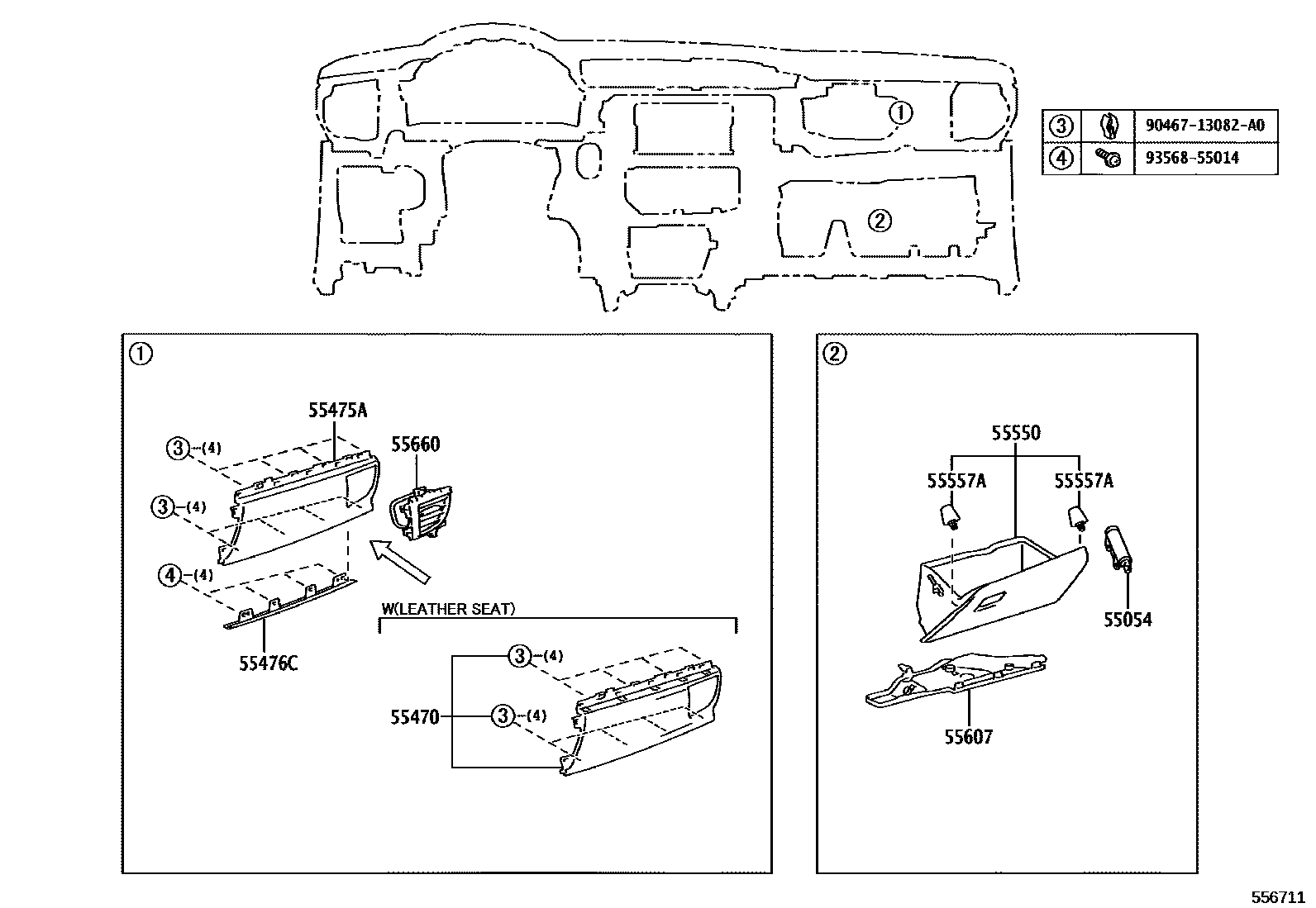

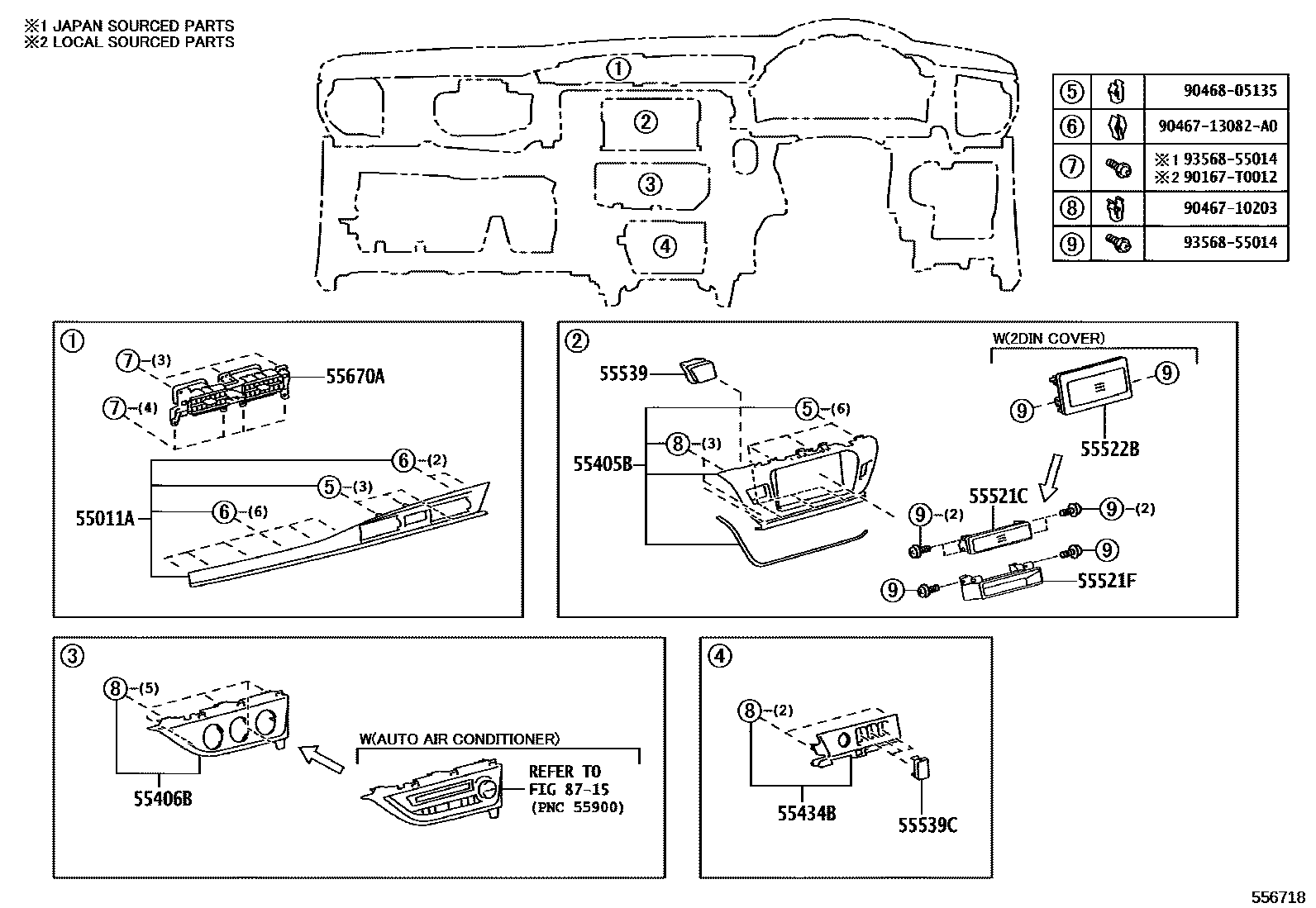

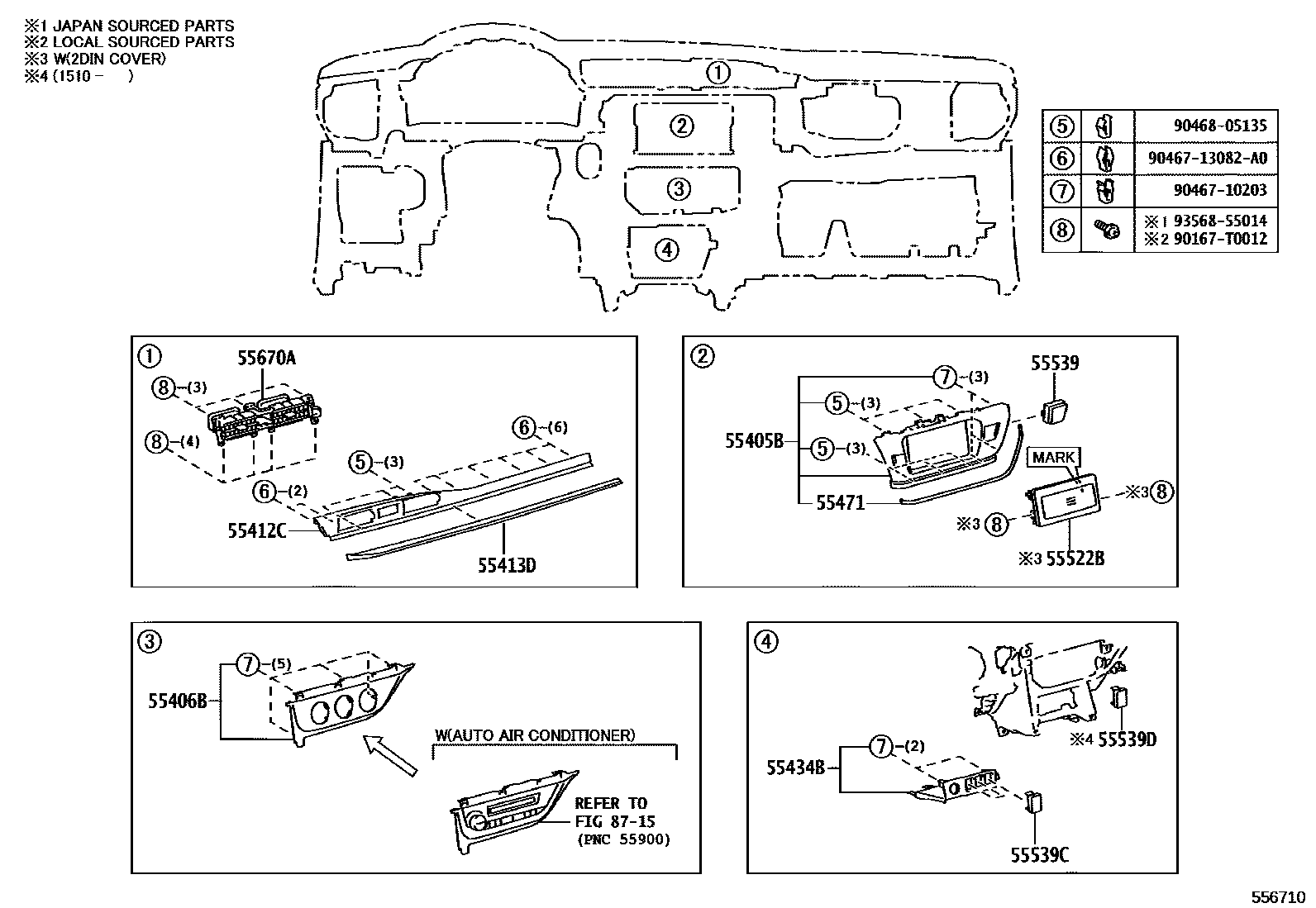

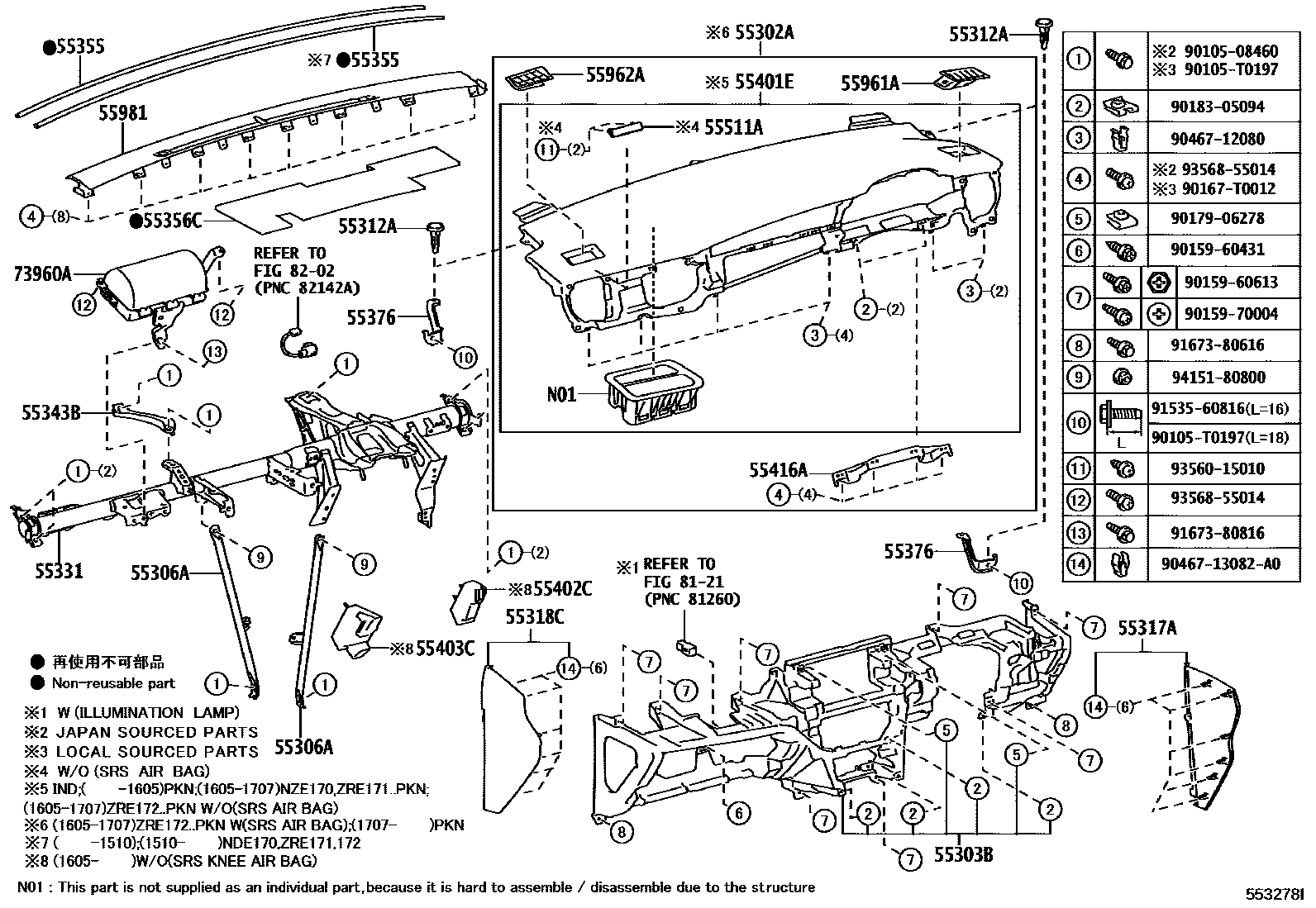

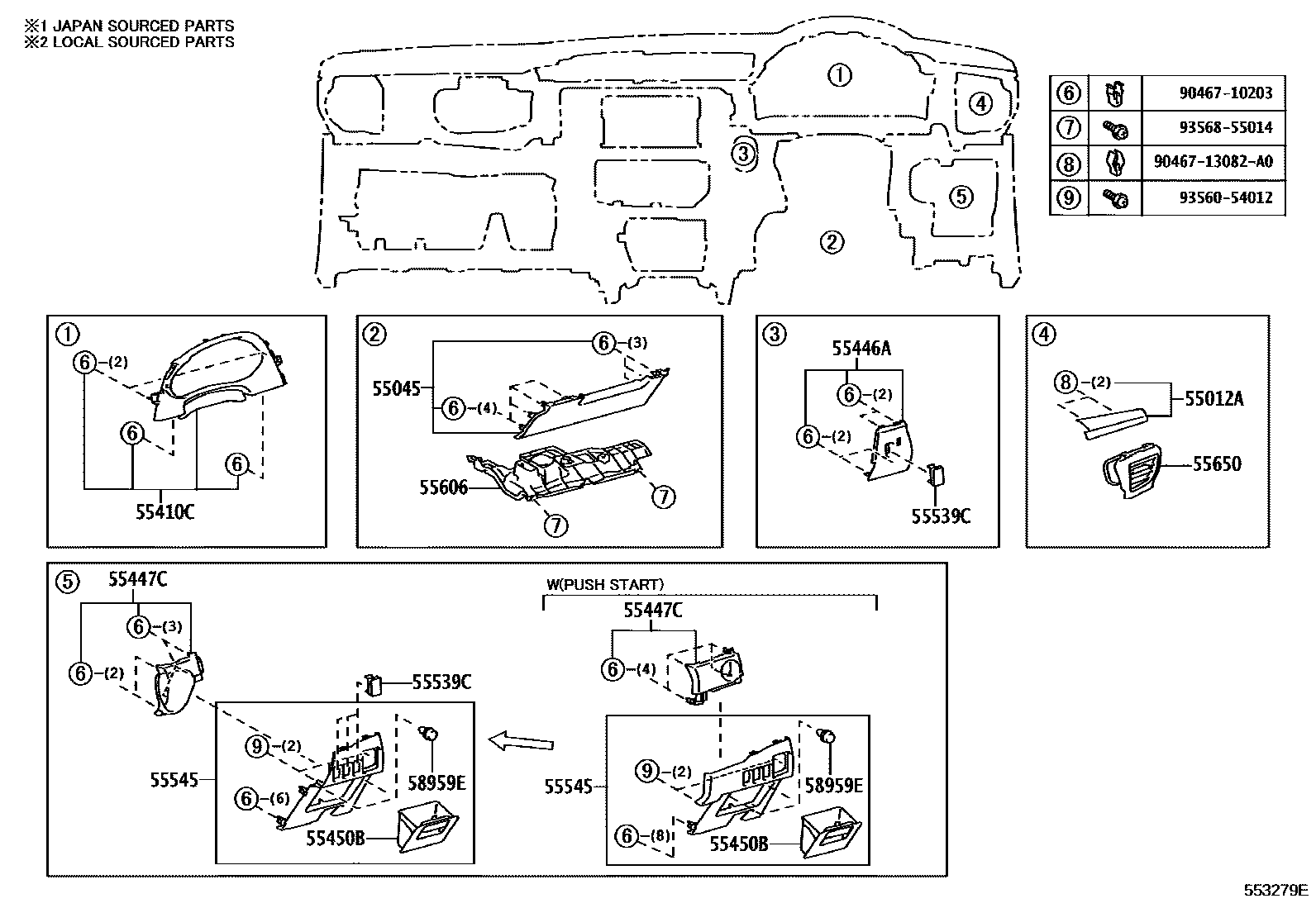

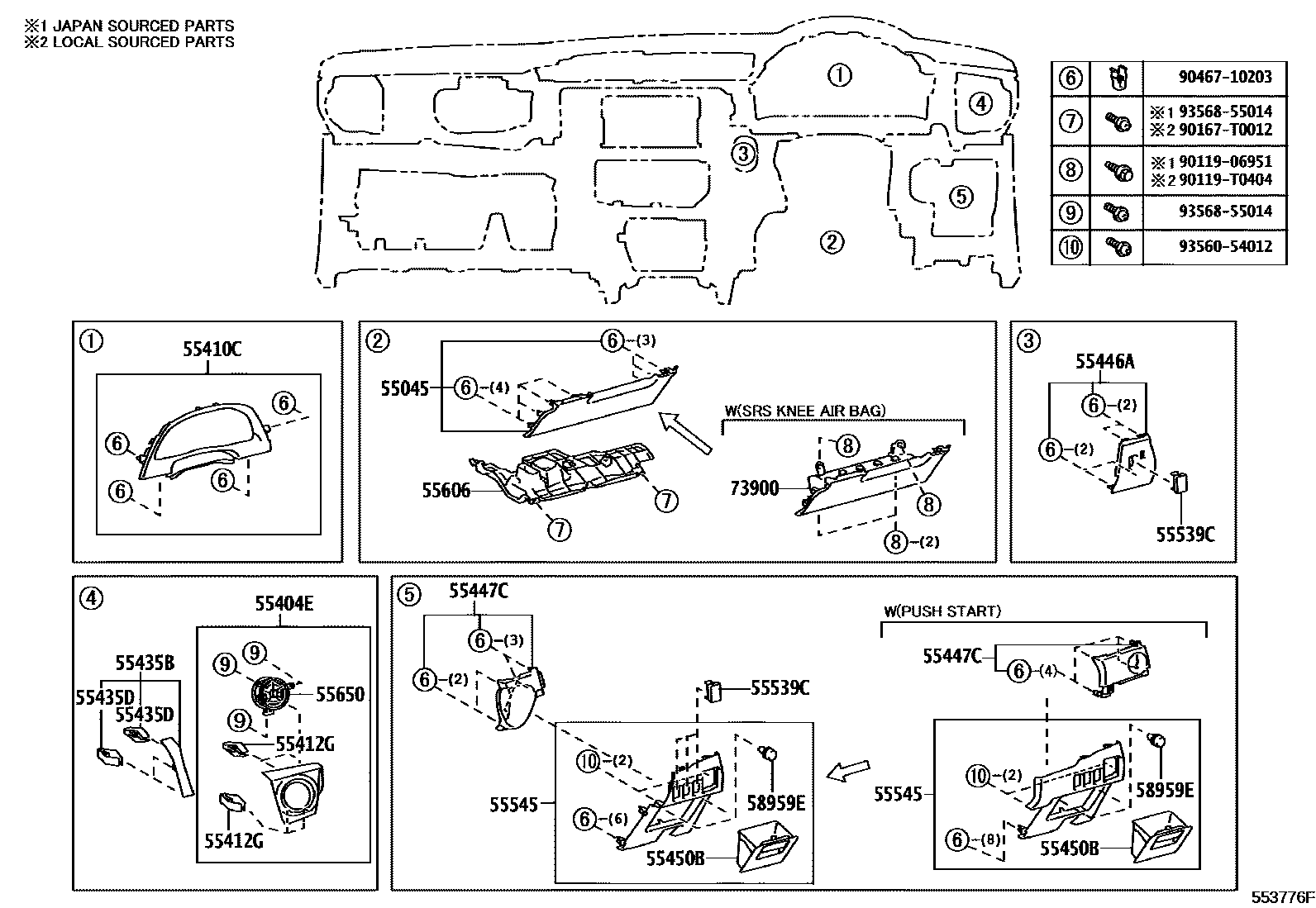

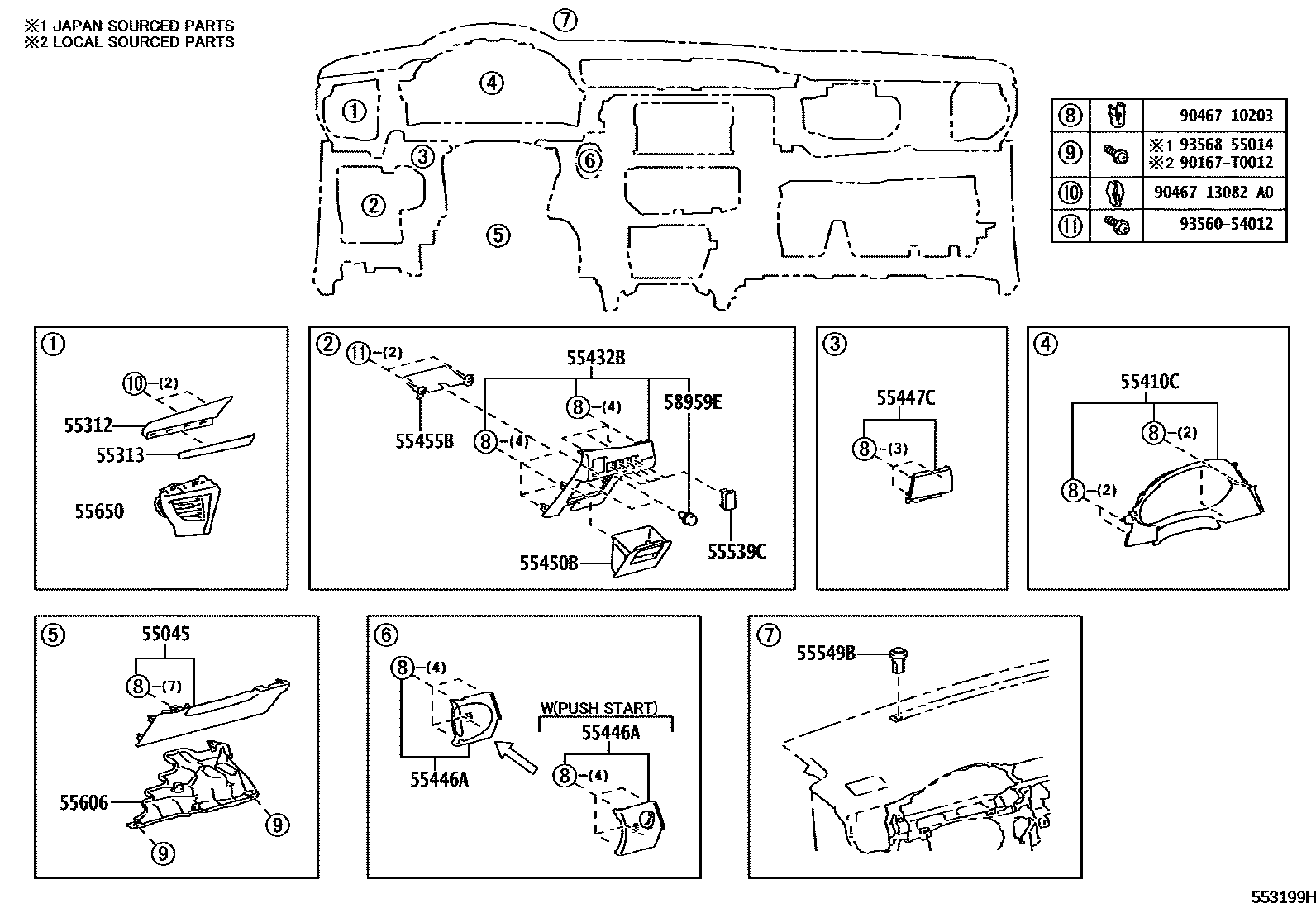

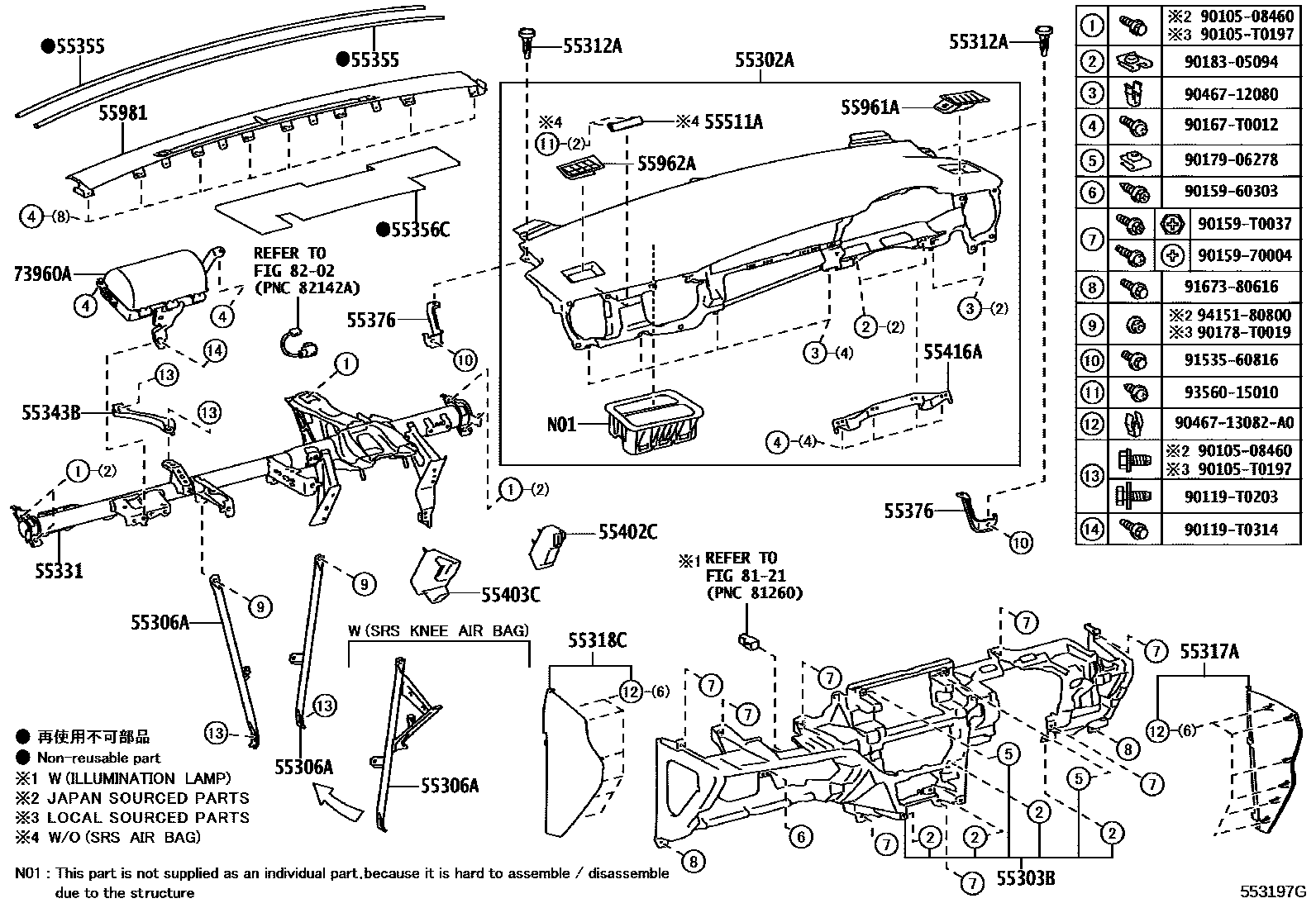

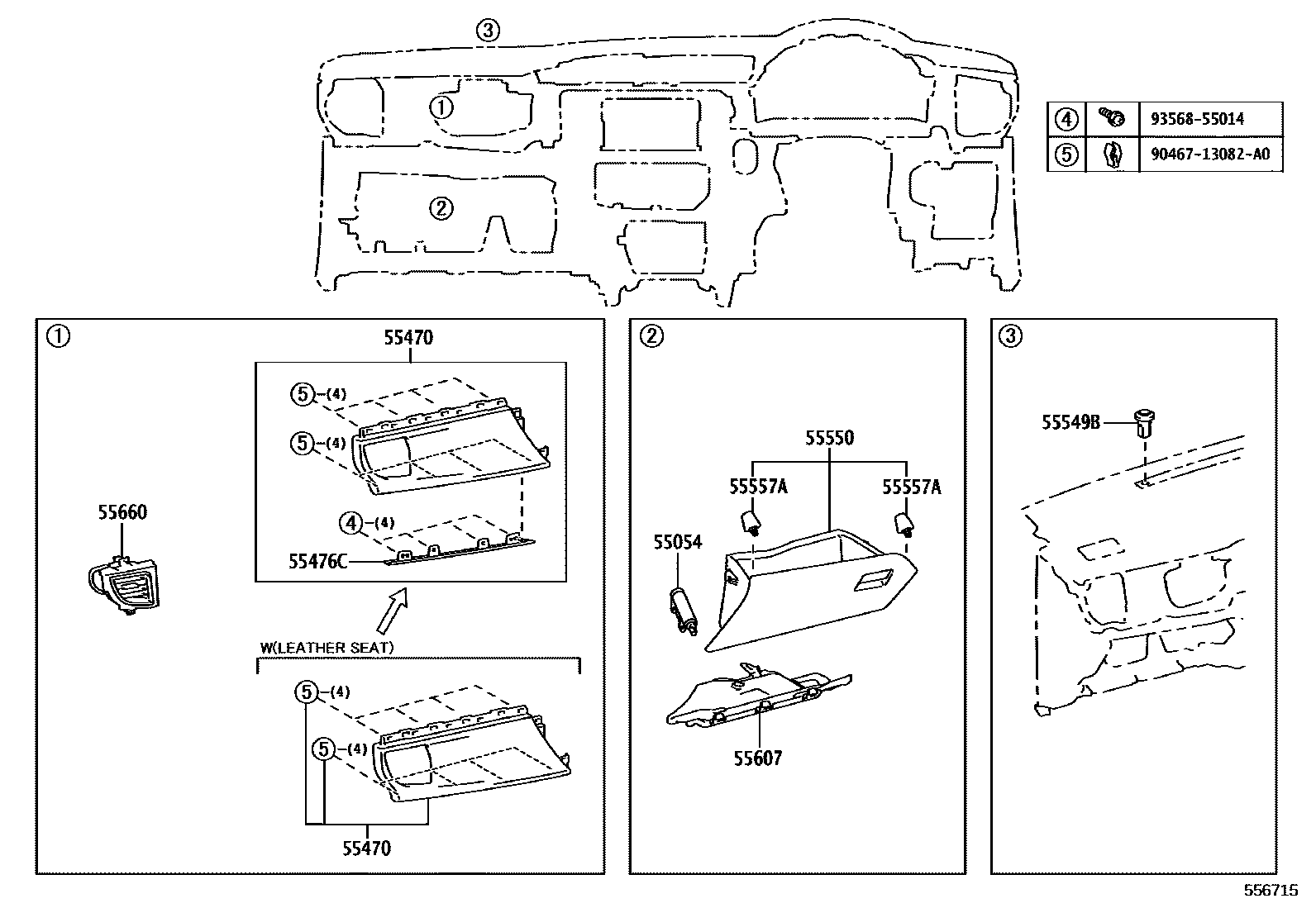

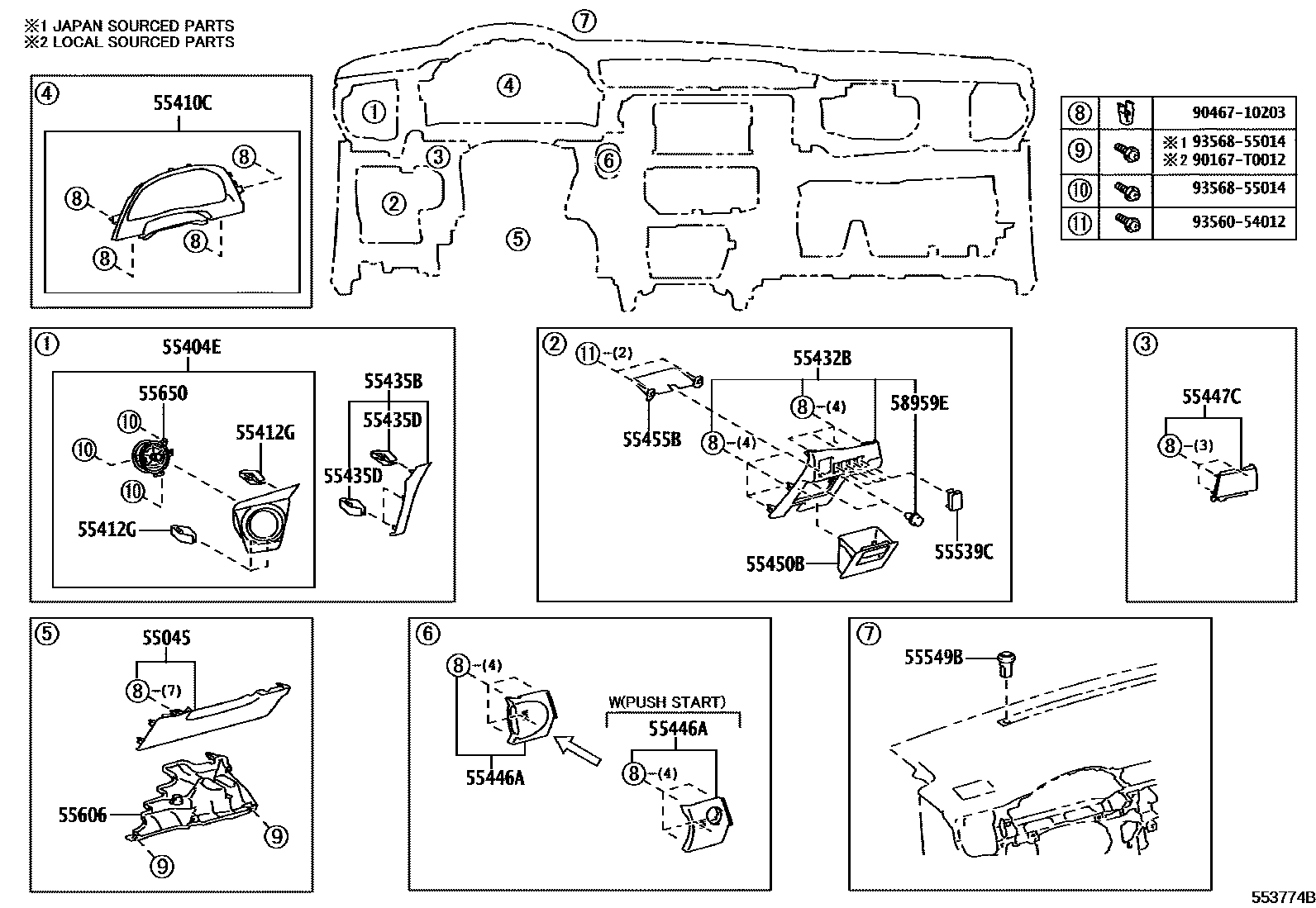

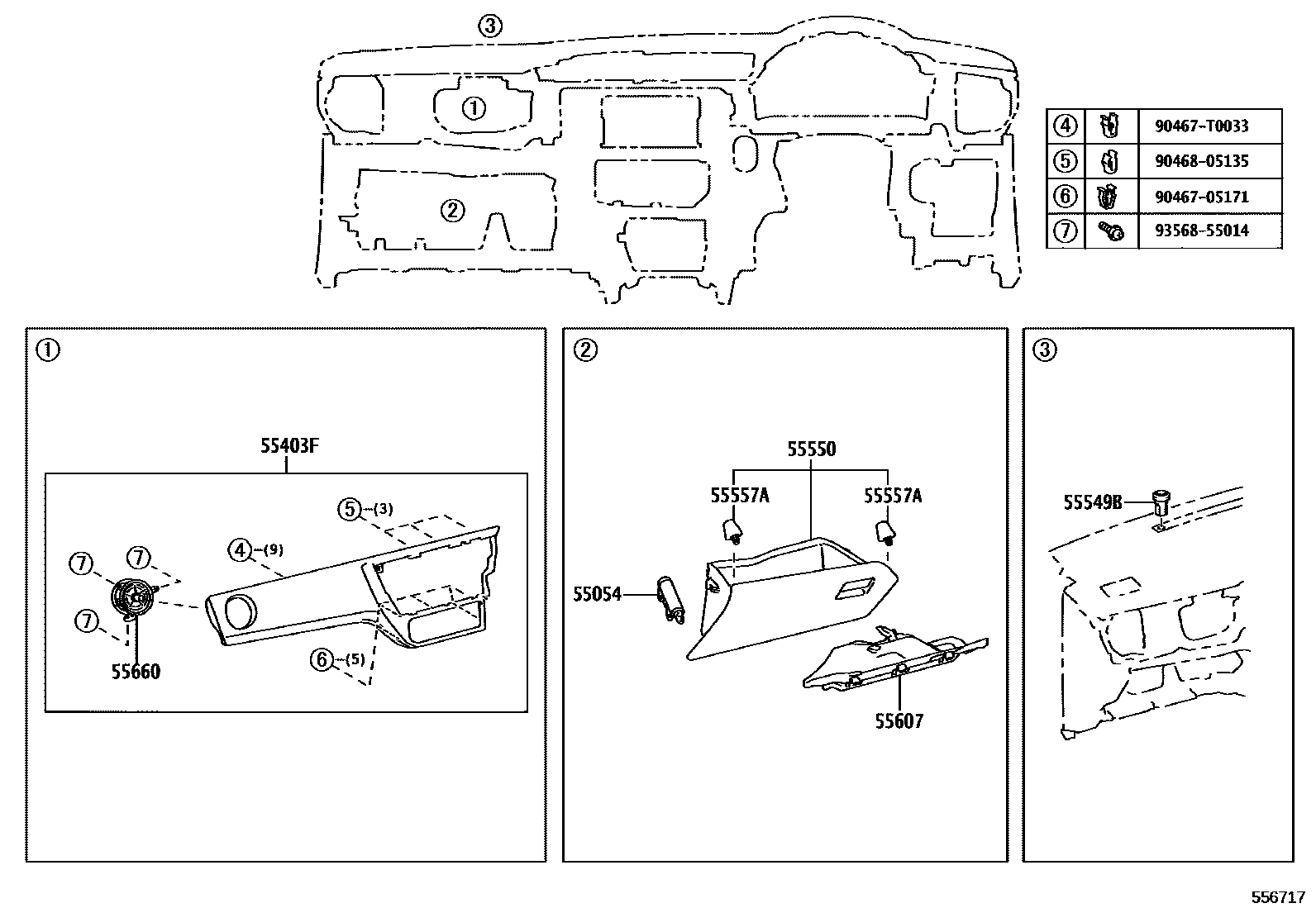

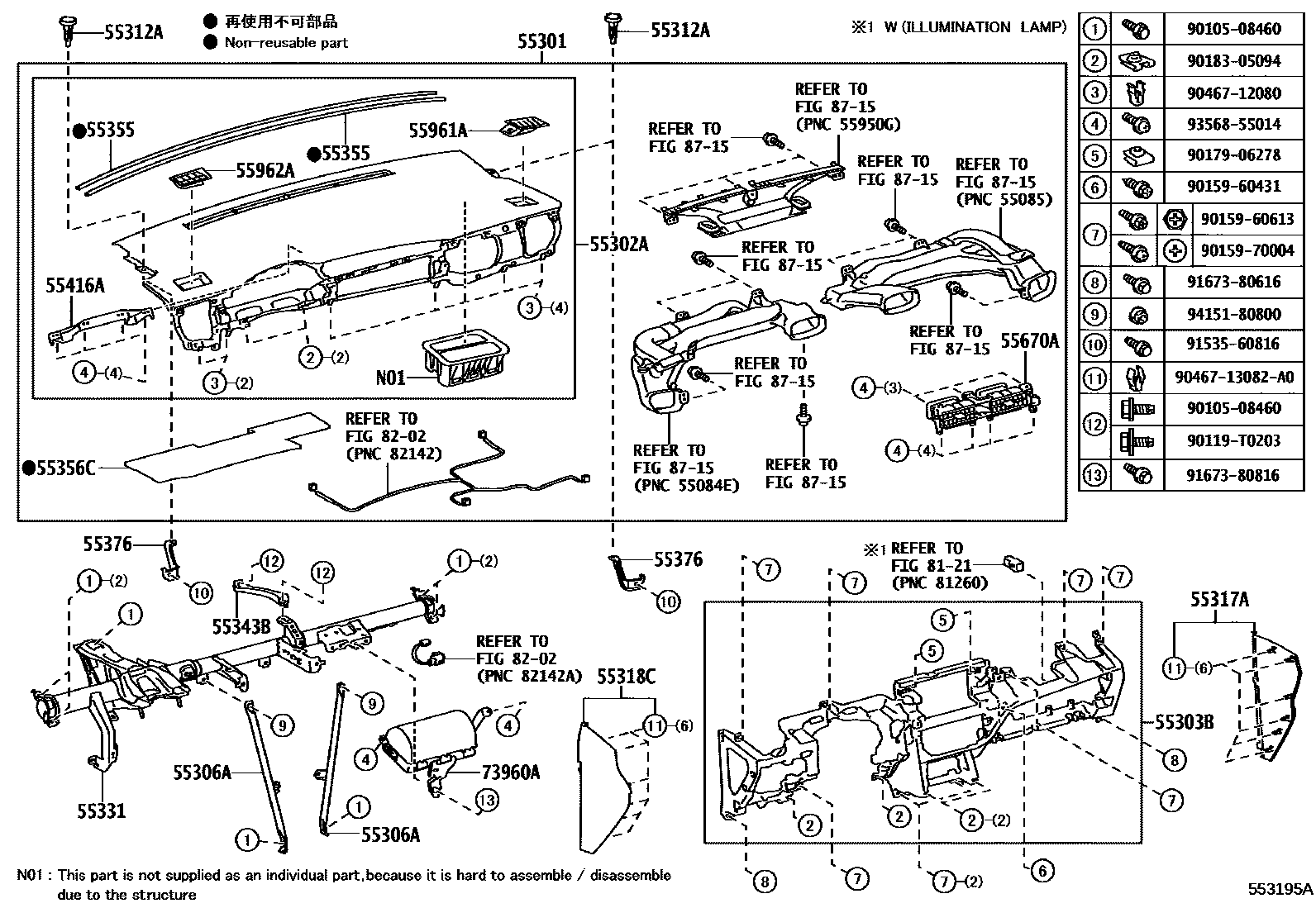

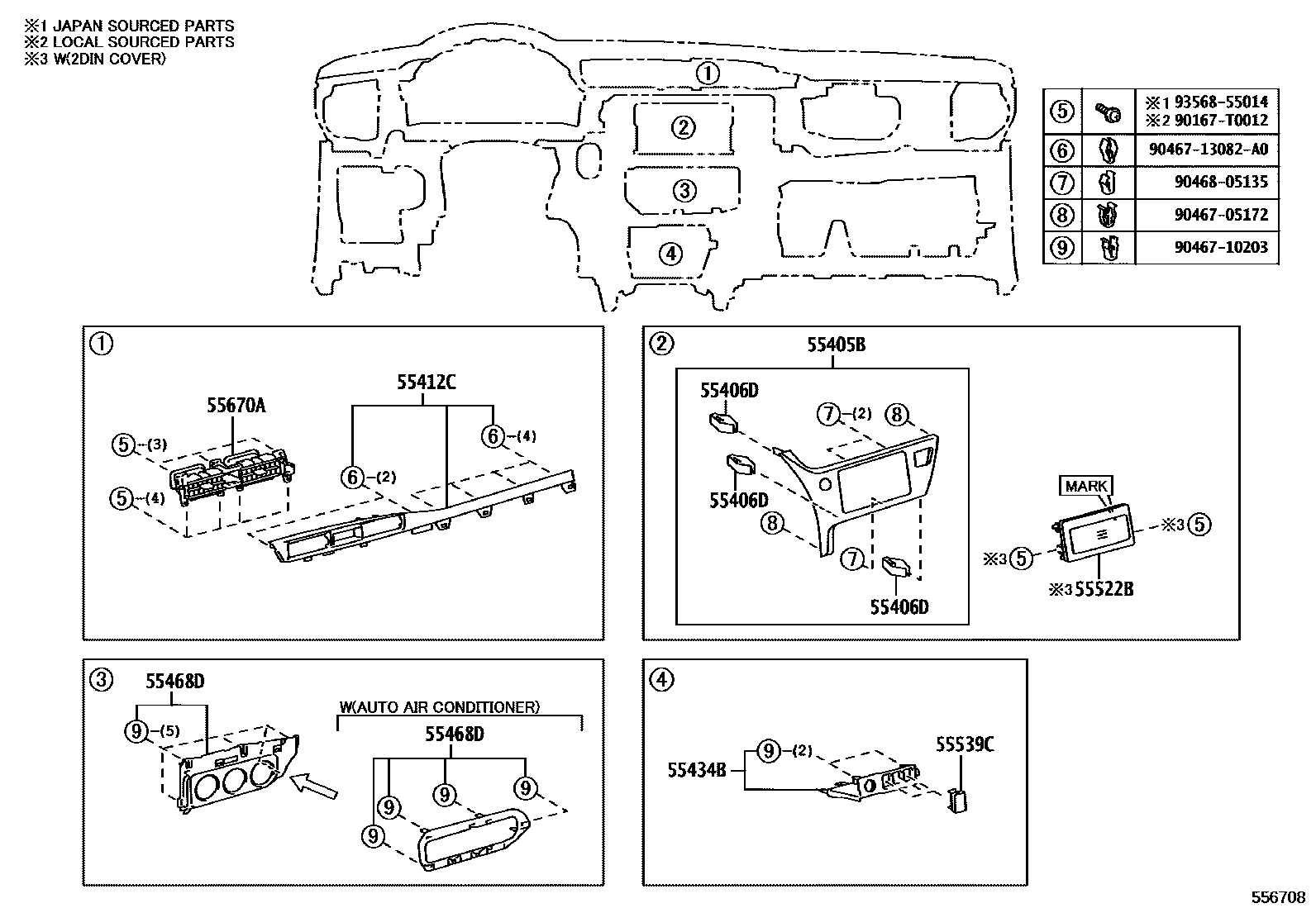

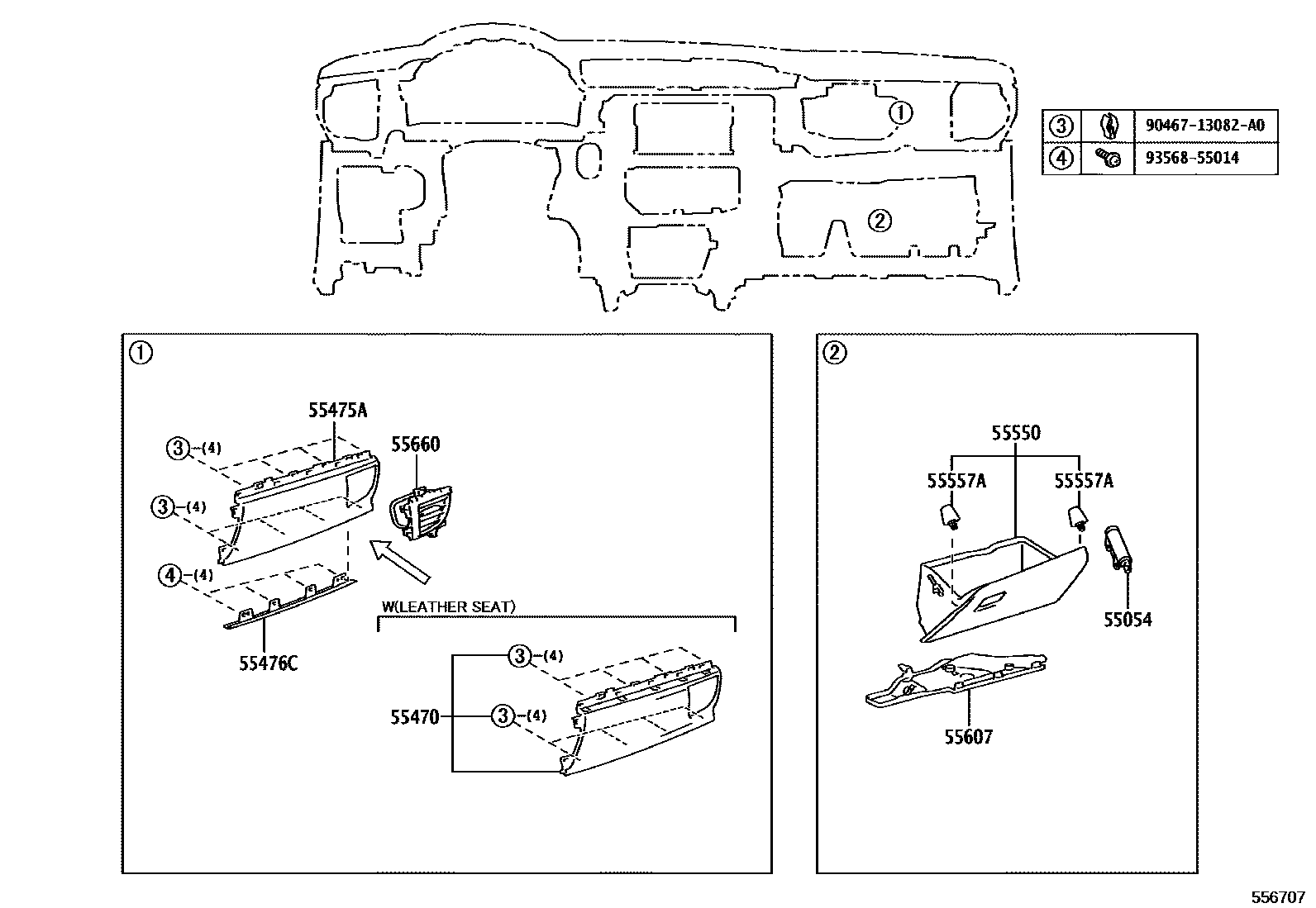

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 25 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02040 · 55054-12030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02400 · 55306-02600 · 55306-02610 · 55306-02620 · 55306-02630 · 55306-02660 · 55307-02140 · 55307-02360 · 55307-02370 · 55307-02380 · 55307-02470 |
| 55312 | lower dashboard | 55312-02100 |
| 55312A | Dashboard clip | 52161-0K040 · 52161-0K060 |
| 55313 | lower left instrument panel | 55313-02140 |
| 55331 | Dashboard reinforcement | 55330-02310 · 55330-02340 · 55330-02670 · 55330-02700 · 55330-02720 · 55330-02730 · 55330-02740 · 55330-02780 · 55330-02781 · 55330-02790 · 55330-02800 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02140 · 55343-02150 · 55343-02160 · 55343-02170 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02300 · 55355-02310 · 55355-02550 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02270 · 55356-02370 · 55356-02380 · 55356-02390 · 55356-02430 · 55356-02490 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02100 · 55376-02110 · 55377-02080 · 55377-02090 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-02060 · 55402-02070 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-02160 · 55403-02170 |
| 55403F | Instrument panel decorative panel sub-assembly | 55403-02441 · 55403-02571 · 55403-YP010 |
| 55404E | Instrument cluster upper decorative panel sub-assembly | 55404-02571 · 55404-YP140 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02B60 · 55405-02B80 · 55405-02B90 · 55405-02C00 · 55405-02C10 · 55405-02G20 · 55405-02G30 · 55405-YP010 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02520 · 55406-02530 · 55406-02540 · 55406-02550 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-02320 · 55412-02590 · 55412-02600 · 55412-02610 · 55412-02730 |
| 55413D | Center instrument cluster lower decorative panel | 55413-02590 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02200 · 55416-02210 · 55416-02270 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02550 |
| 55468D | Dashboard safety mat central fixing | 55468-02070 · 55468-02080 · 55468-02090 · 55468-02100 · 55468-02120 · 55468-02180 · 55468-02190 |
| 55471 | Instrument cluster No. 1 protective strip | 55471-02250 · 55471-02260 |
| 55476C | Dashboard decorative panel trim parts | 55476-02320 · 55476-02340 |
| 55521C | stereo system hole cover | 55521-02130 |
| 55521F | Stereo system hole cover No. 2 | 55521-02140 |
| 55522B | Radio tuner opening cover | 55522-0K010 · 55522-52020 |
| 55539 | Spare switch hole cover | 55539-02170 · 55539-02180 · 55539-02190 |
| 55549B | Instrument panel hole cover No. 2 | 55549-42020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02190 · 55606-02200 · 55606-02210 · 55606-02220 · 55606-02221 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02210 · 55607-02220 · 55607-02230 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55680-02300 · 55680-YP020 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55680-02330 · 55680-YP010 |
| 55670A | Instrument panel central air register assembly | 55670-02430 · 55670-02440 · 55670-02450 · 55670-02460 · 55670-02500 · 55670-02510 · 55670-02630 · 55670-02640 · 55670-02650 · 55670-02660 · 55670-02670 · 55670-02680 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02210 · 73960-02211 · 73960-02650 |
