Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

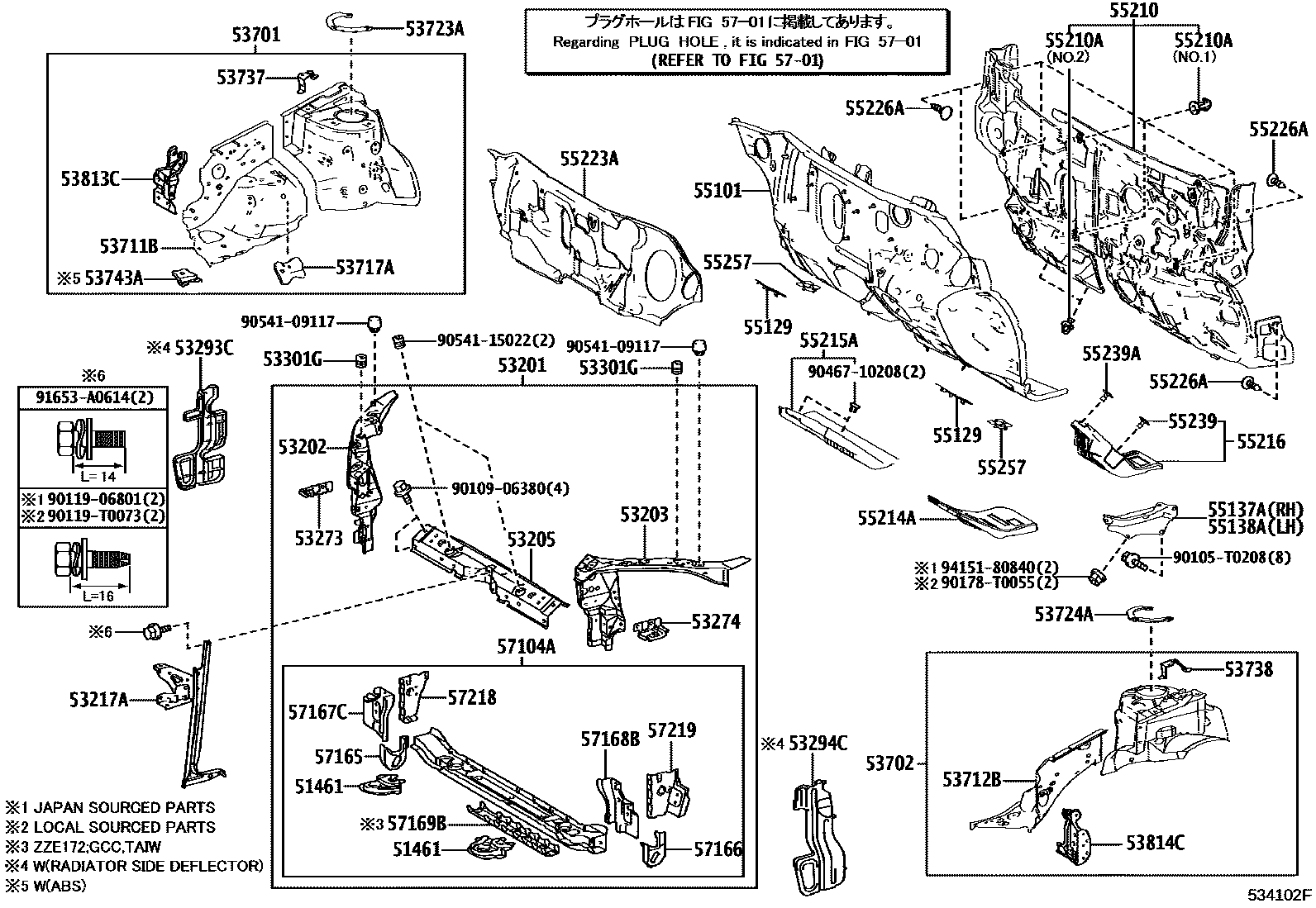

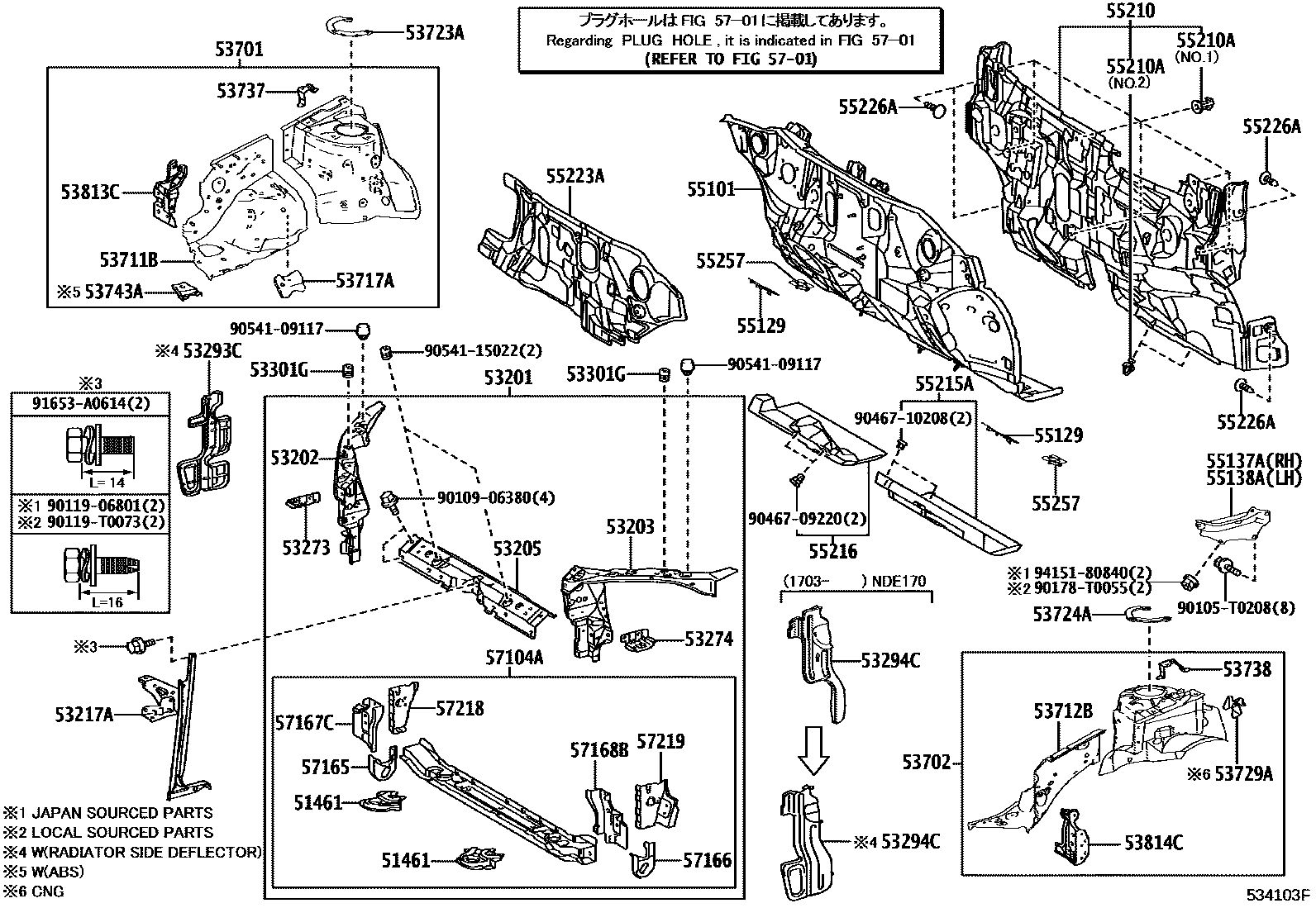

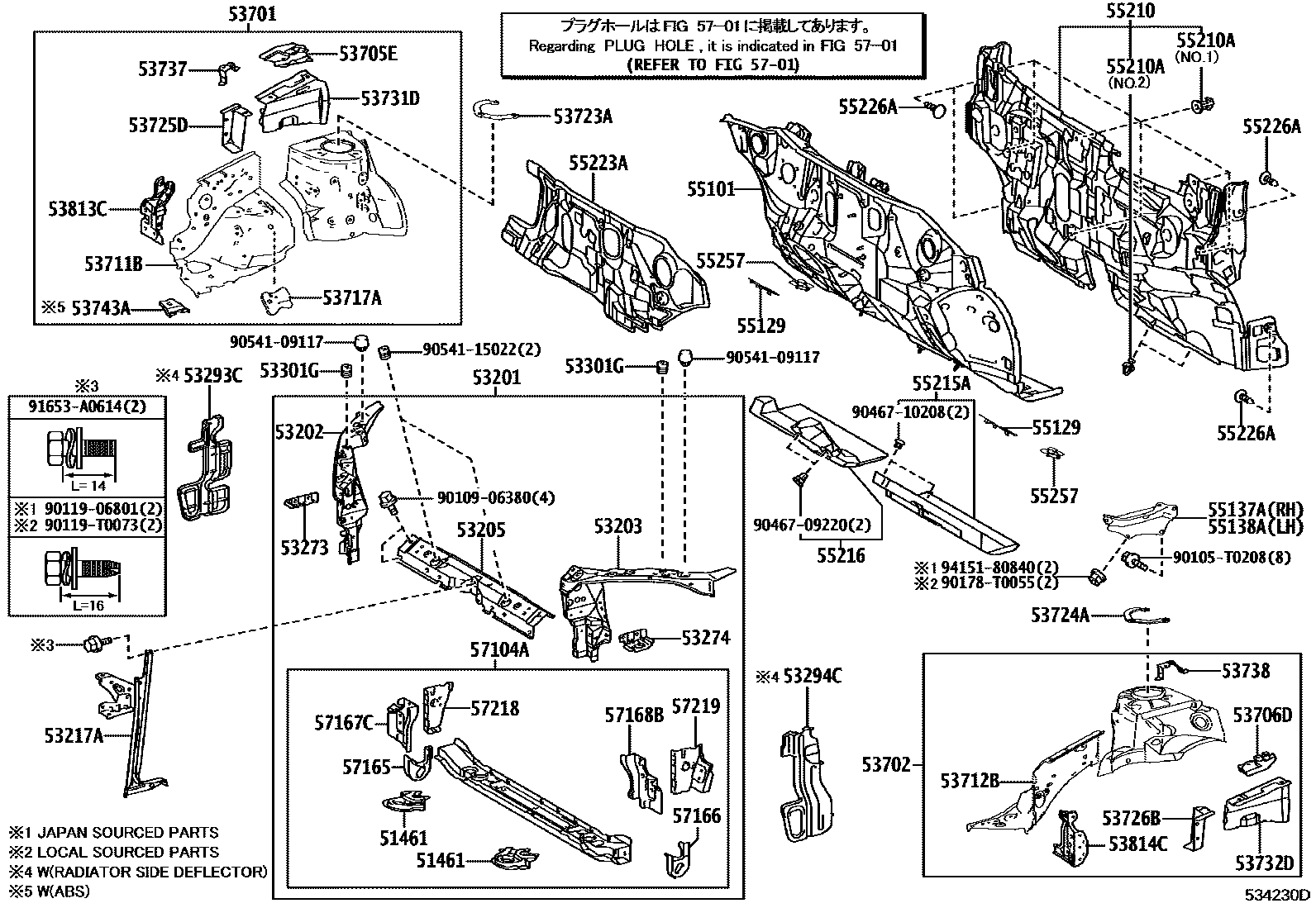

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51461 | Radiator stay bracket | 51461-02030 · 51462-02030 |
| 53201 | Radiator bracket sub-assembly | 53201-02370 · 53201-02380 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02190 |
| 53203 | Radiator left bracket sub-assembly | 53203-02190 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02250 |
| 53217A | engine cover lock bracket | 53208-02210 · 53208-02230 |
| 53273 | Front bumper arm right mounting bracket | 53273-02190 |
| 53274 | Front bumper arm left mounting bracket | 53274-02180 |
| 53293C | Radiator right baffle | 53293-02170 · 53293-02290 · 53293-YP300 |
| 53294C | Radiator left baffle | 53294-02170 · 53294-02290 · 53294-02310 · 53294-YP200 |
| 53301G | engine cover cushion | 53384-50010 |
| 53701 | Right front fender fender sub-assembly | 53701-02320 · 53701-02330 · 53701-02340 · 53701-02350 |
| 53702 | Left front fender fender sub-assembly | 53702-02240 · 53702-02250 · 53702-02260 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02040 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02040 |
| 53711B | Right front fender front fender | 53711-02100 |
| 53712B | Left front fender front fender | 53712-02110 |
| 53717A | fender fender | 53717-02150 · 53717-12060 |
| 53723A | Front spring bracket right side reinforcement | 53723-02070 · 53723-12110 |
| 53724A | Front spring bracket left reinforcement | 53723-02070 · 53723-12110 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53723-02090 |
| 53726B | No. 2 front spring bracket left reinforcement | 53724-02060 |
| 53729A | Left fender fender bracket | 53729-02010 |
| 53731D | Right front fender to cowl side upper beam | 53731-02080 |
| 53732D | Left front fender to cowl side upper beam | 53732-02090 |
| 53737 | Right front fender to front wall side sill | 53737-02150 |
| 53738 | Left front fender to front wall side sill | 53738-02120 |
| 53743A | Right front fender fender front reinforcement | 53743-12050 |
| 53813C | Right front fender extension | 53803-02060 |
| 53814C | Left front fender extension | 53814-02130 |
| 55101 | Front apron sub-assembly | 55101-02B40 · 55101-02B90 · 55101-02C00 · 55101-02C10 · 55101-02C80 · 55101-02C90 · 55101-02D80 · 55101-02D90 · 55101-02E10 · 55101-02E11 · 55101-02E20 · 55101-02E21 |
| 55129 | Front panel hole cover | 55129-02050 · 55129-32030 · 55139-02040 · 55139-32010 |
| 55137A | Right side bracket (front wall to frame) | 55137-02070 |
| 55138A | Left side bracket (front wall to frame) | 55138-02060 |
| 55210 | Front wall insulation pad assembly | 55210-02510 · 55210-02511 · 55210-02520 · 55210-02521 · 55210-02530 · 55210-02540 · 55210-02541 · 55210-02600 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-02150 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-02070 · 55215-02080 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-02050 · 55216-02080 · 55216-02100 · 55216-02110 · 55216-02120 · 55216-02130 · 55216-02160 · 55216-02161 |
| 55223A | Front wall outer heat insulation pad | 55223-02220 · 55223-02230 · 55223-02250 · 55223-02290 · 55223-02350 |
| 55239 | Steering column hole cover muffler | 55239-48020 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104A | Front cross member sub-assembly | 57104-02280 · 57104-02400 |
| 57165 | Front cross member lower right reinforcement | 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-02100 |
| 57168B | Front cross member left corner panel | 57168-02100 |
| 57169B | No. 4 front cross member reinforcement | 57169-02090 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-02060 · 57218-02070 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-02060 · 57219-12010 |
