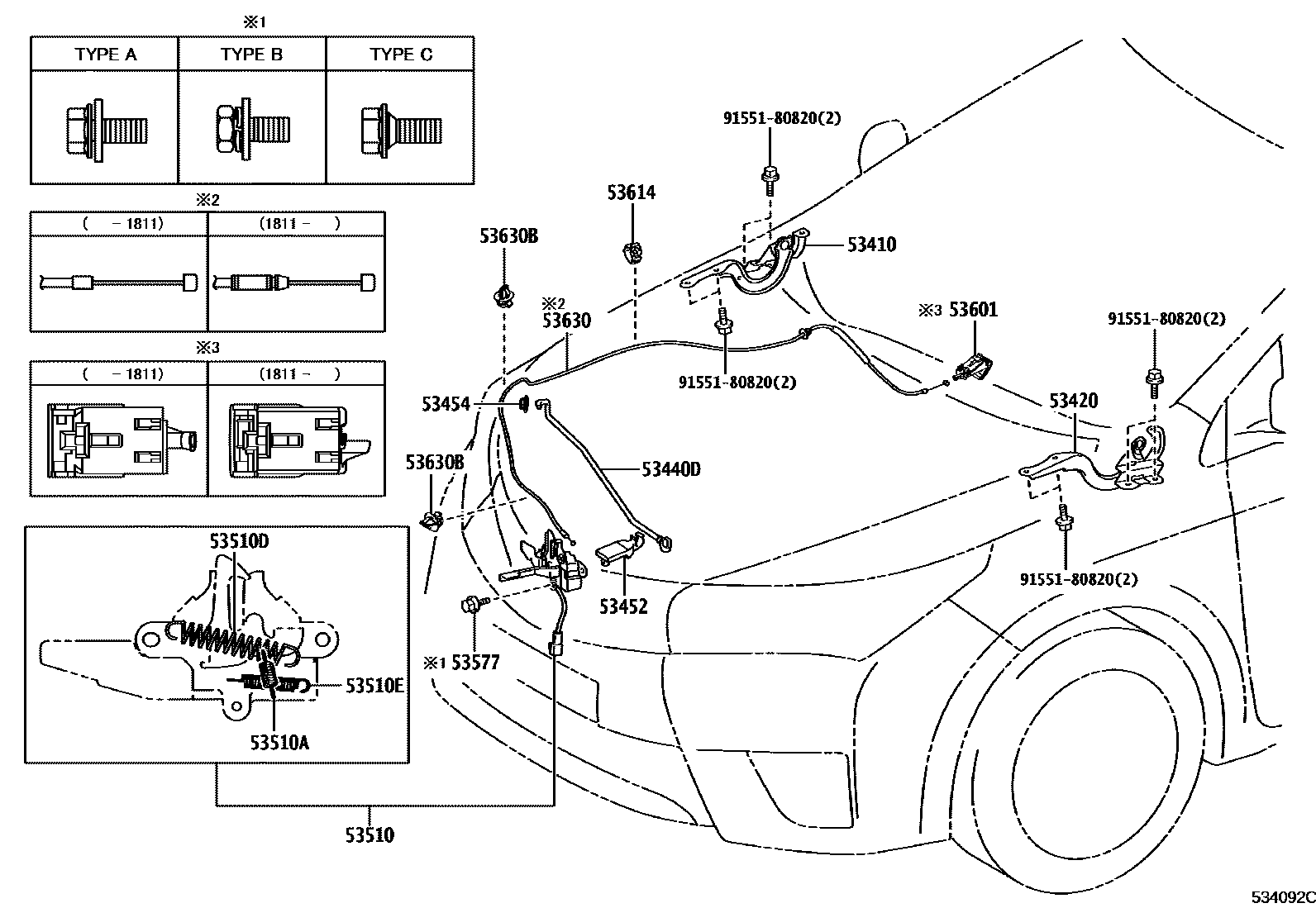

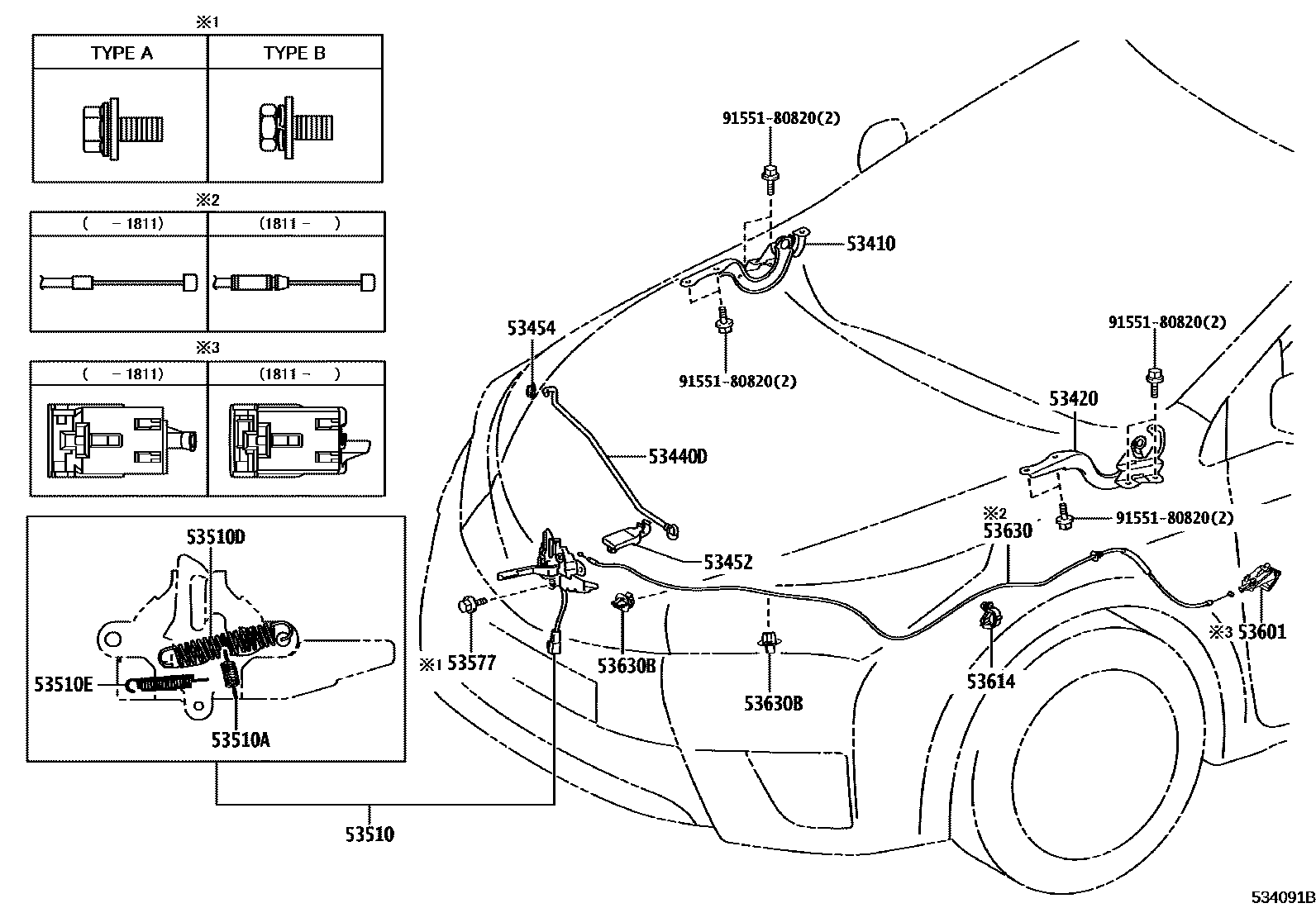

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02360 · 53410-02370 |
| 53420 | Engine cover left hinge assembly | 53420-02360 · 53420-02370 |
| 53440D | Engine cover support rod assembly | 53440-02220 |
| 53452 | Engine cover stay rod fixing | 53452-02180 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53510 | Engine cover lock assembly | 53510-02520 · 53510-02521 · 53510-02640 · 53510-02641 · 53510-02650 · 53510-02651 · 53510-02660 · 53510-02661 · 53510-02670 · 53510-02671 · 53510-02680 · 53510-02690 · 53510-02750 · 53510-02751 |
| 53510A | Tension spring (for hood lock) | 90506-10046 |
| 53510D | Tension spring (for hood lock) | 90506-18067 · 90506-T0003 |
| 53510E | Tension spring (for hood lock) | 90506-09055 · 90506-T0005 |
| 53577 | engine cover lock bolt | 90109-06372 · 90109-T0027 · 90119-06939 · 90119-T0143 |
| 53614 | Engine hood lock control cable clip | 53614-12040 |
| 53630 | Engine hood lock control cable assembly | 53630-02310 · 53630-02320 · 53630-02330 · 53630-02550 · 53630-02560 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
