Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

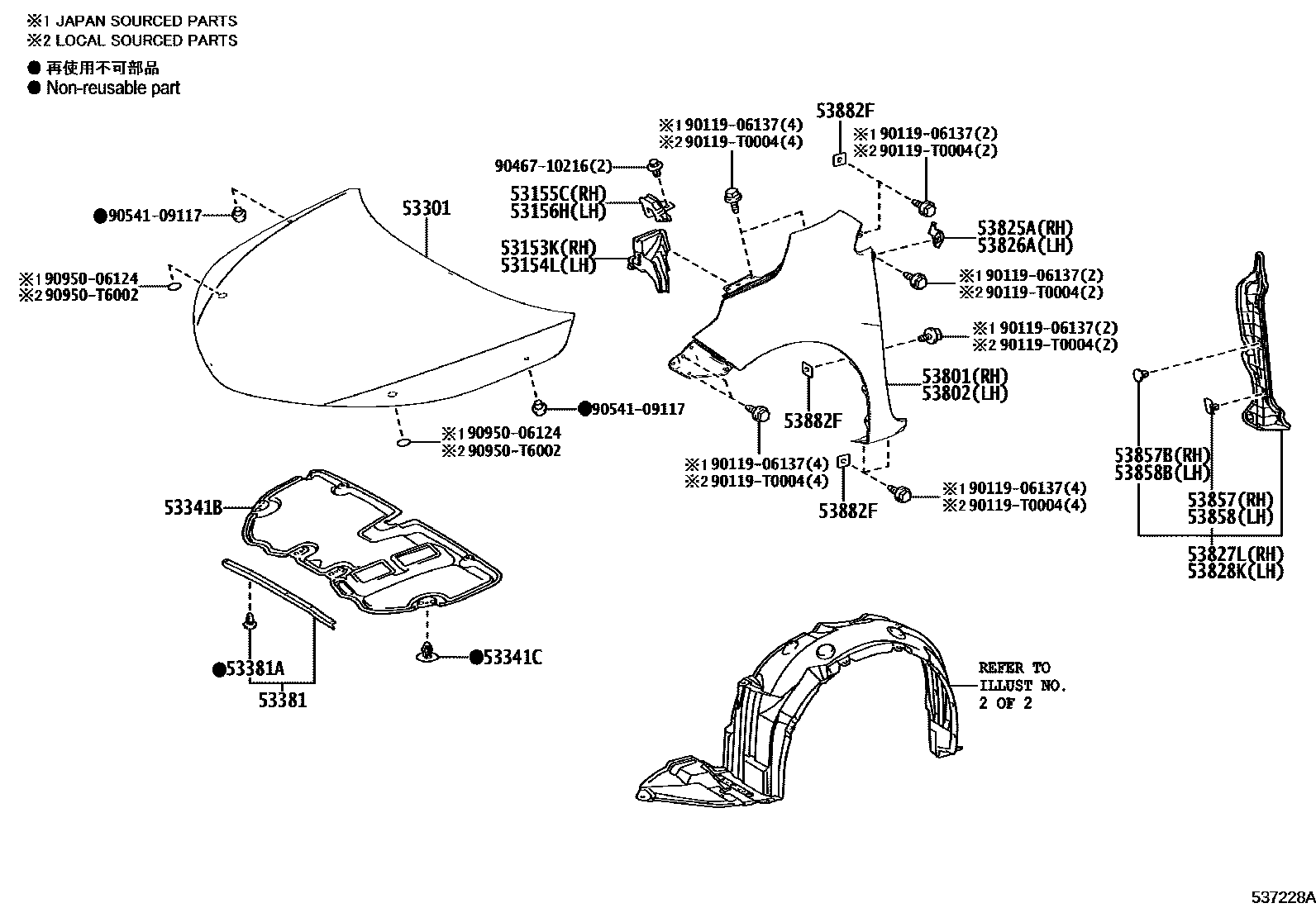

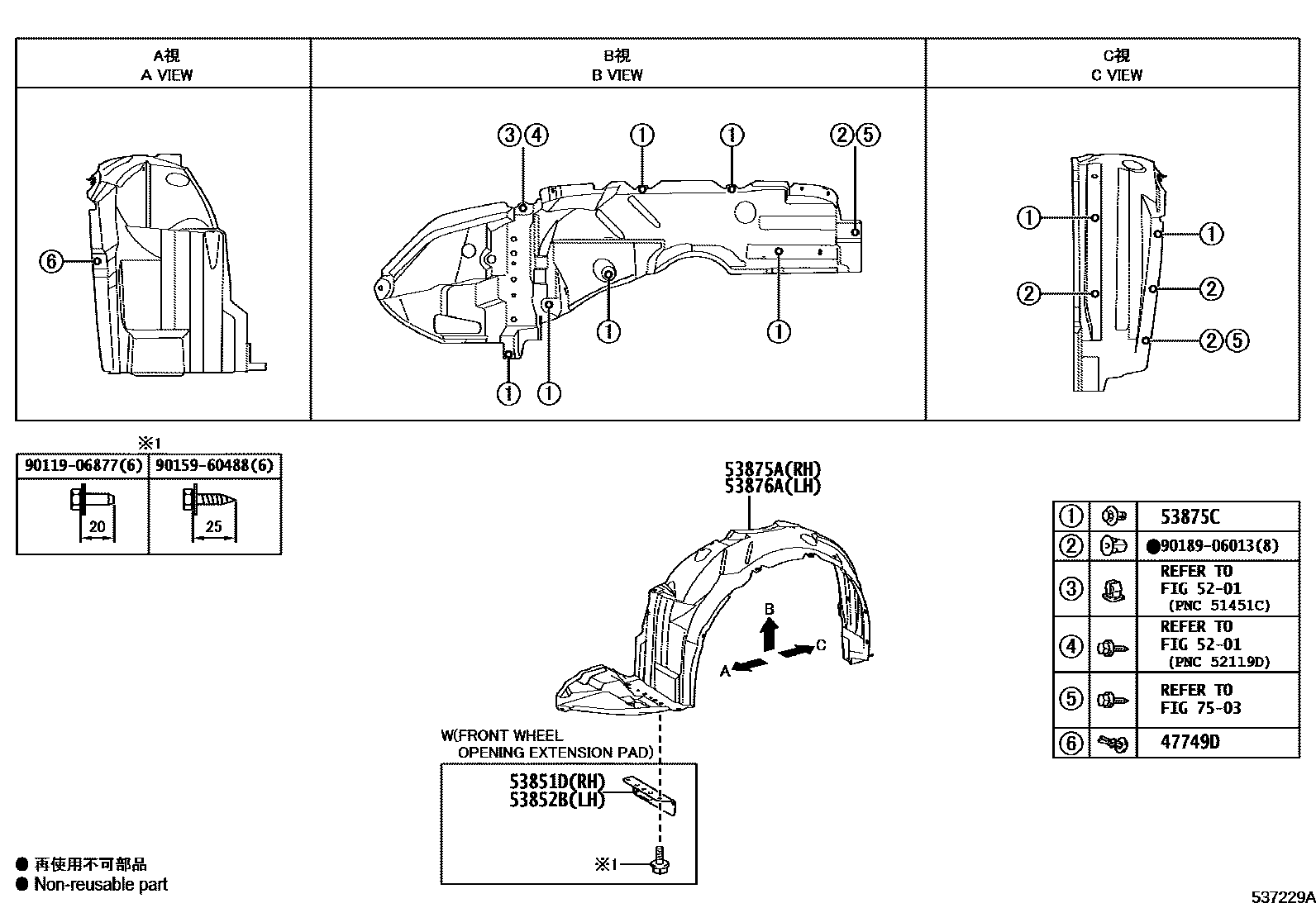

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-58010 |
| 53153K | Radiator grille right deflector | 53153-02060 |
| 53154L | Radiator grille left deflector | 53154-02060 |
| 53155C | Radiator grille seal No. 1 | 53155-02080 |
| 53156H | Radiator grille seal No. 2 | 53156-02070 |
| 53301 | Engine cover sub-assembly | 53301-02310 |
| 53341B | engine cover gasket | 53341-02290 · 53341-02310 · 53341-02330 · 53341-12330 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-02210 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 · 90467-T0013 |
| 53801 | Right front fender sub-assembly | 53801-02230 · 53801-02240 |
| 53802 | Left front fender sub-assembly | 53802-02210 · 53802-02220 |
| 53825A | Right front fender protection piece | 53825-02110 |
| 53826A | Protection piece on left front fender | 53826-02110 |
| 53827L | Right front fender side panel protector | 53827-02220 |
| 53828K | Left front fender side panel protector | 53828-02210 |
| 53851D | Right front fender outer panel pad | 53851-02170 |
| 53852B | Left front fender exterior panel pad | 53852-02150 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-02520 · 53875-02530 · 53875-02540 · 53875-02541 · 53875-02591 · 53875-02620 · 53875-02630 · 53875-02640 · 53875-02650 · 53875-YP120 |
| 53875C | Front fender lining clip | 90467-07215 |
| 53876A | Left front fender lining | 53876-02550 · 53876-02560 · 53876-02570 · 53876-02571 · 53876-02611 · 53876-02670 · 53876-02680 · 53876-02690 · 53876-02700 · 53876-YP120 |
| 53882F | front fender seal | 53882-0D010 |
