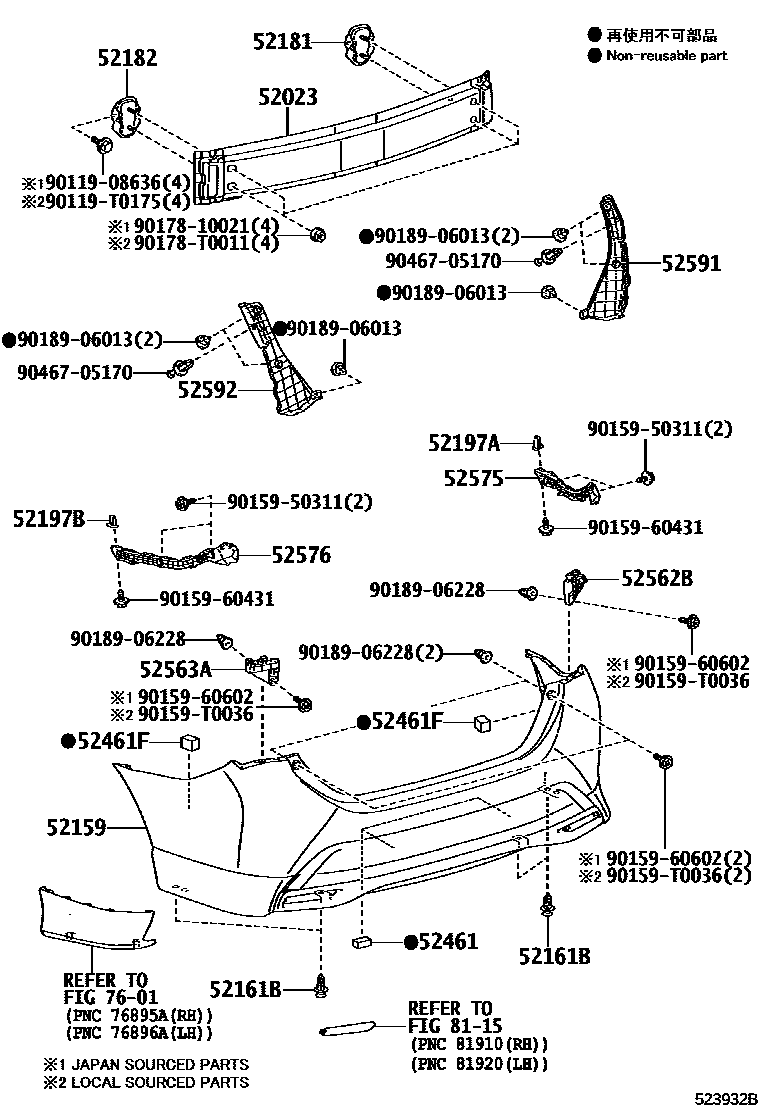

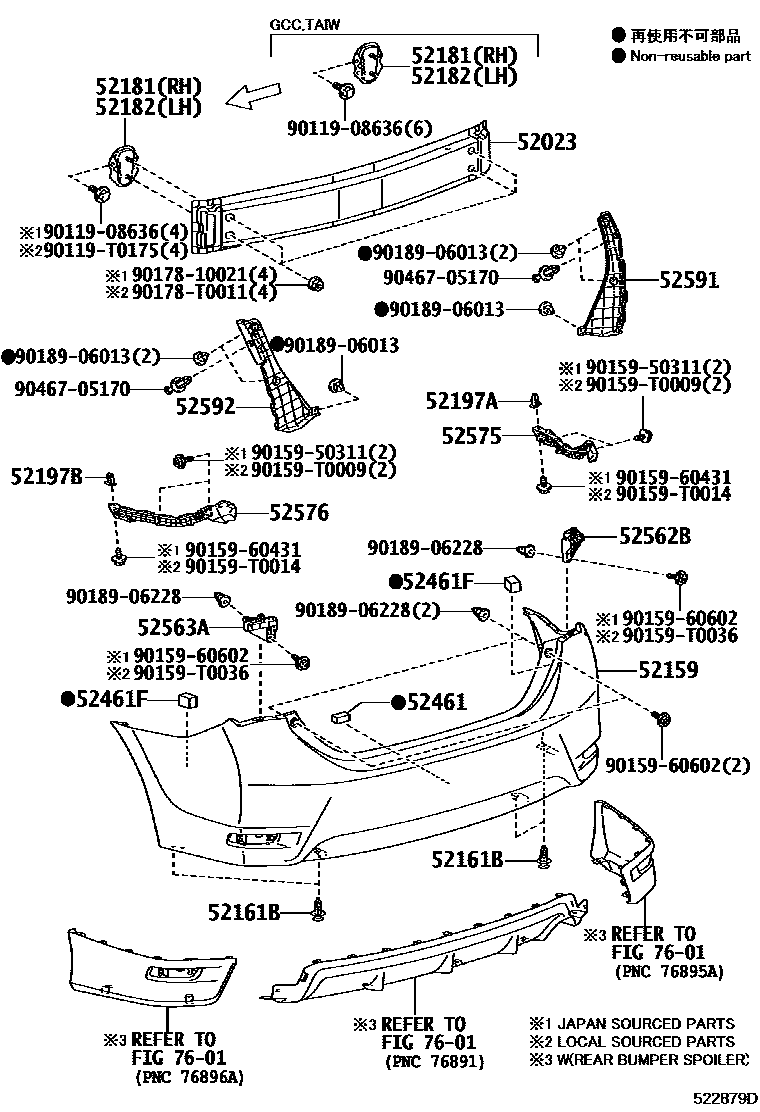

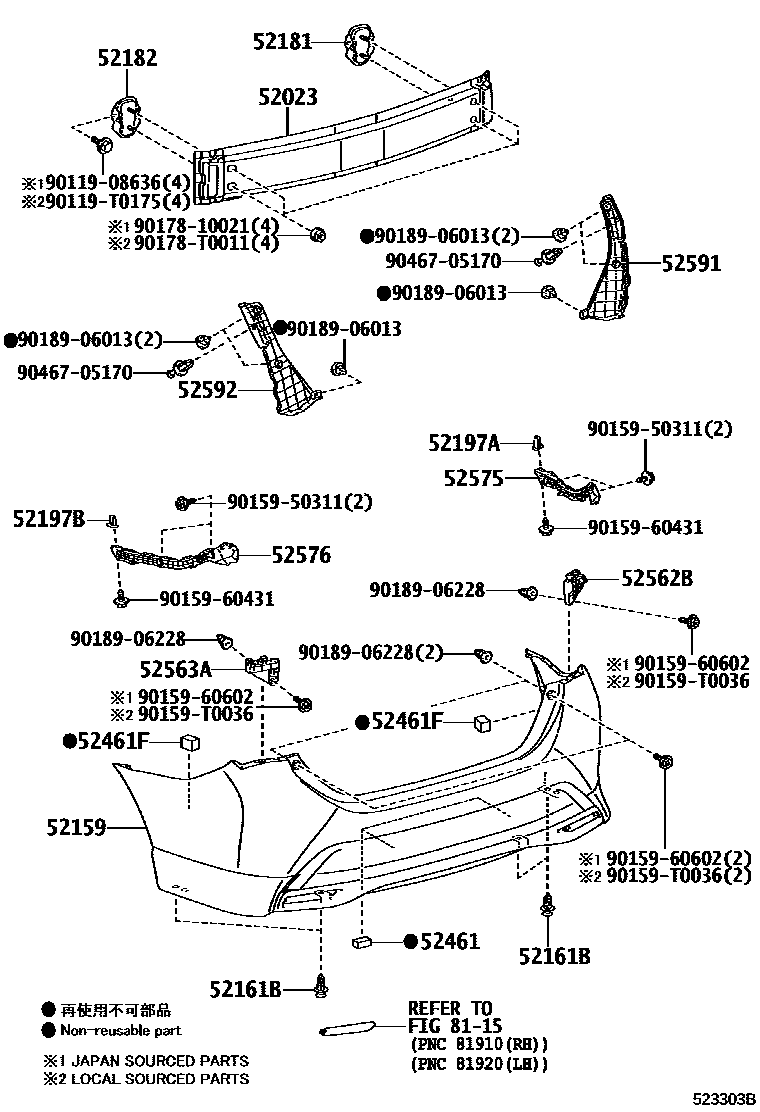

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02190 |
| 52159 | rear bumper cover | 52159-0Z904 · 52159-0Z905 · 52159-0Z906 · 52159-0Z907 · 52159-0Z908 · 52159-0Z909 · 52159-0Z910 · 52159-0Z911 · 52159-0Z912 · 52159-0Z913 · 52159-0Z914 · 52159-0Z922 · 52159-0Z928 · 52159-0Z929 · 52159-0Z932 · 52159-0Z933 · 52159-0Z934 · 52159-0Z935 · 52159-0Z936 · 52159-0Z944 · 52159-0Z945 · 52159-0Z969 |
| 52161B | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52181 | Rear bumper right arm | 52181-02180 · 52181-02190 |
| 52182 | Rear bumper left arm | 52182-02150 · 52182-02160 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52197B | Rear bumper left seal support | 52197-22020 |
| 52461 | Rear bumper center lining | 52462-02240 · 52462-02241 · 52462-YP050 |
| 52461F | rear bumper lining | 52462-02200 · 52462-02201 · 52462-YP040 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02250 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02250 |
| 52575 | Rear bumper right side fixing bracket | 52575-02140 |
| 52576 | Rear bumper left side fixing bracket | 52576-02140 |
| 52591 | Rear bumper right seal | 52591-02300 · 52591-02301 · 52591-YP050 |
| 52592 | Rear bumper left seal | 52592-02300 · 52592-02301 · 52592-YP050 |
