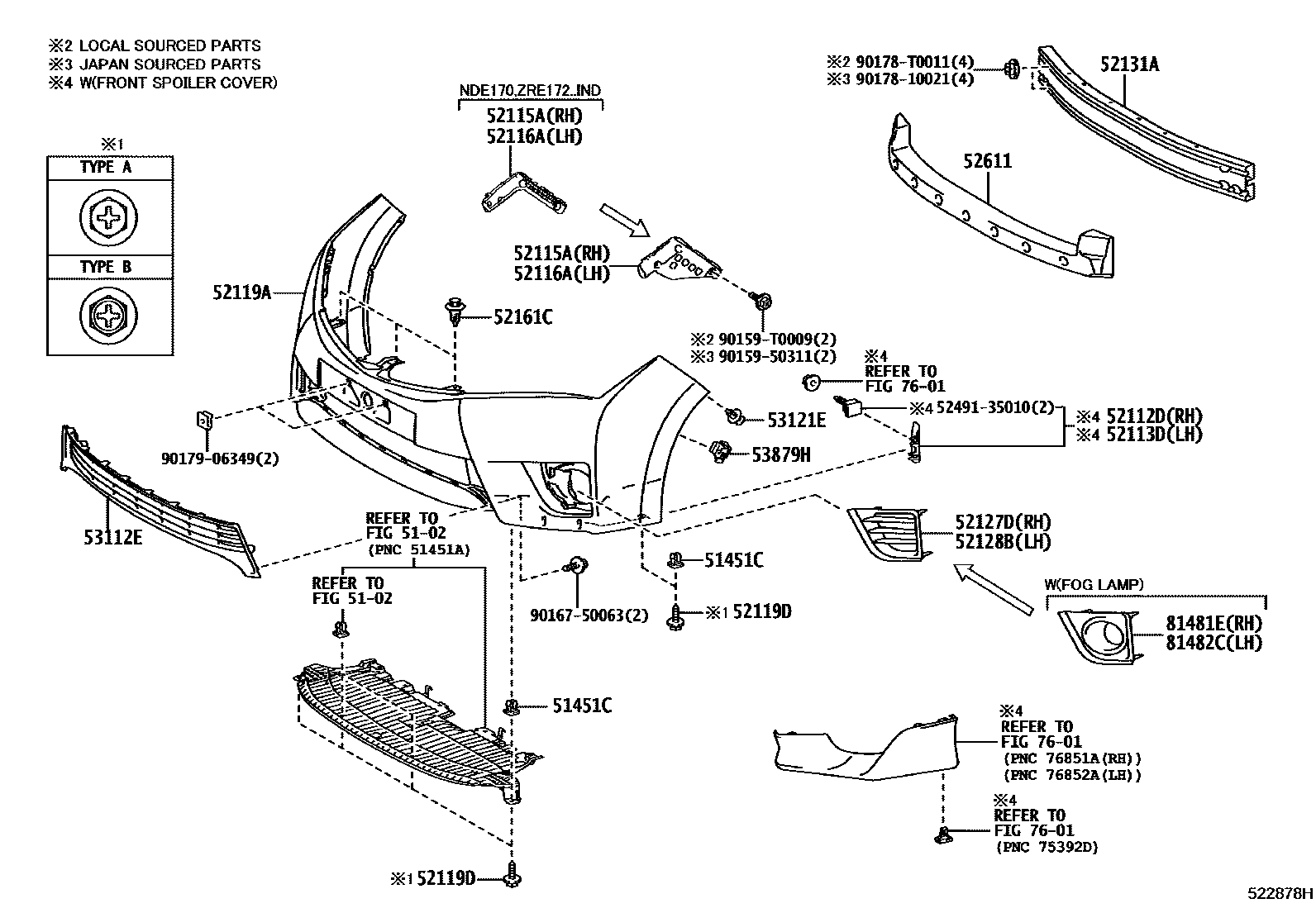

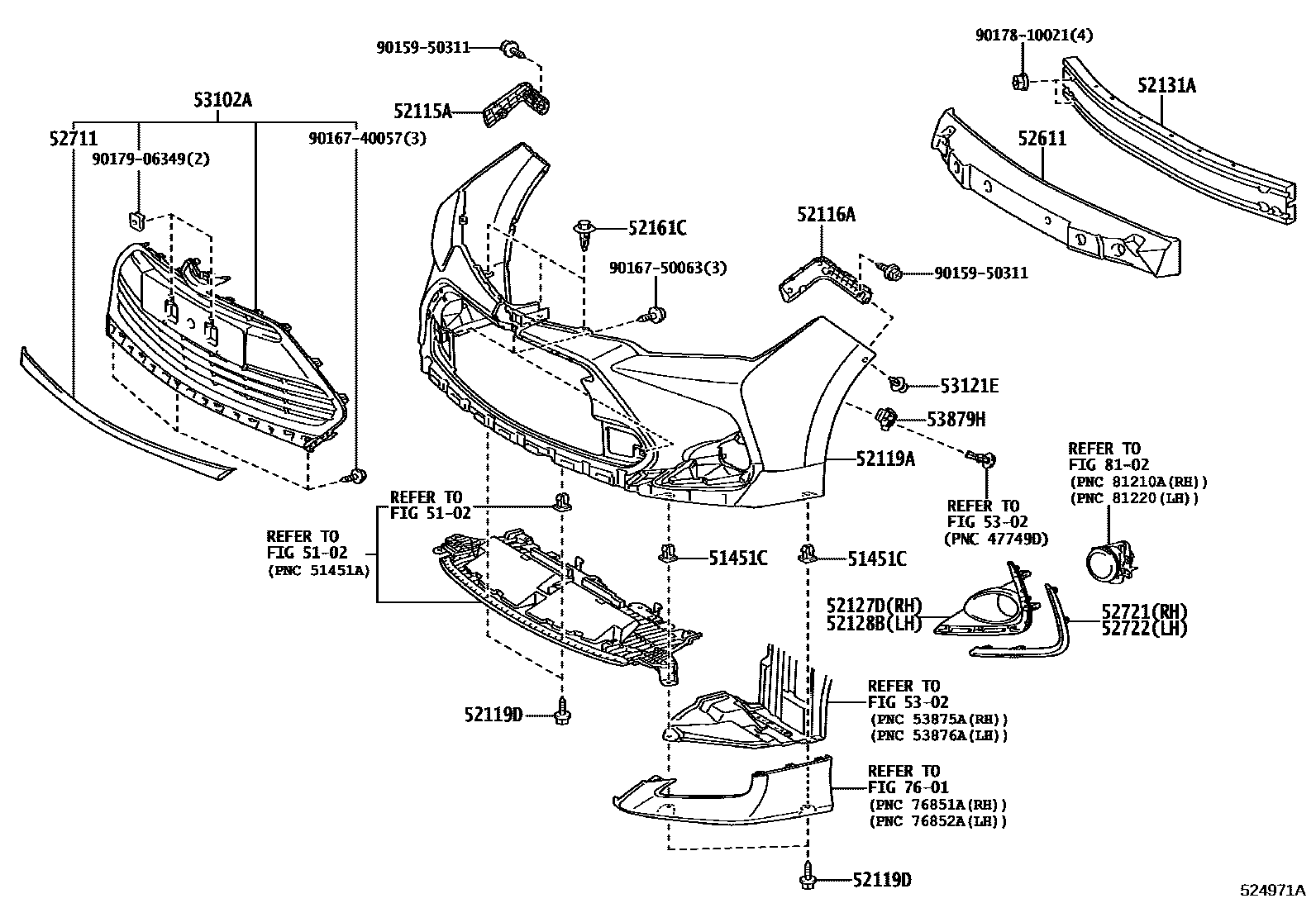

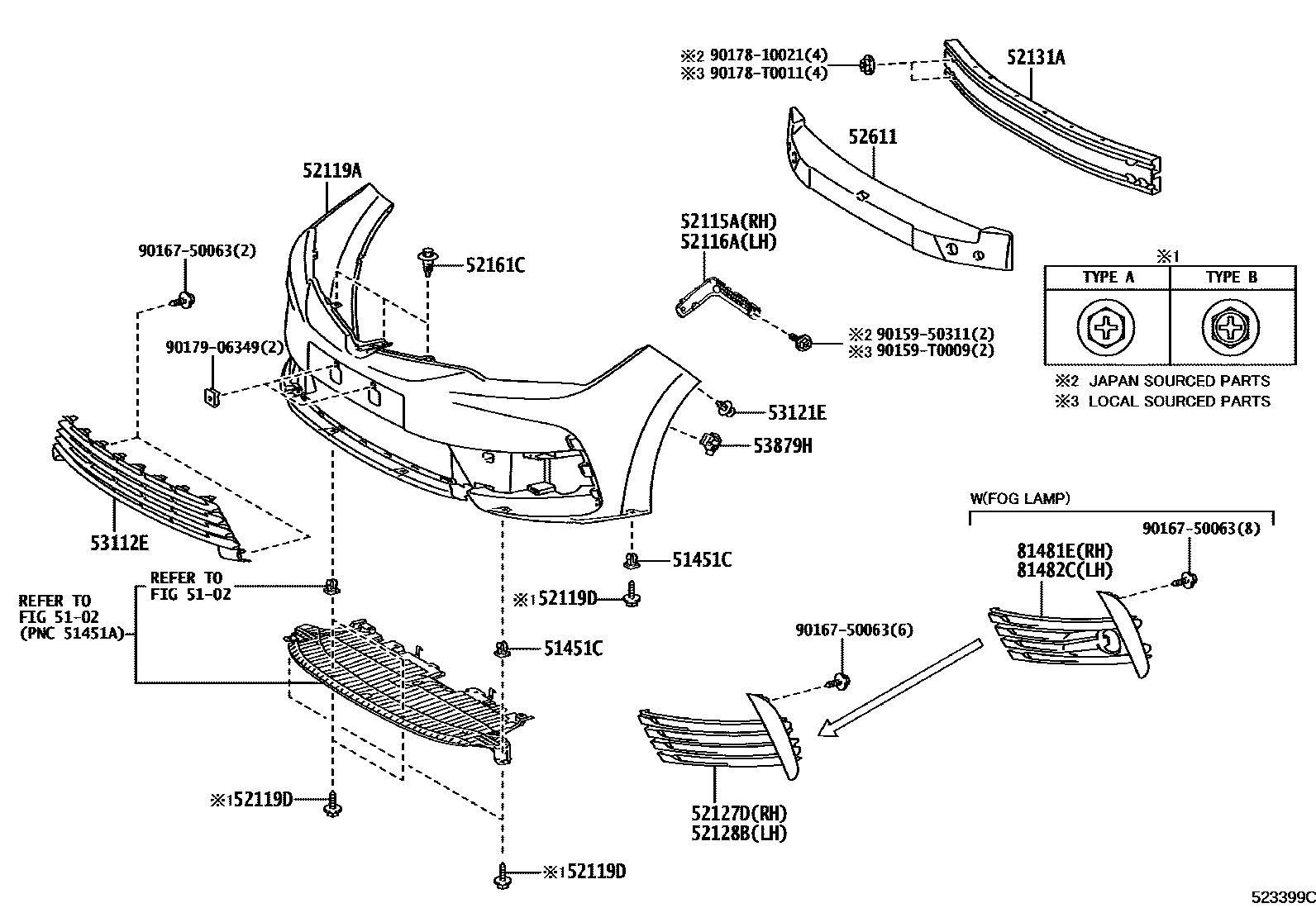

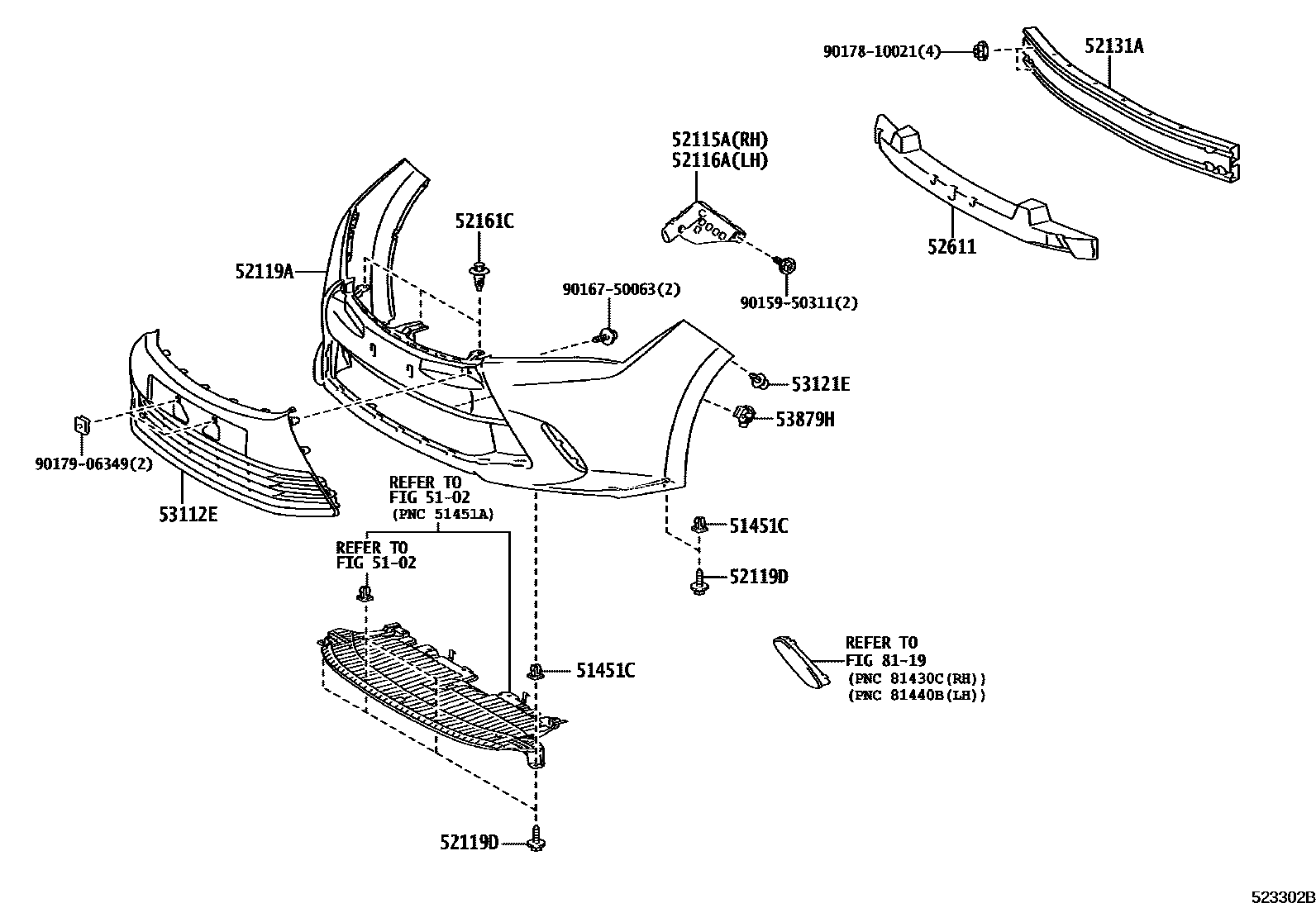

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451C | Gasket (for engine underhood) | 90189-06193 · 90189-06237 |
| 52112D | Front bumper right extension | 52112-02070 |
| 52113D | Front bumper left extension | 52113-02020 |
| 52115A | Front bumper right side bracket | 52115-02270 · 52115-02310 · 52115-02380 · 52115-02390 · 52115-02400 |
| 52116A | Front bumper left bracket | 52116-02270 · 52116-02310 · 52116-02370 · 52116-02380 · 52116-02390 |
| 52119A | front bumper cover | 52119-0Z941 · 52119-0Z942 · 52119-0Z943 · 52119-0Z944 · 52119-0Z945 · 52119-0Z946 · 52119-0Z947 · 52119-0Z955 · 52119-0Z978 · 52119-0Z980 · 52119-0Z981 · 52119-0Z982 · 52119-0Z983 · 52119-0Z984 · 52119-0Z985 · 52119-0Z986 · 52119-F2906 · 52119-F2933 |
| 52119D | Screw No. 1 | 90159-60488 · 90159-T0033 |
| 52127D | Front bumper right hole cover | 52127-02570 · 52127-02610 · 52127-02620 · 52127-YP830 · 81481-02440 · 81481-02690 · 81481-02710 · 81481-02730 · 81481-02750 |
| 52128B | Front bumper left hole cover | 52128-02560 · 52128-02610 · 52128-02620 · 52128-YP830 · 81482-02430 · 81482-02680 · 81482-02700 · 81482-02720 · 81482-02740 |
| 52131A | Front bumper reinforcement | 52131-02190 · 52131-02220 · 52131-02250 |
| 52161C | front bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52611 | front bumper energy absorber | 52611-02310 · 52611-02330 · 52611-02420 · 52611-02430 · 52611-02440 · 52611-02450 · 52611-02490 · 52611-02600 · 52611-YP020 |
| 52711 | Front bumper protection strip | 52711-02270 · 52711-YP030 · 52711-YP040 |
| 52721 | Front bumper right extension protection strip | 52721-02010 |
| 52722 | Front bumper left extended section protective strip | 52722-02010 |
| 53102A | Radiator lower grille sub-assembly | 53102-02390 · 53102-02480 |
| 53112E | No. 1 radiator lower grille | 53112-02300 · 53112-02520 · 53112-02540 · 53112-02550 · 53112-02560 · 53112-02580 · 53112-02630 · 53112-02A10 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 |
| 53879H | Front fender lining fixing parts | 53879-0K010 · 53879-58010 |
| 81481E | Right fog light cover | 81481-02450 · 81481-02700 · 81481-02720 · 81481-02740 · 81481-02760 |
| 81482C | Left fog light cover | 81482-02440 · 81482-02690 · 81482-02710 · 81482-02730 · 81482-02750 |
