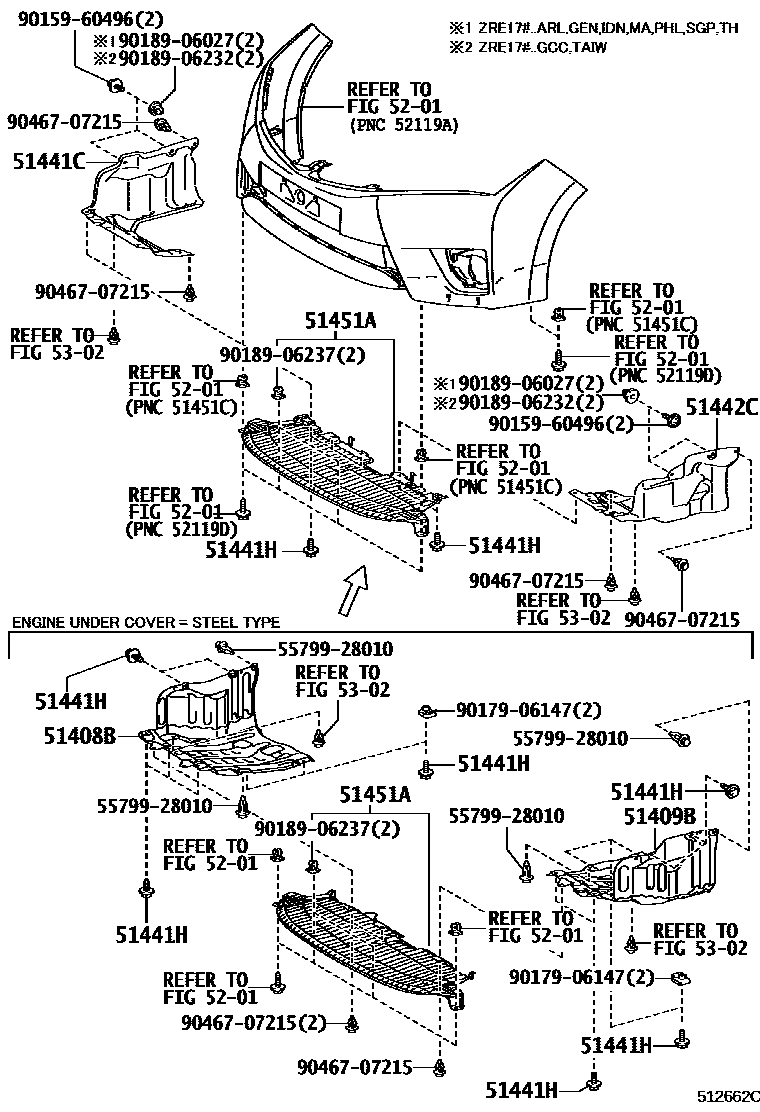

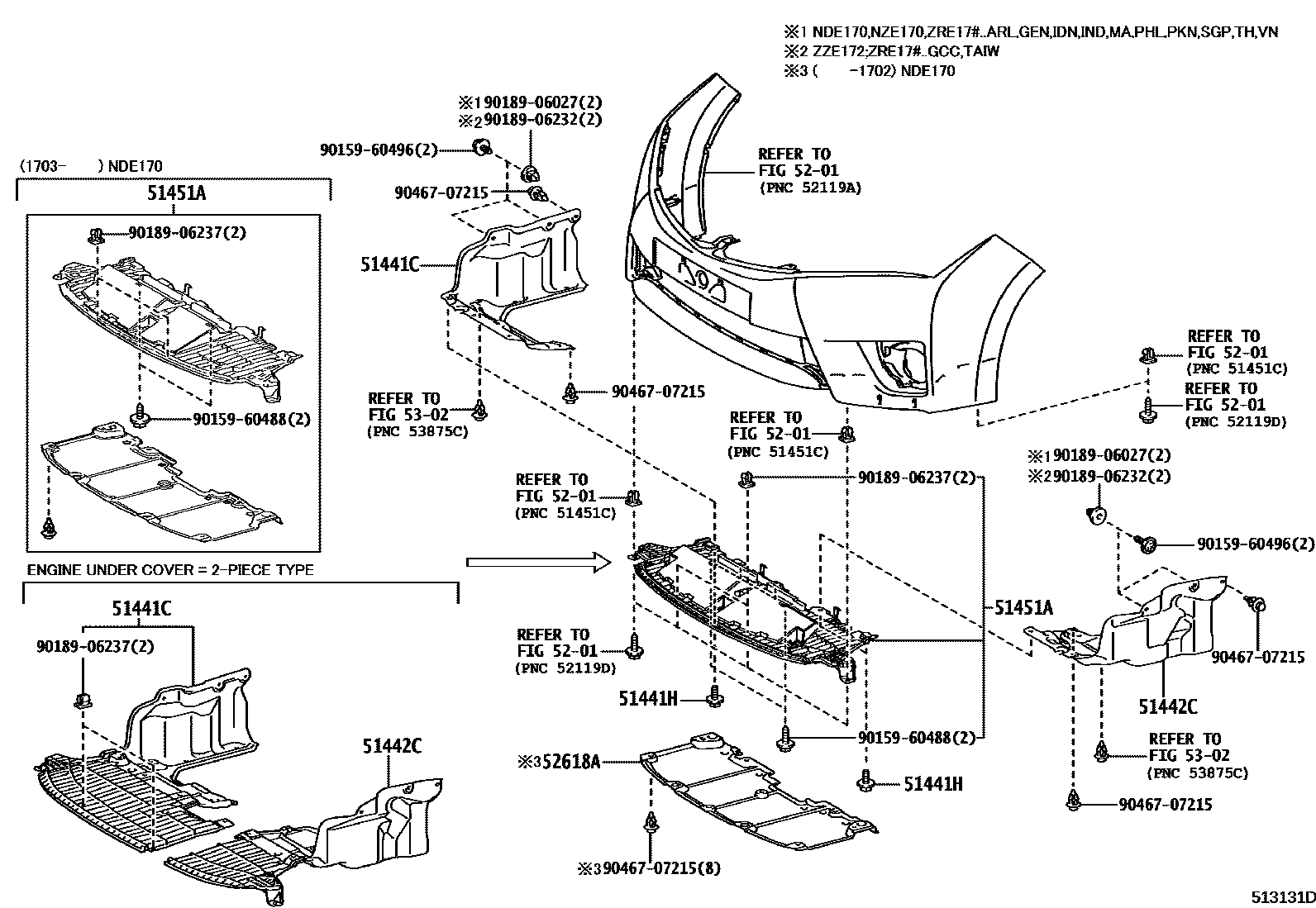

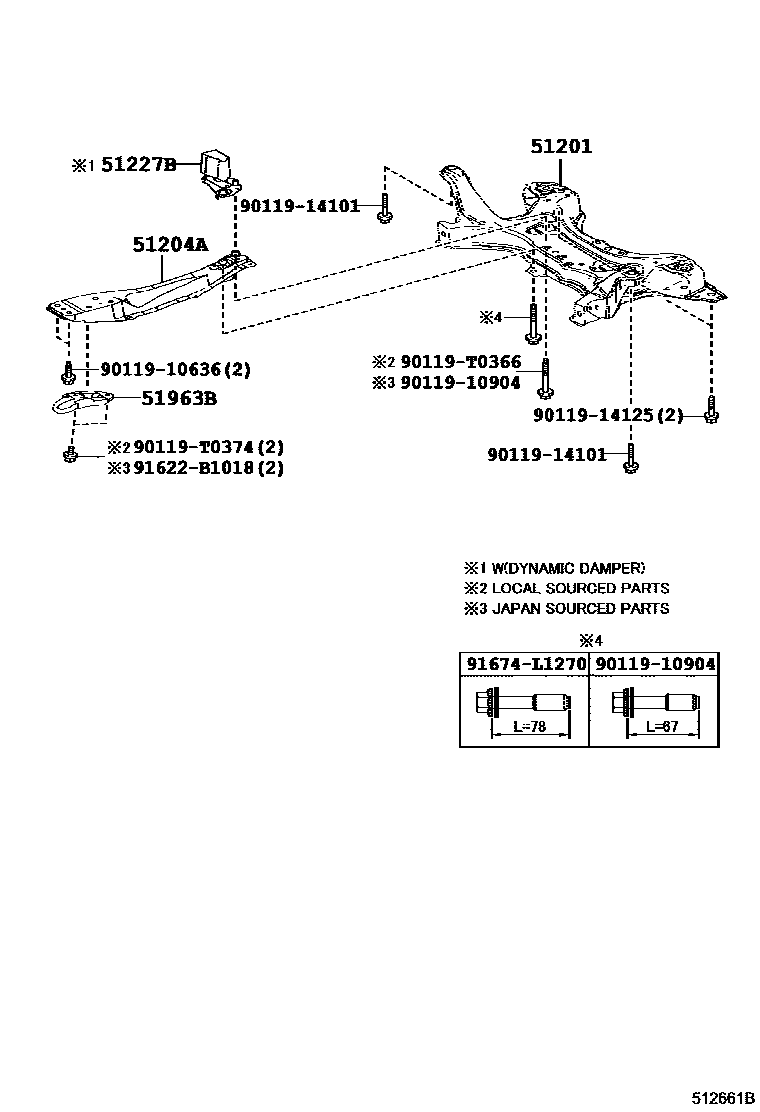

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02170 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-02091 · 51204-02120 · 51204-12130 |
| 51227B | Front suspension beam dynamic damper | 51227-02100 |
| 51408B | Engine right bottom cover sub-assembly | 51408-02080 |
| 51409B | Engine left bottom cover sub-assembly | 51409-02050 |
| 51441C | Engine right bottom cover | 51441-02420 · 51441-02430 · 51441-02440 · 51441-02450 · 51441-02530 |
| 51441H | Bolts with washers (for engine underhood) | 90119-06767 · 90119-T0144 |
| 51442C | Engine left bottom cover | 51442-02480 · 51442-02490 · 51442-02500 · 51442-02510 · 51442-02520 · 51442-02530 · 51442-02540 · 51442-02610 · 51442-02620 |
| 51451A | Engine center cover | 51451-02090 · 51451-02140 · 52601-02130 · 52601-02140 · 52601-02150 · 52601-02160 · 52601-02170 · 52601-YP010 |
| 51963B | Right front transport hook | 51960-02110 |
| 52618A | Front bumper lower shock absorber | 52618-02100 |
