Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

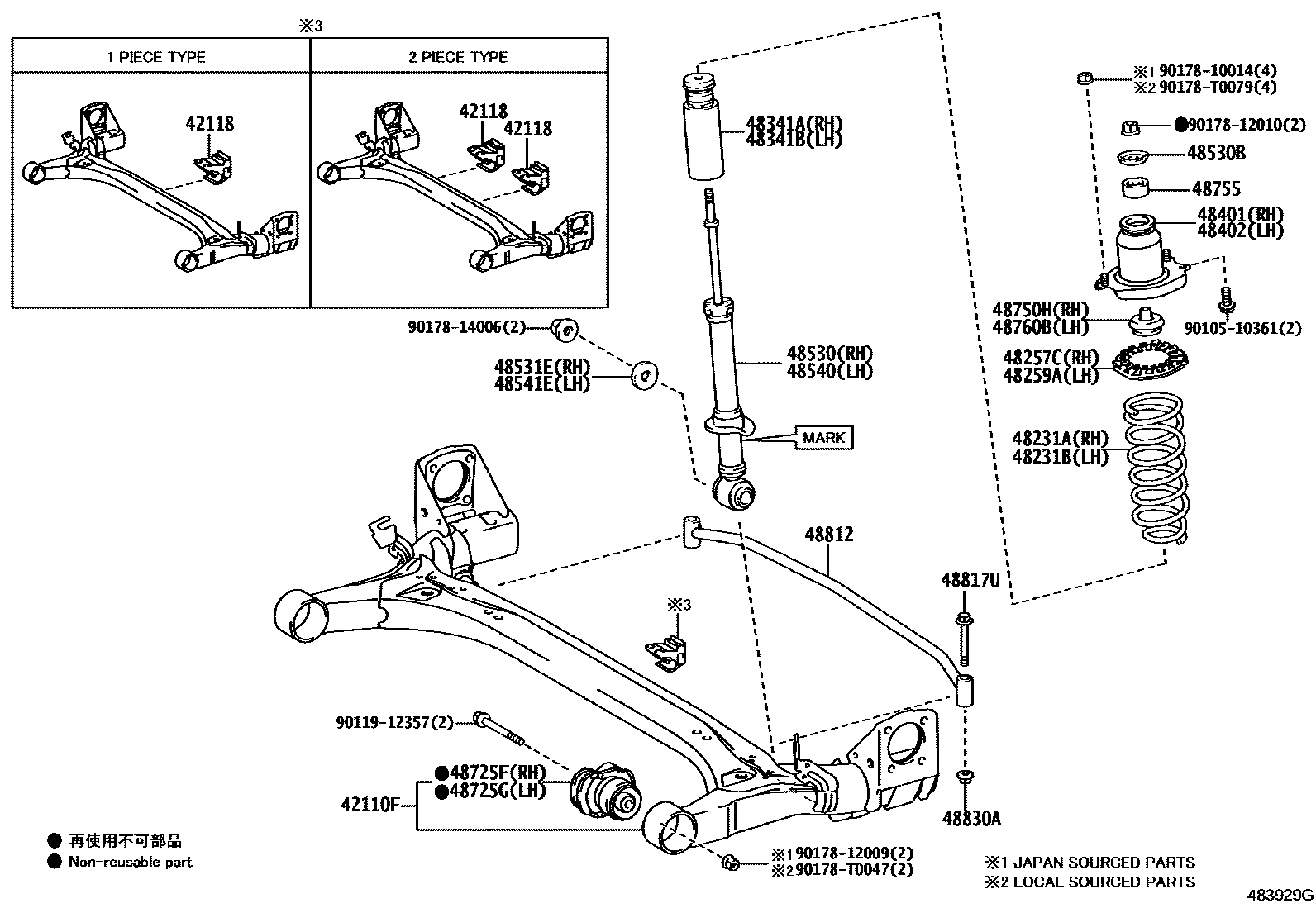

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-02350 · 42110-02430 · 42110-02520 · 42110-02530 · 42110-02560 · 42110-02700 · 42110-02710 · 42110-02720 · 42110-02730 · 42110-02740 · 42110-02750 · 42110-02760 · 42110-02770 |
| 42118 | Rear axle damper | 42118-02020 · 42118-02030 · 42118-02080 · 42118-02090 · 42118-02100 |
| 48231A | Right rear coil spring | 48231-02E10 · 48231-02E20 · 48231-02E30 · 48231-02E40 · 48231-02E50 · 48231-02E60 · 48231-02E70 · 48231-02E80 · 48231-02E90 · 48231-02F00 · 48231-02J40 · 48231-02N80 |
| 48231B | Left rear coil spring | 48231-02E10 · 48231-02E20 · 48231-02E30 · 48231-02E40 · 48231-02E50 · 48231-02E60 · 48231-02E70 · 48231-02E80 · 48231-02E90 · 48231-02F00 · 48231-02J40 · 48231-02N80 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 · 48257-02080 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 · 48257-02080 |
| 48341A | No. 1 right rear spring buffer block | 48341-12230 |
| 48341B | No. 1 left rear spring buffer block | 48341-12230 |
| 48401 | Rear spring right front bracket sub-assembly | 48401-02060 · 48401-02070 |
| 48402 | Rear spring left front bracket sub-assembly | 48403-02050 · 48403-02060 |
| 48530 | Right rear shock absorber assembly | 48530-02C50 · 48530-02C51 · 48530-02C60 · 48530-02C61 · 48530-02C70 · 48530-02C71 · 48530-02C80 · 48530-02C81 · 48530-02C90 · 48530-02C91 · 48530-02D00 · 48530-02D10 · 48530-02D11 · 48530-02D30 · 48530-02D31 · 48530-02D40 · 48530-02D41 · 48530-02D60 · 48530-02D61 · 48530-02J60 · 48530-02J70 · 48530-02J80 · 48530-02S60 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90201-14034 |
| 48540 | Left rear shock absorber assembly | 48530-02C50 · 48530-02C51 · 48530-02C60 · 48530-02C61 · 48530-02C70 · 48530-02C71 · 48530-02C80 · 48530-02C81 · 48530-02C90 · 48530-02C91 · 48530-02D00 · 48530-02D10 · 48530-02D11 · 48530-02D30 · 48530-02D31 · 48530-02D40 · 48530-02D41 · 48530-02D60 · 48530-02D61 · 48530-02J60 · 48530-02J70 · 48530-02J80 · 48530-02S60 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90201-14034 |
| 48725F | Right rear axle bracket bushing | 48725-02310 · 48725-02360 |
| 48725G | Left rear axle bracket bushing | 48725-02310 · 48725-02360 |
| 48750H | Right rear suspension support assembly | 48750-02020 · 48750-02030 · 48750-02080 |
| 48755 | rear suspension mount | 48755-02020 · 48755-02030 · 48755-02150 |
| 48760B | Left rear suspension support assembly | 48750-02020 · 48750-02030 · 48750-02080 |
| 48812 | rear stabilizer bar | 48812-02260 · 48812-02261 · 48812-02270 · 48812-02271 · 48812-02280 · 48812-02281 |
| 48817U | Bolt (for rear stabilizer bar) | 90105-16085 · 90105-T0307 |
| 48830A | Nut (for rear stabilizer link) | 90178-T0101 · 94151-21641 |
