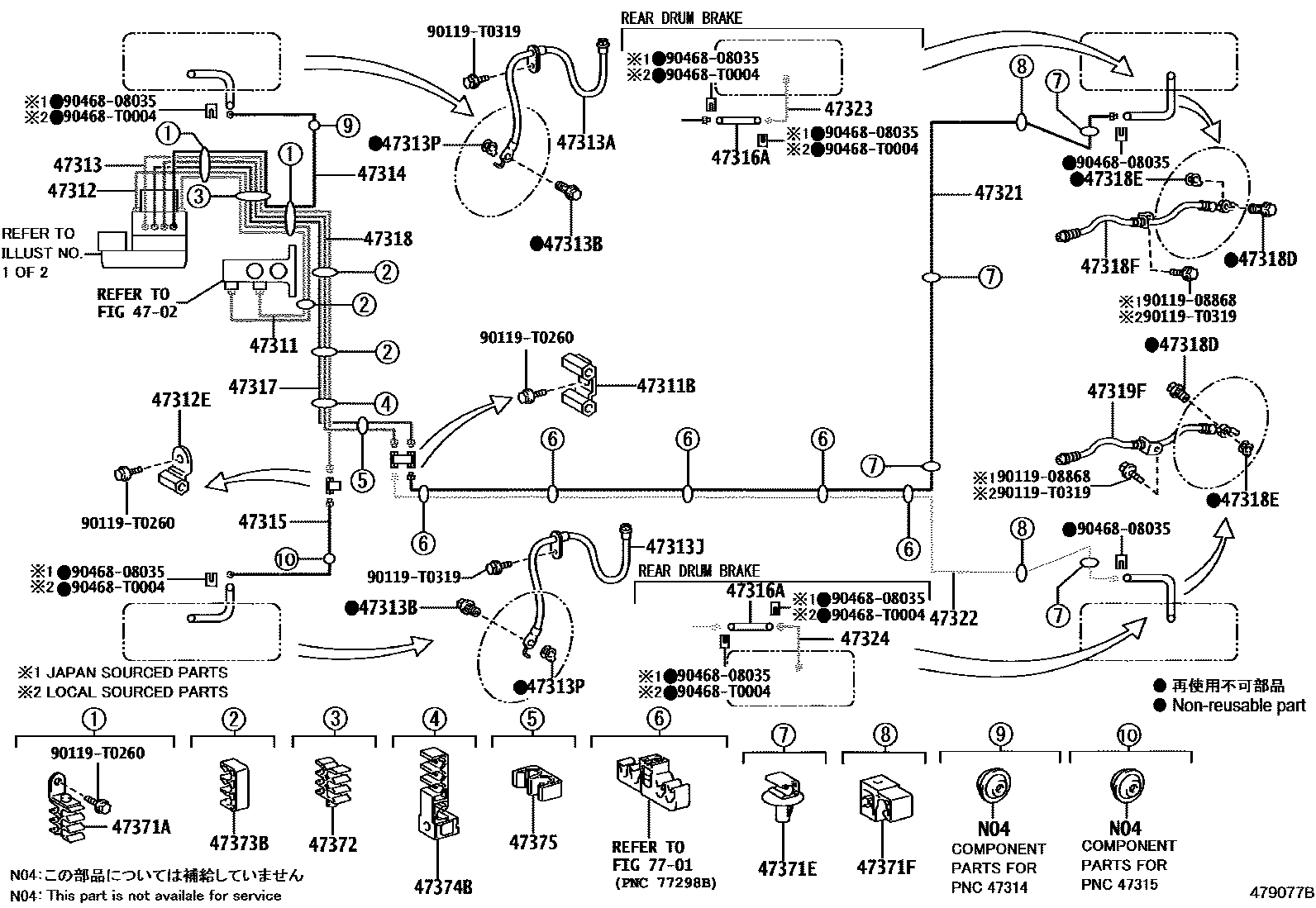

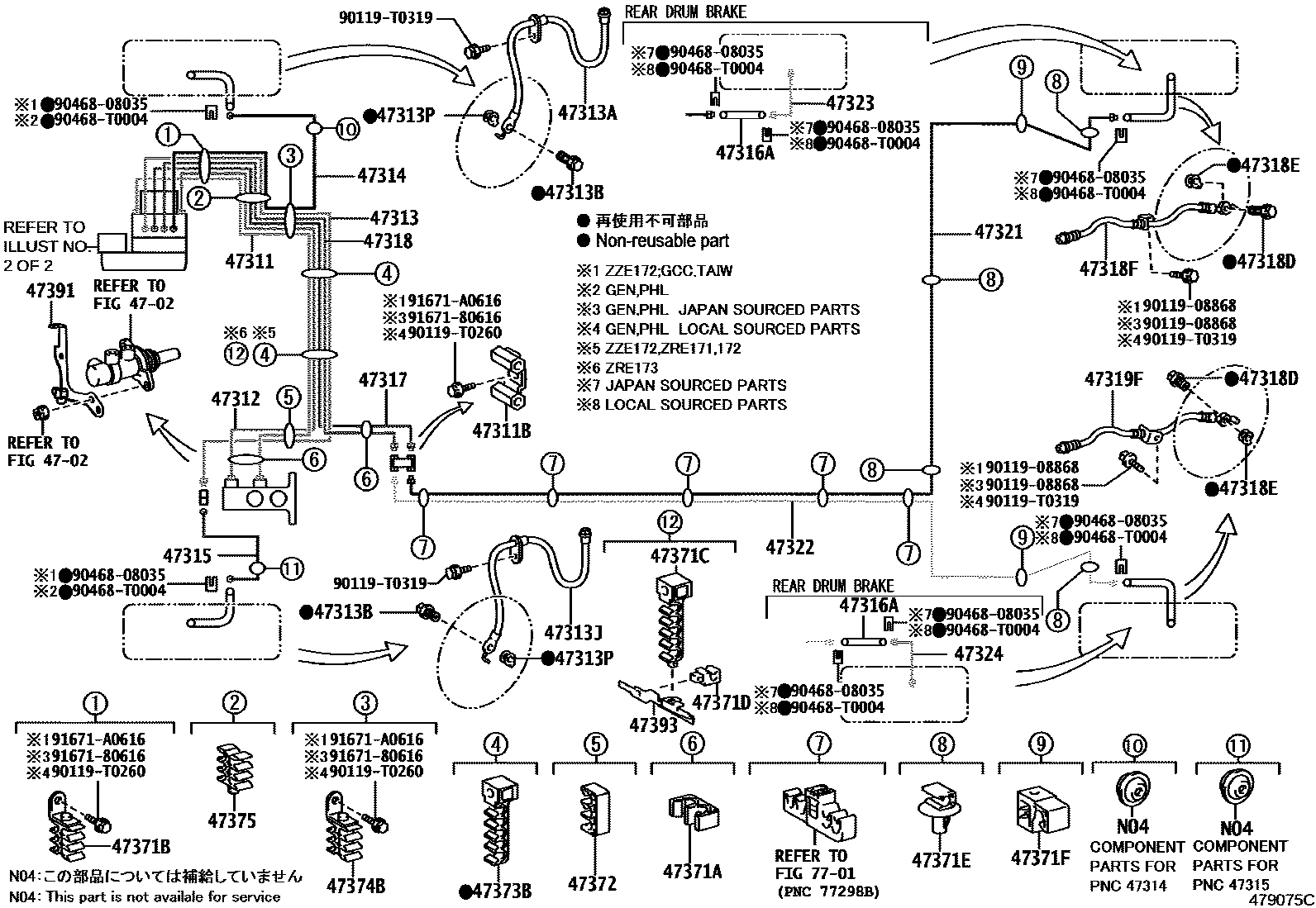

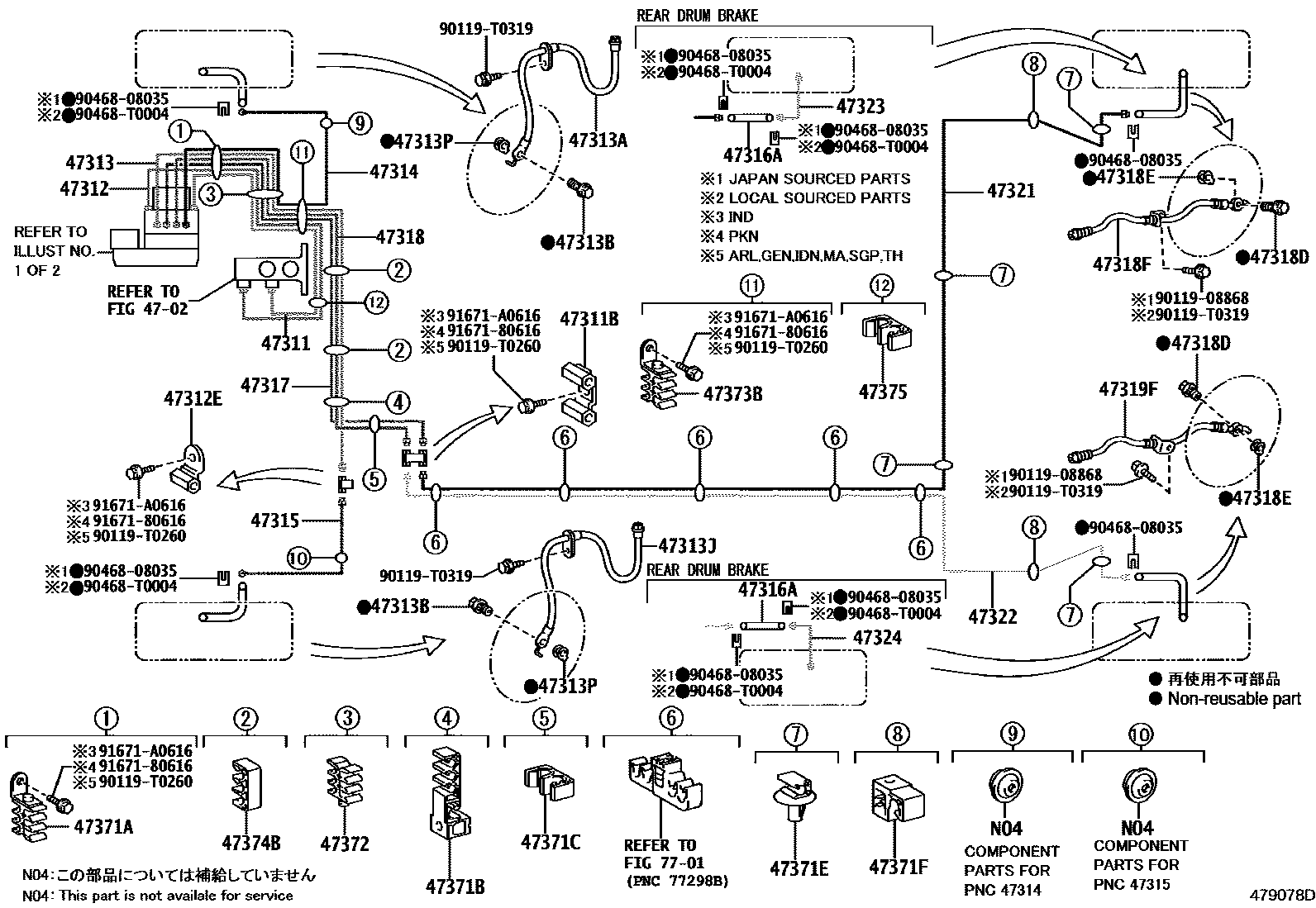

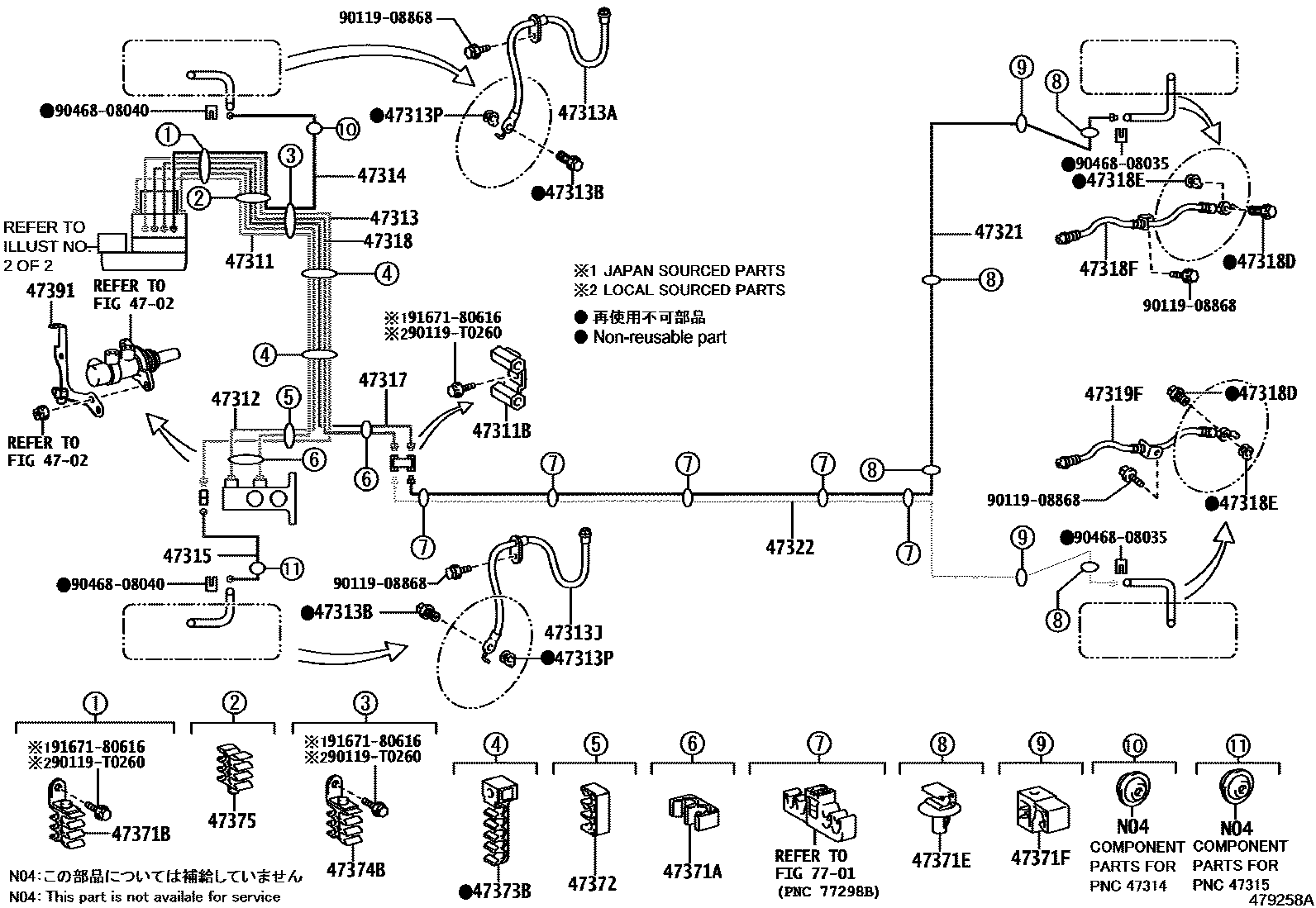

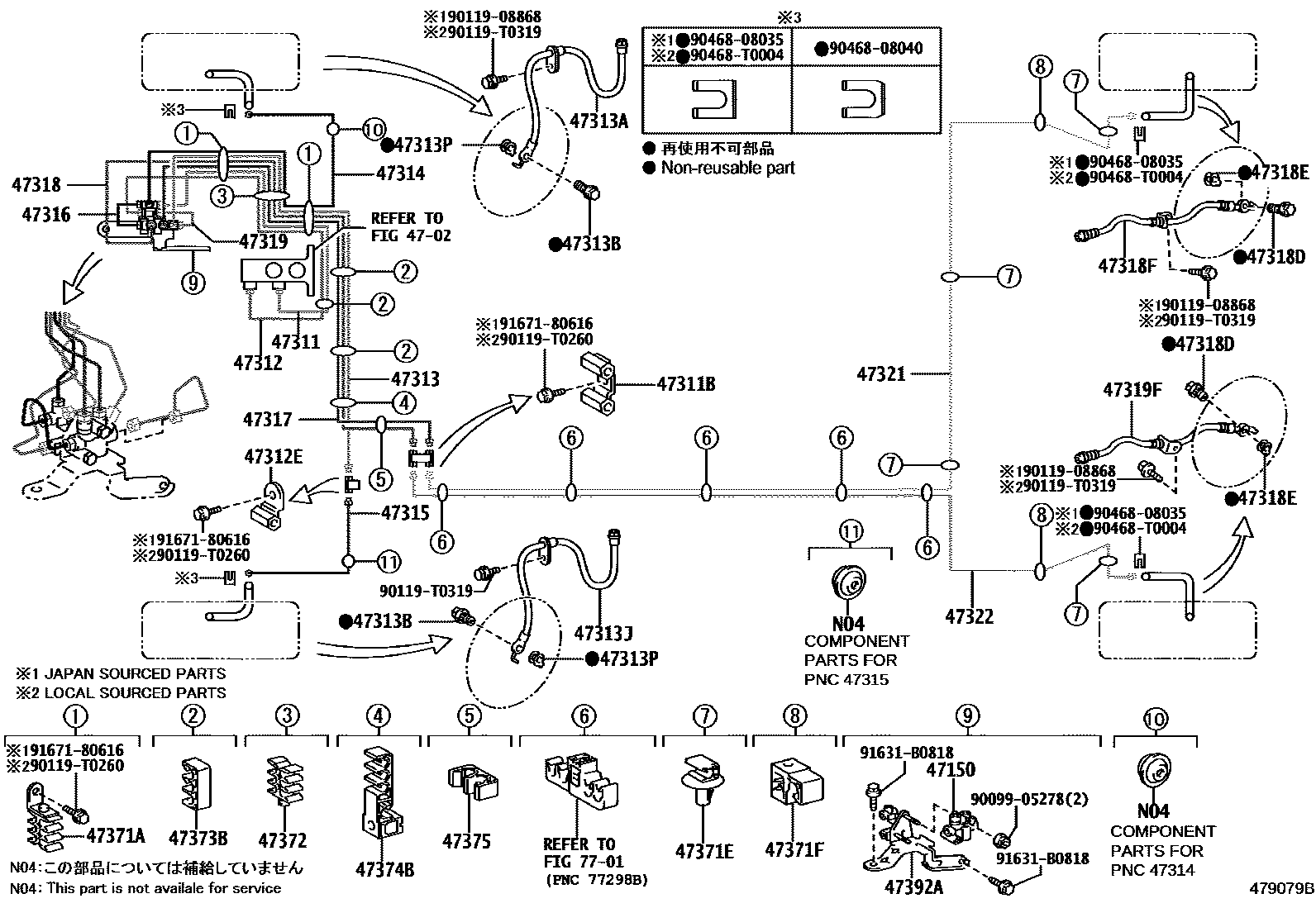

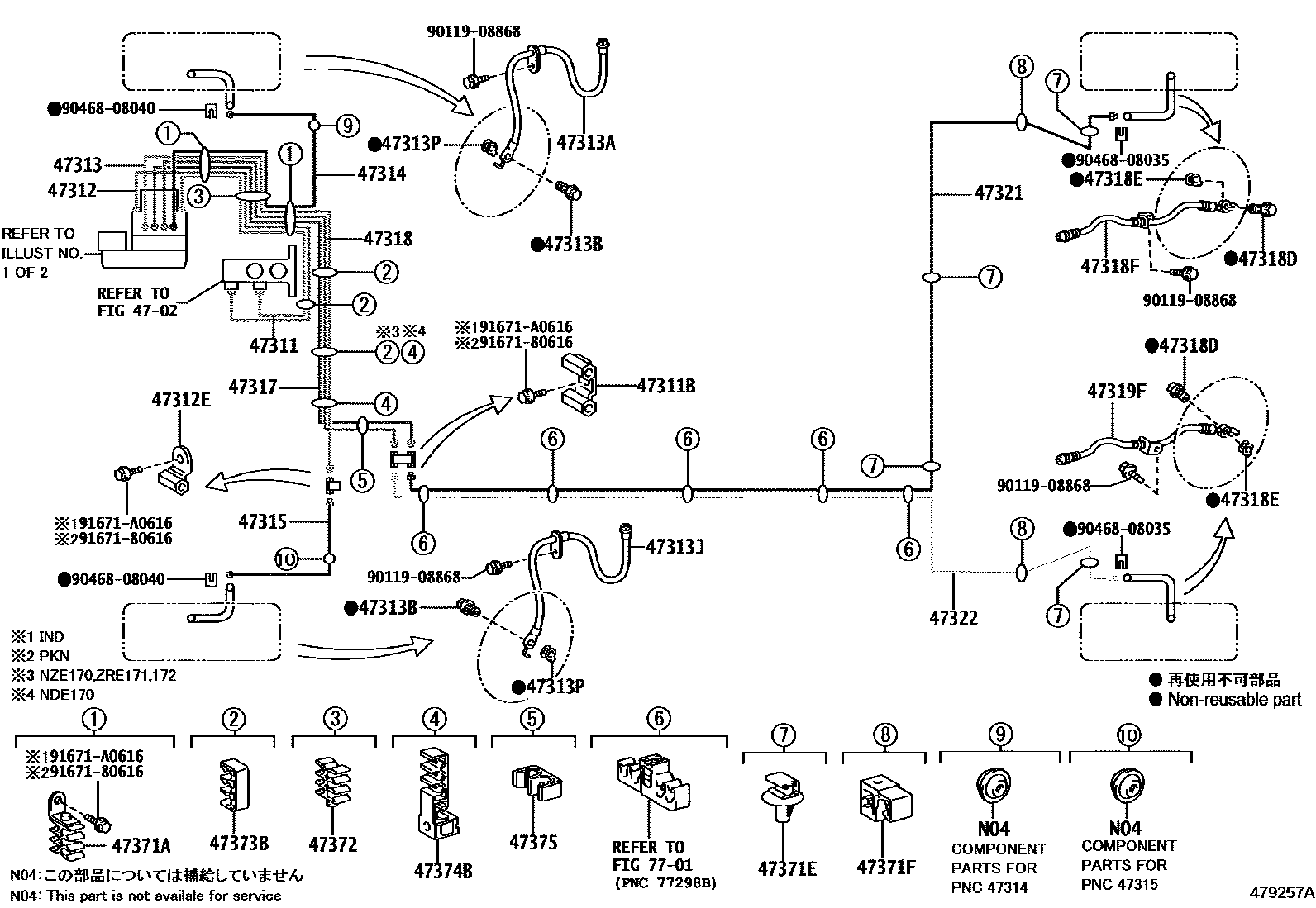

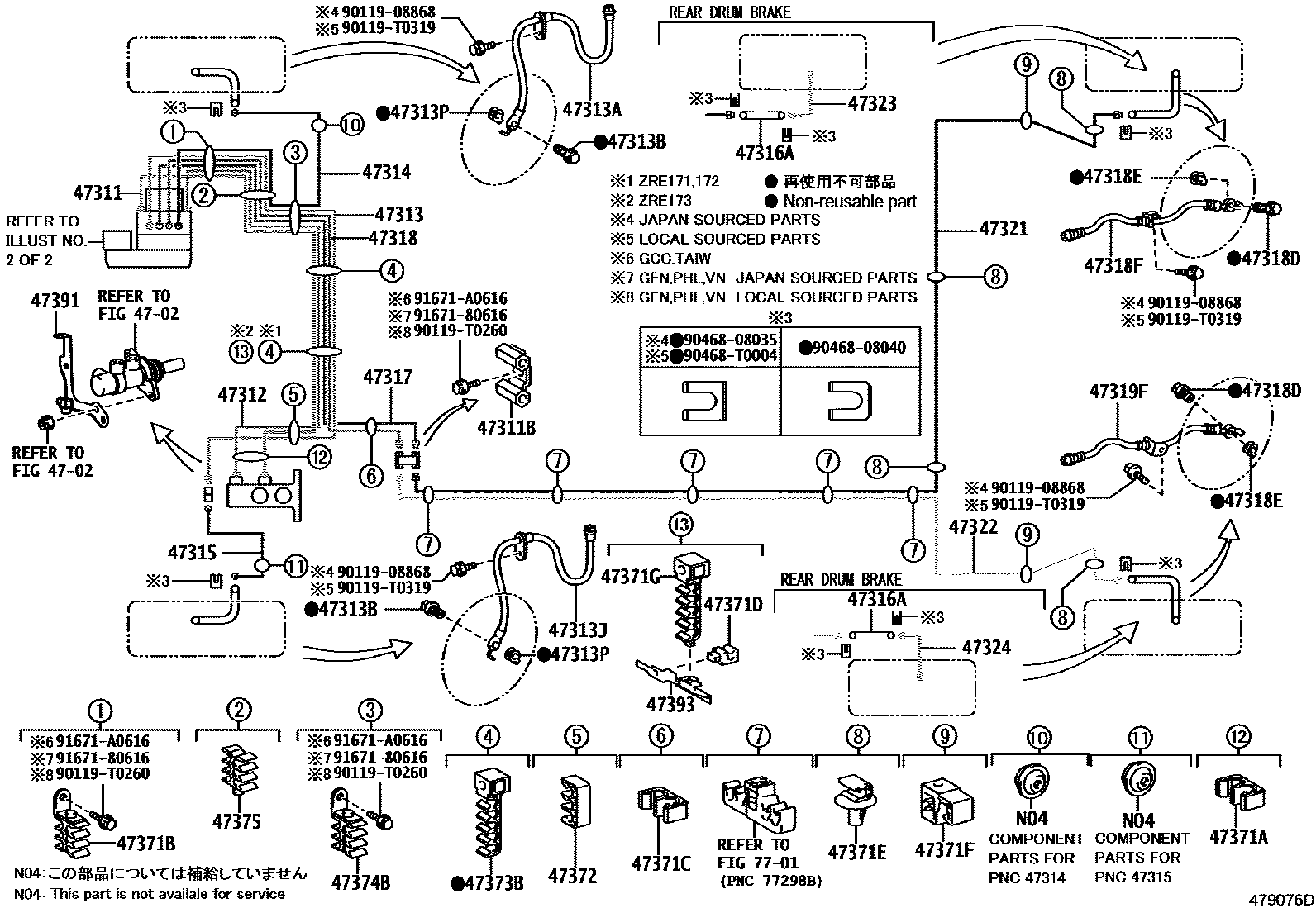

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 9 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

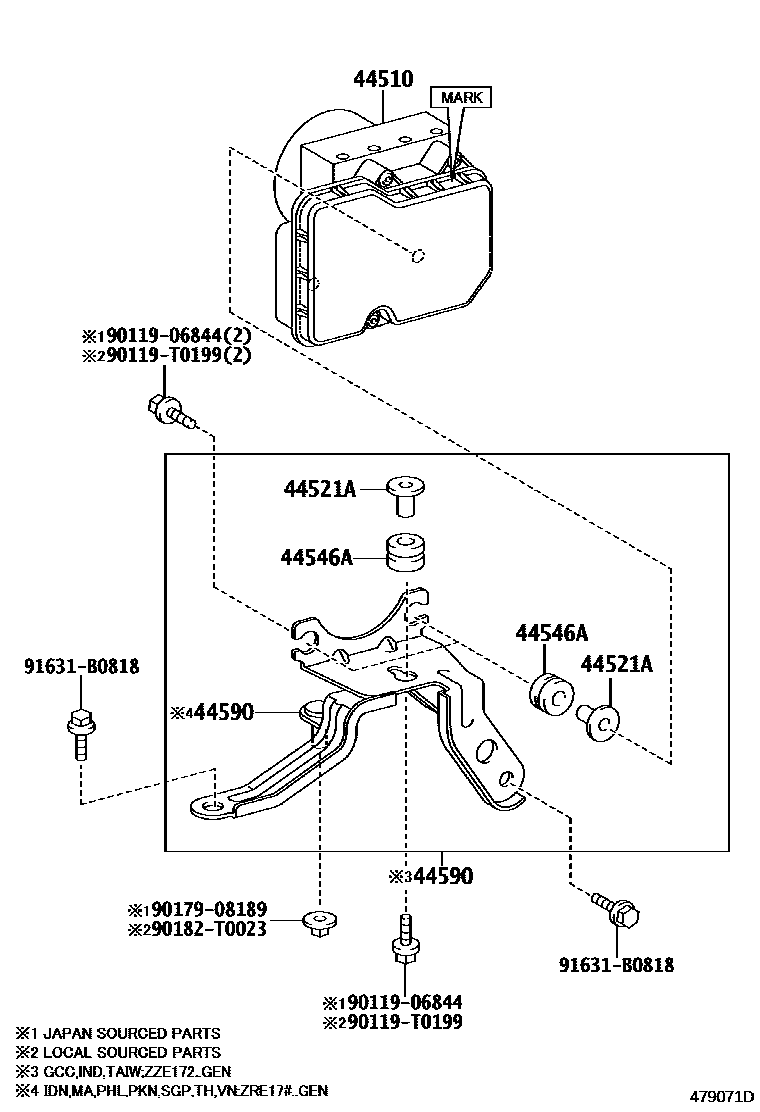

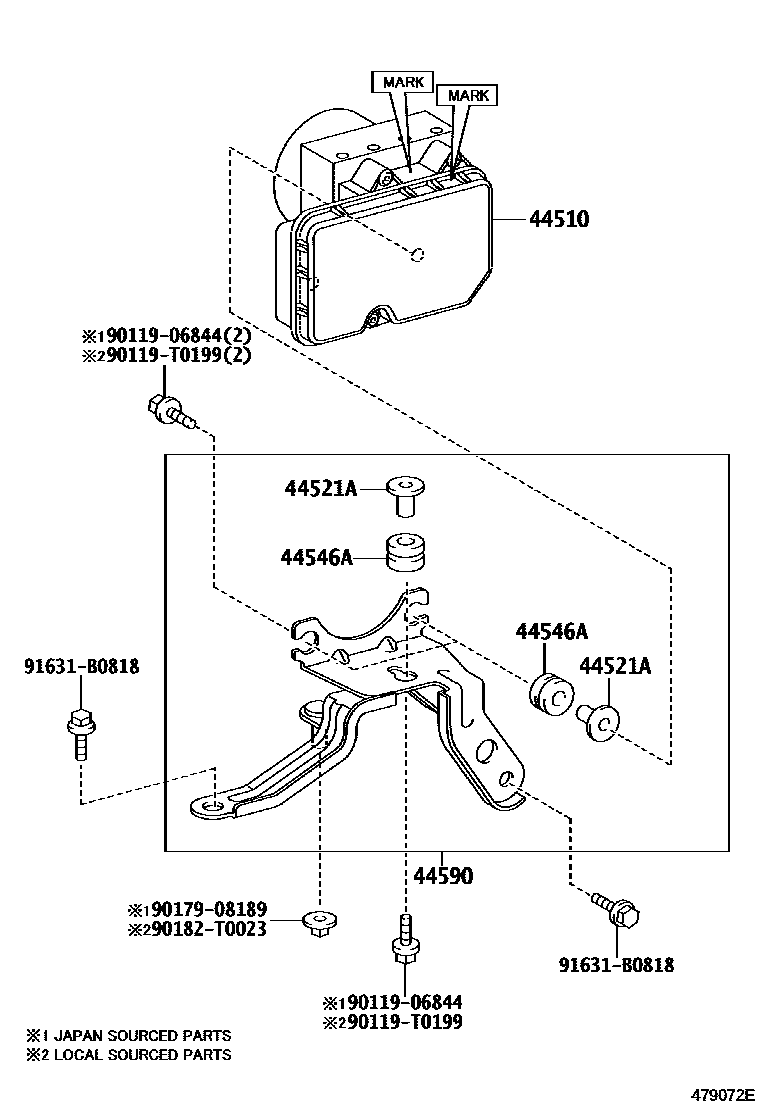

| 44510 | brake actuator assembly | 44050-02630 · 44050-02790 · 44050-02890 · 44050-02A00 · 44050-02B00 · 44050-02B80 · 44050-02B90 · 44050-02C10 · 44050-02J70 · 44050-12C20 · 44050-12D80 · 44050-12E00 · 44050-12E10 · 44050-12E20 · 44050-12E30 |
| 44521A | No. 1 brake actuator housing collar | 44521-02080 · 44521-0D010 · 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44547-02050 |
| 44590 | Brake actuator bracket assembly | 44590-02240 · 44590-02250 · 44590-02350 · 44590-02430 · 44590-02510 · 44590-12190 |
| 47150 | Proportional valve assembly | 47150-12240 · 47150-12250 |
| 47311 | No. 1 front brake pipe | 47311-02A00 · 47311-02A10 · 47311-02A20 · 47311-02A30 · 47311-02A31 · 47311-02A40 · 47311-02A41 · 47311-02A42 · 47311-02A50 · 47311-02A52 · 47311-02A60 · 47311-02A70 · 47311-02A80 · 47311-02A90 · 47311-02B00 · 47311-02B02 · 47311-02D10 · 47311-02D70 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-02760 · 47312-02761 · 47312-02770 · 47312-02771 · 47312-02780 · 47312-02790 · 47312-02800 · 47312-02801 · 47312-02810 · 47312-02811 · 47312-02820 · 47312-02821 · 47312-02830 · 47312-02831 · 47312-02840 · 47312-02841 · 47312-02850 · 47312-02870 · 47312-02871 · 47312-02B50 · 47312-02B51 · 47312-02C10 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 |
| 47313 | No. 3 front brake pipe | 47313-02A90 · 47313-02B00 · 47313-02B10 · 47313-02B20 · 47313-02B30 · 47313-02B31 · 47313-02B40 · 47313-02B41 · 47313-02B50 · 47313-02B51 · 47313-02B60 · 47313-02B70 · 47313-02B80 · 47313-02B90 · 47313-02E00 · 47313-02E50 |
| 47313A | No. 1 front flexible hose | 90947-T2090 · 90947-T2092 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2091 · 90947-T2093 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02A00 · 47314-02A10 · 47314-02A20 · 47314-02A30 · 47314-02A40 · 47314-02A50 · 47314-02A60 · 47314-02A70 · 47314-02A80 · 47314-02A90 · 47314-02B00 · 47314-02D30 · 47314-02D80 |
| 47315 | No. 5 front brake pipe | 47315-02290 · 47315-02300 · 47315-02310 · 47315-02370 · 47315-02380 |
| 47316 | No. 6 front brake pipe | 47316-02120 · 47316-02160 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-T2089 · 90947-T2156 |
| 47317 | No. 7 front brake pipe | 47317-02840 · 47317-02850 · 47317-02860 · 47317-02870 · 47317-02880 · 47317-02890 · 47317-02A00 · 47317-02A10 · 47317-02A20 · 47317-02A30 · 47317-02A40 · 47317-02C90 · 47317-02D40 |
| 47318 | No. 8 front brake pipe | 47318-02860 · 47318-02870 · 47318-02880 · 47318-02890 · 47318-02A00 · 47318-02A10 · 47318-02A20 · 47318-02A30 · 47318-02A40 · 47318-02A50 · 47318-02A60 · 47318-02D10 · 47318-02D60 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2087 · 90947-T2154 |
| 47319 | No. 9 front brake pipe | 47319-02020 · 47319-02040 |
| 47319F | Left rear flexible hose | 90947-T2088 · 90947-T2155 |
| 47321 | No. 1 rear brake pipe | 47321-02440 · 47321-02460 · 47321-02470 · 47321-02480 · 47321-02490 |
| 47322 | No. 2 rear brake pipe | 47322-02440 · 47322-02460 · 47322-02470 · 47322-02480 · 47322-02490 |
| 47323 | No. 3 rear brake pipe | 47323-02120 |
| 47324 | No. 4 rear brake pipe | 47324-02120 |
| 47371A | No. 1 brake pipe clamp | 47371-12240 · 90464-00904 · 90464-00920 · 90949-04053 |
| 47371B | No. 6 brake pipe clamp | 47371-12240 · 90949-01D27 · 90949-04053 |
| 47371C | No. 7 brake pipe clamp | 90464-00904 · 90949-01D79 |
| 47371D | No. 8 brake pipe clamp | 90949-01D81 |
| 47371E | No. 9 brake pipe clamp | 90949-01D17 |
| 47371F | No. 10 brake pipe clamp | 90949-01C82 |
| 47371G | No. 11 brake pipe clamp | 90949-01D80 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90464-00914 · 90949-01C51 · 90949-01D33 |
| 47373B | No. 3 brake pipe clamp | 90464-00857 · 90949-01D28 · 90949-01D73 · 90949-04054 |
| 47374B | No. 4 brake pipe clamp | 90464-00857 · 90949-01D27 · 90949-04050 · 90949-04054 |
| 47375 | No. 5 brake pipe clamp | 90464-00904 · 90464-00920 · 90949-01C51 · 90949-01D33 |
| 47391 | Brake pipe joint | 47391-12051 |
| 47392A | No. 2 brake pipe joint | 47391-12061 |
| 47393 | brake pipe heat shield | 47393-02010 · 47393-02020 |
