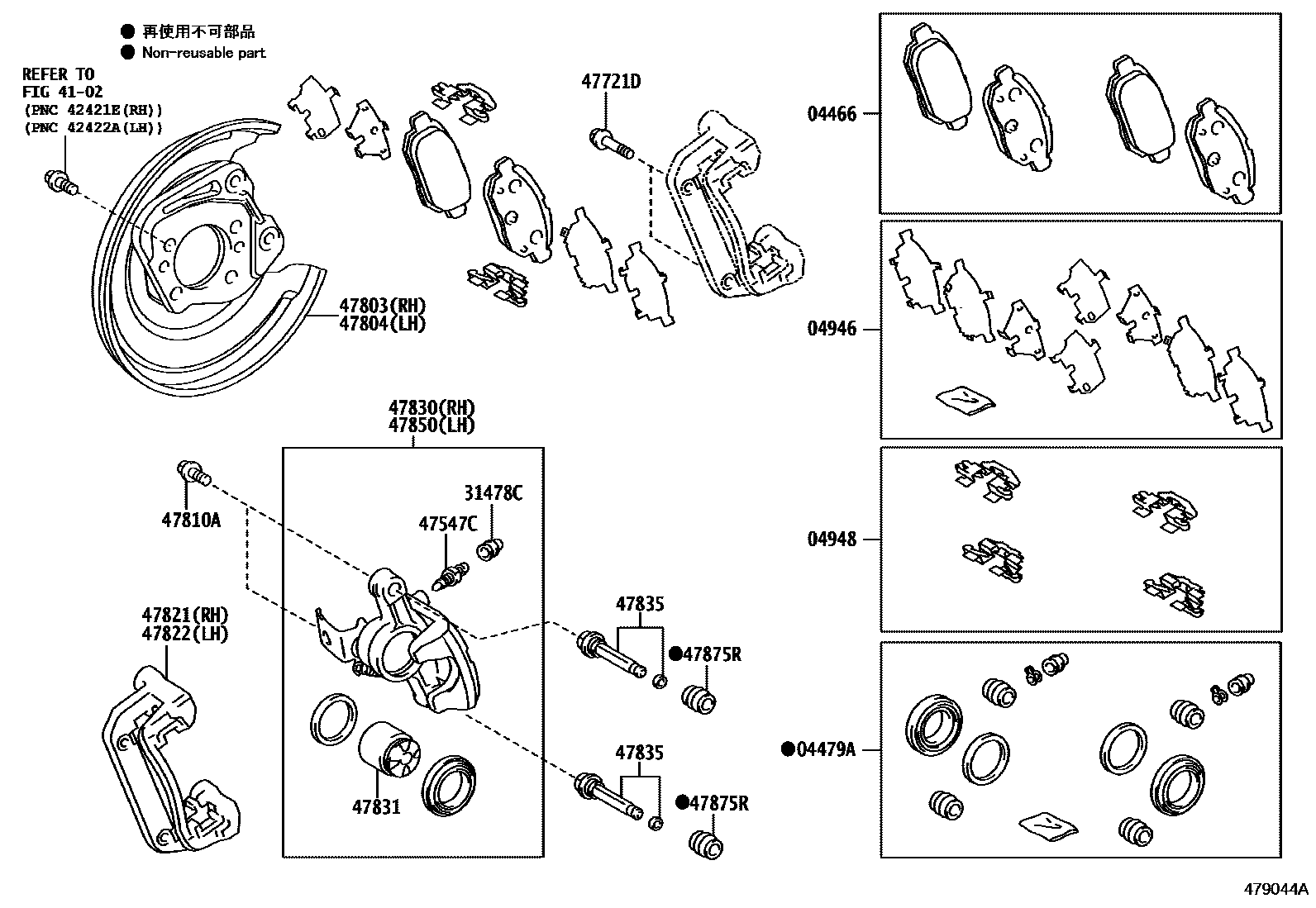

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02310 · 04466-12150 |
| 04479A | Rear disc brake cylinder assembly | 04479-02330 · 04479-12260 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-02050 · 04946-12100 |
| 04948 | Rear disc brake mounting assembly | 04948-02101 · 04948-12060 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-02160 · 31478-52010 |
| 47547C | Bleed plug (for rear disc brake) | 47847-02160 · 47847-52050 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 91552-C1035 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-02040 · 47803-02050 · 47803-02060 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-02040 · 47804-02050 · 47804-02060 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90015-AA102 · 90016-AA104 |
| 47821 | Right rear disc brake cylinder retainer | 47821-02160 · 47821-12150 |
| 47822 | Left rear disc brake cylinder retainer | 47821-02160 · 47821-12150 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02180 · 47830-12260 |
| 47831 | rear disc brake piston | 47831-02180 · 47831-52050 |
| 47835 | Rear disc brake pad guide pin | 47835-02160 · 47835-12150 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02180 · 47850-12260 |
| 47875R | Bushing boot (for rear disc brake) | 47875-12150 |
