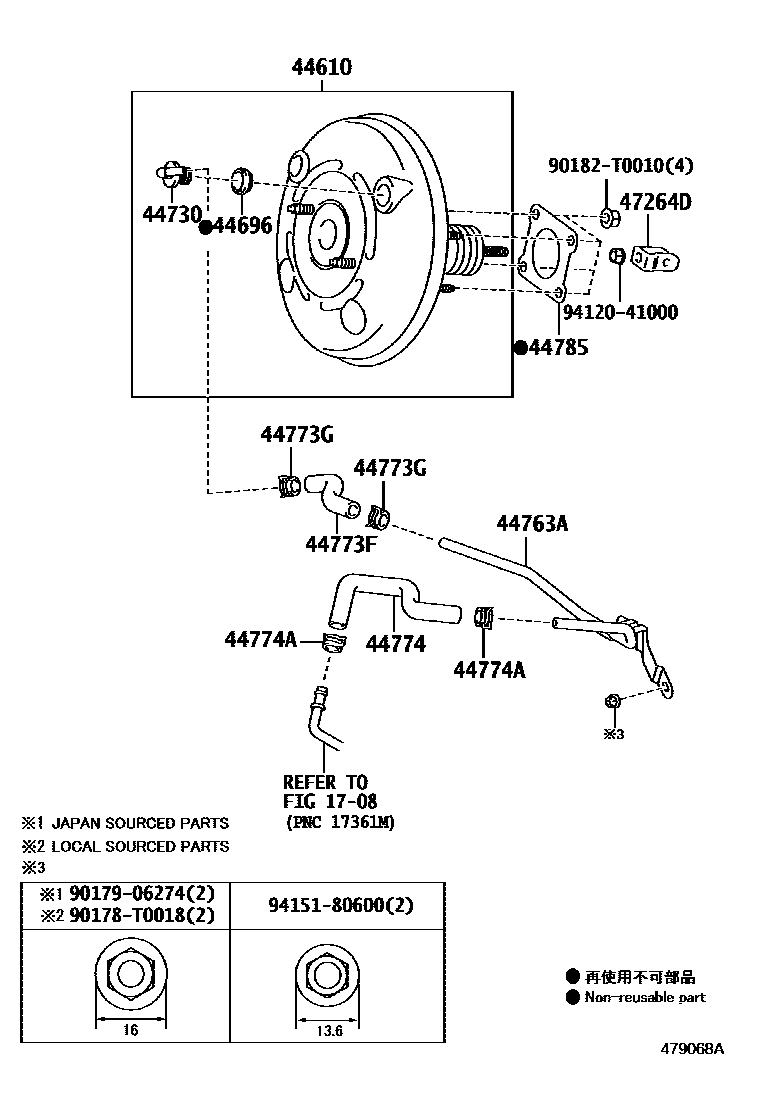

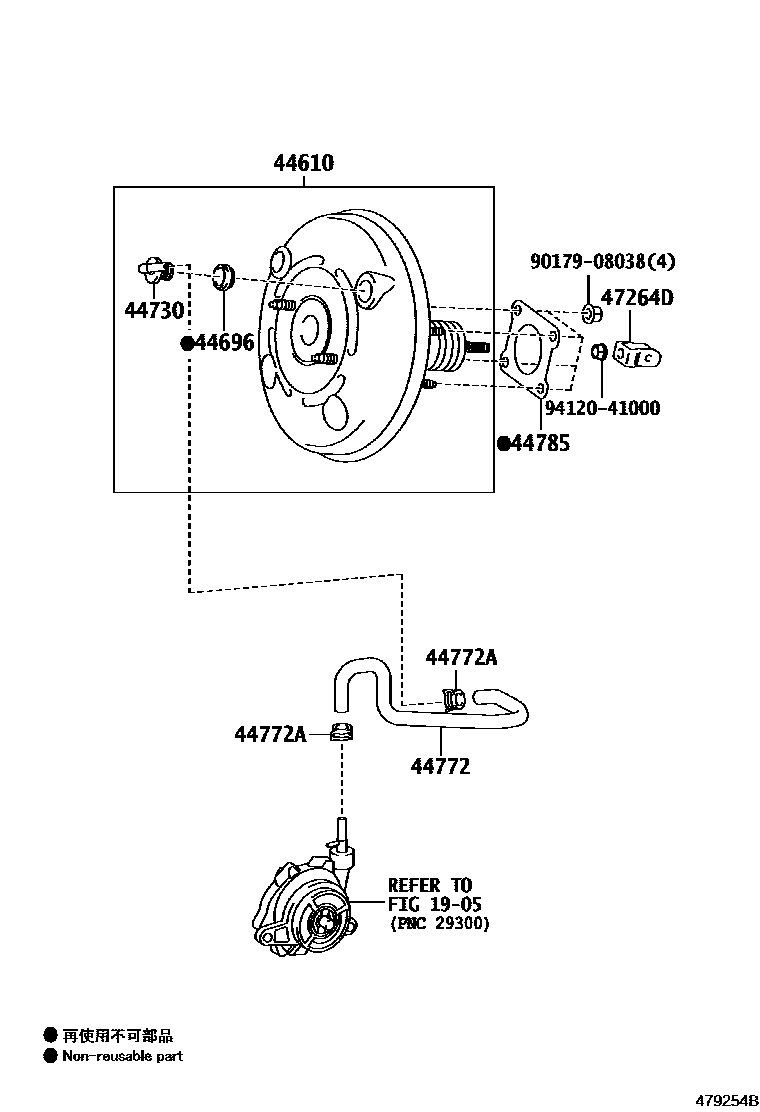

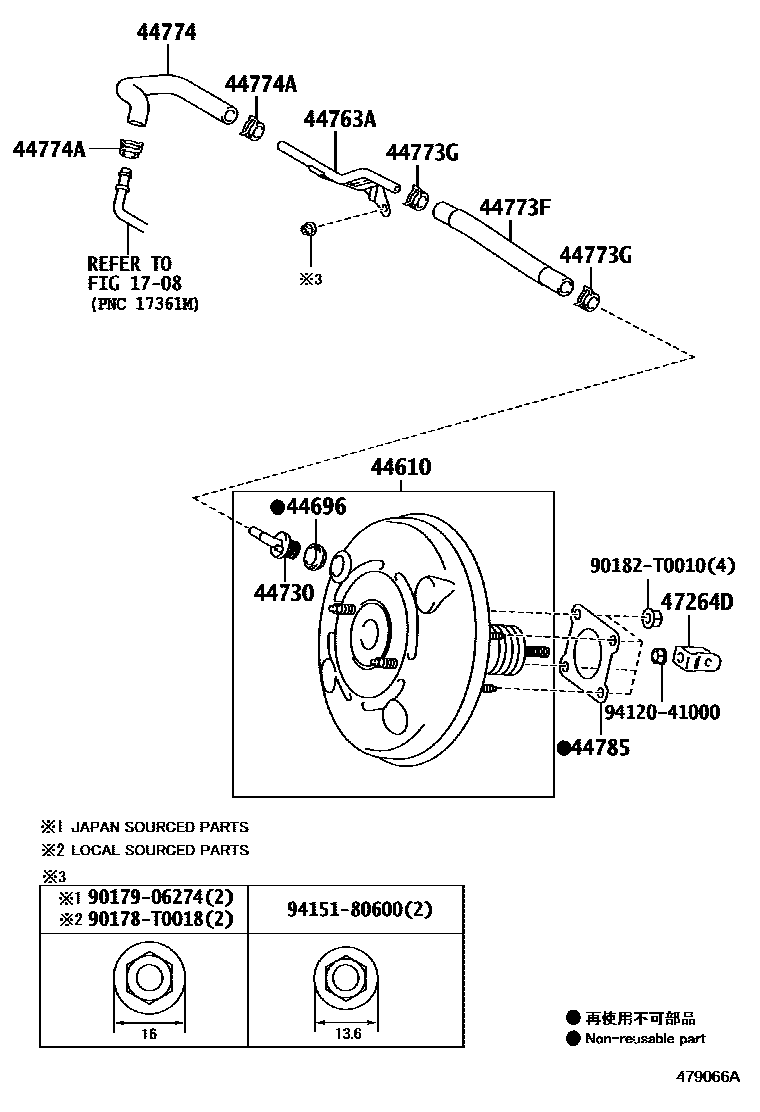

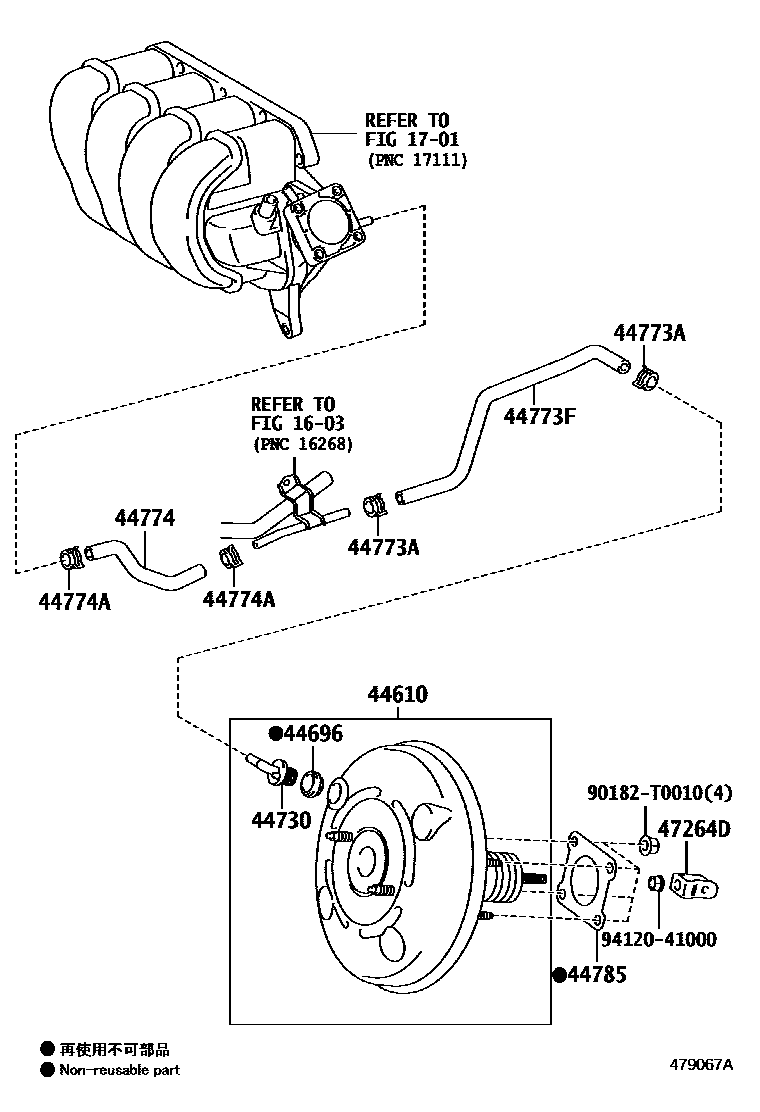

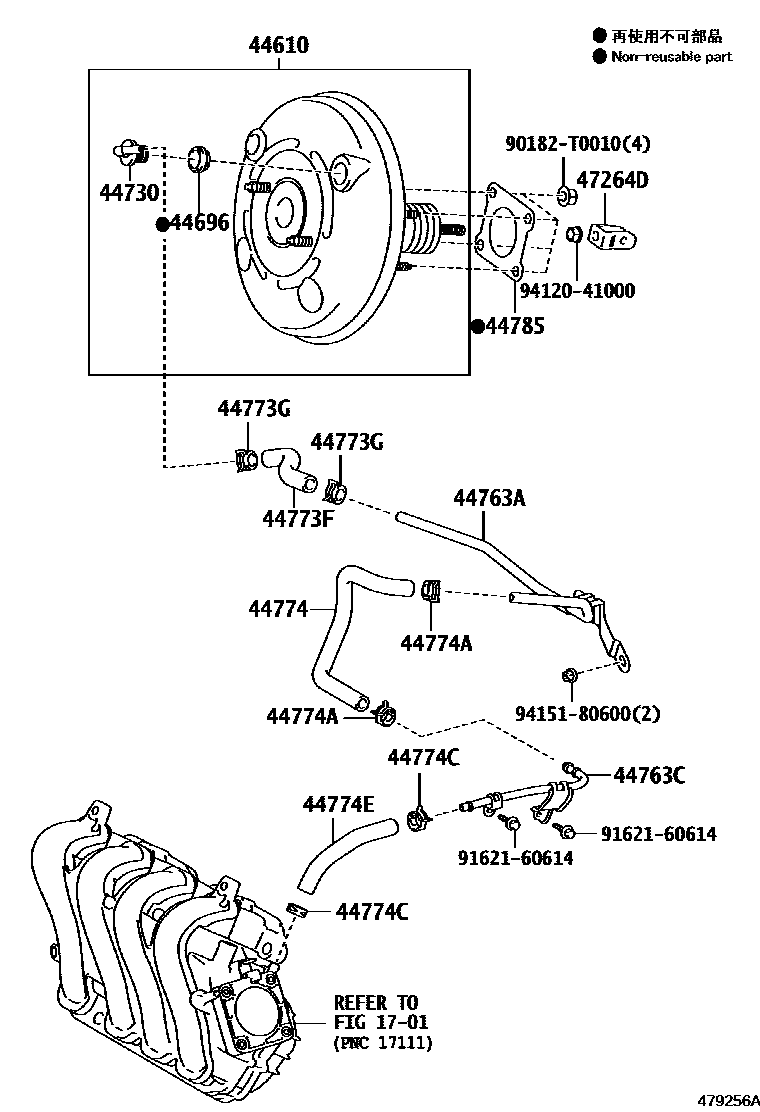

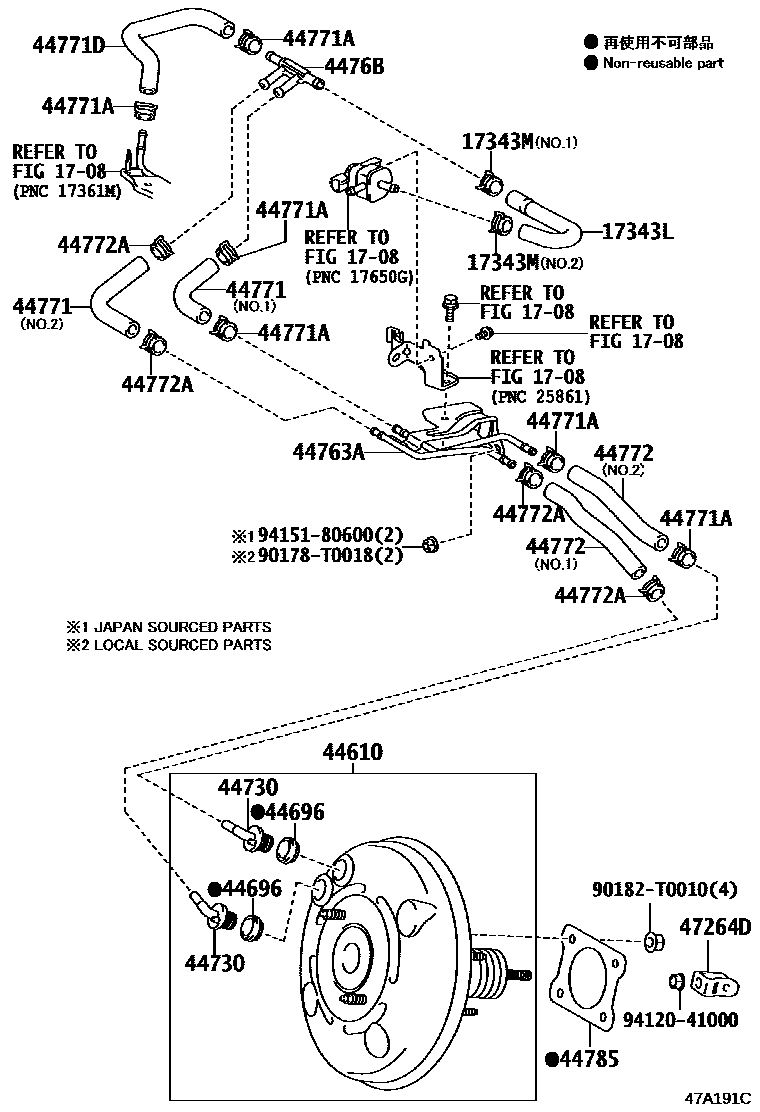

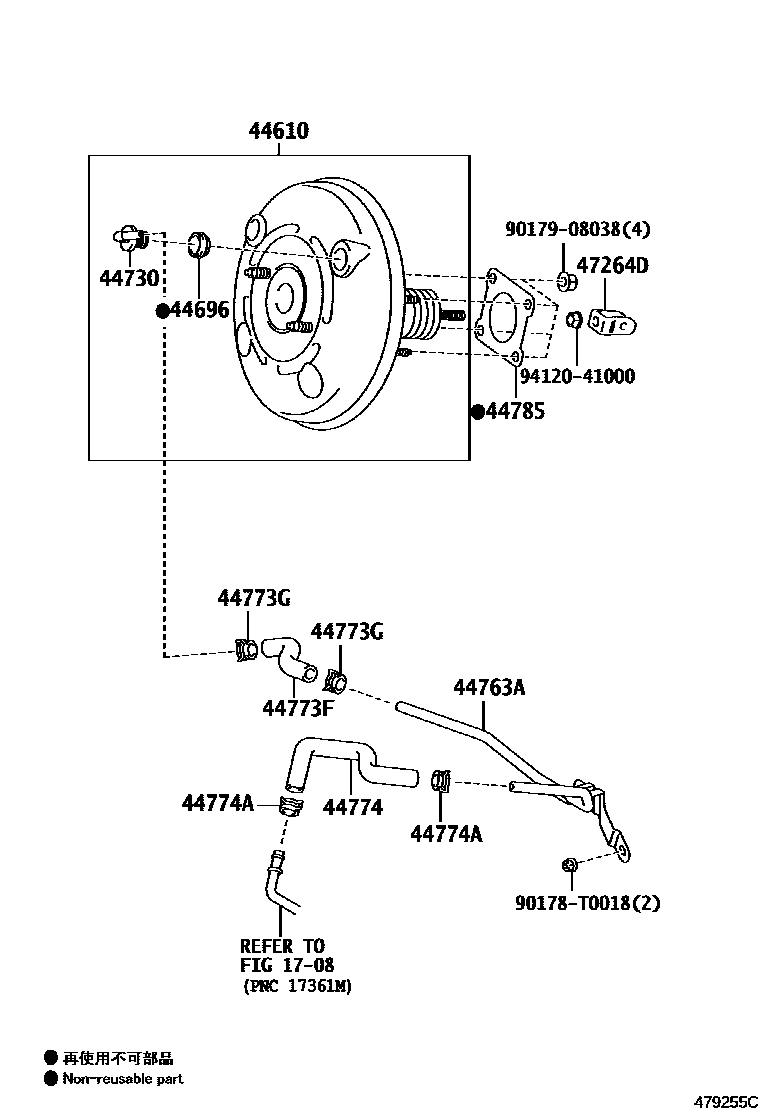

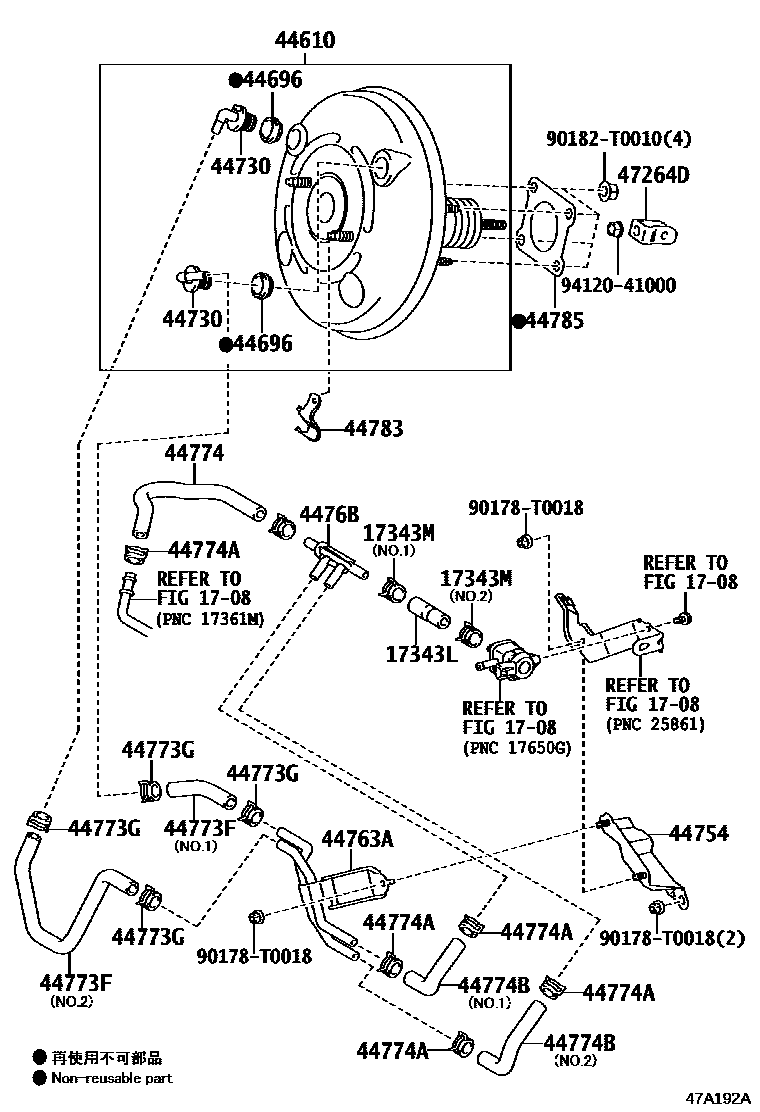

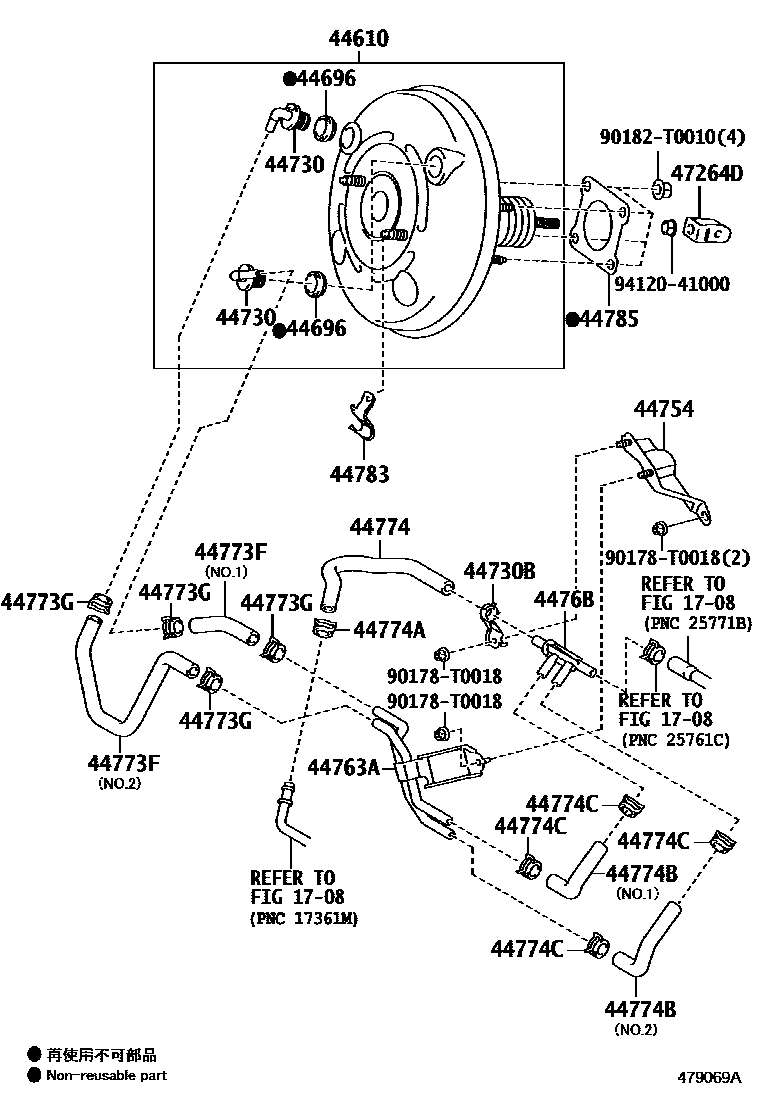

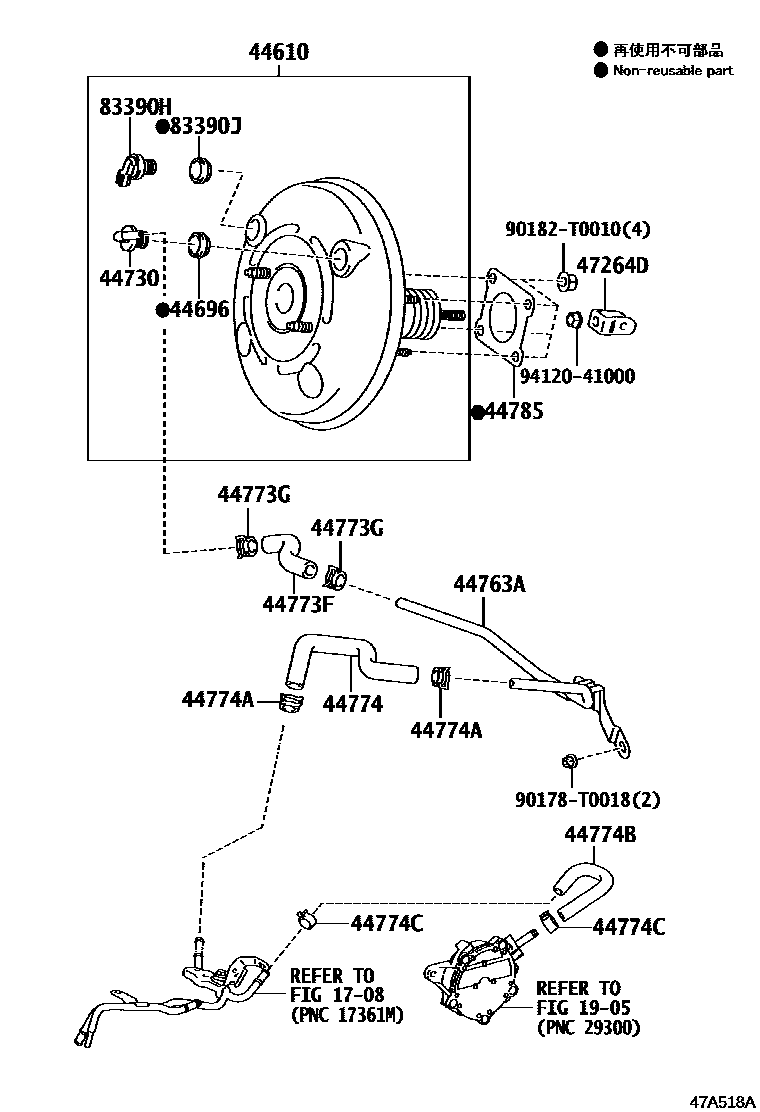

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17343L | No. 3 air hose | 17345-0T010 · 17345-0T020 · 17345-0T030 |
| 17343M | Clip (for No. 3 air hose) | 96132-41500 · 96133-41500 |
| 44610 | brake booster assembly | 44610-02760 · 44610-02A00 · 44610-02A10 · 44610-02A20 · 44610-02A30 · 44610-02A60 · 44610-02A80 · 44610-02A90 · 44610-02B00 · 44610-02B40 · 44610-02B50 · 44610-02B60 · 44610-02B70 · 44610-02C80 · 44610-02C90 · 44610-02D00 · 44610-02D20 · 44610-02D30 · 44610-12L10 · 44610-12L20 · 44610-12L40 · 44610-12L50 · 44610-12M50 |
| 44696 | One-way valve seal | 90016-AT003 · 90080-48050 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-20170 |
| 44730B | Vacuum hose clamp | 44783-12050 |
| 44754 | Air tube bracket | 44754-02030 · 44754-02050 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02150 · 44763-02190 · 44763-02200 · 44763-02260 · 44763-02270 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-52080 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-02050 · 44771-02060 · 44771-02070 · 44771-02090 |
| 44771A | Clip (for vacuum tube connector hose) | 90466-T0019 · 96133-41500 |
| 44771D | Vacuum tube connector hose | 44771-02080 · 44771-02100 |
| 44772 | Hoses (check valve to connector tube) | 44772-02110 · 44772-02120 · 44772-02130 · 44772-02140 · 44772-02150 |
| 44772A | Clip (for check valve to connector tube) | 90466-T0019 · 96133-41500 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-02110 · 44773-02130 · 44773-02150 · 44773-02170 · 44773-02210 · 44773-02250 · 44773-12820 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-T0019 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02180 · 44774-02190 · 44774-02210 · 44774-02230 · 44774-12710 · 44774-20310 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-T0019 · 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-02260 · 44774-02270 · 44774-28320 |
| 44774C | Clip (for fitting to connector tube hose) | 90466-T0019 · 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 95446-09130 |
| 44783 | Vacuum hose clamp | 44783-12040 |
| 44785 | brake booster pad | 44785-0D040 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02110 · 47264-02120 · 47264-63020 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90016-AT003 |
