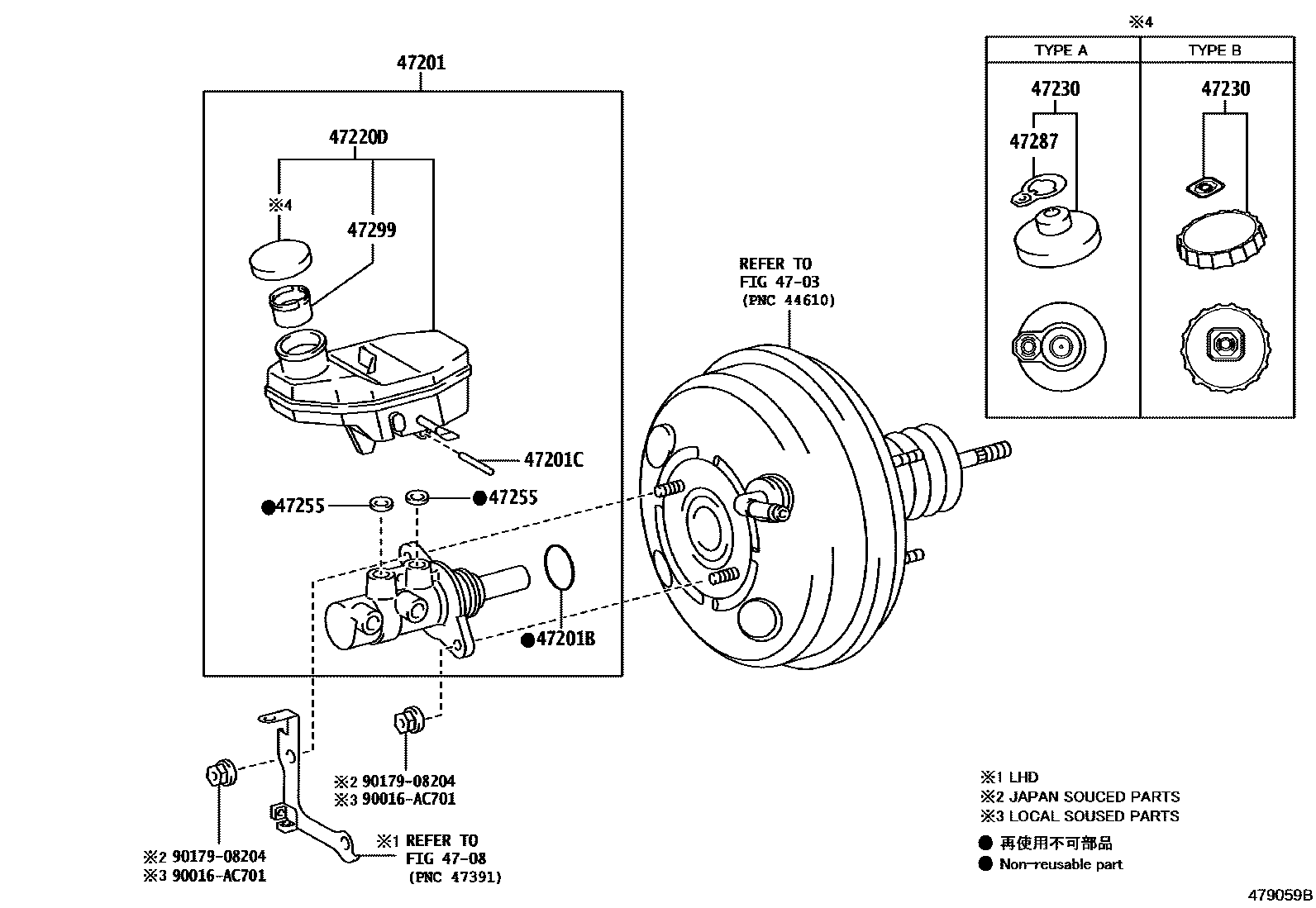

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-02430 · 47201-02610 · 47201-02650 · 47201-02710 · 47201-02720 · 47201-02730 · 47201-02740 · 47201-02750 · 47201-02760 · 47201-02770 · 47201-12C00 · 47201-12C10 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90016-AH903 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-02230 · 47220-02240 · 47220-02320 · 47220-02390 · 47220-12240 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D221 · 47230-0K010 · 47230-0K011 · 47230-0K060 · 47230-20100 · 47230-47090 |
| 47255 | Master pump reservoir seal | 90016-AT001 · 90029-48001 |
| 47287 | brake fluid information label | 47287-02360 · 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-0D100 · 47299-20060 |
