Toyota COROLLA Brake Pedal & Bracket — Figure 4701

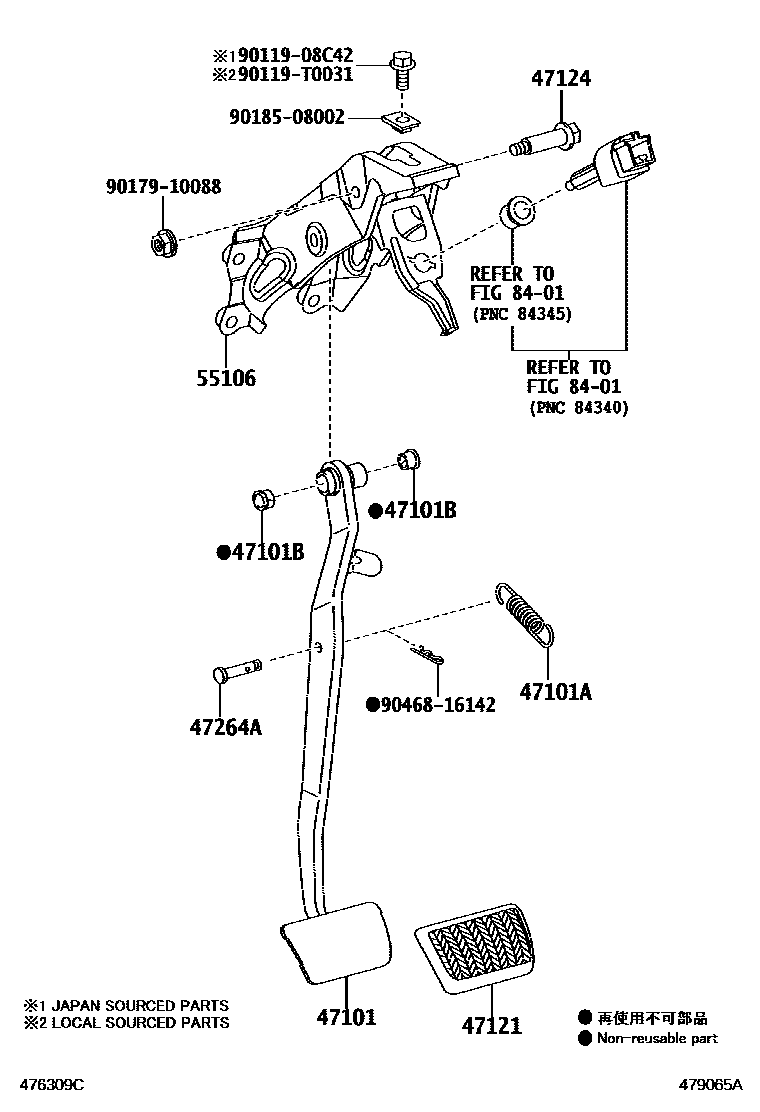

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-02530 · 47101-02540 · 47101-02550 · 47101-02560 · 47101-02570 · 47101-02580 · 47101-02590 · 47101-02600 · 47101-02620 |
| 47101A | Spring (for brake pedal return) | 90507-14058 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-02020 · 31321-02030 · 31321-02060 · 31321-02090 · 31321-42010 · 47121-02040 · 47121-02060 · 47121-02090 |
| 47124 | brake pedal shaft | 90109-10174 |
| 47264A | Pin (for push rod) | 47148-33011 |
| 55106 | Brake pedal bracket sub-assembly | 55106-02180 · 55106-02200 · 55106-02280 · 55106-02290 · 55106-02300 |
