Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

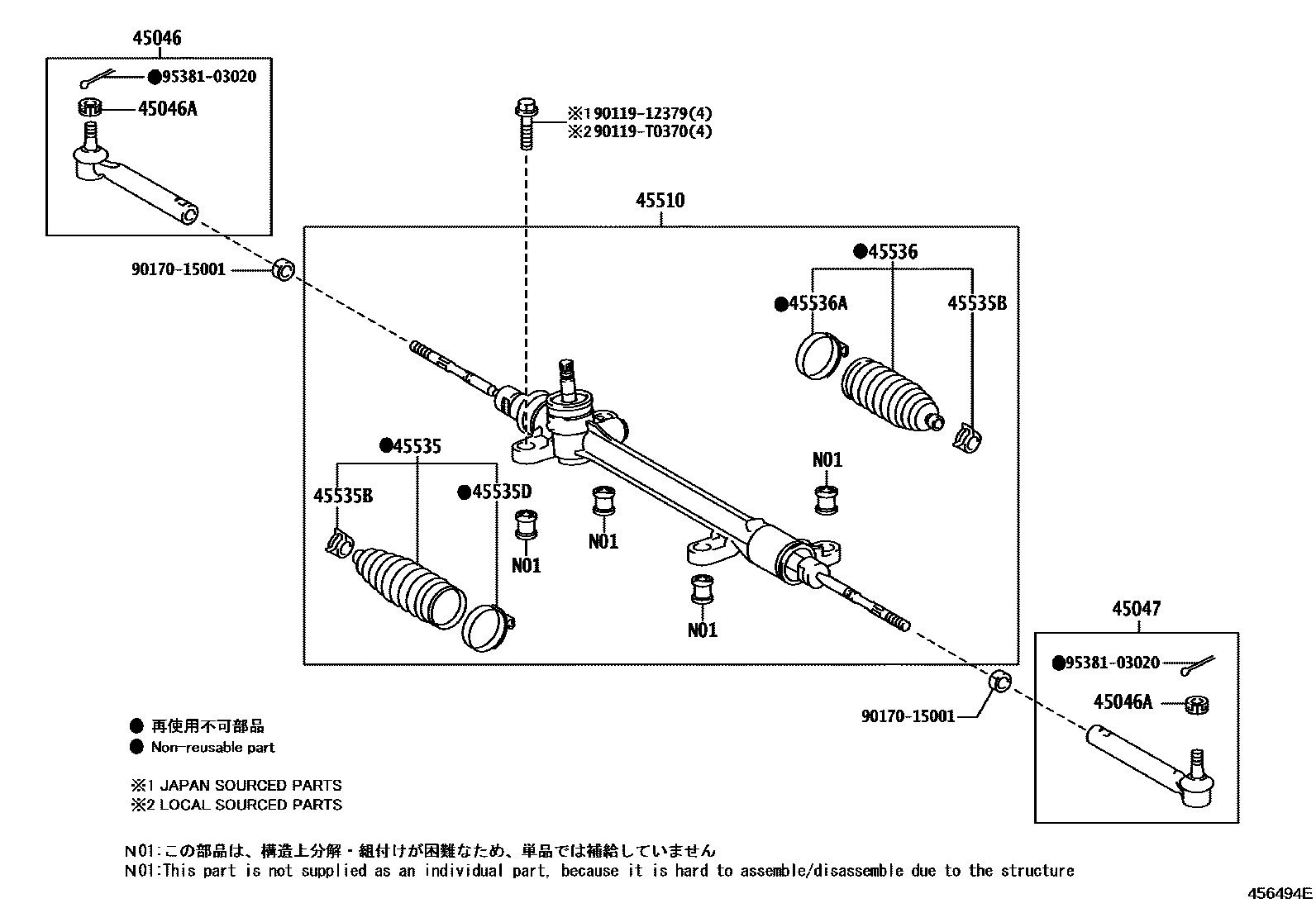

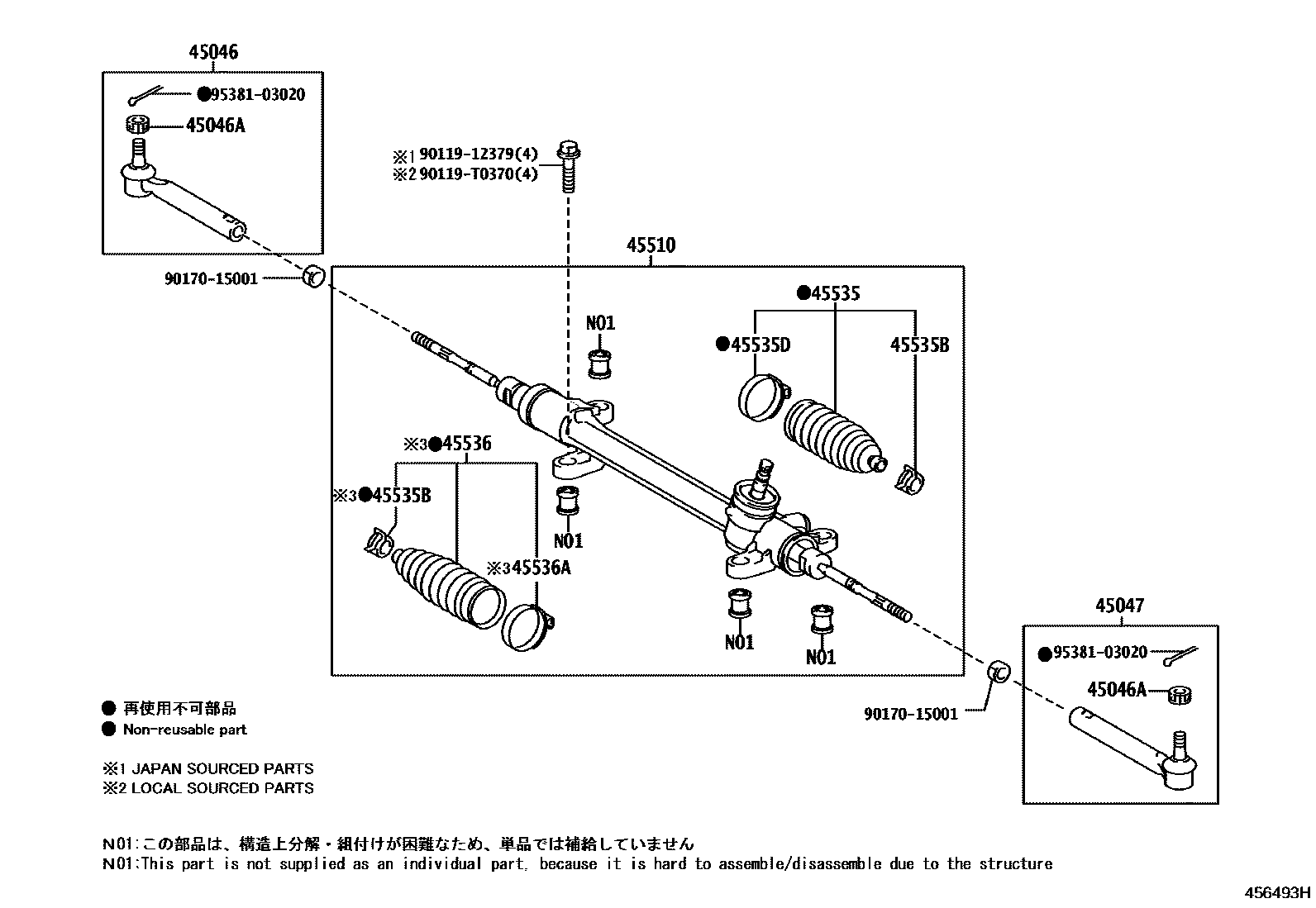

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09610 · 45046-09620 · 45046-19435 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09610 · 45046-09620 · 45046-19435 |
| 45510 | Steering gear assembly | 45510-02600 · 45510-02610 · 45510-02620 · 45510-02630 |
| 45535 | No. 1 steering rack dust cover | 45535-09090 · 45535-09110 · 45535-29015 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46334 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-02020 · 45538-02060 · 45538-52010 |
| 45536 | No. 2 steering rack dust cover | 45535-09090 · 45535-09110 · 45535-29015 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-02020 · 45538-02060 · 45538-52010 |
