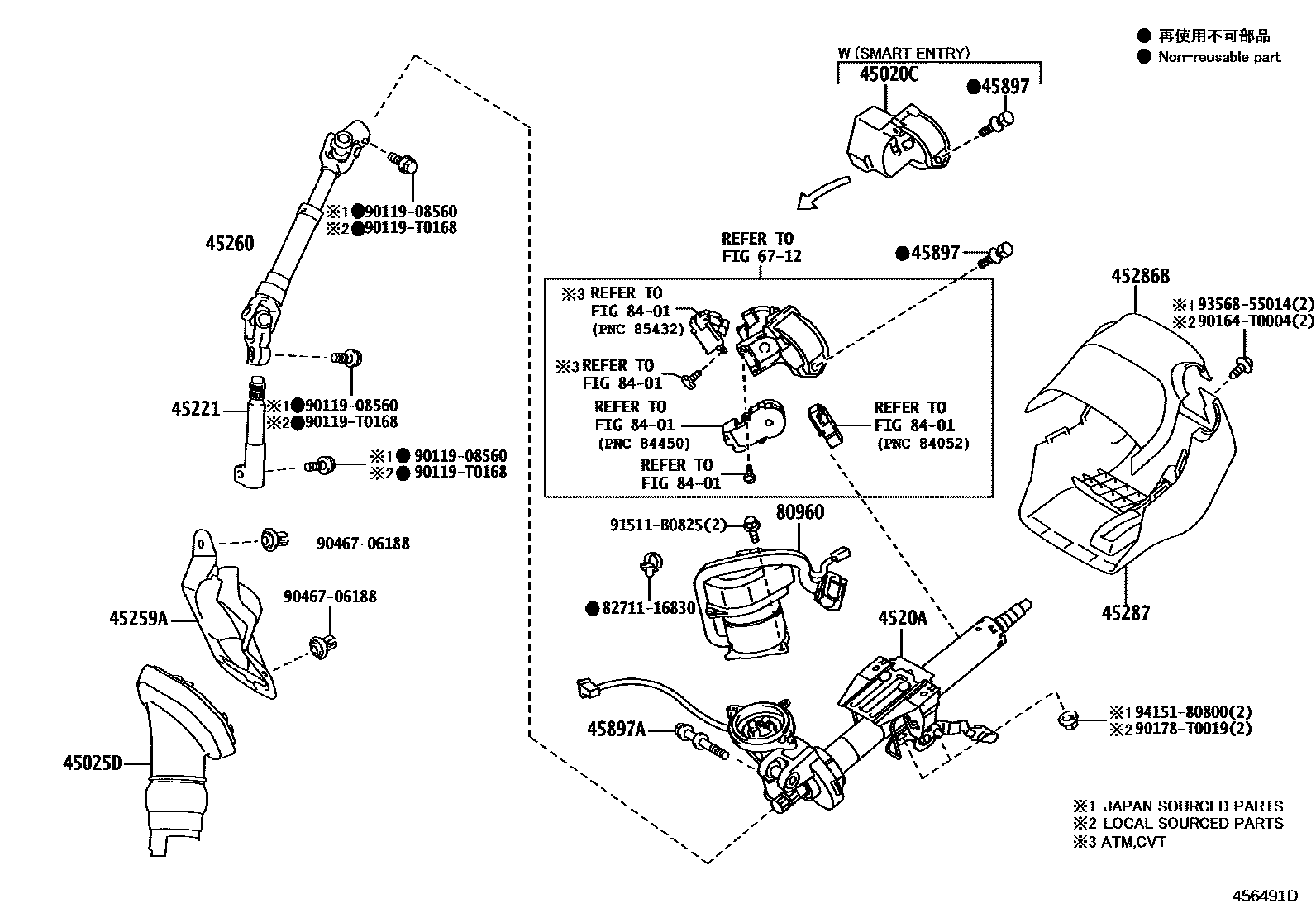

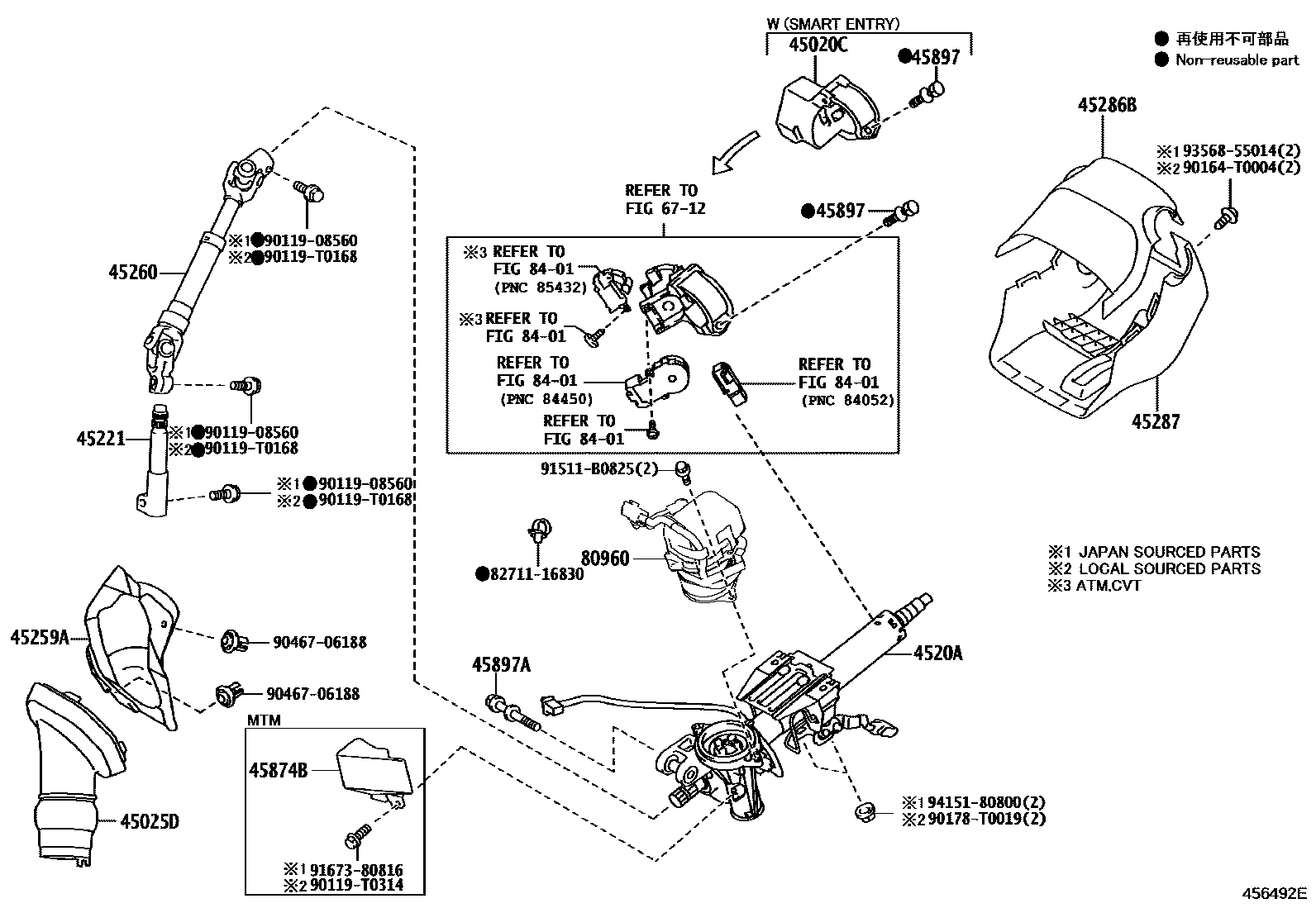

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-02550 · 45020-02551 · 45020-52170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02191 · 45025-02201 · 45025-02211 · 45025-02221 · 45025-02250 |
| 4520A | Electric steering column sub-assembly | 4520A-02200 · 4520A-02220 · 4520A-02240 · 4520A-02250 · 4520A-02260 · 4520A-02270 |
| 45221 | steering intermediate shaft | 45221-02130 · 45221-02150 |
| 45259A | Steering column hole cover silencer plate | 45259-02130 · 45259-02210 · 45259-02220 · 45259-02230 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02210 · 45260-02230 · 45260-02240 |
| 45874B | No. 1 steering column guard | 45874-02030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
| 80960 | Power steering motor assembly | 80960-02100 · 80960-02160 |
