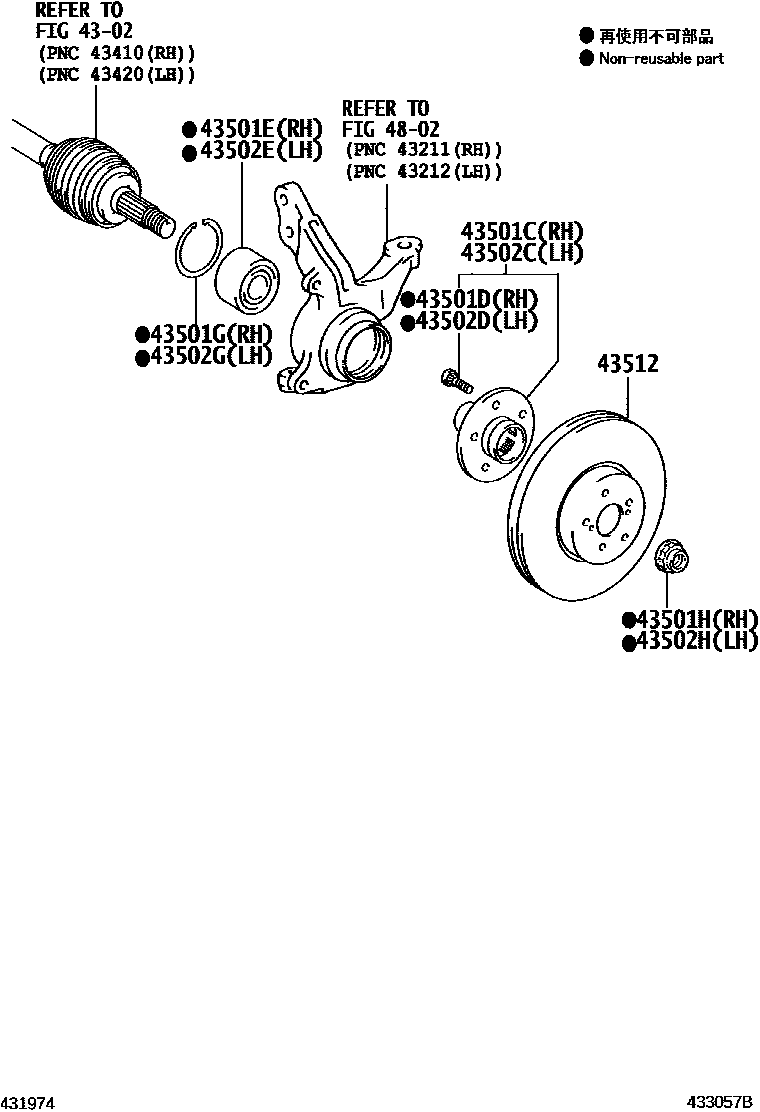

Toyota COROLLA Front Axle Hub — Figure 4303
Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43501C | Right front axle hub sub-assembly | 43502-02110 · 43502-02120 · 43502-02130 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 |
| 43501E | Bearing (for right front axle hub) | 90080-36137 · 90363-T0018 |
| 43501G | Hole snap ring (for right front axle hub) | 90521-79002 |
| 43501H | Nut (for front axle right half shaft) | 90177-22001 · 90177-T0017 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-02110 · 43502-02120 · 43502-02130 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 |
| 43502E | Bearing (for left front axle hub) | 90080-36137 · 90363-T0018 |
| 43502G | Hole snap ring (for left front axle hub) | 90521-79002 |
| 43502H | Nut (for front axle left half shaft) | 90177-22001 · 90177-T0017 |
| 43512 | front brake disc | 43512-02270 · 43512-02280 · 43512-02300 · 43512-02310 · 43512-02320 · 43512-02321 |
