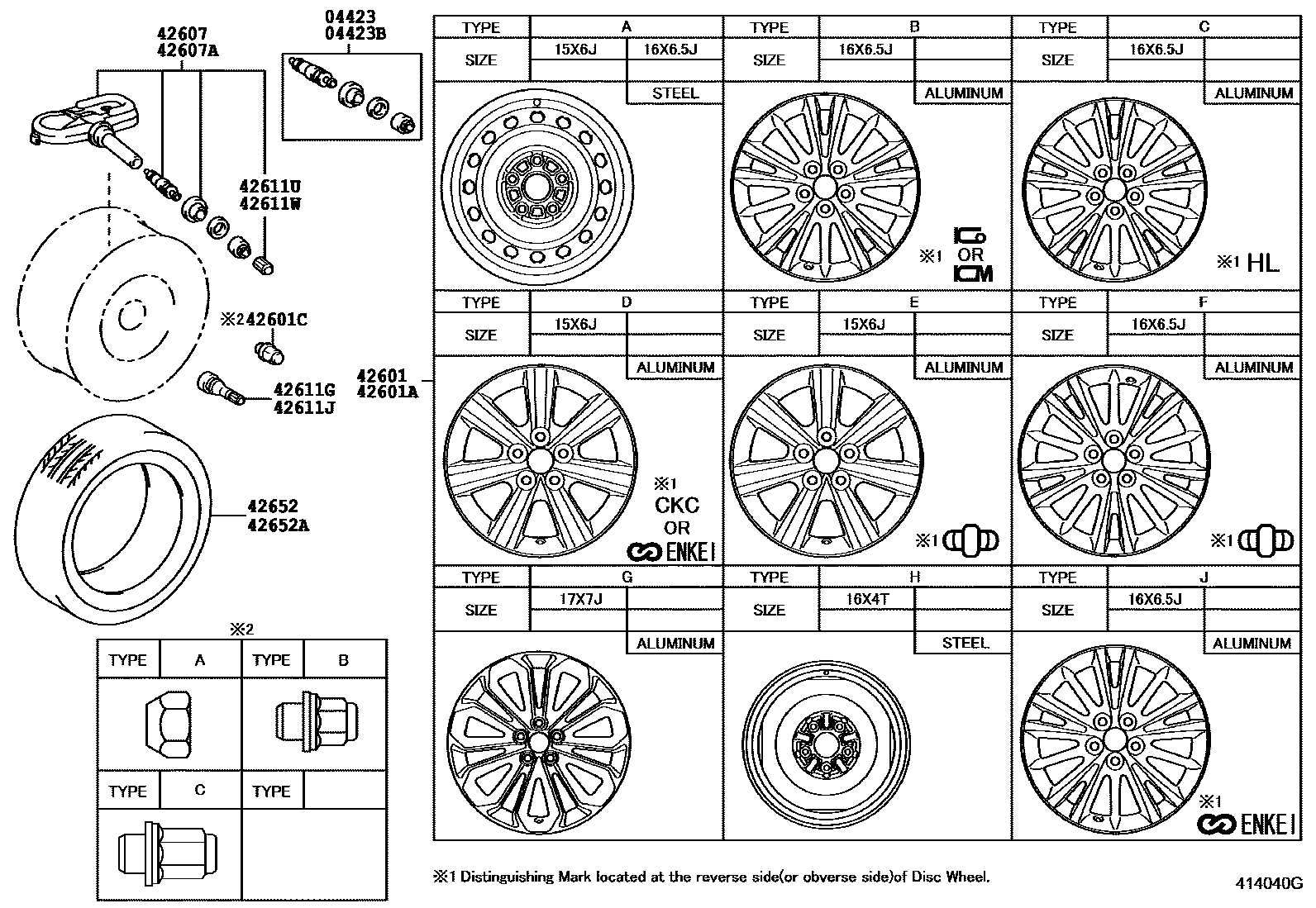

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-0N010 · 04423-33060 |

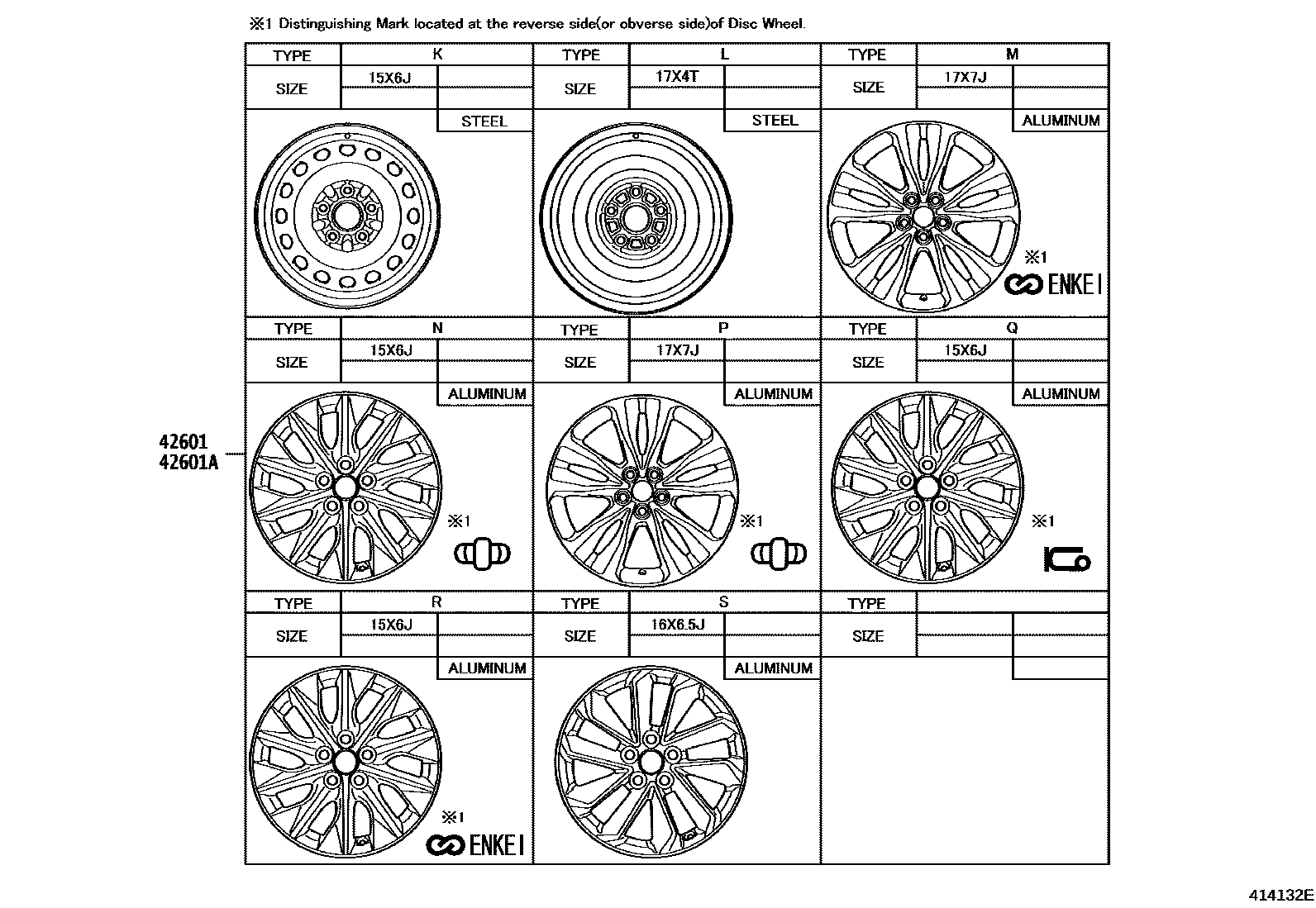

| 42601 | spoke wheel | 42611-02670 · 42611-02680 · 42611-02B01 · 42611-02B02 · 42611-02B10 · 42611-02B11 · 42611-02B31 · 42611-02B41 · 42611-02C20 · 42611-02C80 · 42611-02C82 · 42611-02D50 · 42611-02D52 · 42611-02G20 · 42611-02G30 · 42611-02G31 · 42611-02G40 · 42611-02G41 · 42611-02G50 · 42611-02J80 · 42611-02K80 · 42611-02L10 · 42611-02L11 · 42611-02N20 · 42611-02N31 · 42611-02N40 · 42611-02N60 · 42611-02N70 · 42611-02N80 · 42611-02N90 · 42611-02Q00 · 42611-02Q30 · 42611-YYE00 |
| 42601A | Spoke wheel (for spare tire) | 42611-02670 · 42611-02680 · 42611-02B01 · 42611-02B02 · 42611-02B10 · 42611-02B11 · 42611-02B31 · 42611-02B41 · 42611-02C20 · 42611-02C40 · 42611-02C80 · 42611-02C82 · 42611-02D50 · 42611-02D52 · 42611-02G20 · 42611-02G30 · 42611-02G31 · 42611-02G40 · 42611-02G41 · 42611-02G50 · 42611-02J80 · 42611-02K80 · 42611-02L10 · 42611-02L11 · 42611-02M80 · 42611-02N20 · 42611-02N31 · 42611-02N40 · 42611-02N50 · 42611-02N60 · 42611-02N70 · 42611-02N80 · 42611-02N90 · 42611-02Q00 · 42611-0M020 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01109 · 90942-T1005 |

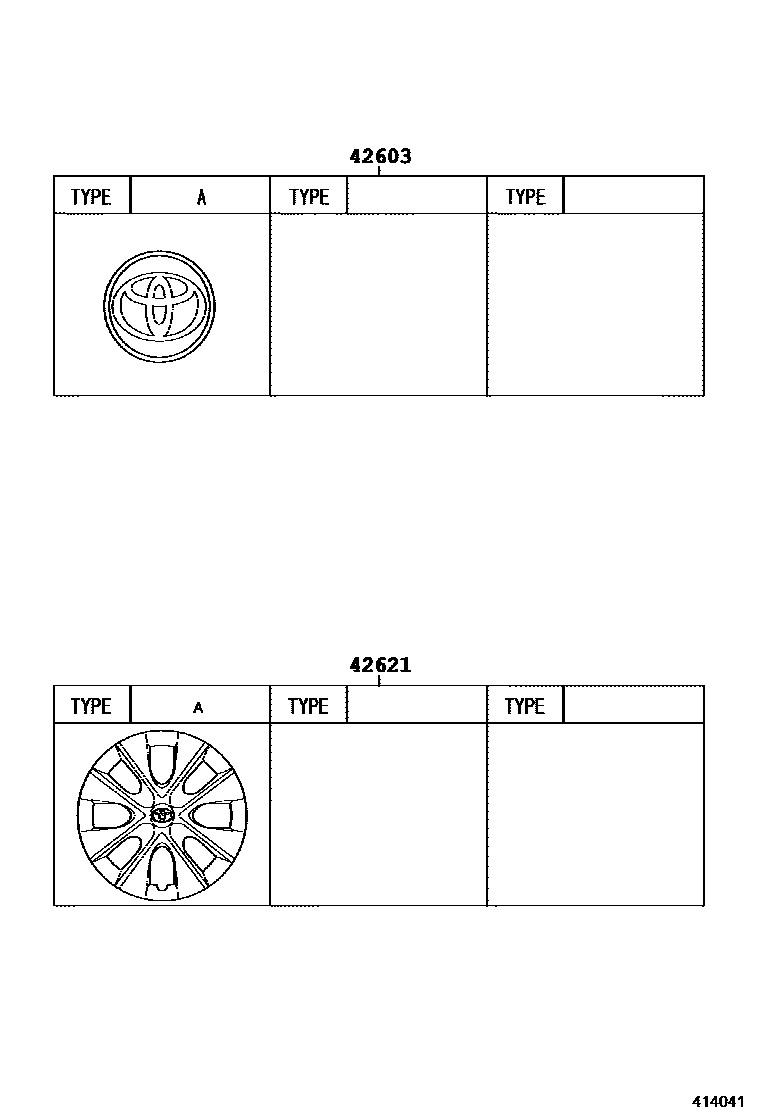

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02270 · 42603-0D070 · 42603-0D090 · 42603-0D200 · 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06040 · 42607-06080 · 42607-42021 · 42607-52020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-06080 · 42607-42021 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 · 90942-T5001 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90942-05009 · 90942-T5001 |
| 42611U | tire valve cover | 90942-05039 · 90942-C5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 · 90942-C5001 |
| 42621 | wheel cover | 42602-02400 · 42602-02440 · 42602-02450 · 42602-02460 |
| 42652 | tires | 42652-02C60 · 42652-02D40 · 42652-02J30 · 42652-02J31 · 42652-02L90 · 42652-02M00 · 42652-02M10 · 42652-02M20 · 42652-02M30 · 42652-02P70 · 42652-02Q00 · 42652-02R40 · 42652-12C70 · 42652-12C71 · 42652-12D41 · 42652-12D42 · 42652-12J20 · 42652-12J21 |
| 42652A | Tire (for Spare Wheel) | 42652-02890 · 42652-02891 · 42652-02C60 · 42652-02D40 · 42652-02J30 · 42652-02J31 · 42652-02M30 · 42652-02P70 · 42652-02Q00 · 42652-02R40 · 42652-12C70 · 42652-12C71 · 42652-12D41 · 42652-12D42 · 42652-12J20 · 42652-12J21 · 4265A-02030 · 4265A-02040 |
