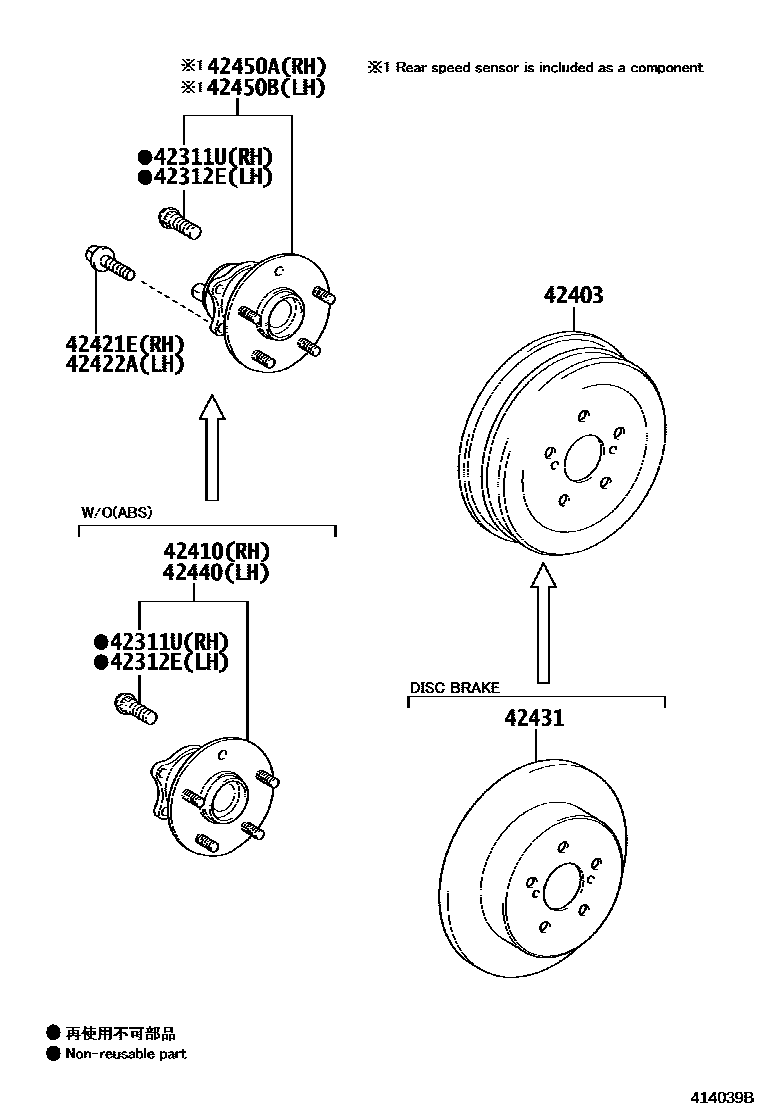

Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102
Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42403 | Rear brake drum sub-assembly | 42431-12300 |
| 42410 | Rear axle right hub and bearing assembly | 42410-02171 |
| 42421E | Bolt (for rear axle right bearing housing) | 90119-12420 · 90119-T0482 |
| 42422A | Bolt (for rear axle left bearing housing) | 90119-12420 · 90119-T0482 |
| 42431 | rear brake disc | 42431-02110 · 42431-02250 · 42431-02260 · 42431-02280 · 42431-02281 · 42431-02290 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-02171 |
| 42450A | Rear axle right hub and bearing assembly | 42450-02211 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-02211 |
