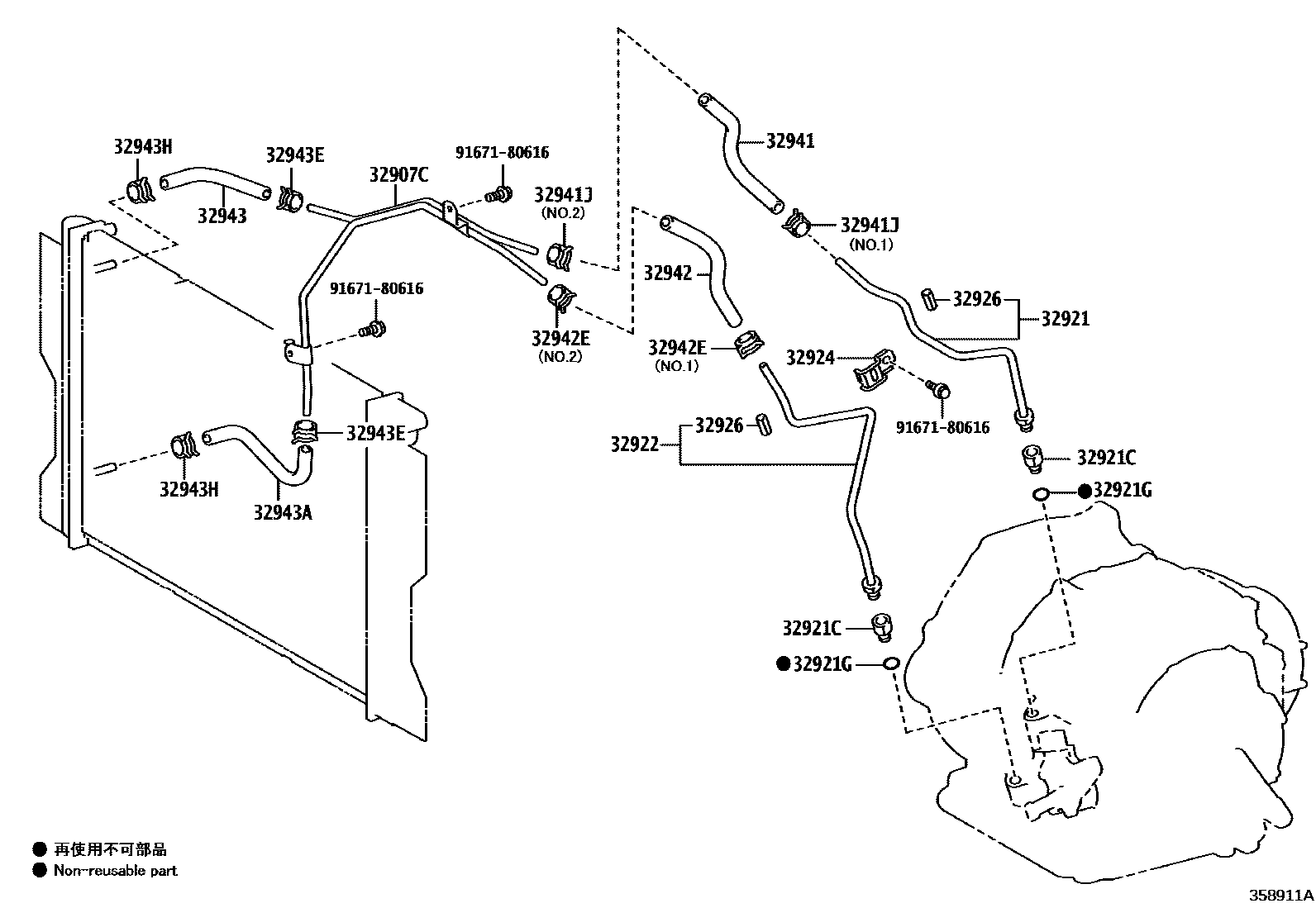

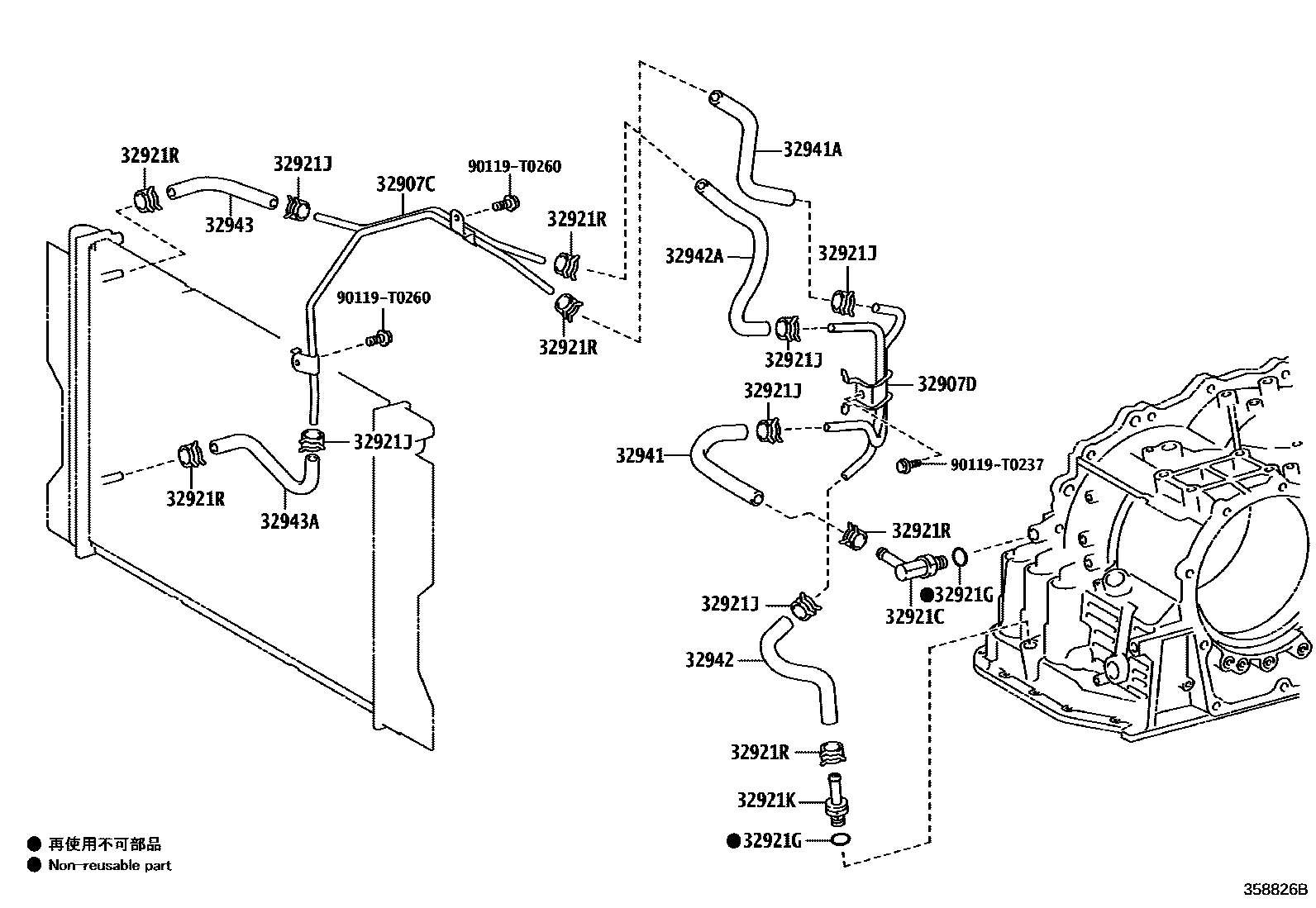

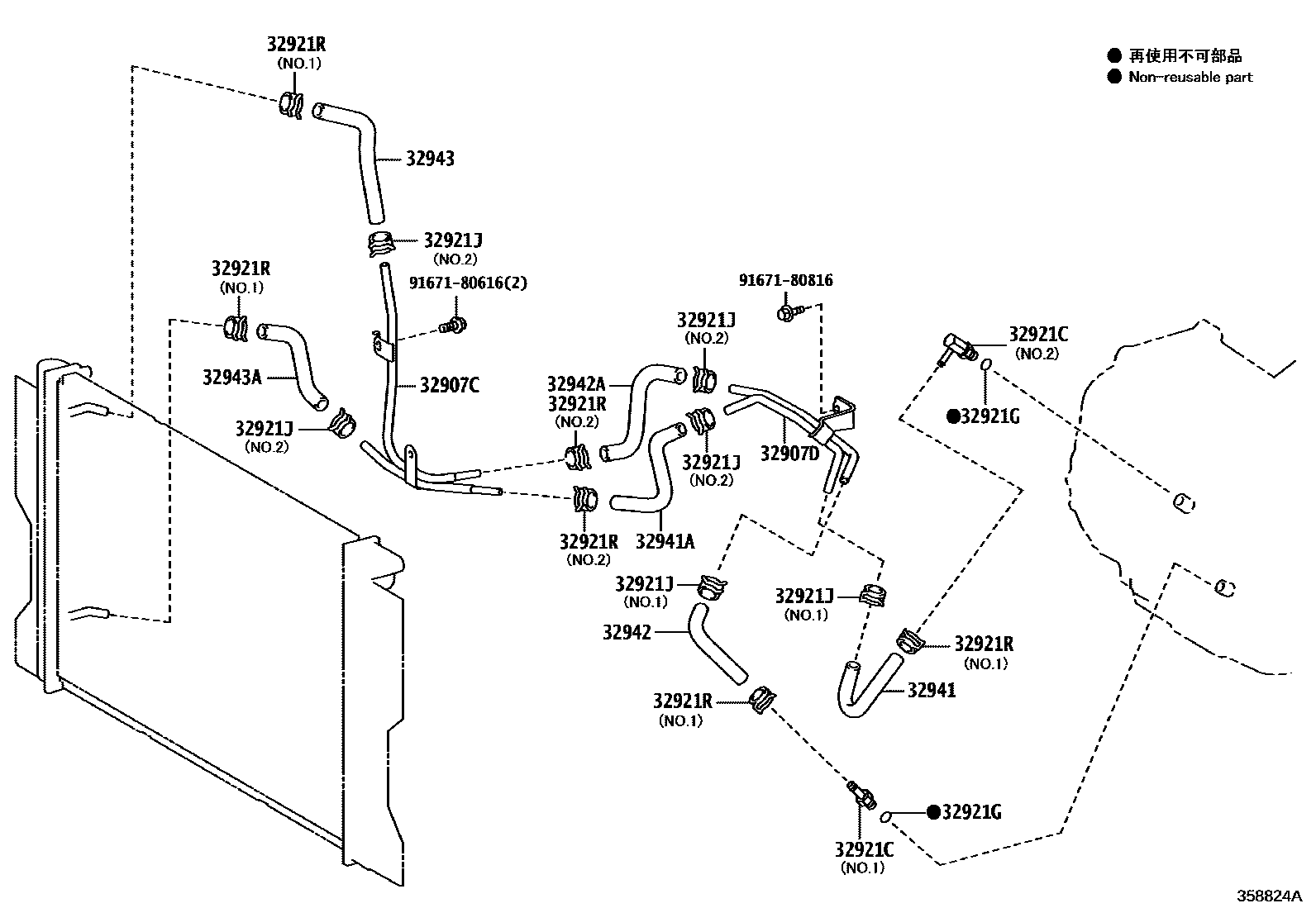

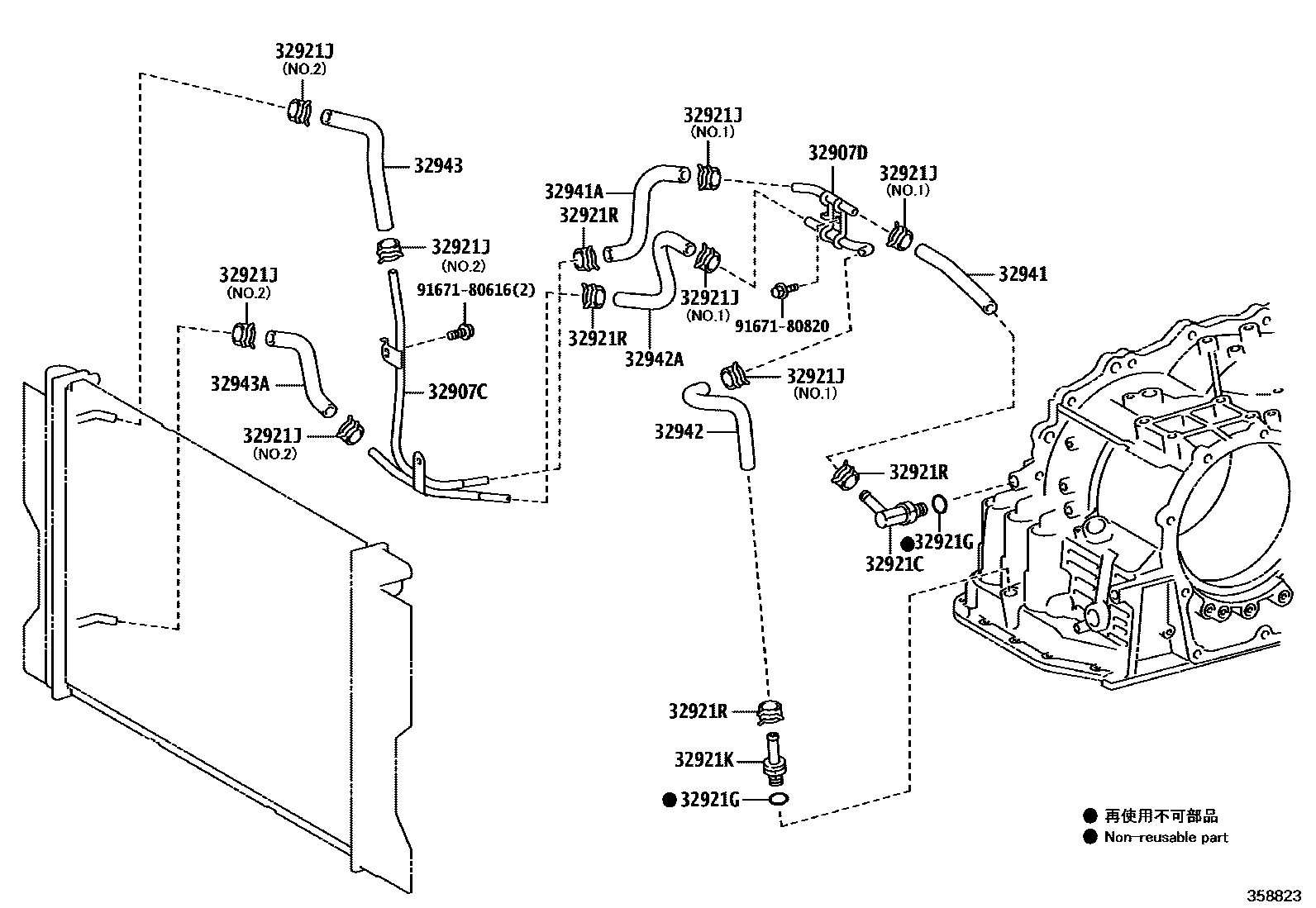

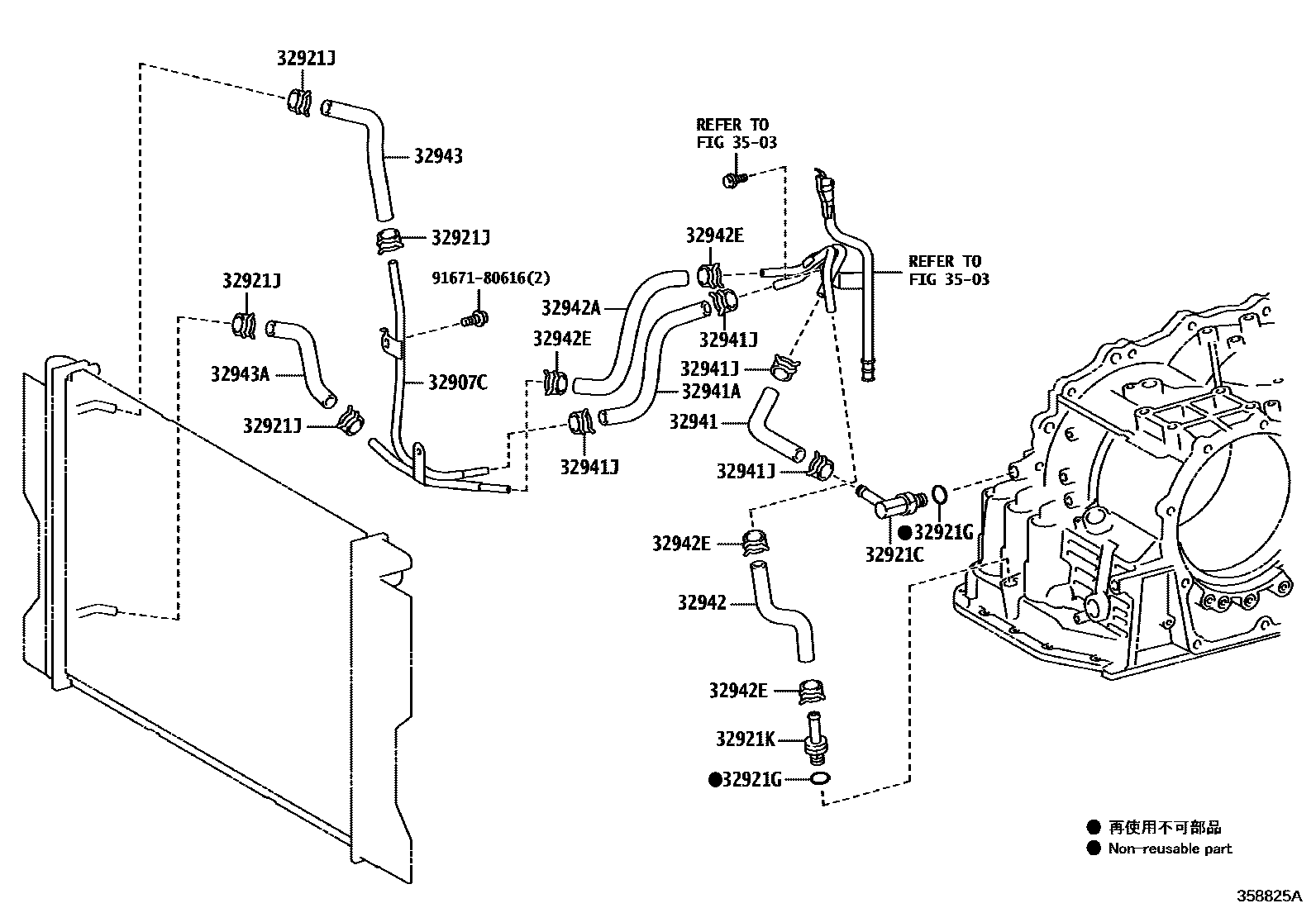

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-02130 · 32907-02300 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-02210 · 32907-02240 · 32907-02250 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-02220 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90404-13005 · 90404-14007 · 90407-13009 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10018 · 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 · 90466-T0009 · 96137-41501 |
| 32921K | Connector No. 2 (for transmission oil cooler pipe) | 90404-13007 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90466-T0009 · 96137-41501 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-02180 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-52010 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-22040 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-02370 · 32943-02410 · 32943-02540 · 32943-02600 · 90445-15046 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90445-T0020 · 90445-T0021 · 90445-T0025 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90466-T0009 · 96137-41501 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-02360 · 32943-02400 · 32943-02530 · 32943-02590 · 90445-15046 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32943-02550 · 90445-T0021 · 90445-T0022 · 90445-T0026 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90466-T0009 · 96137-41501 |
| 32943 | No. 1 transmission oil cooler hose | 32943-02180 · 32943-02420 |
| 32943A | No. 2 transmission oil cooler hose | 32943-02190 · 32943-02520 |
| 32943E | Clamp No. 3 (for transmission oil cooler hose) | 90466-T0009 |
| 32943H | No. 4 clip (for transmission oil cooler hose) | 96137-41501 |
