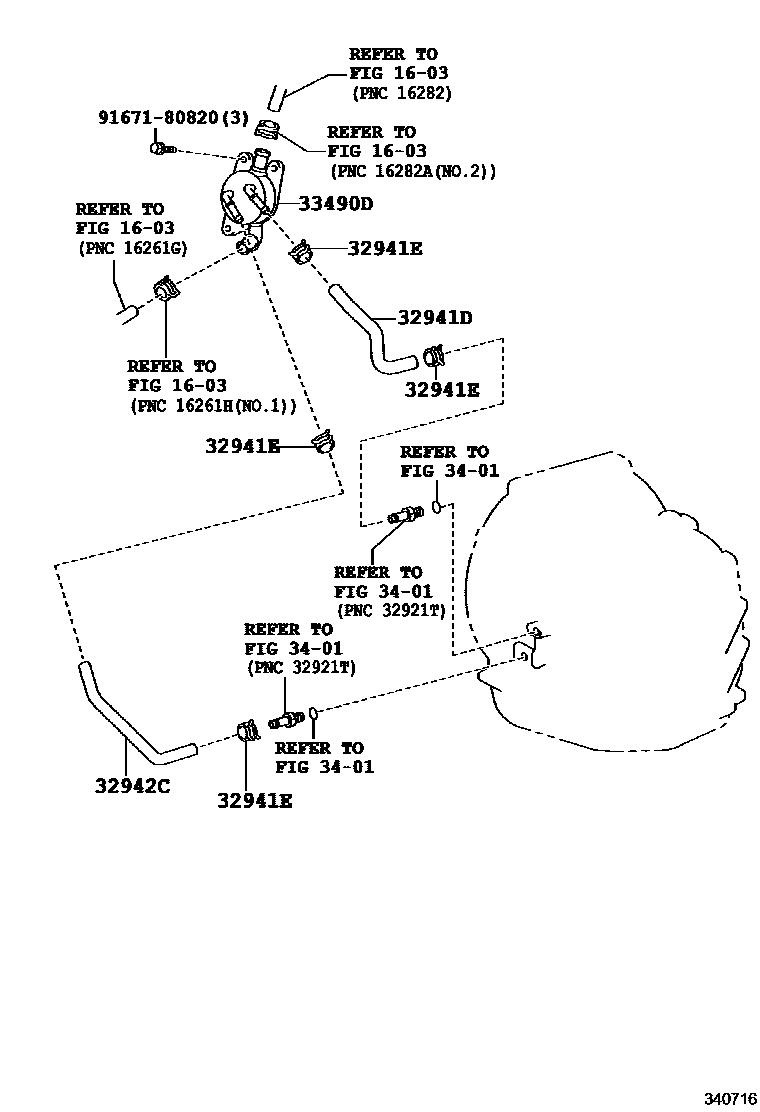

Toyota COROLLA 变速器油冷却器和配管(CVT) — Figure 3414
Toyota COROLLA EPC diagram 3414, 变速器油冷却器和配管(CVT), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32941D | Transmission Oil Cooler Inlet Hose | 32941-42120 |
| 32941E | Clamp (for transmission oil cooler pipe) | 90466-16004 |
| 32942C | No. 1 transmission oil cooler oil outlet hose | 32942-42090 |
| 33490D | Transmission oil cooler assembly | 33493-42070 |
