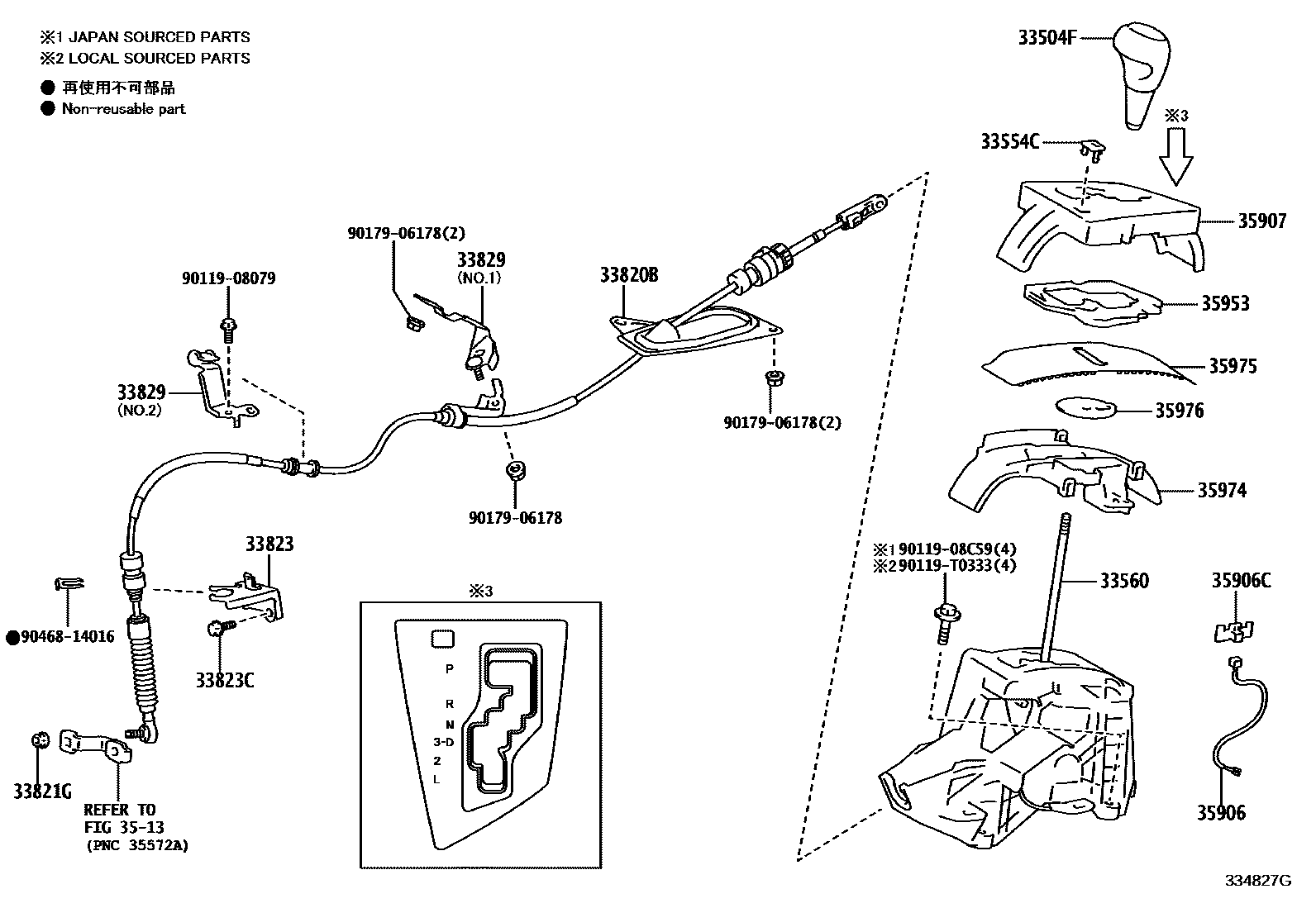

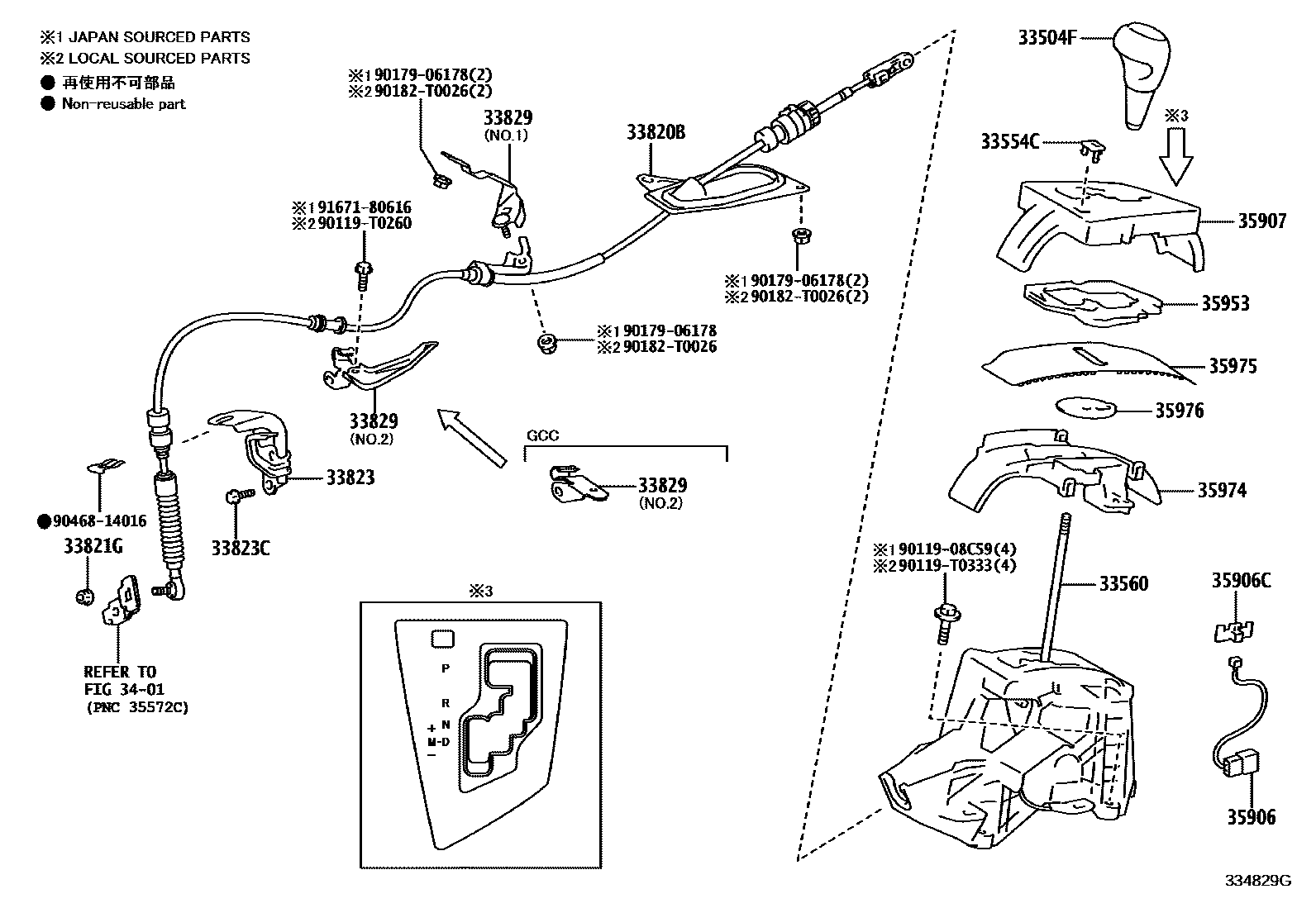

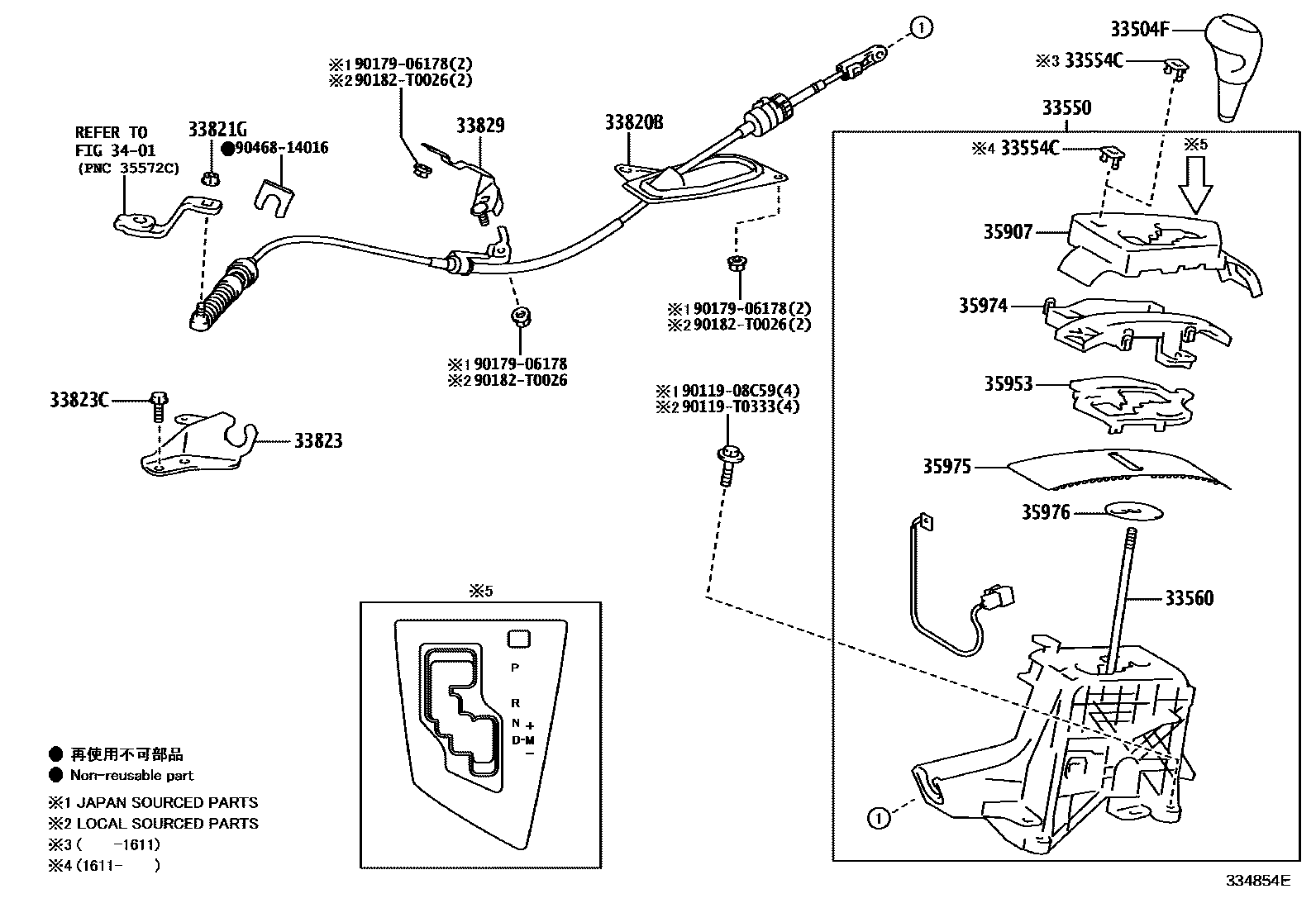

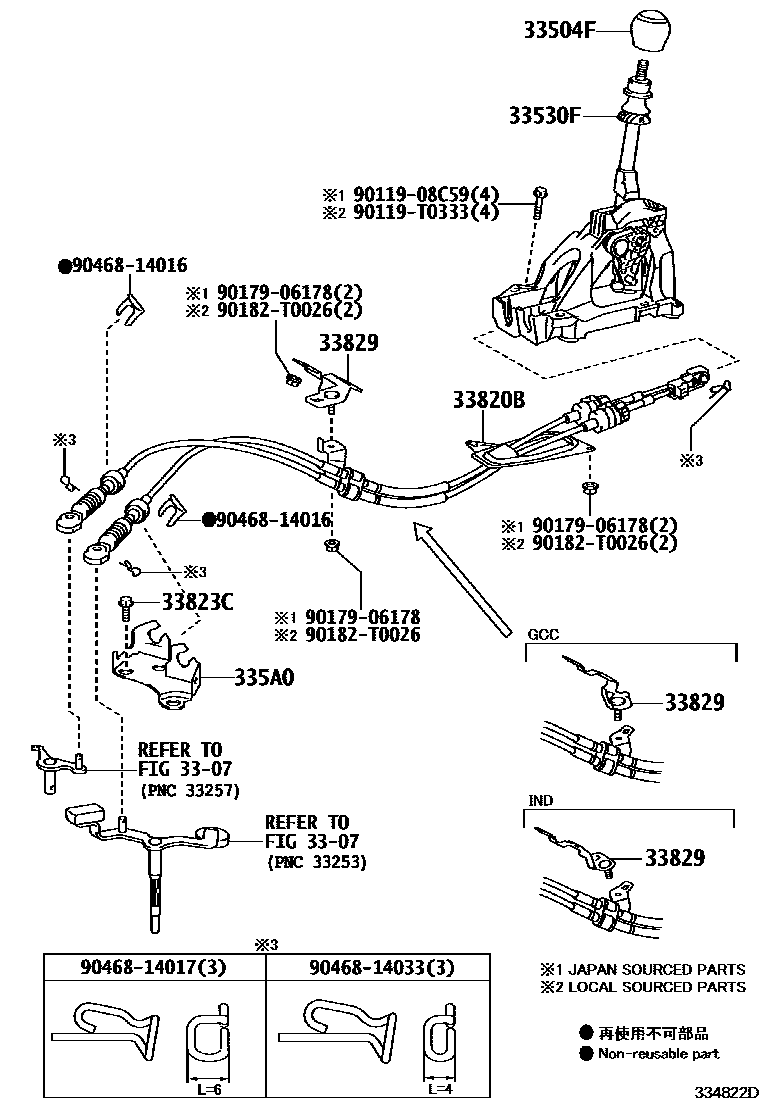

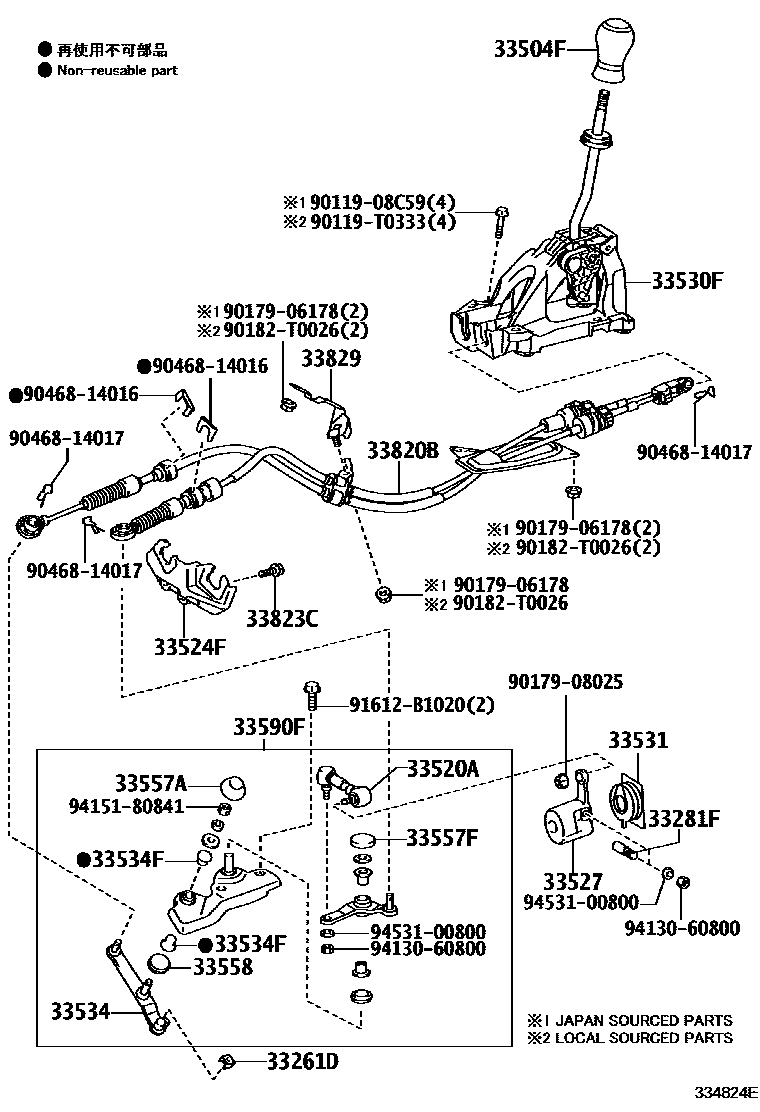

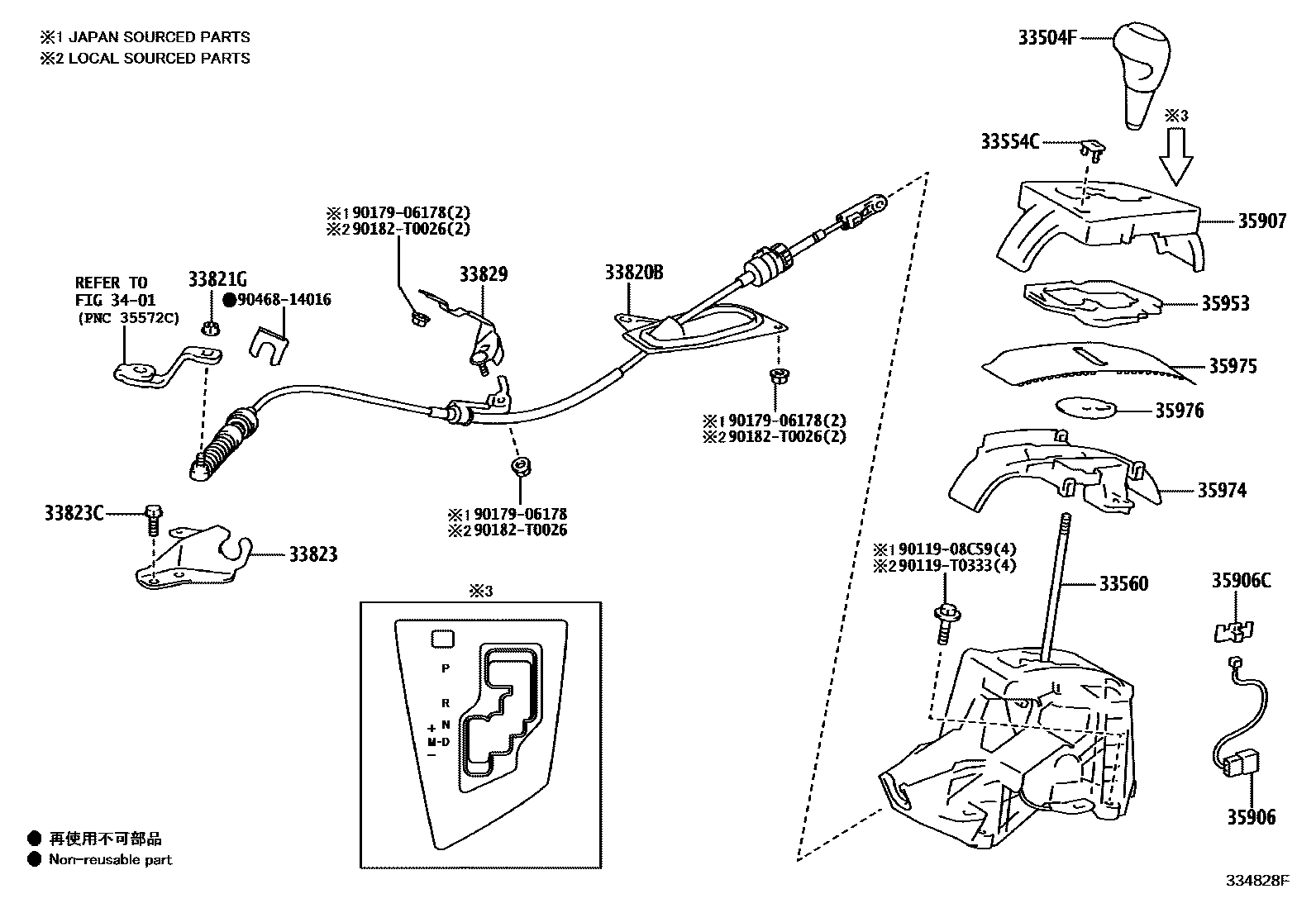

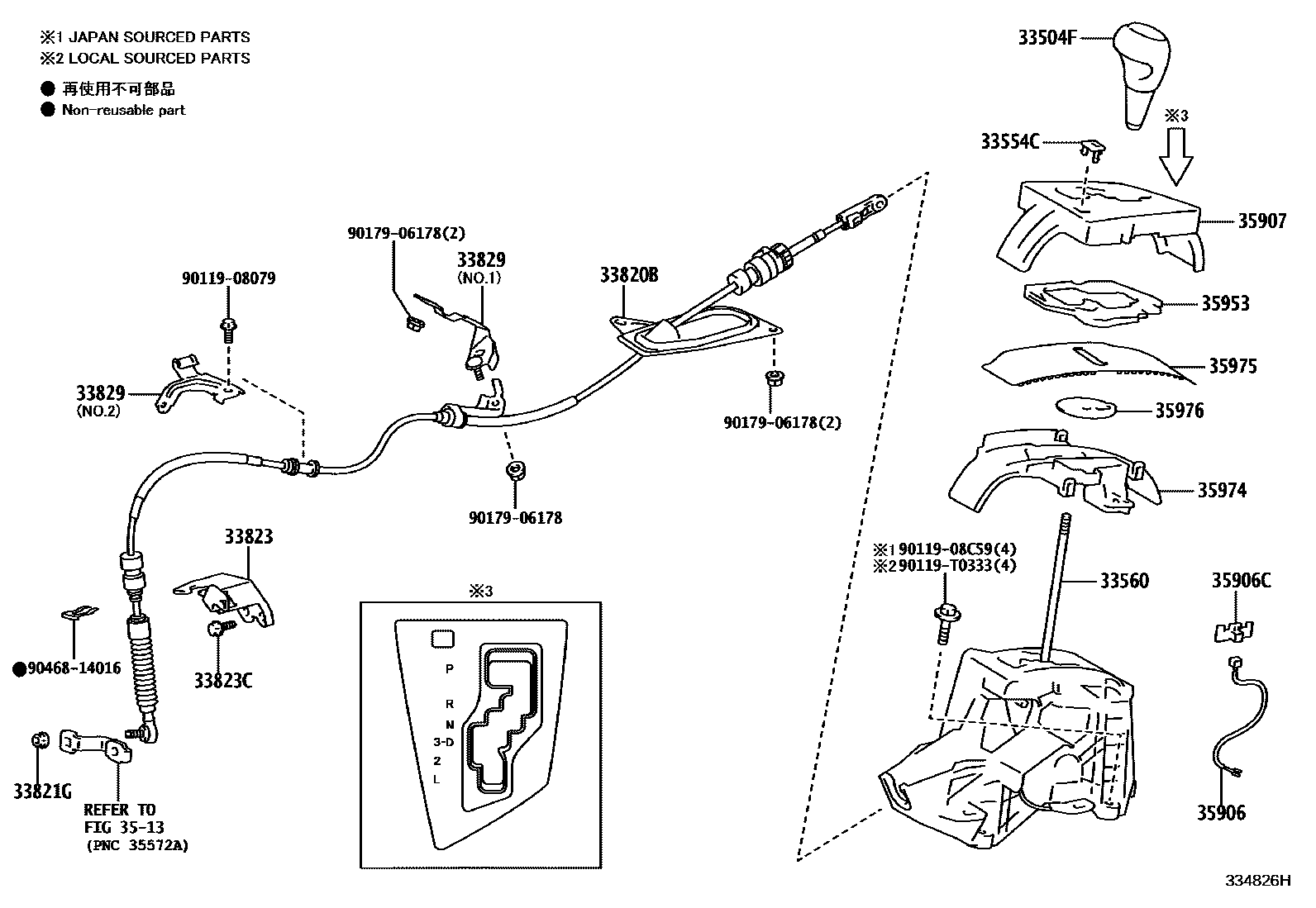

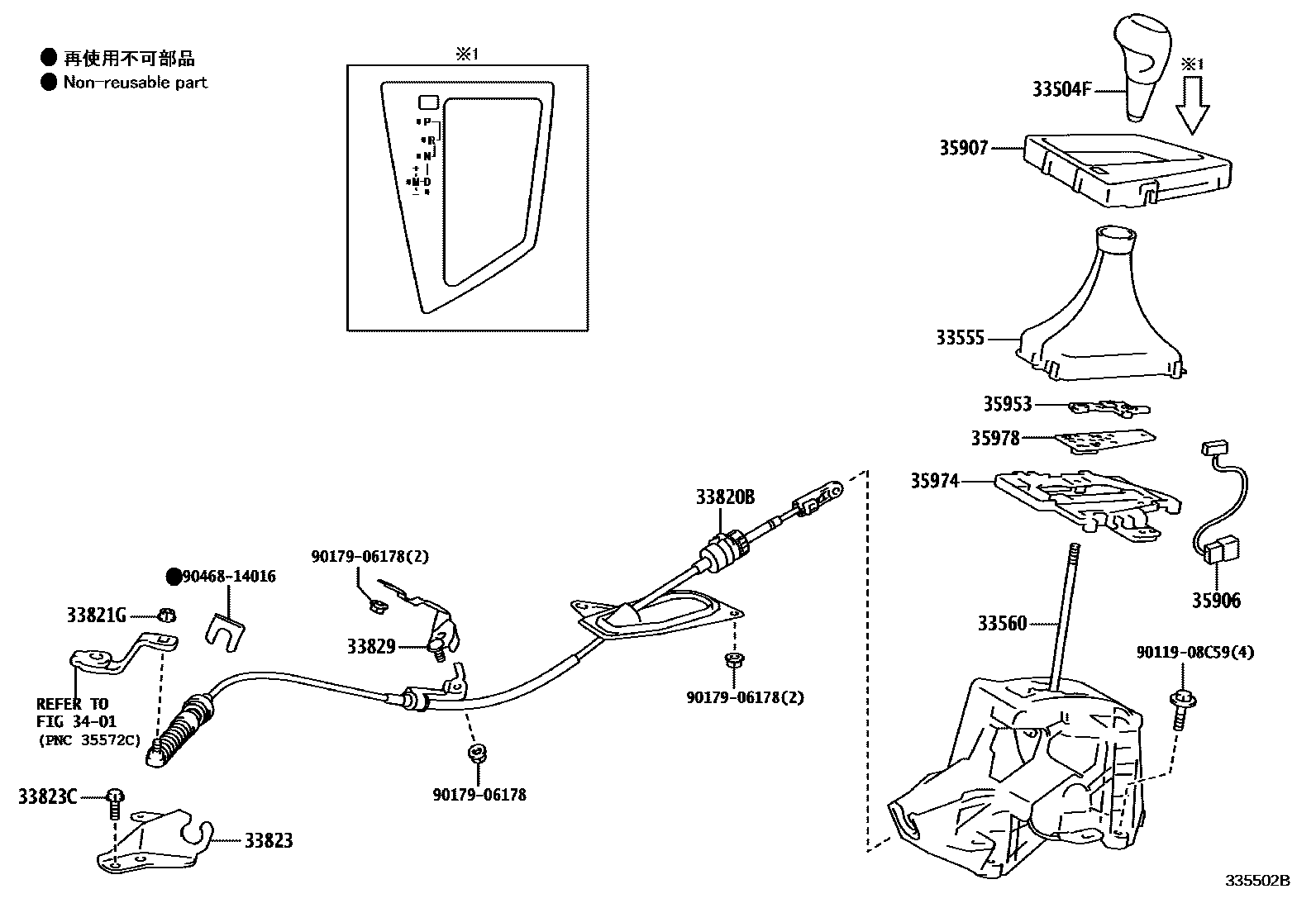

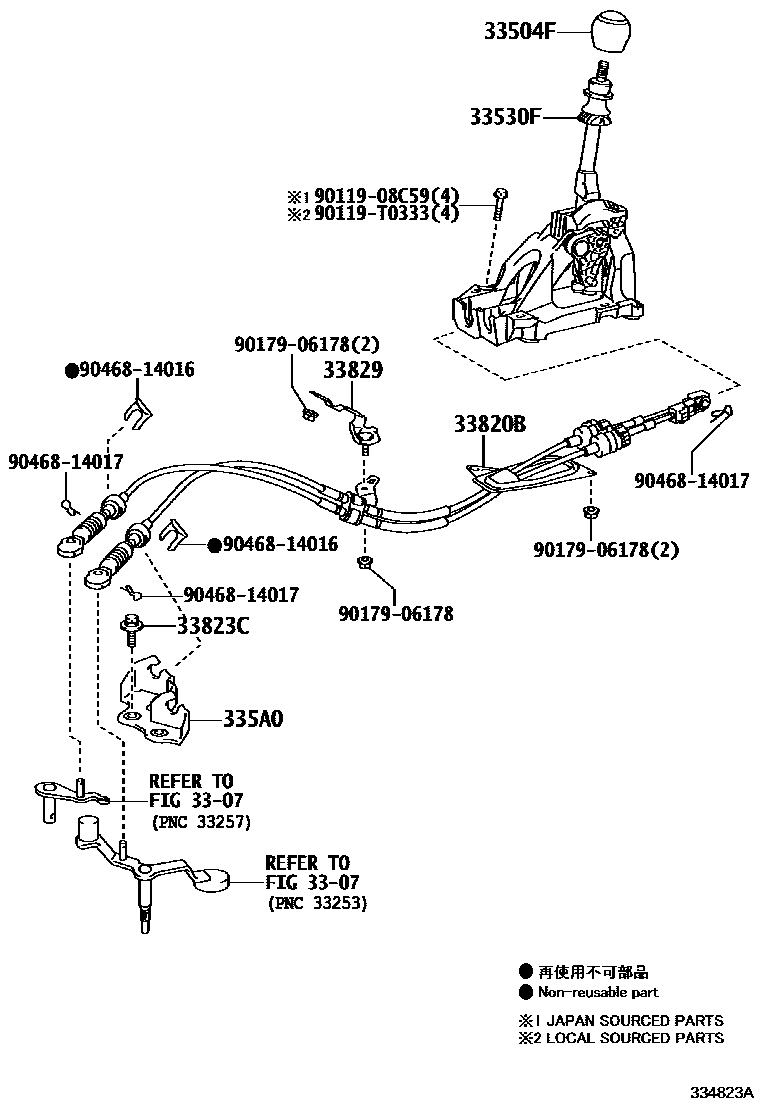

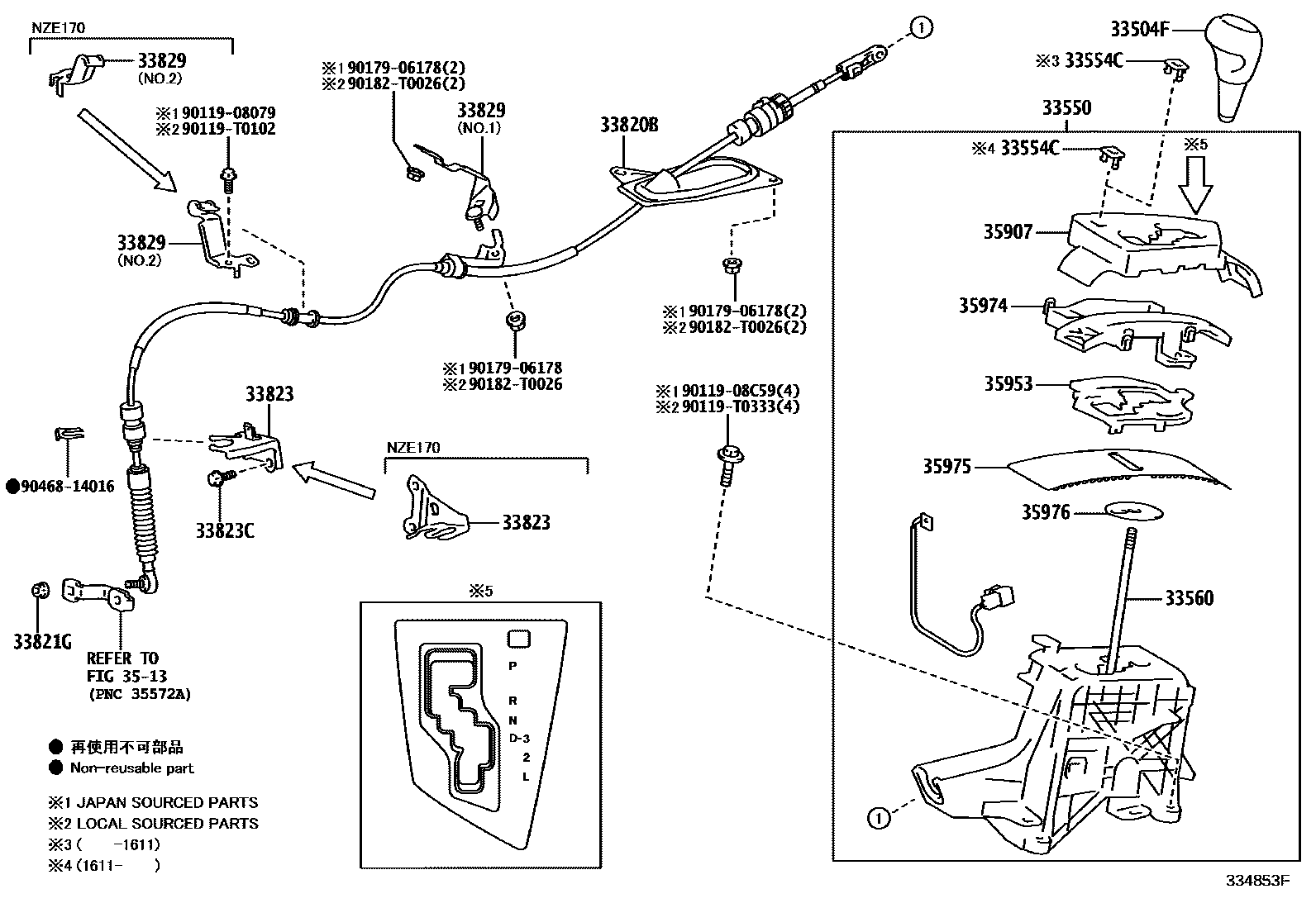

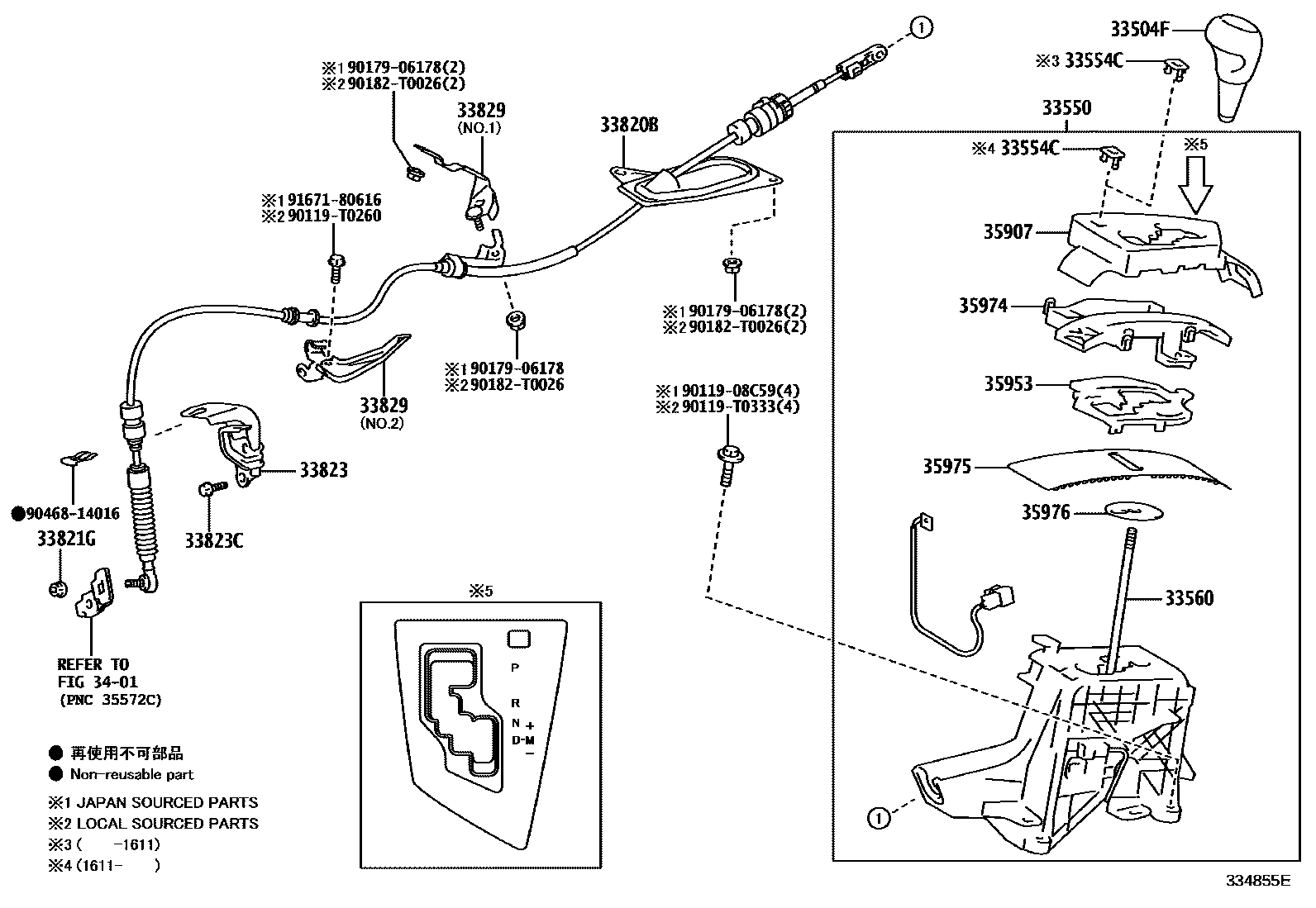

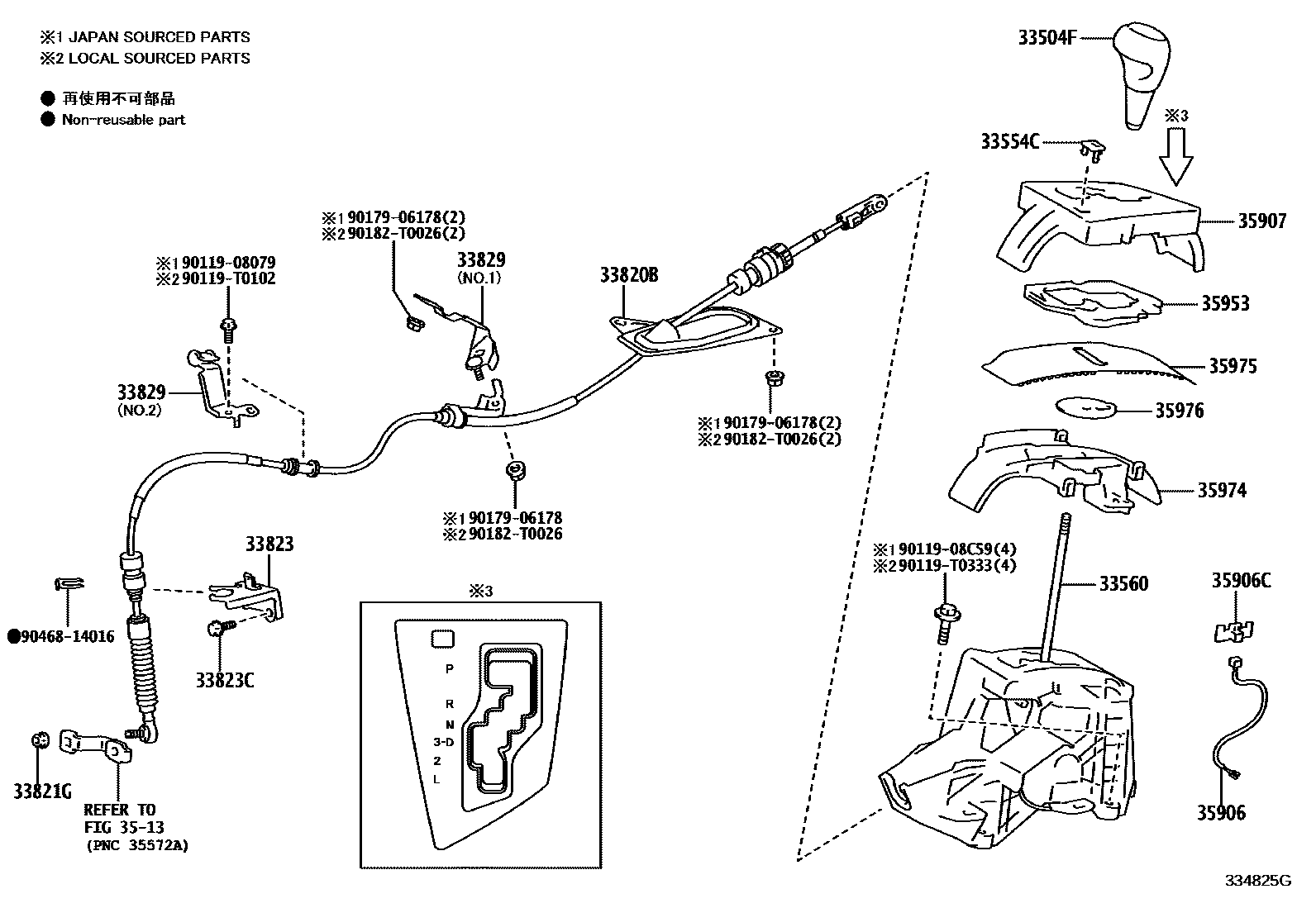

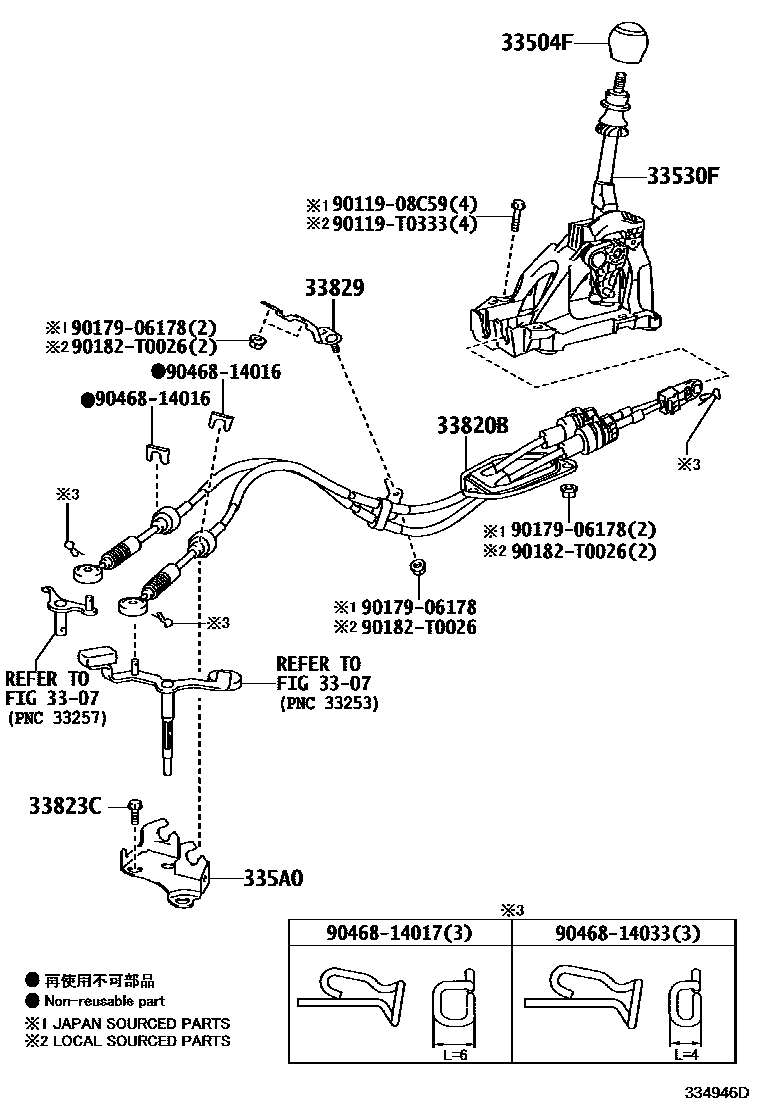

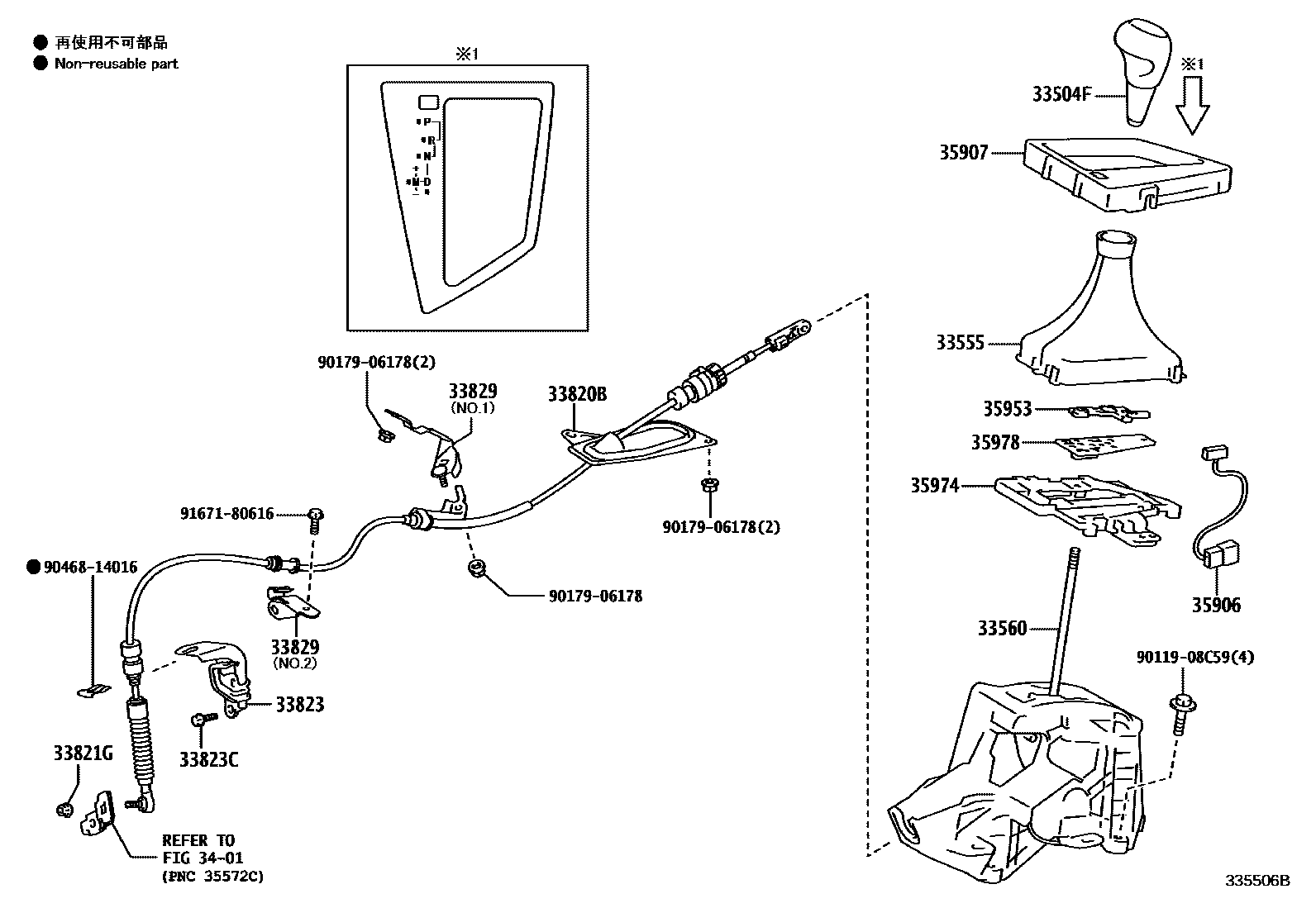

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 14 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52050 · 33524-52060 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02220 · 33530-02290 · 33530-02300 · 33530-02310 · 33530-12A40 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-12120 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33550 | Transmission floor shift assembly | 33550-02460 · 33550-02461 · 33550-02470 · 33550-02471 |
| 33554C | Shift lock release button cover | 33554-02120 · 33554-02140 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-02260 · 33560-02270 · 33560-02280 · 33560-02290 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-12070 |
| 335A0 | Control cable bracket assembly | 335A0-12020 · 335A0-12021 · 335A0-12030 |
| 33820B | Transmission control cable assembly | 33820-02760 · 33820-02770 · 33820-02780 · 33820-02790 · 33820-02800 · 33820-02820 · 33820-02A20 · 33820-12C40 · 33820-12D10 · 33820-12D30 · 33820-12E80 · 33820-12E90 · 33820-12F20 · 33820-12F30 · 33820-12F40 · 33820-12F60 · 33820-12G60 · 33820-12G70 · 33820-12G80 · 33820-12J00 |
| 33821G | Nut (for transmission control cable) | 90080-17130 · 90179-08040 |
| 33823 | No. 1 transmission control cable bracket | 33823-02130 · 33823-02140 · 33823-02180 · 33823-02210 · 33823-02220 · 33823-02230 · 33823-02240 · 33823-0D100 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 · 90119-T0102 · 91612-61030 |
| 33829 | Transmission control cable bracket | 33829-02100 · 33829-02110 · 33829-02120 · 33829-02130 · 33829-02180 · 33829-02220 · 33829-02231 · 33829-02242 · 33829-02250 · 33829-02290 · 33829-02310 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02150 · 35906-02170 · 35906-02230 |
| 35906C | Indicator chip | 35906-49005 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-02280 · 35907-02290 · 35907-02300 · 35907-02310 · 35907-02370 |
| 35953 | Position indicator light guide | 35953-02070 · 35953-02090 · 35953-02120 |
| 35974 | Position indicator light lower shell | 35974-02140 · 35974-02150 · 35974-02170 |
| 35975 | Slide cover (for position indicator light) | 35975-02070 · 35975-02130 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-02110 · 35976-06070 |
| 35978 | Shift lever position indicator light | 35978-02010 |
