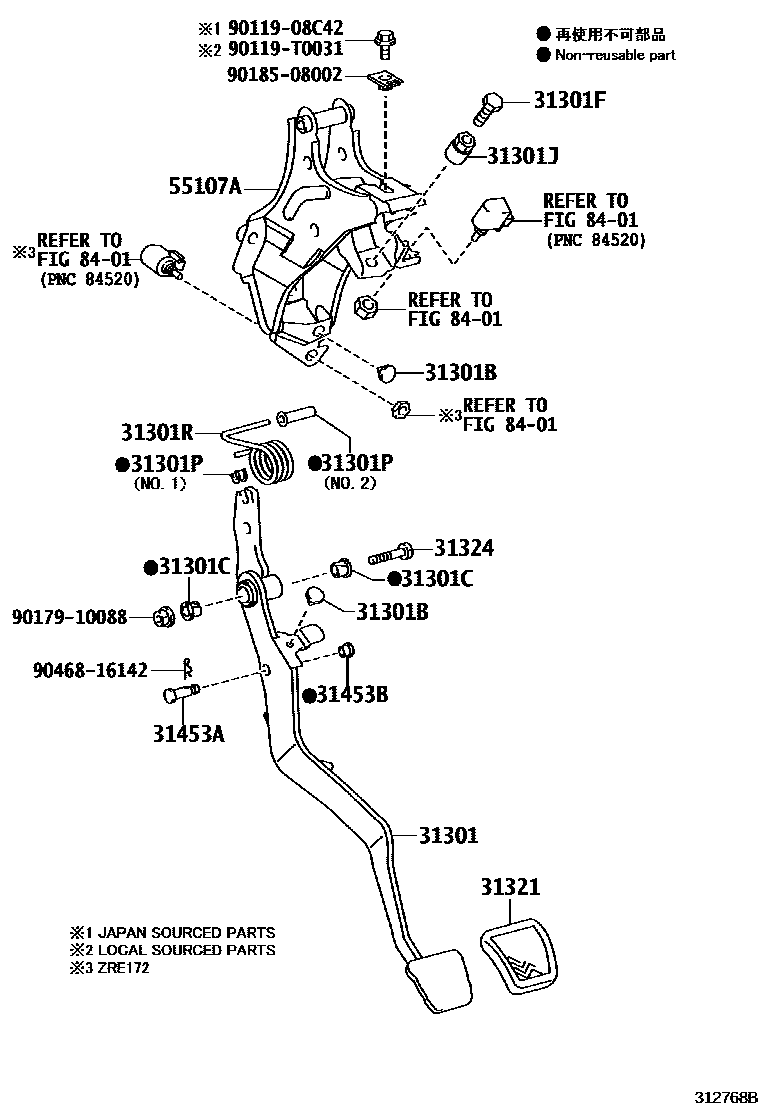

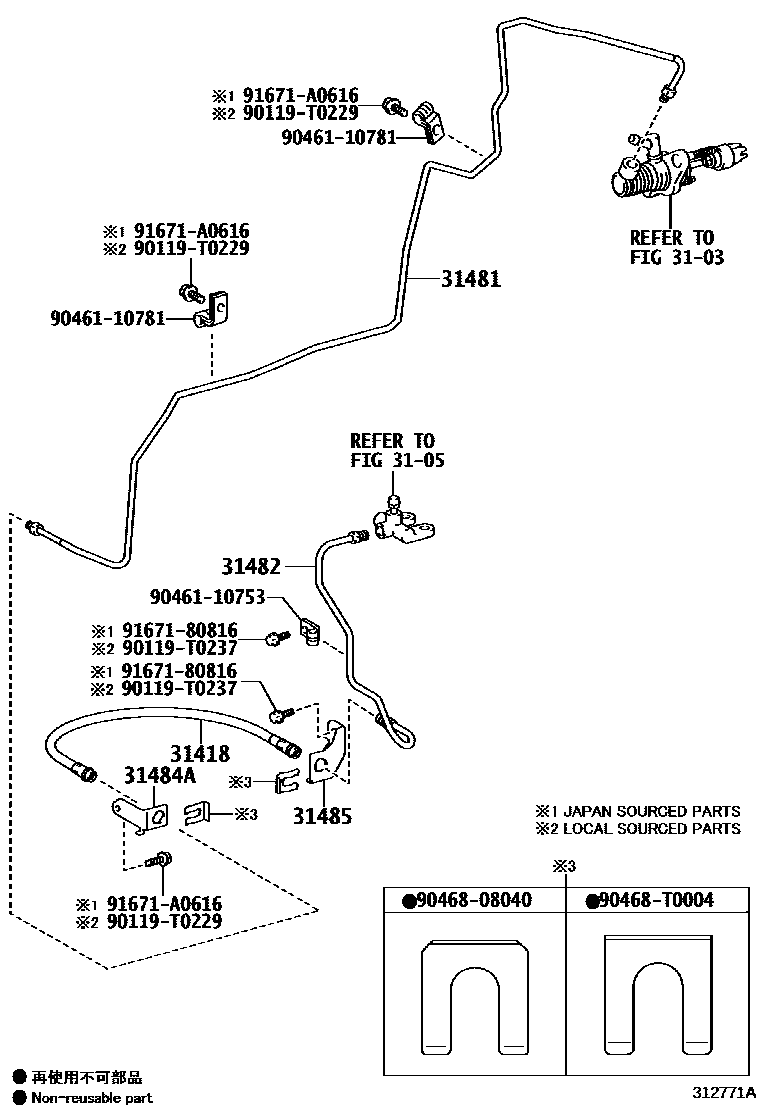

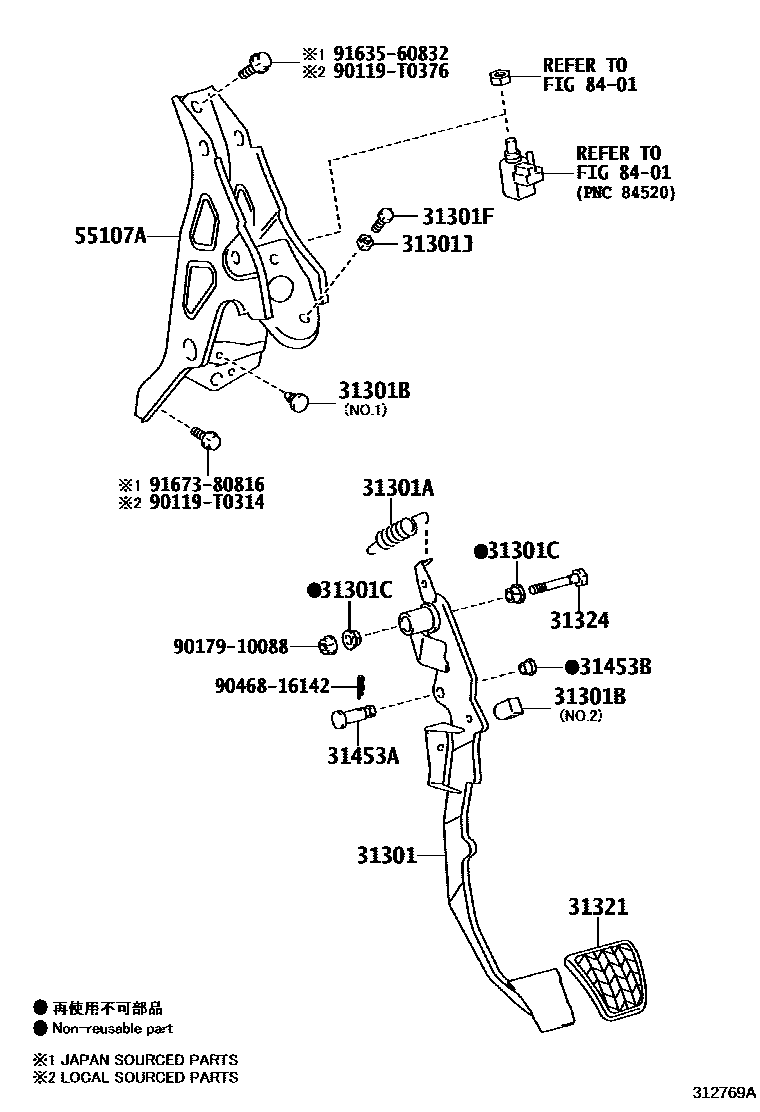

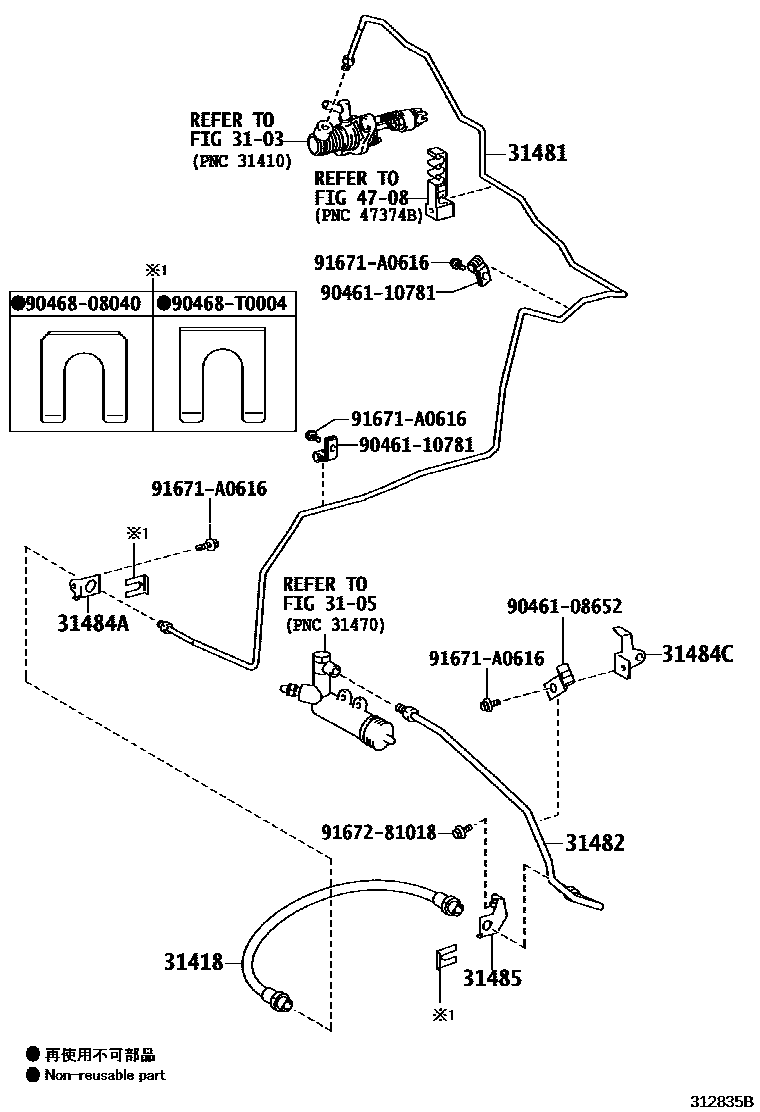

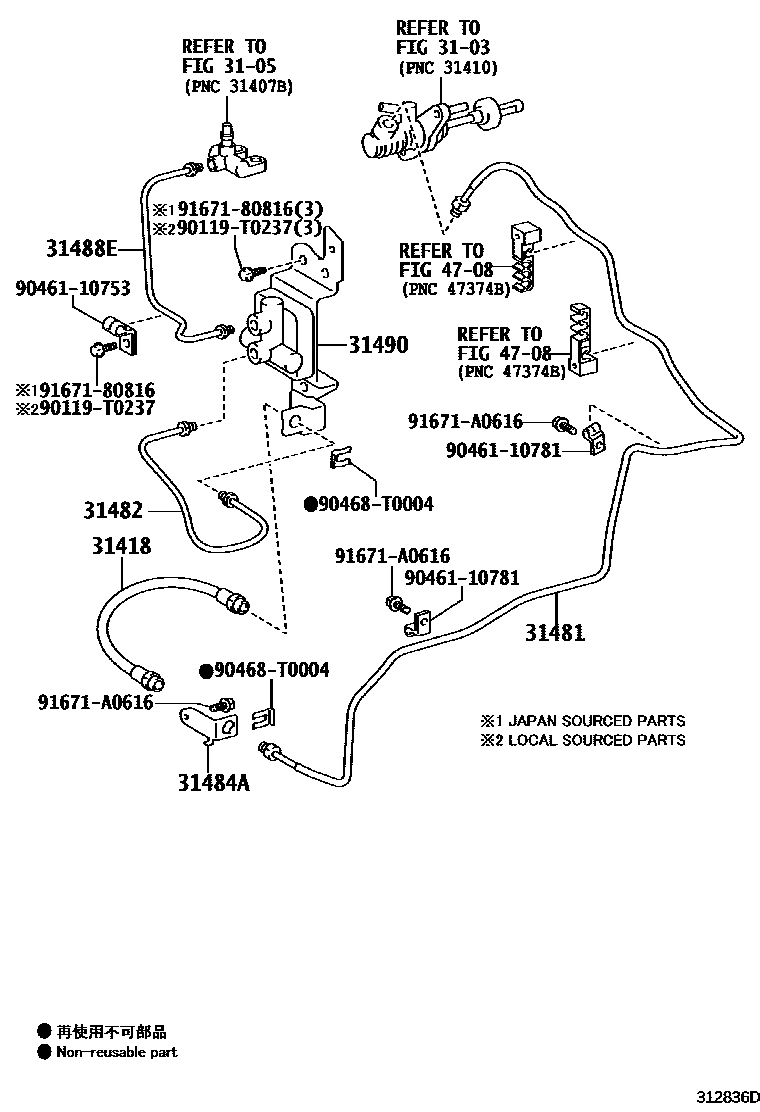

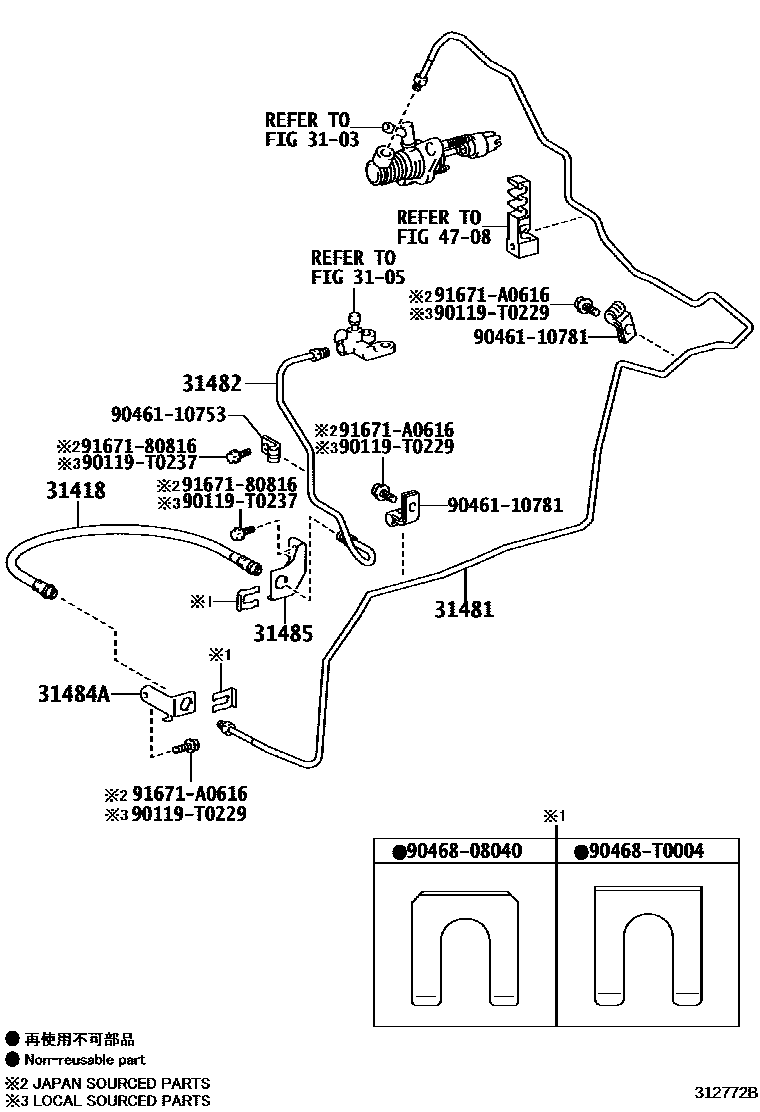

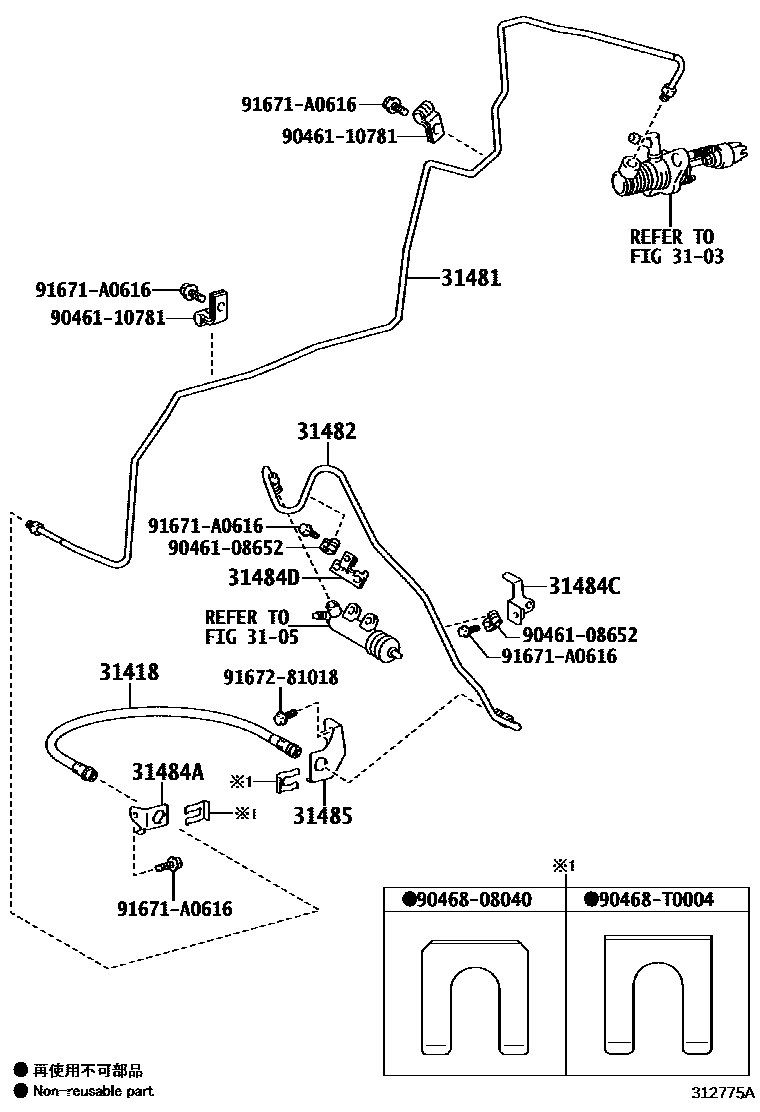

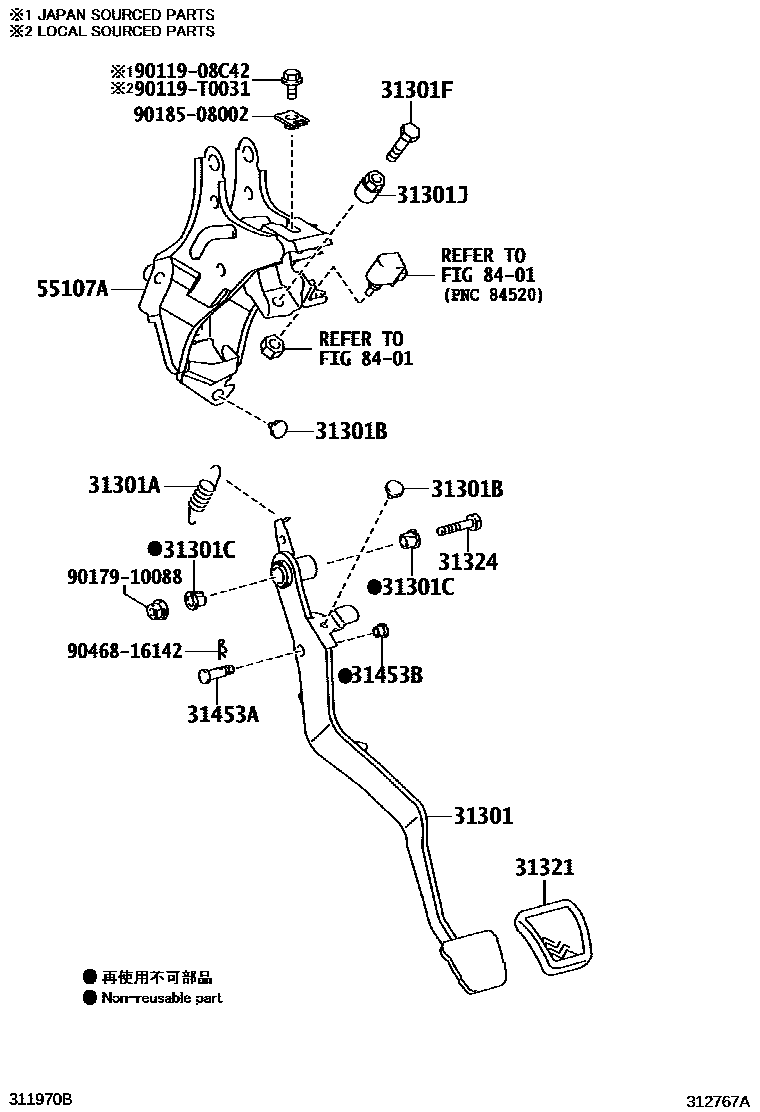

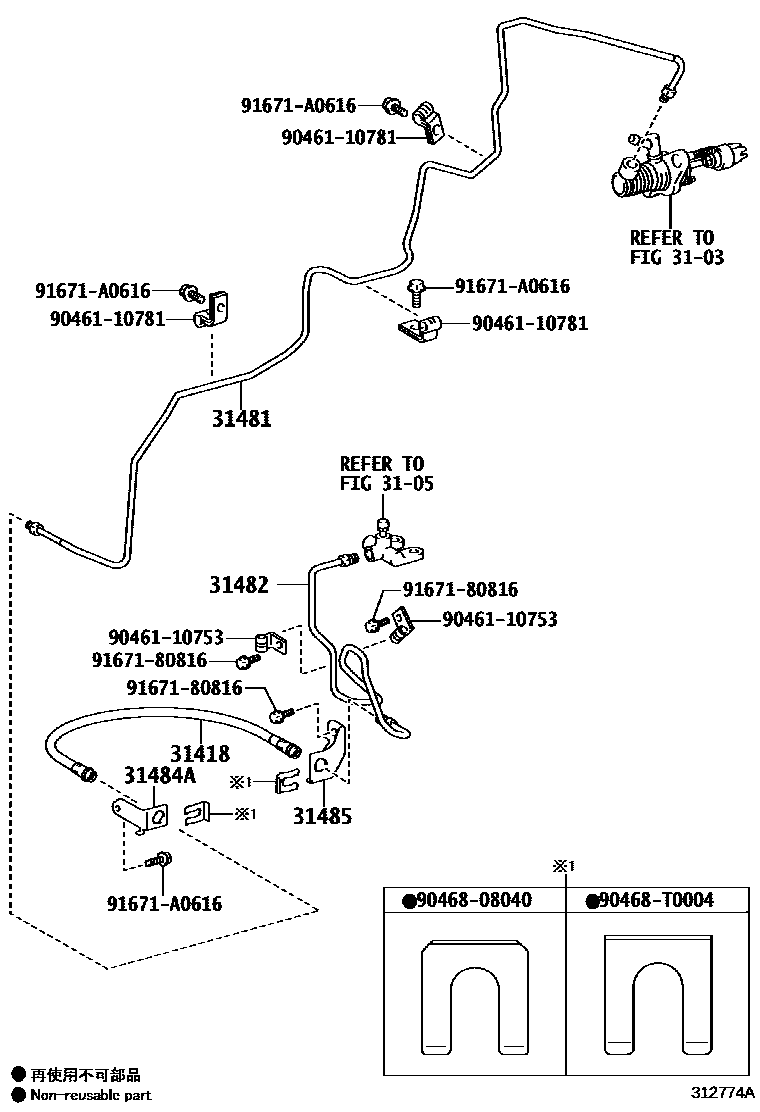

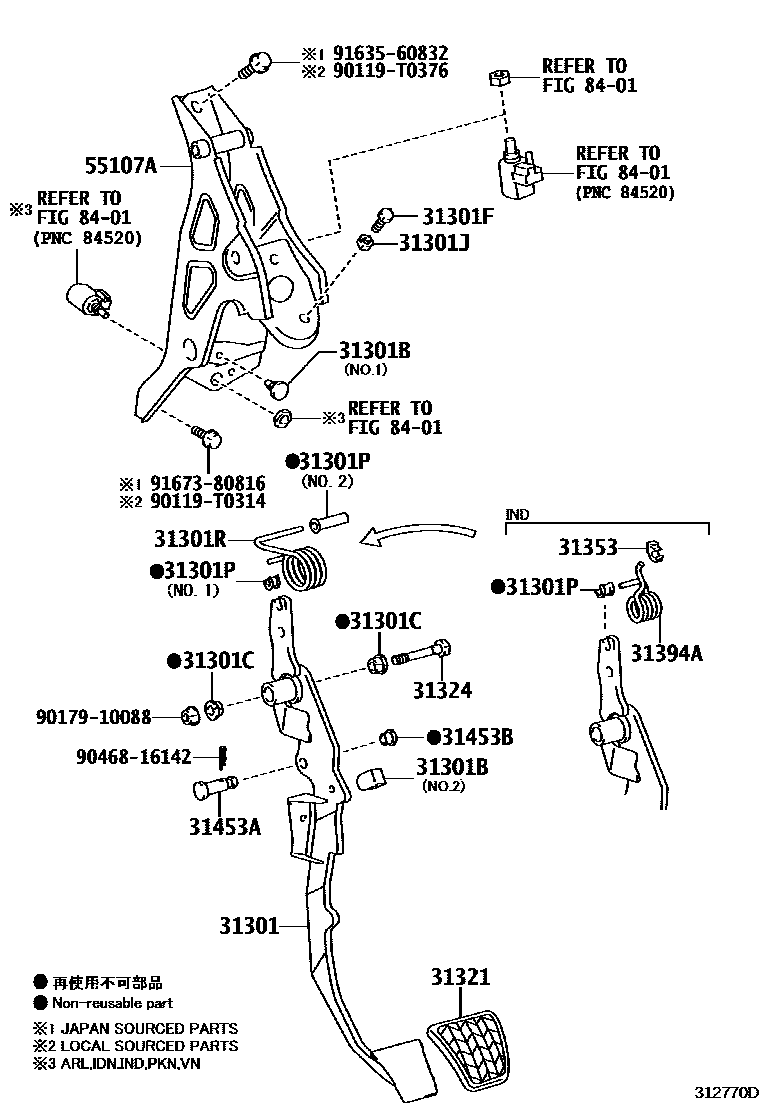

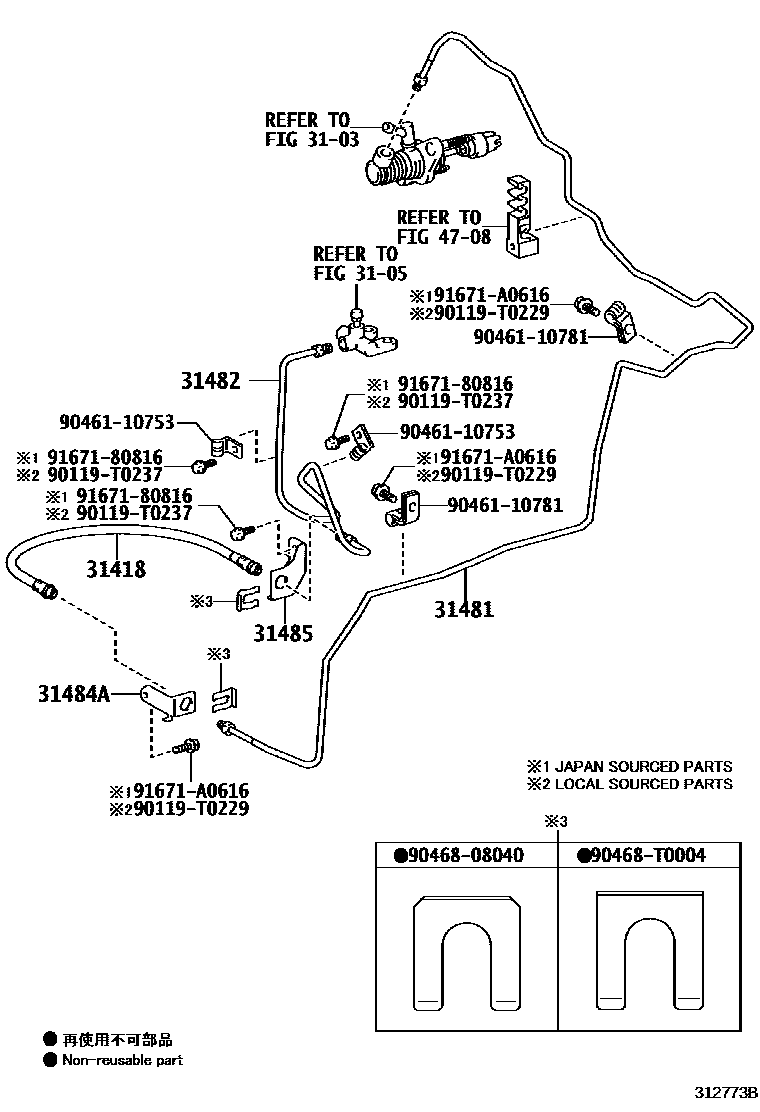

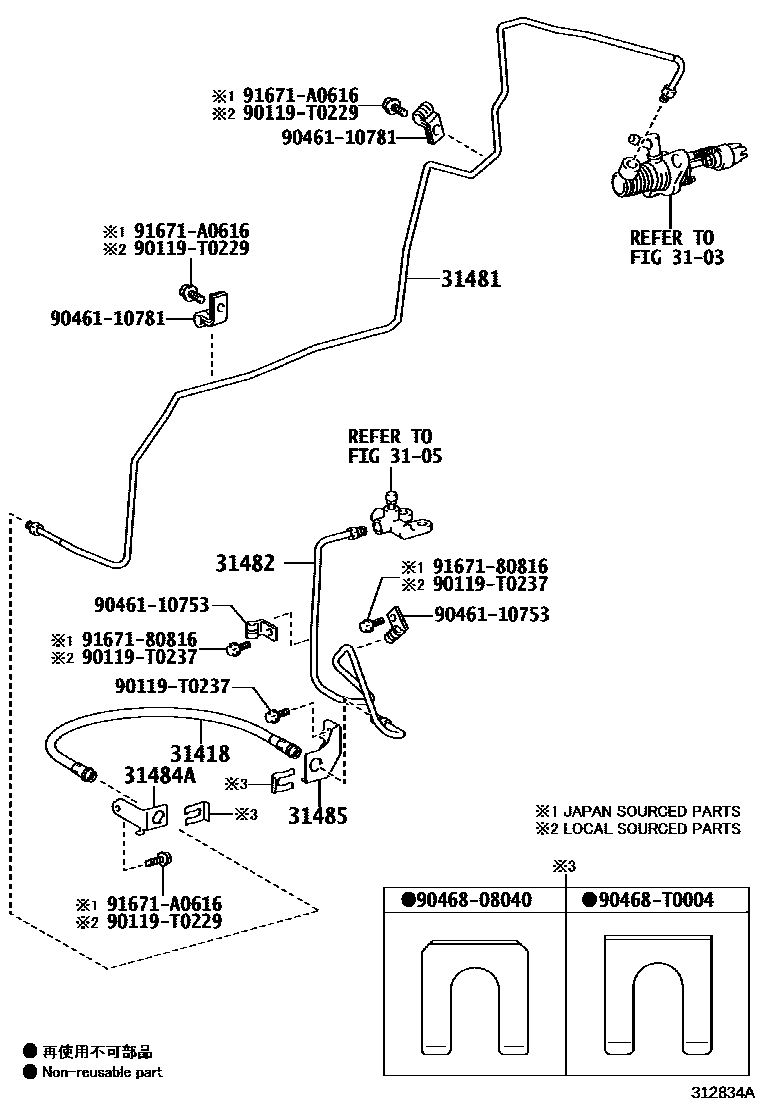

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 12 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02271 · 31301-02461 · 31301-02480 · 31301-02490 · 31301-02520 · 31301-02530 · 31301-02550 · 31301-02570 · 31301-02620 · 31301-02630 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 · 90541-06063 · 90541-T0004 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94120-41000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 · 90389-06055 |
| 31301R | Compression spring (for flip spring seat) | 90949-03138 |
| 31321 | clutch pedal pad | 31321-02020 · 31321-02030 · 31321-02060 · 31321-02090 · 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10167 · 90109-10174 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-02030 |
| 31418 | clutch hose | 90947-T2039 · 90947-T2058 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 · 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02320 · 31481-02410 · 31481-02430 · 31481-02440 · 31481-02470 · 31481-02530 · 31481-02540 · 31481-02550 · 31481-02560 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02320 · 31482-02380 · 31482-02390 · 31482-02400 · 31482-02410 · 31482-02420 · 31482-02450 · 31482-02460 · 31482-02470 · 31482-02480 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-02201 · 31484-02330 · 31484-12380 |
| 31484C | No. 1 clutch tube bracket | 31484-52150 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02020 · 31484-02170 · 31484-02310 · 31484-02340 |
| 31488E | Pipe from bleeder to accumulator | 31488-12020 |
| 31490 | Clutch pressure accumulator assembly | 31490-12110 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02221 · 55107-02391 · 55107-02400 · 55107-02410 · 55107-02430 · 55107-02440 · 55107-02460 · 55107-02490 · 55107-02500 |
