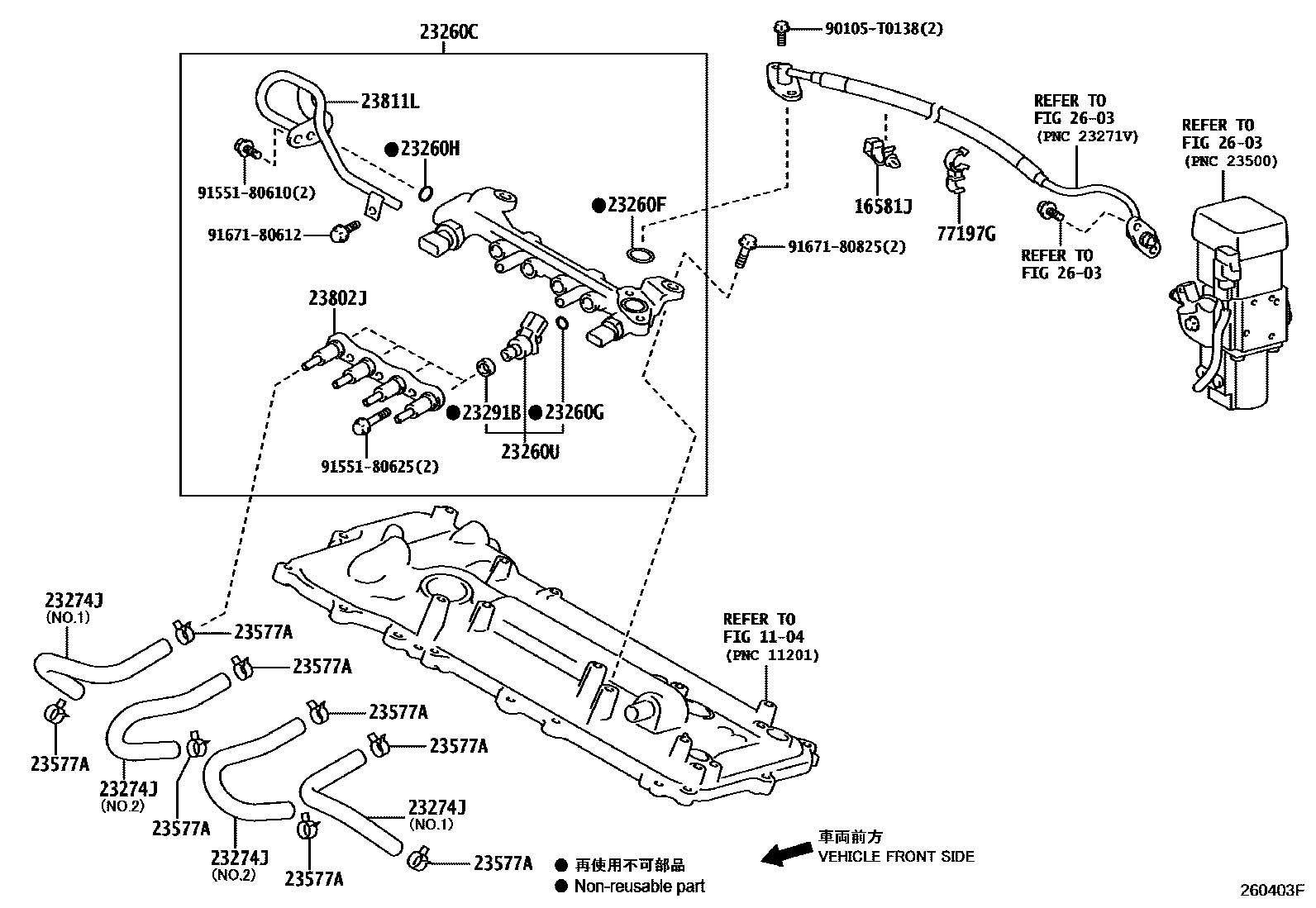

Toyota COROLLA LPG或CNG喷射系统 — Figure 2607
Toyota COROLLA EPC diagram 2607, LPG或CNG喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16581J | No. 1 hose clamp | 90469-22002 |
| 23260C | LPG or CNC injector assembly | 23880-37010 · 23880-37011 |
| 23260F | O-ring (for No. 1 LPG or CNG injector) | 90301-19024 |
| 23260G | O-ring (for No. 2 LPG or CNG injector) | 90301-06017 |
| 23260H | O-ring (for No. 3 LPG or CNG injector) | 90079-60041 |
| 23260U | CNG fuel injector assembly | 23260-39085 |
| 23274J | No. 3 fuel hose | 23271-37070 · 23271-37080 |
| 23291B | Injector vibration isolation pad | 23291-37020 |
| 23577A | card holder | 96132-51100 |
| 23802J | No. 2 fuel pipe sub-assembly | 23802-37020 · 23802-37021 |
| 23811L | No. 1 fuel pipe | 23811-37020 |
| 77197G | No. 2 evaporation vent pipe clamp | 23849-31010 |
