Toyota COROLLA 燃油喷射系统 — Figure 2211

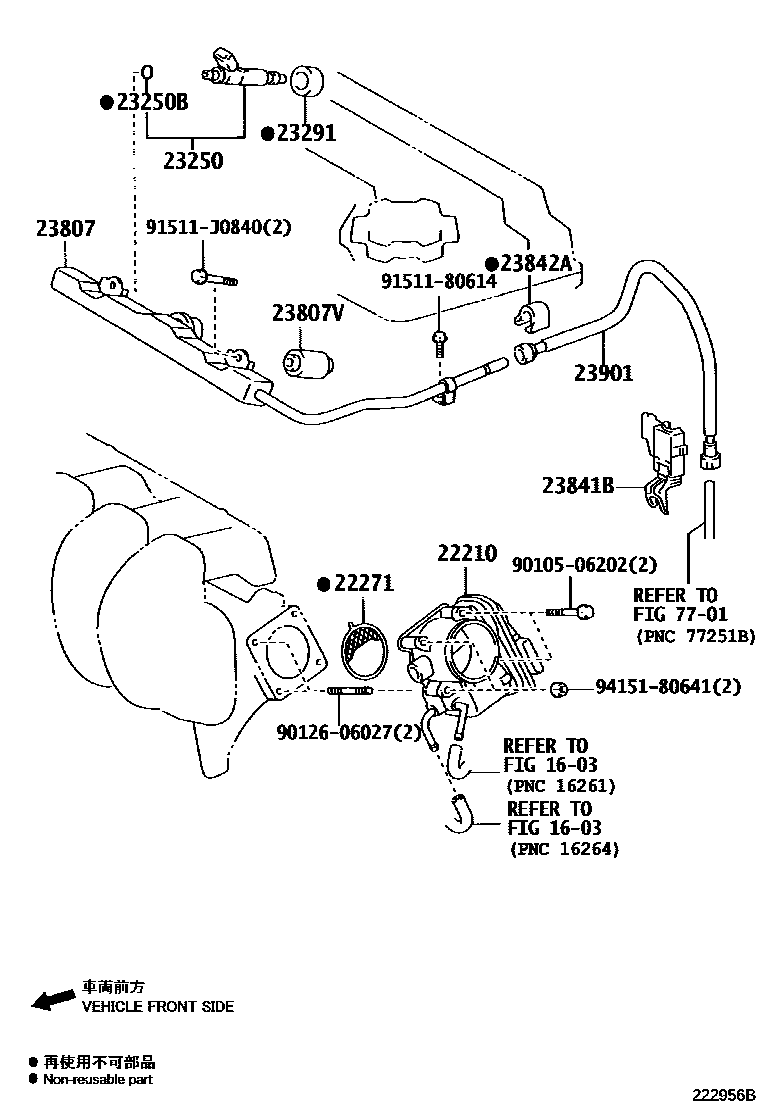

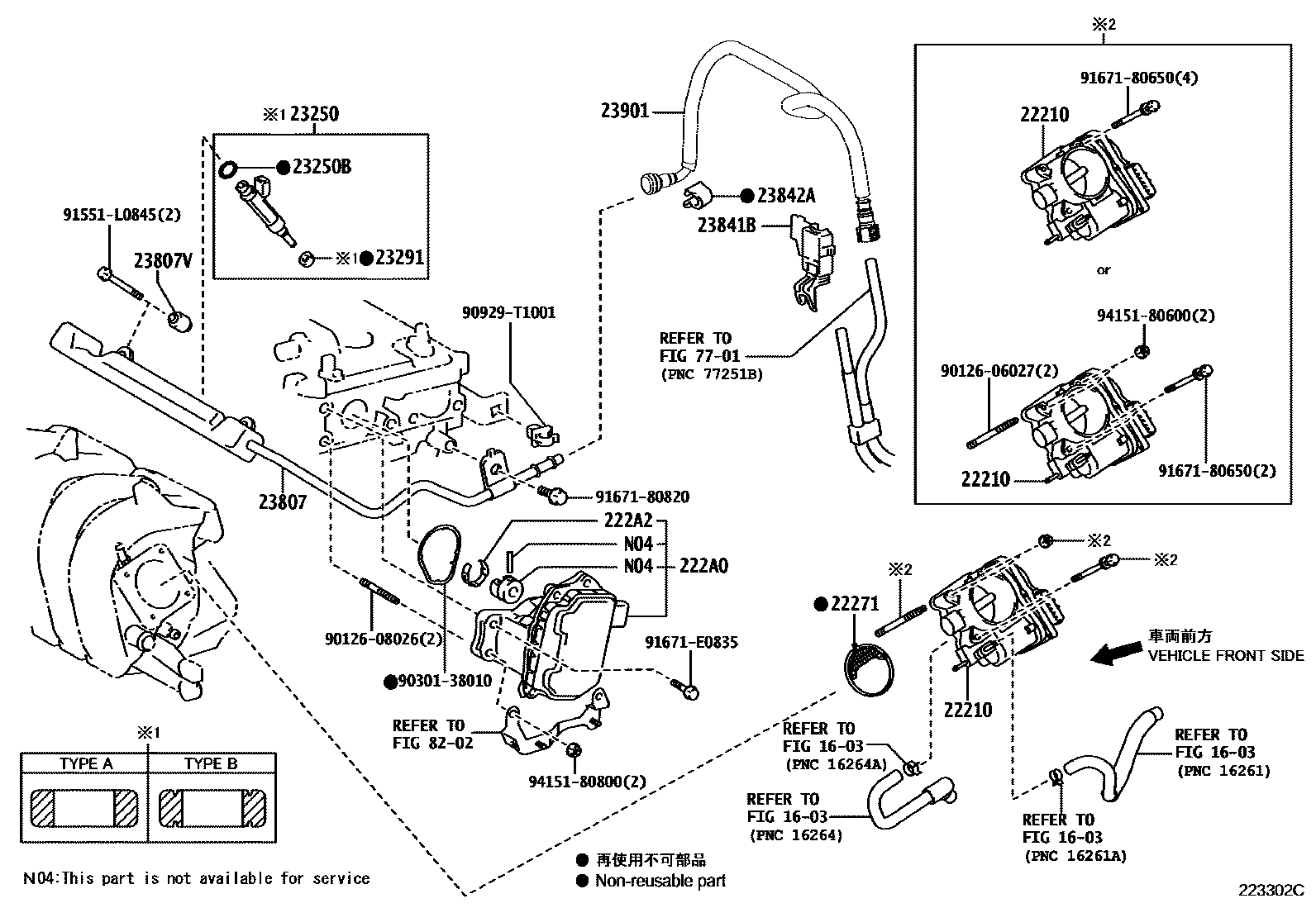

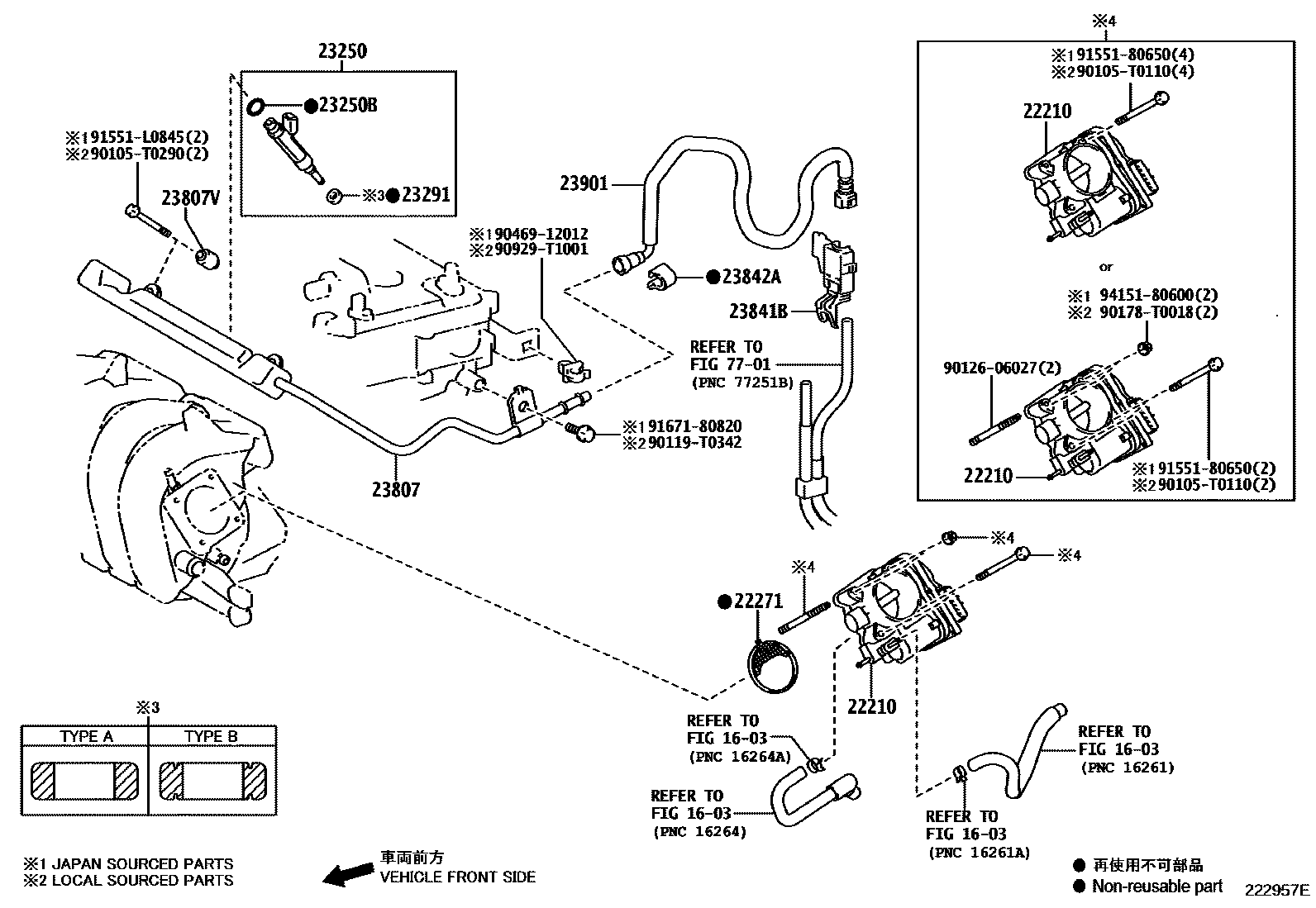

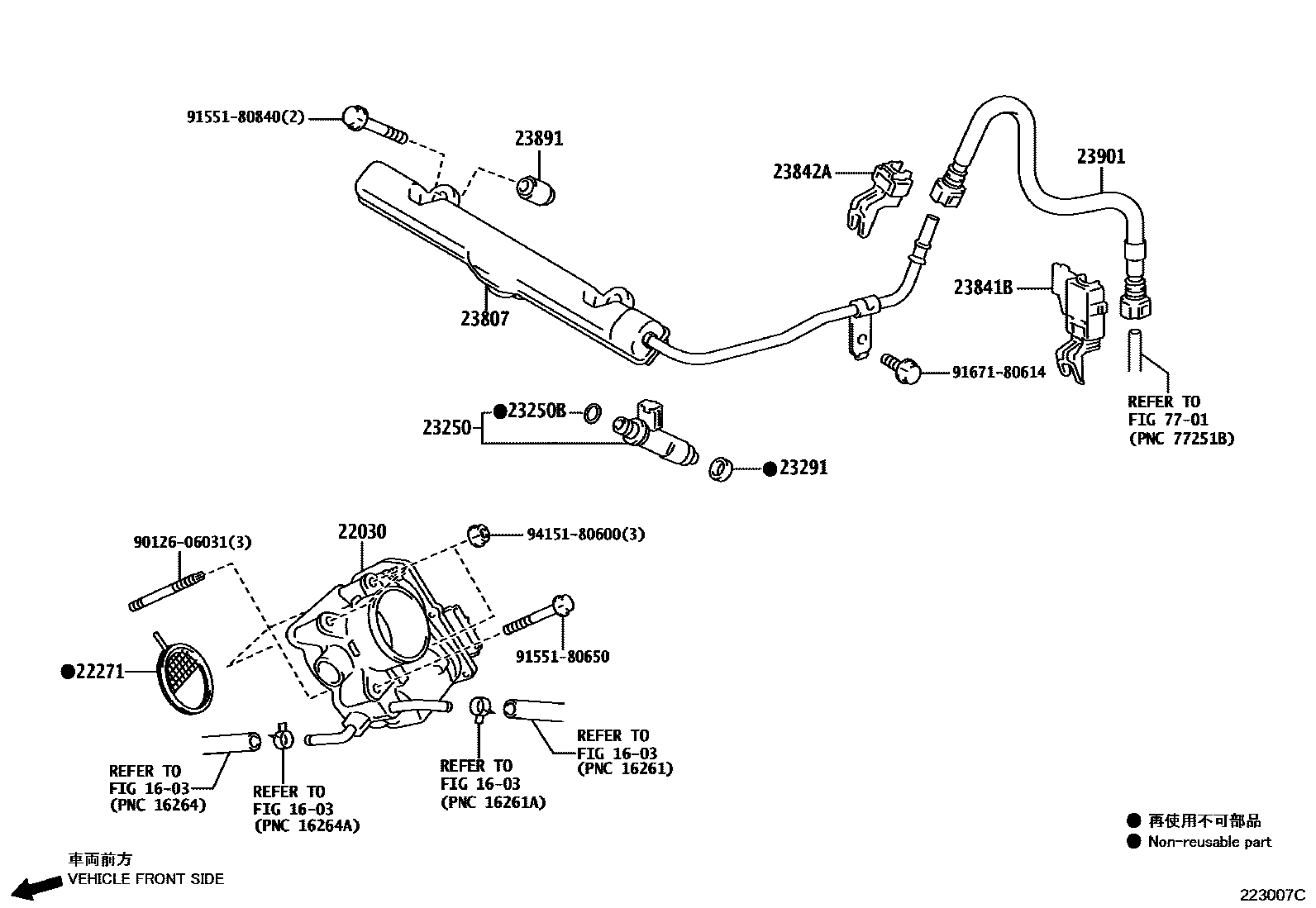

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-21030 |
| 22210 | Throttle body assembly | 22030-0T120 · 22030-22041 · 22030-37050 |
| 22271 | Throttle body gasket | 22271-0T021 · 22271-0T060 · 22271-21060 · 22271-75031 |
| 222A0 | Continuously variable valve lift controller assembly | 222A0-37022 · 222A0-37023 · 222A0-37024 |
| 222A2 | Valve lifter control actuator connector clip | 222A2-37011 |
| 23250 | Fuel injector assembly | 23209-09200 · 23209-09410 · 23209-21040 · 23209-22020 · 23209-39146 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-T0051 |
| 23291 | Injector vibration isolation pad | 23291-0T010 · 23291-22020 · 23291-23010 · 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23807-21090 · 23807-22061 · 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0T031 · 23841-0T040 · 23841-0T041 · 23841-0T042 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-21050 · 23842-28010 |
| 23891 | oil pipe septum | 23891-21010 |
| 23901 | Fuel pipe sub-assembly | 23901-0D150 · 23901-0M060 · 23901-0T150 · 23901-0T160 |
