Toyota COROLLA 喷油泵总成 — Figure 2202

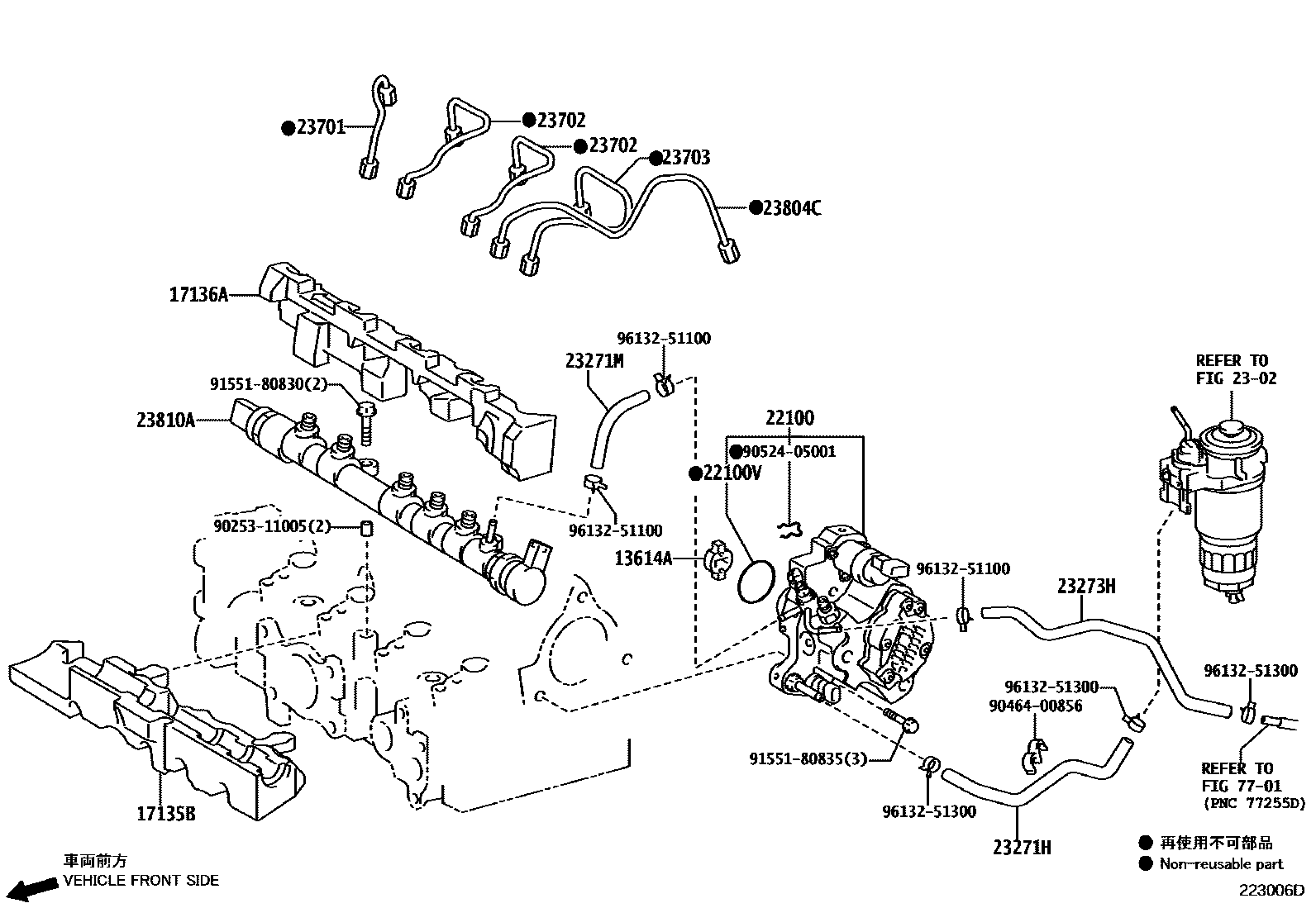

Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13614A | No. 1 oil supply pump active coupling | 13614-33010 |
| 17135B | Intake manifold No. 1 heat shield | 17135-33011 · 17135-33012 |
| 17136A | Intake manifold No. 2 heat shield | 17136-33010 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0W010 |
| 22100V | O-ring (for fuel injection pump) | 96723-35044 |
| 23271H | No. 1 fuel hose | 23271-33120 |
| 23271M | fuel hose | 23273-33090 |
| 23273H | No. 2 fuel hose | 23273-33160 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-33040 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-33010 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-33010 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-33020 |
| 23810A | Common rail assembly | 23810-33030 · 23810-33031 |
