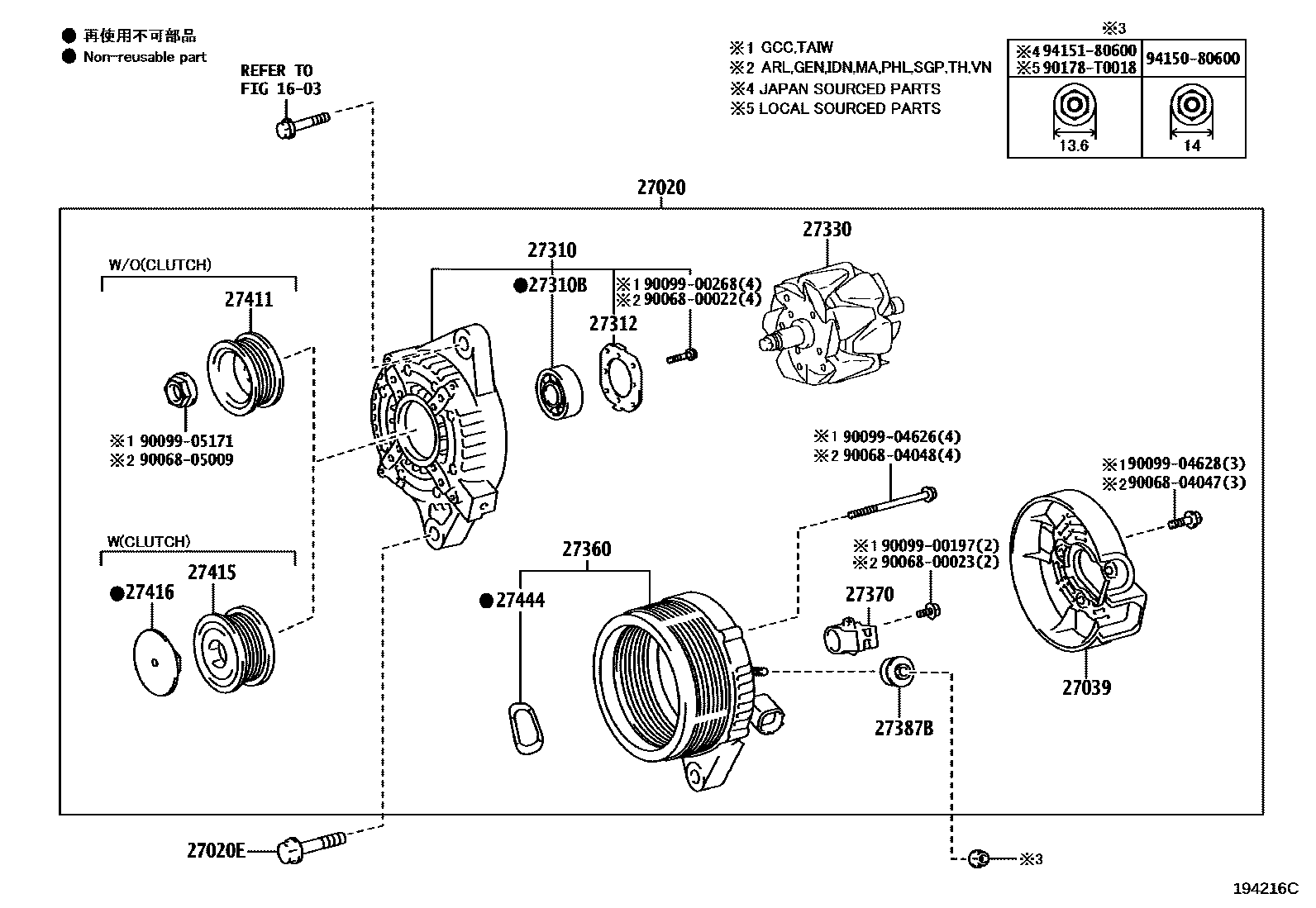

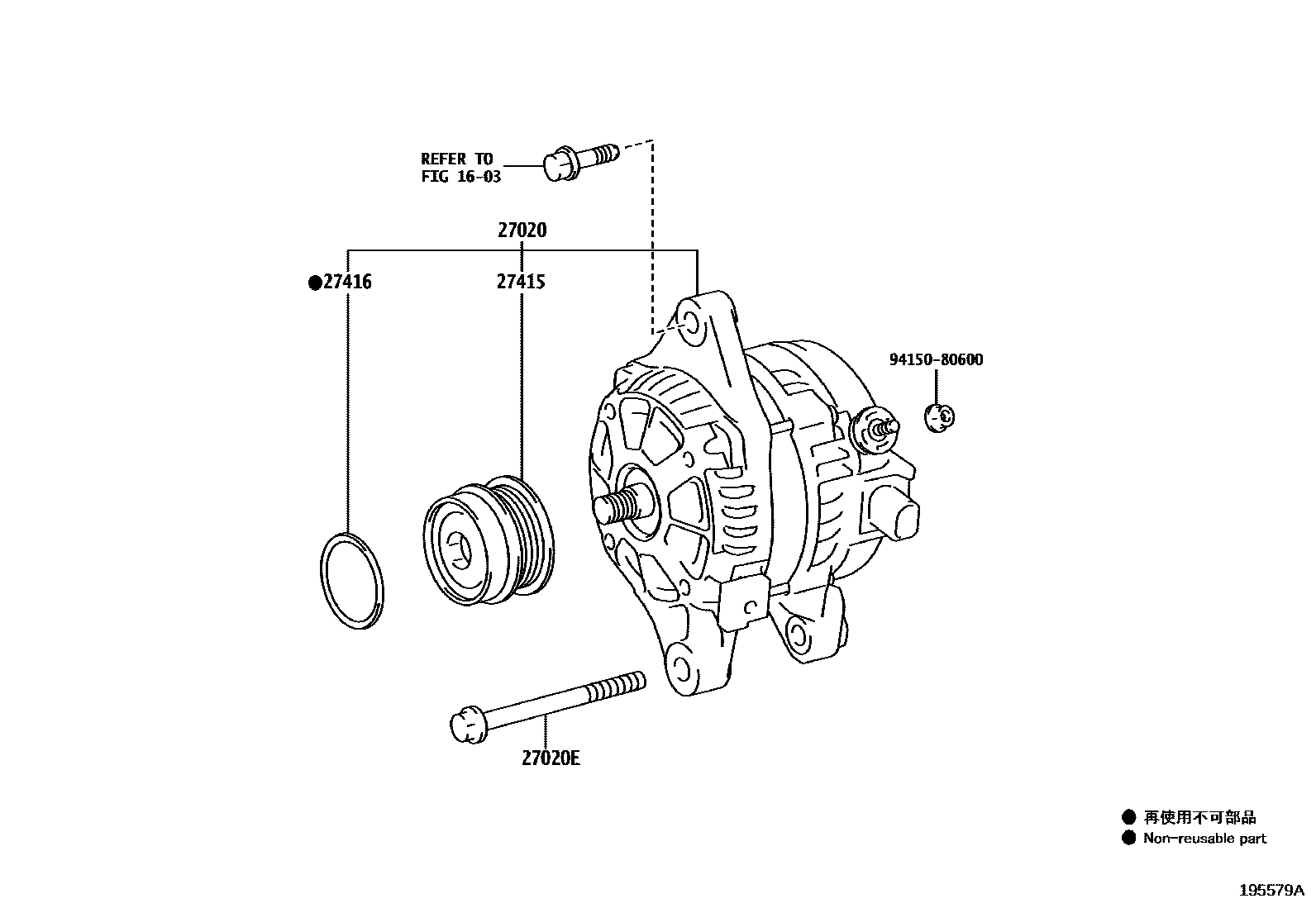

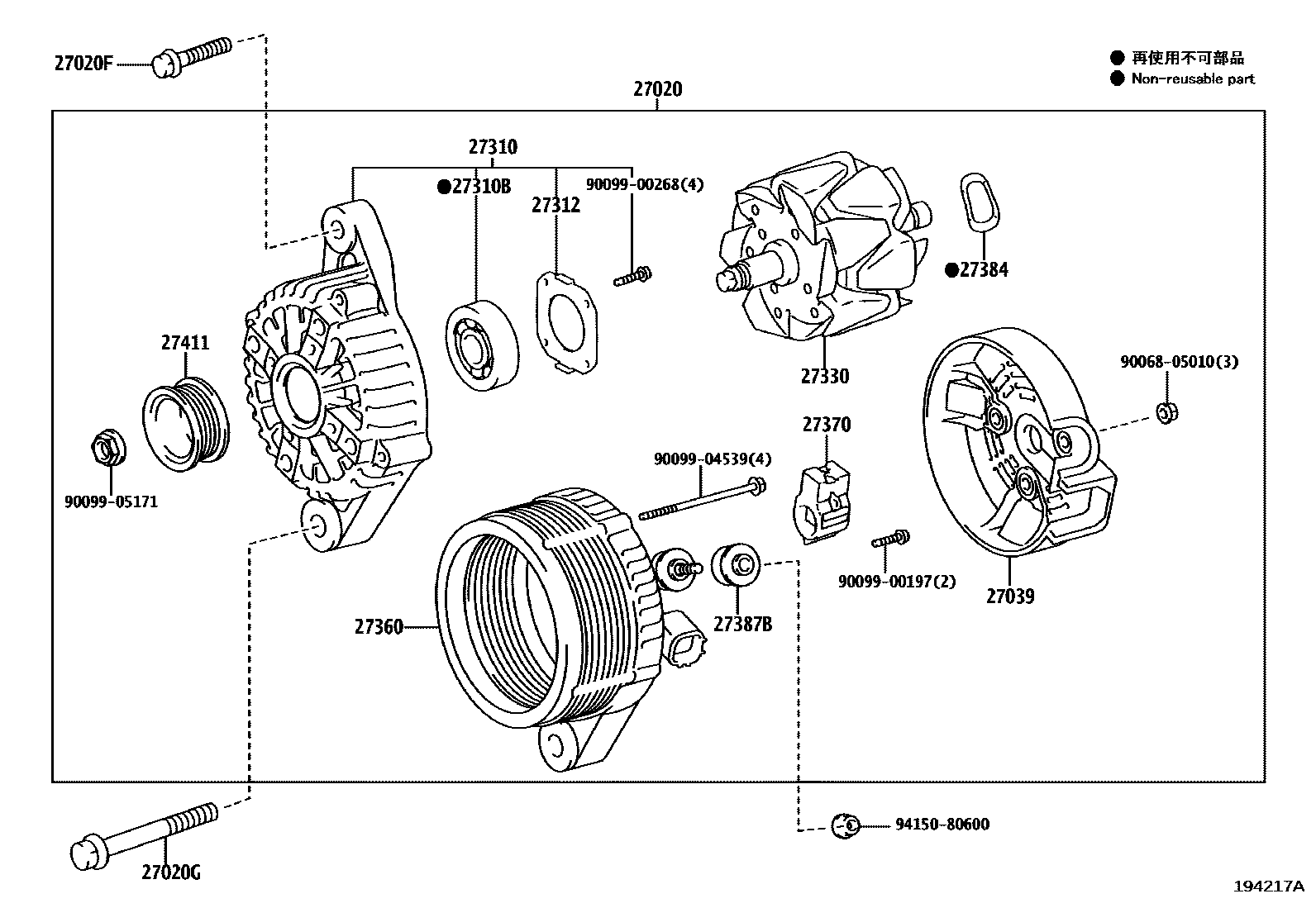

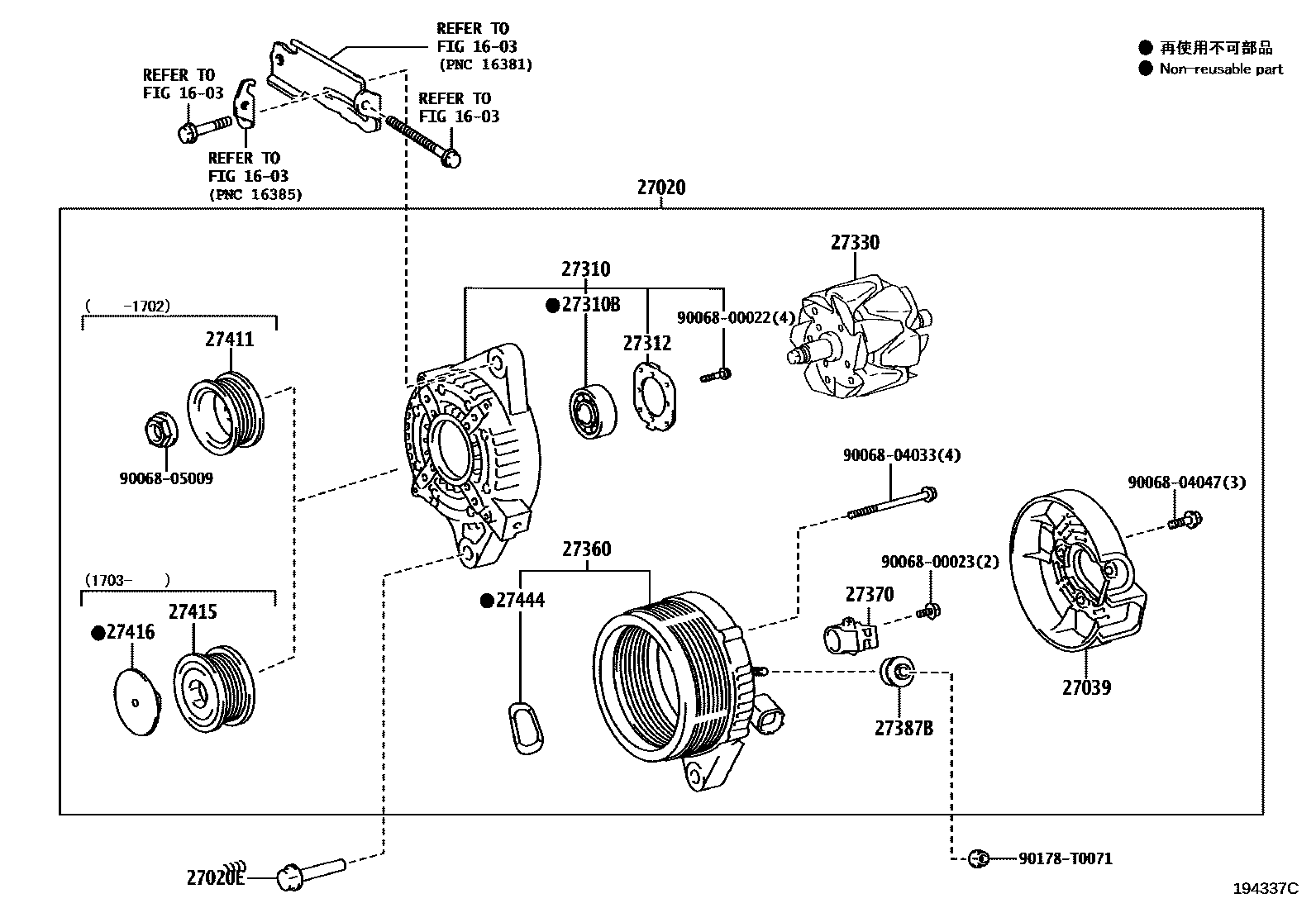

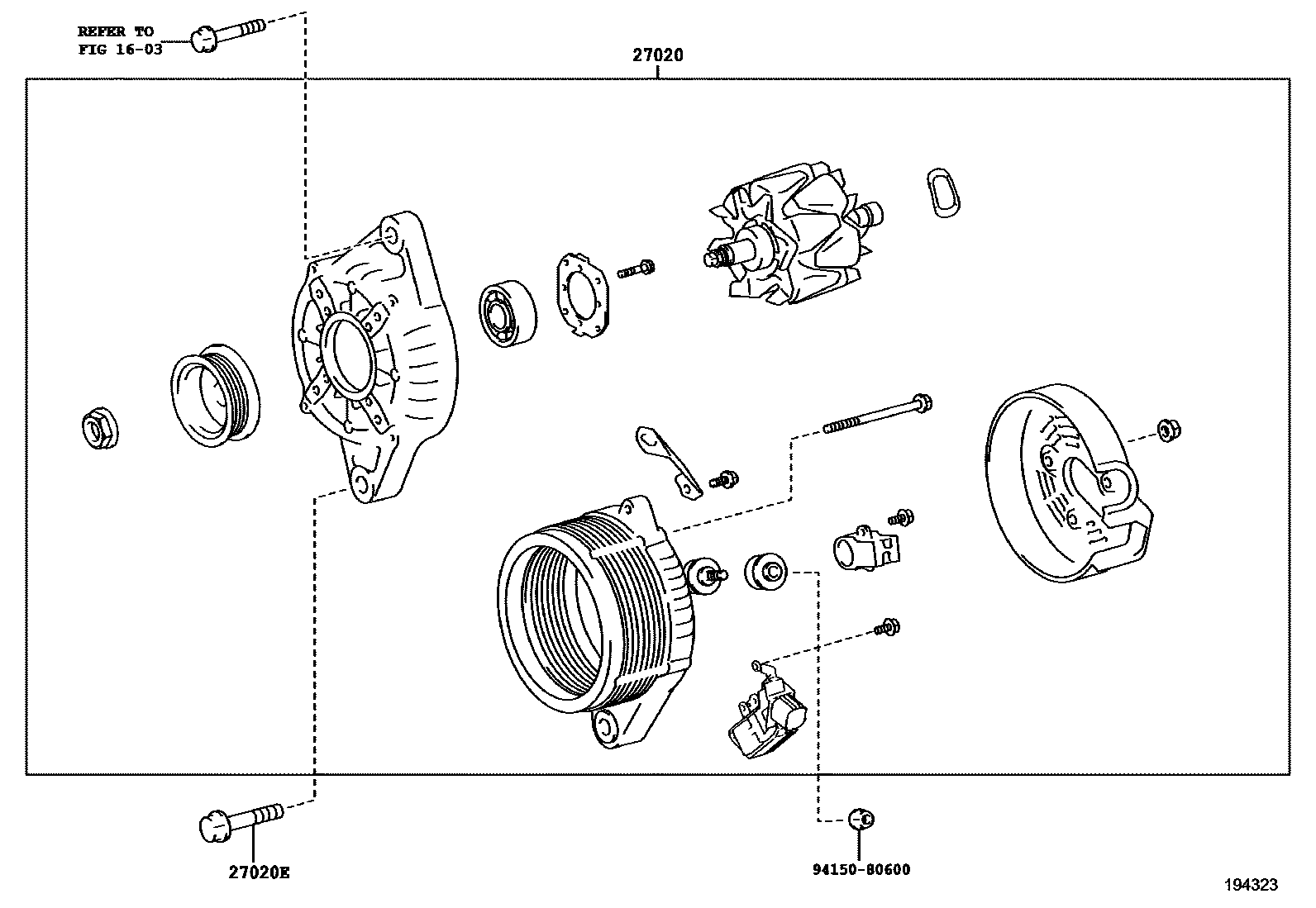

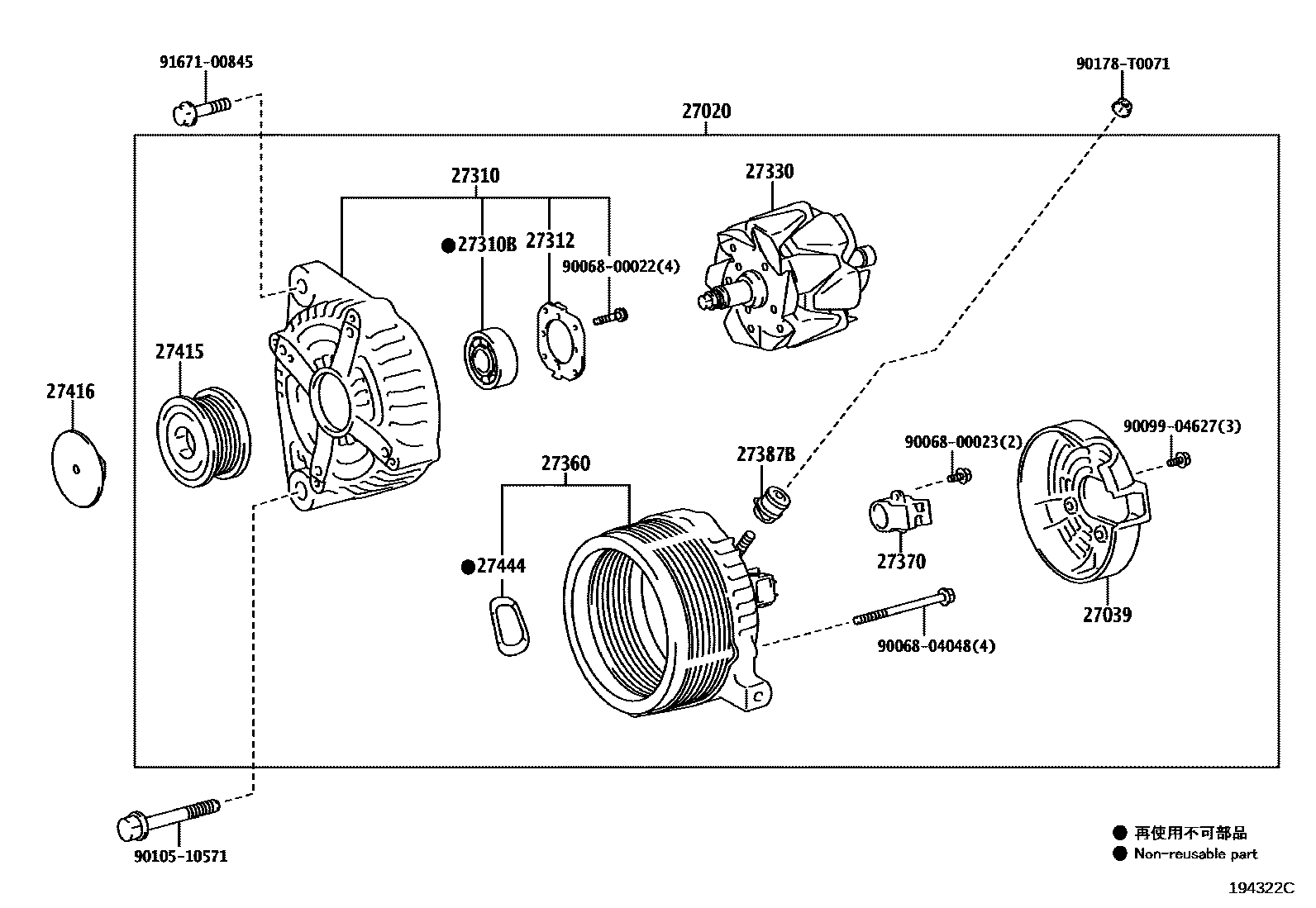

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D260 · 27060-0M140 · 27060-0N130 · 27060-0T290 · 27060-0T300 · 27060-0T310 · 27060-0T330 · 27060-0T350 · 27060-0T390 · 27060-0T391 · 27060-0T410 · 27060-0T420 · 27060-0T430 · 27060-0T450 · 27060-0T460 · 27060-0T470 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10307 |
| 27020F | Bolt No. 1 (for generator) | 90105-08154 |
| 27020G | Bolt No. 2 (for generator) | 90105-10075 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0M100 · 27039-0V220 · 27039-0Y180 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D210 · 27310-0N110 · 27310-0T270 · 27310-0T280 · 27310-0T290 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10036 · 90068-10040 · 90068-10042 · 90068-10047 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0M070 · 27312-0Y100 |
| 27330 | Alternator Rotor Assembly | 27330-0H080 · 27330-0M100 · 27330-0N110 · 27330-0T280 · 27330-0T290 · 27330-0Y180 |
| 27360 | Alternator Stator Coil Assembly | 27360-0D210 · 27360-0N110 · 27360-0T270 · 27360-0T280 · 27360-0T290 · 27360-0T310 · 27360-0T370 · 27360-0T390 · 27360-0T400 |
| 27370 | Alternator Brush Holder Assembly | 27370-0M040 · 27370-0T030 · 27370-0Y100 · 27370-31220 |
| 27384 | Washer | 27384-16380 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0H110 |
| 27411 | Alternator Pulley | 27411-0D200 · 27411-0M070 · 27411-0T160 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T070 · 27415-33100 |
| 27416 | Generator pulley cover | 27416-0W050 · 27416-27010 |
| 27444 | Generator bearing cap seals | 27444-0Y180 · 27444-21190 |
